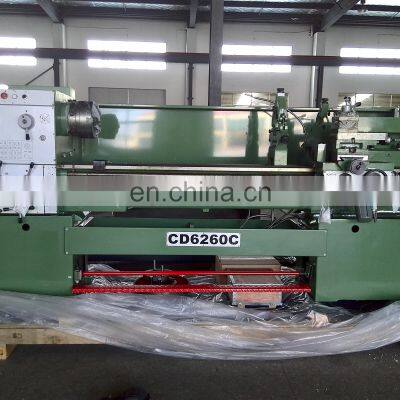

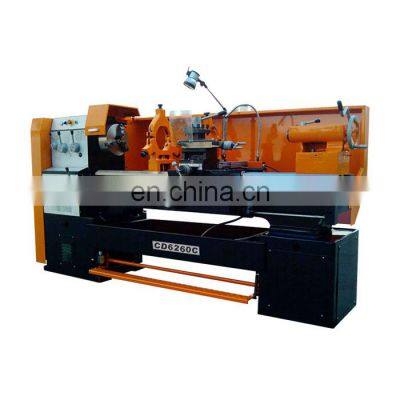

CD6260C 1500mm chinese manual metal lathe machine price for sale

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

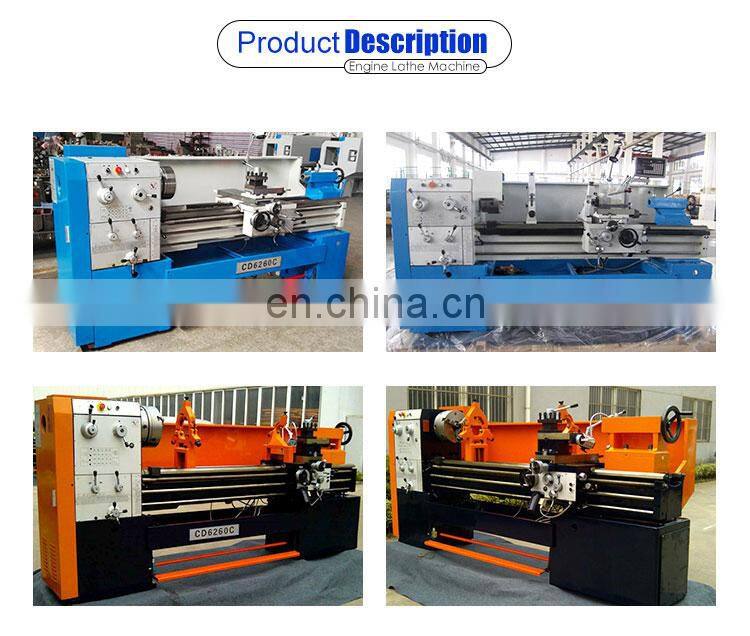

Product Description

Features: Super voice frequency heated bedways cheap cnc lathe machine Hardened and grounded gears in the headstock With 2 precision D degree taper roller bearings on the spindle Integrated deluxe cast iron floor stand Tolerance test certificate, test flow chart included

Main Technical Data

MODEL	CD6236B	CD6240B	CD6250B	CD6260B
	CD6236C	CD6240C	CD6250C	CD6260C
Max.swing over bed	360mm(14")	400mm(16")	500mm(19-3/5")	600mm(23-3/5")
Max.swing over cross slide	185mm(7-1/4")	225mm(9")	325mm(13")	360mm(14")
Max.swing over gap	490mm(20")	550mm(21-1/2")	630mm(25")	730mm(29")
Effective length of gap	260mm(10-1/4")
Center Distance	1000/1500/2000/3000mm(40"/60"/80"/120")
Bed Width	330mm(13")
Spindle hole	65mm(2-3/5")/80mm(3-3/5")
Spindle nose	ISO-D8
Spindle speed(Number)	(15steps)24-1600/24-1600rpm(15steps)
Longitudinal feeds range	66kinds 0.072-4.038mm/rev
Cross feeds range	66kinds 0.036-2.019mm/rev
Metric threads range	66kinds 0.5-28
Inch threads range	66kinds 1-56inch
Moudle threads range	33kinds 0.5-3.5mπ
Diametral threads range	33kinds 8-56D.P
Max.travel of top slide	130mm(5")
Max.travel of cross slide	300mm(12")
Max.size of toolshank	20x20mm/25x25mm
Dia.of tailstock sleeve	65mm(2-1/2")
Taper of tailstock sleeve	MT5
Max.travel of tailstock	120mm(4-3/4")
Main drive motor	5.5kw				7.5kw
Rapid traverse motor	250w
Coolant pump motor	125w
Center Distance(1000mm)	2450x1150x17500mm(96x46x71")
Center Distance(1500mm)	2950x1150x17500mm(115x46x71")
Center Distance(2000mm)	3450x1150x17500mm(137x46x71")
Center Distance(1000mm)	1520/2170kg 1350/2000kg	1560/2210kg 1640/2290kg	1600/2250kg 1700/2350kg	1640/2290kg 1800/2500kg
Center Distance(1500mm)	1750/2390kg 1850/2550kg	1770/2410kg 1890/2590kg	1830/2470kg 1910/2610kg	1870/2530kg 2010/2760kg
Center Distance(2000mm)	/ 2090/2860kg	2010/2780kg 2090/2860kg	2070/2820kg 2150/2920kg	2130/2860kg 2250/3070kg
Center Distance(3000mm)	/	/	/	/

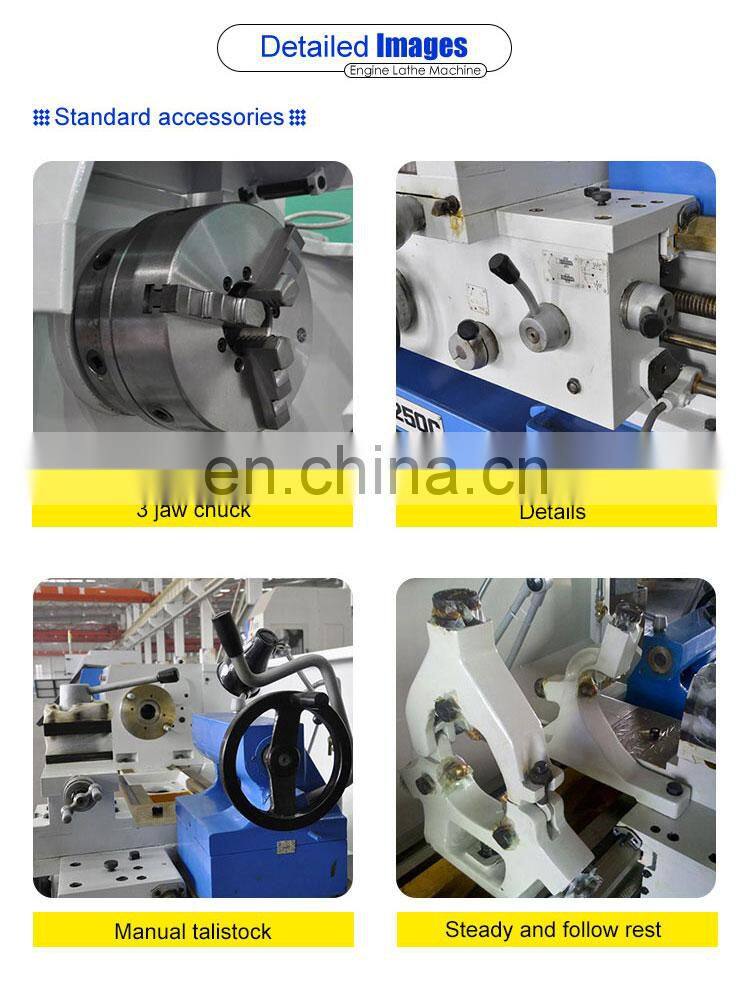

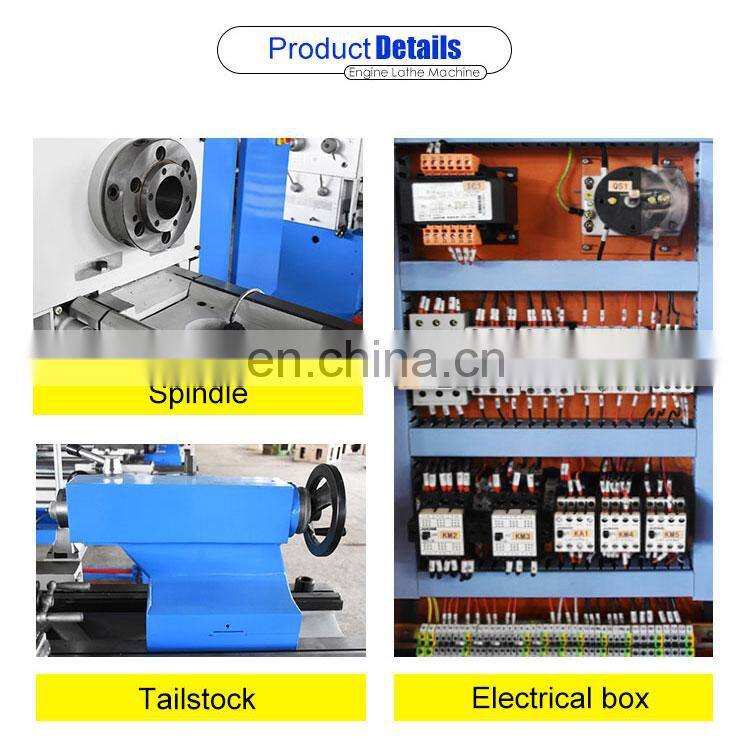

Details about the machine:

Package&Shipping

Guarantee Terms:

Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
