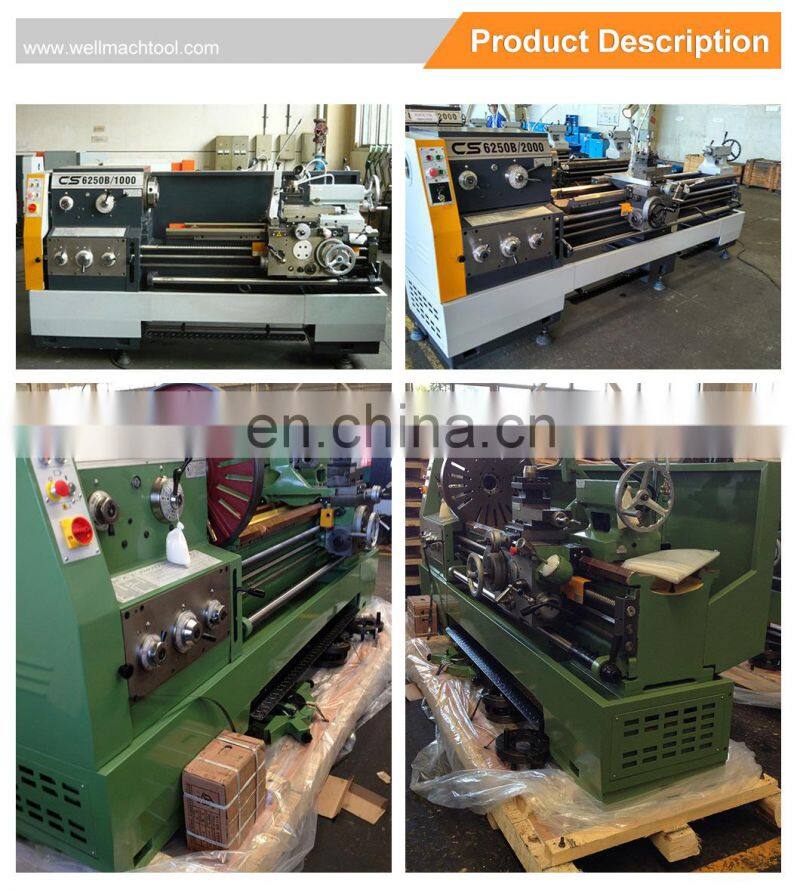

CS6250B 500 mm Max.swing Over Bed Manual Lathe Machine Metal for Sale

CS6250B horizontal heavy duty metal engine lathe machine with CE
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Specification | Unit | CS6250B |
Max swing over bed | mm | φ500 |
Max swing in gap | mm | φ710 |
Effective length in gap | mm | 240 |
Max swing over slide | mm | φ300 |
Max workpiece length | mm | 1000/1500/2000/3000 |
Spindle thru-hole | mm | φ82 |
Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | |
Spindle speed | r/min | 24 step 9-1600 |
Spindle motor | kW | 7.5 |
Quill dia./travel | mm | φ75/150 |
Taper of center | MT | 5 |
Number of station/ | 4/ 25X25 | |
Tool section | ||
Max X-axis travel | mm | 145 |
Max Z-axis travel | m/min | 320 |
X-axis feed | mm/r | 93 kinds 0.028-6.43 |
Z-axis feed Z-axis feed | mm/r | 93 kinds 0.012-2.73 |
Metric thread | mm | 48 kinds 0.5-224 |
Inch thread | t.p.i | 48 kinds 72-1/4 |
Module thread | πmm | 42 kinds0.5-112 |
DP thread | t.p.i. π | 42 kinds 56-1/4 |
Coolant pump motor | kW | 0.06 |
Machine length | mm | 2880 |
Machine width | mm | 975 |
Machine height | mm | 1230 |
Machine weight | kg | 2400 |
