CS6266Cx1000 mm China manual lathe machine tools for metal work
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CS6266Cx3000 mm China heavy duty manual metal lathe machine for sale
-
CS6266Cx2000 conventional manual lathe machine manufacturer
-
CQ6280B 800mm China metal lathe machine manufacturer for sale
-
C0636B mini metal lathe small lathe machine horizontal precision metal semi automatic lathe machine with CE
-
C0636B mini metal lathe small lathe machine horizontal precision metal semi automatic lathe machine with CE
-
WMT mini HQ500 multi-purpose lathe machine combined milling function
Product Description
Product Description
Specification for lathe machine CS6266C
Introduction -
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning; -Threading
Inch, Metric, Module and D.P.; -Perform drilling, boring and groove broaching; -Machine all kinds of flat stocks and those in
irregular shapes; -Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; -Both Inch and
Metric system are used on these series lathes, it's easy for people from different measuring systems countries; -There are hand
brake and foot brake for users to choose; -These series lathes operate on power supply of different voltages (220V,380V,420V) and
different frequencies (50Hz,60Hz).
Inch, Metric, Module and D.P.; -Perform drilling, boring and groove broaching; -Machine all kinds of flat stocks and those in
irregular shapes; -Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; -Both Inch and
Metric system are used on these series lathes, it's easy for people from different measuring systems countries; -There are hand
brake and foot brake for users to choose; -These series lathes operate on power supply of different voltages (220V,380V,420V) and
different frequencies (50Hz,60Hz).
Main specification
Specification | CS6250C | CS6266C | CQ6280C | ||
Max. swing over bed | Φ500mm | Φ660mm | Φ800mm | ||
Max. swing in gap | Φ710mm | Φ870mm | Φ1000mm | ||
Max. swing over slide | Φ300mm | Φ420mm | Φ560mm | ||
Max. workpiece length | 1000/1500mm / 2000/3000mm | 2000/3000mm | |||
Spindle bore | Φ105mm | ||||
Type of spindle | ISO 702/II NO.8 com-lock type | ||||
Spindle speed | 12 steps:36-1600rpm | 12 steps:30-1400rpm | |||
Spindle motor | 7.5kw | ||||
Diameter of quill | Φ90mm | ||||
Max. travel of quill | 150mm | ||||
Taper of quill | MT5 | ||||
Tool O.D. size | 25×25mm | ||||
Max. X travel | 145mm | ||||
Max. Z travel | 320mm | 310mm | 320mm | ||
X feed range | 65 kinds 0.063-2.52mm/r | ||||
Z feed range | 65 kinds 0.027-1.07mm/r | ||||
Metric threads | 22 kinds 1-14mm | ||||
Inch threads | 25 kinds 28-2t.p.i | ||||
Module threads | 18 kinds 0.5-7πmm | ||||
Diametric pitch | 24 kinds 56-4t.p.i.π | ||||
Cooling pump | 60w | ||||
Length | 2632/3132mm/3632/4632mm | 3365/4365mm | |||
Width | 975mm | 1340mm | |||
Height | 1270mm | 1450mm | 1490mm | ||
N.W | 2100/2300kgs/2500/2900kgs | 3000/3200kgs | |||
G.W | 2200/2400kgs/2600/3000kgs | ||||
Standard accessories:
1) 3-jaw chuck 2) 4-jaw chuck
3) face plate 4) steady rest
5) follow rest 6) face plate
7) work lamp 8) coolant system
9) splash guard 10) foot brake
11) dead centers 12) tool box tools
Optional accessories:
1) 2- axis Sino DRO
2) 3-axis Sino DRO
3) taper attachment
4) Quick change toolpost
5) live center

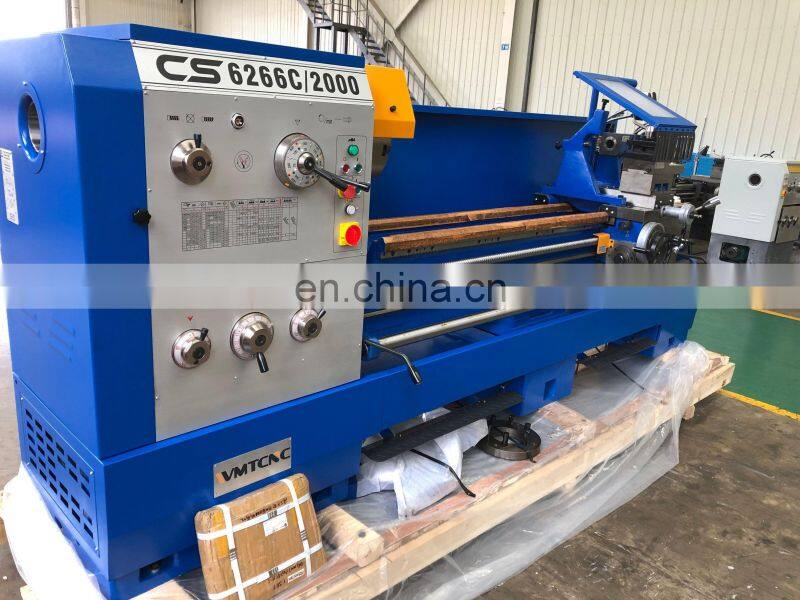

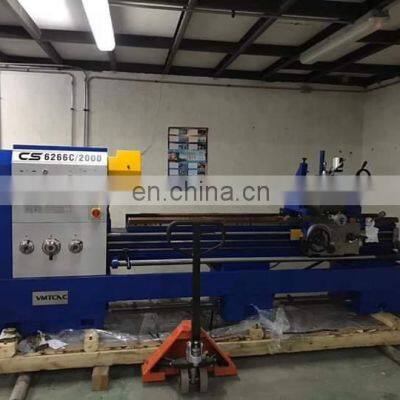

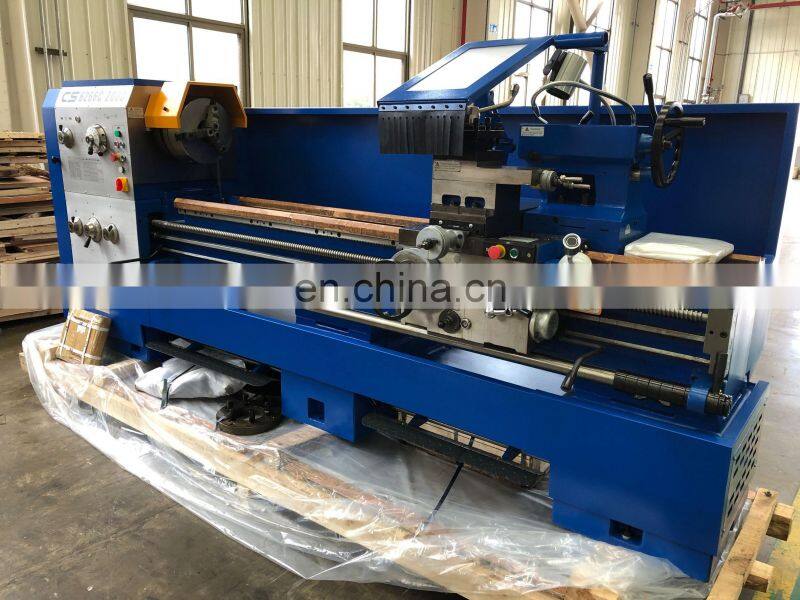

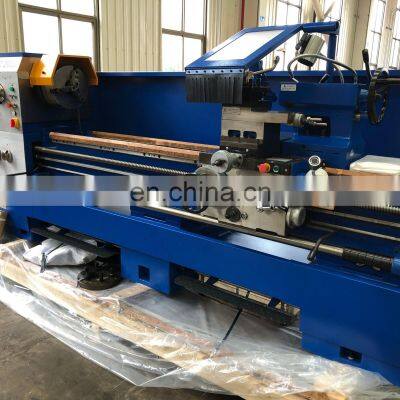

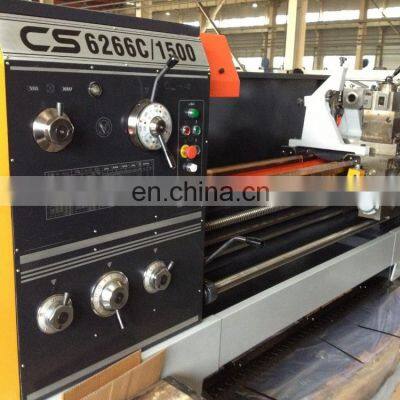

Machine Pics
