CS6240 China Small Manual Lathe Machine for Metal Work

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Lathe machine Features:
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.

Main specification

Specification	Unit	CS6140 /CS6240(with gap)
Max swing over bed	mm	φ400
Max swing over slide	mm	φ220
Max workpiece length	mm	750/1000/1500/2000/3000
Spindle thru-hole	mm	φ52
Spindle nose		CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type
Spindle speed	r/min	24 step 9-1600
Spindle motor	kW	7.5
Quill dia./travel	mm	φ75/150
Taper of center	MT	5
Number of station/		4/25X25
Tool section		4
Max X-axis travel	mm	145
Max Z-axis travel	m/min	320
X-axis feed	mm/r	93 sorts 0.028-6.43
Z-axis feed	mm/r	93 sorts 0.012-2.73
Metric thread	mm	48 sorts 0.5-224
Inch thread	t.p.i	48 sorts 72-1/4
Module thread	πmm	42 sorts 0.5-112
DP thread	t.p.i.π	42 sorts 56-1/4
Coolant pump motor	kW	0.06
Machine length	mm	2382/2632/3132/3632/4632
Machine width	mm	975
Machine height	mm	1230
Machine weight	kg	1795/2050/2250/2450/2850

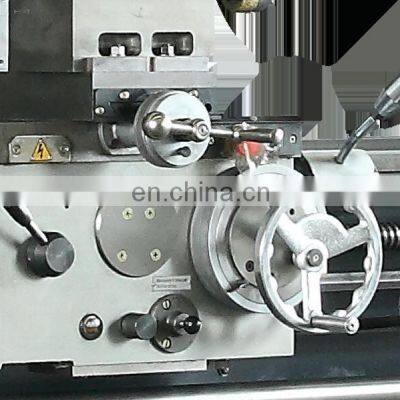

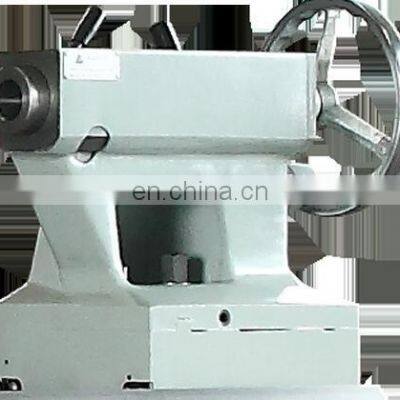

Products Show
