DIY0816 DIY mini machine price for hobby use
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CS6240 China small manual lathe machine for metal work
-
CS6240 1000mm length small manual lathe machine for sale
-
CS6250B manual lathe machine price for sale
-
CS6250Bx2000 mm Chinese manual lathe machine used for metal work
-
CS6250B 500 mm max.swing over bed manual lathe machine metal for sale
-
CS6266B 1500 mm heavy duty lathe machine for sale
Product Description
Product Description
Mini Metal Lathe DIY0816 Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 125-2500rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
Specification | DIY0816 |
Center distance | 400mm |
Swing ove bed | 210mm |
toolpost travel | 55mm |
spindle taper | MT3 |
tailstock taper | MT2 |
spindle bore | 38mm |
chuck diameter | 125mm |
bed width | 100mm |
metric thread | 0.5-3mm |
cross slide travel | 75mm |
tailstock travel | 60mm |
motor | 600W |
spindle speed | 0-2500rpm |

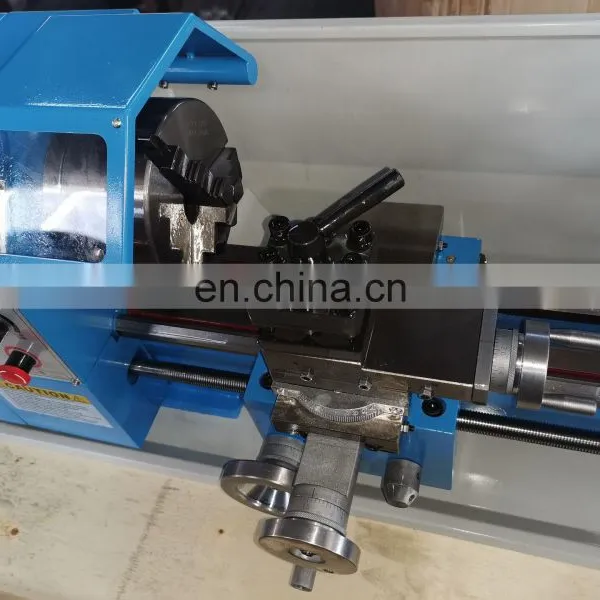

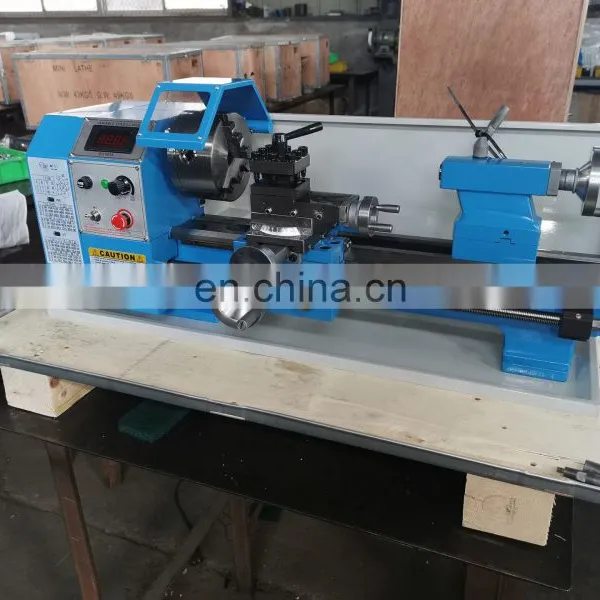

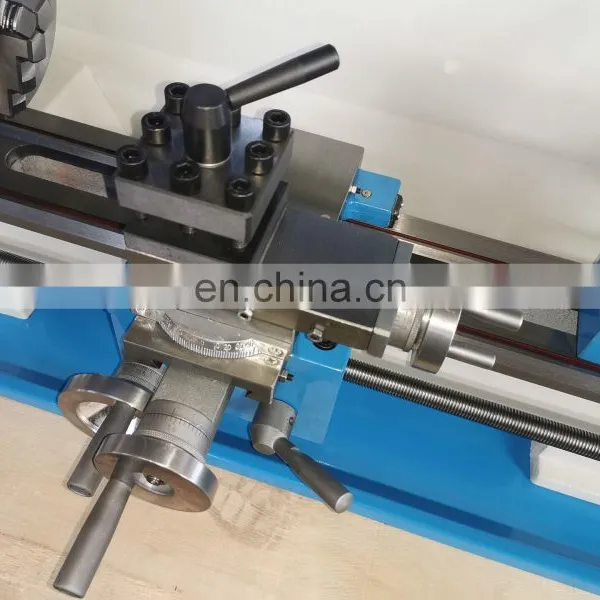

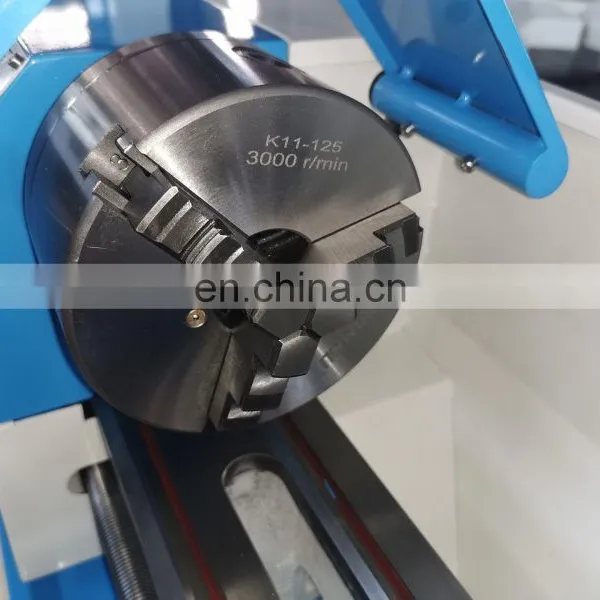

Detailed Images
