CS6266Cx3000 mm China Heavy Duty Manual Metal Lathe Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CS6266Cx2000 Conventional Manual Lathe Machine ManufacturerNegotiableMOQ: 1 -
CQ6280B 800mm China Metal Lathe Machine Manufacturer for SaleNegotiableMOQ: 1
-
C0636B Mini Metal Lathe Small Lathe Machine Horizontal Precision Metal Semi Automatic Lathe Machine With CENegotiableMOQ: 1
-
C0636B Mini Metal Lathe Small Lathe Machine Horizontal Precision Metal Semi Automatic Lathe Machine With CENegotiableMOQ: 1
-
WMT Mini HQ500 Multi-purpose Lathe Machine Combined Milling FunctionNegotiableMOQ: 1
Product Description
Specification for lathe machine CS6266C
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Machine all kinds of flat stocks and those in irregular shapes;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz).
Specification |
CS6250C |
CS6266C |
CQ6280C |
||
Max. swing over bed |
Φ500mm |
Φ660mm |
Φ800mm |
||
Max. swing in gap |
Φ710mm |
Φ870mm |
Φ1000mm |
||
Max. swing over slide |
Φ300mm |
Φ420mm |
Φ560mm |
||
Max. workpiece length |
1000/1500mm / 2000/3000mm |
2000/3000mm |
|||
Spindle bore |
Φ105mm |
||||
Type of spindle |
ISO 702/II NO.8 com-lock type |
||||
Spindle speed |
12 steps:36-1600rpm |
12 steps:30-1400rpm |
|||
Spindle motor |
7.5kw |
||||
Diameter of quill |
Φ90mm |
||||
Max. travel of quill |
150mm |
||||
Taper of quill |
MT5 |
||||
Tool O.D. size |
25×25mm |
||||
Max. X travel |
145mm |
||||
Max. Z travel |
320mm |
310mm |
320mm |
||
X feed range |
65 kinds 0.063-2.52mm/r |
||||
Z feed range |
65 kinds 0.027-1.07mm/r |
||||
Metric threads |
22 kinds 1-14mm |
||||
Inch threads |
25 kinds 28-2t.p.i |
||||
Module threads |
18 kinds 0.5-7πmm |
||||
Diametric pitch |
24 kinds 56-4t.p.i.π |
||||
Cooling pump |
60w |
||||
Length |
2632/3132mm/3632/4632mm |
3365/4365mm |
|||
Width |
975mm |
1340mm |
|||
Height |
1270mm |
1450mm |
1490mm |
||
N.W |
2100/2300kgs/2500/2900kgs |
3000/3200kgs |
|||
G.W |
2200/2400kgs/2600/3000kgs |
||||

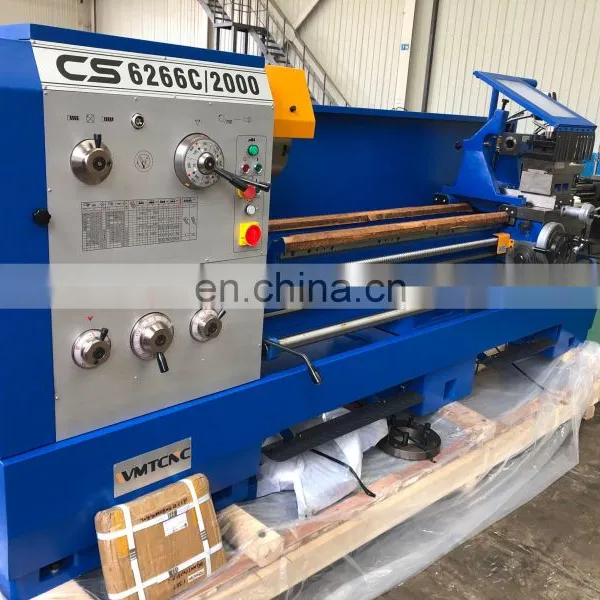

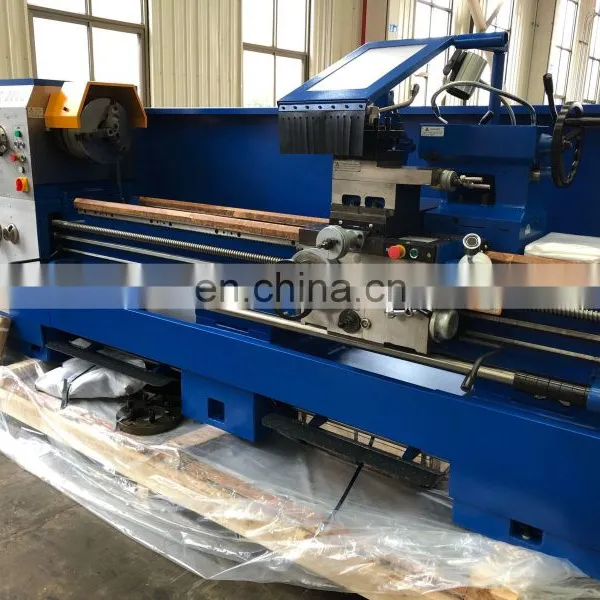

Detailed Images
Standard accessories:
1) 3-jaw chuck 2) 4-jaw chuck
3) face plate 4) steady rest
5) follow rest 6) face plate
7) work lamp 8) coolant system
9) splash guard 10) foot brake
11) dead centers 12) tool box tools
Optional accessories:
1) 2- axis Sino DRO
2) 3-axis Sino DRO
3) taper attachment
4) Quick change toolpost
5) live center
Related Products
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
