Product Description

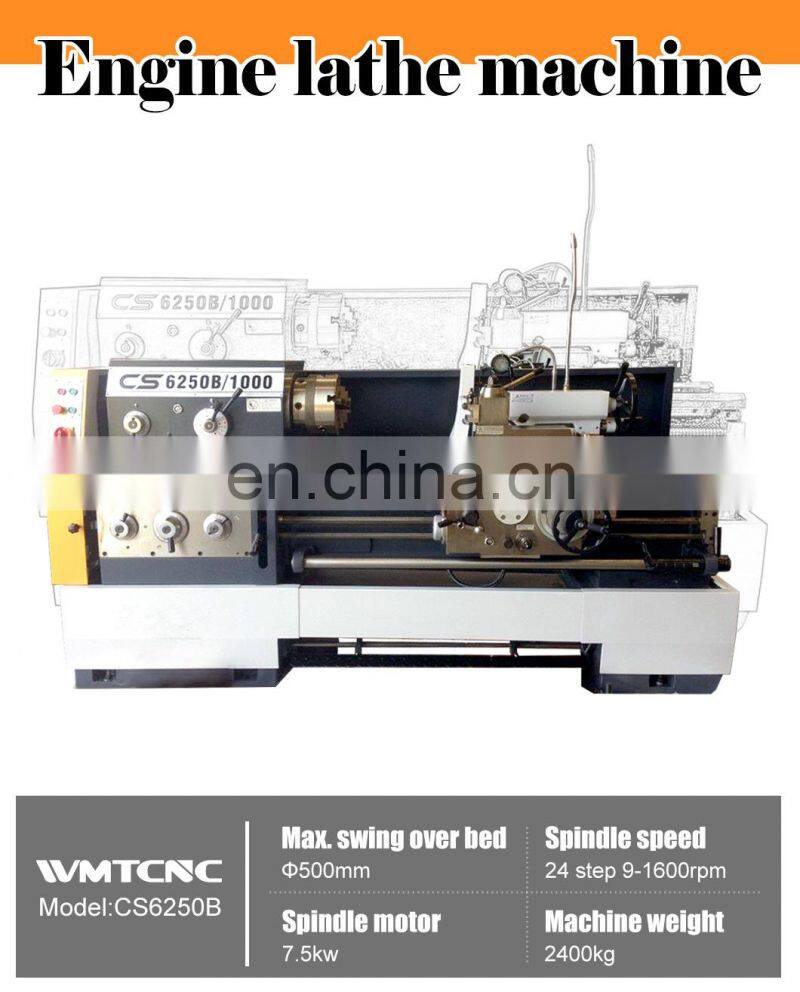

CS6250B horizontal heavy duty metal engine lathe machine with CE
Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Machine Specification
Specification | Unit | CS6250B |
Max swing over bed | mm | φ500 |
Max swing in gap | mm | φ710 |
Effective length in gap | mm | 240 |
Max swing over slide | mm | φ300 |
Max workpiece length | mm | 1000/1500/2000/3000 |
Spindle thru-hole | mm | φ82 |
Spindle nose | ISO 702/Ⅱ No.8 cam-lock type | |
Spindle speed | r/min | 24 step 9-1600 |
Spindle motor | kW | 7.5 |
Quill dia./travel | mm | φ75/150 |
Taper of center | MT | 5 |
Number of station/ | 4/ 25X25 | |
Tool section | ||
Max X-axis travel | mm | 145 |
Max Z-axis travel | m/min | 320 |
X-axis feed | mm/r | 93 kinds 0.028-6.43 |
Z-axis feed Z-axis feed | mm/r | 93 kinds 0.012-2.73 |
Metric thread | mm | 48 kinds 0.5-224 |
Inch thread | t.p.i | 48 kinds 72-1/4 |
Module thread | πmm | 42 kinds0.5-112 |
DP thread | t.p.i. π | 42 kinds 56-1/4 |
Coolant pump motor | kW | 0.06 |
Machine length | mm | 2880 |
Machine width | mm | 975 |
Machine height | mm | 1230 |
Machine weight | kg | 2400 |

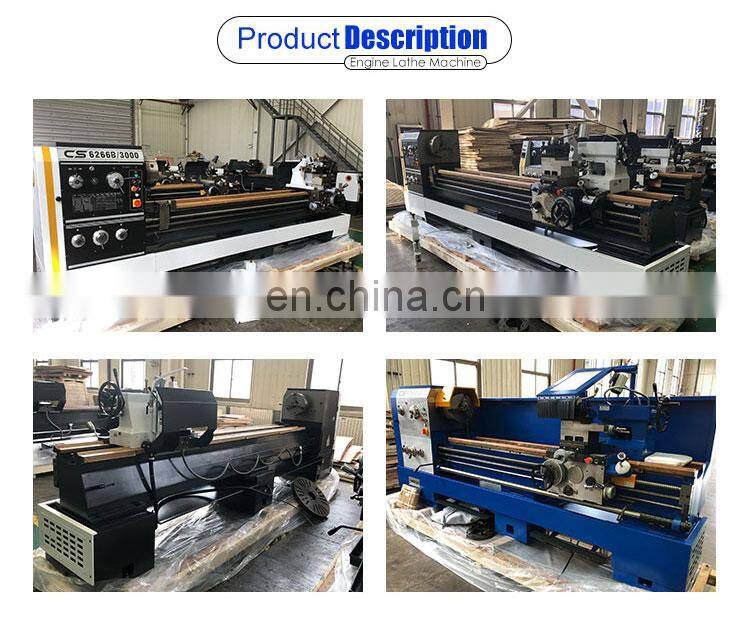

Detailed Images
Related Products

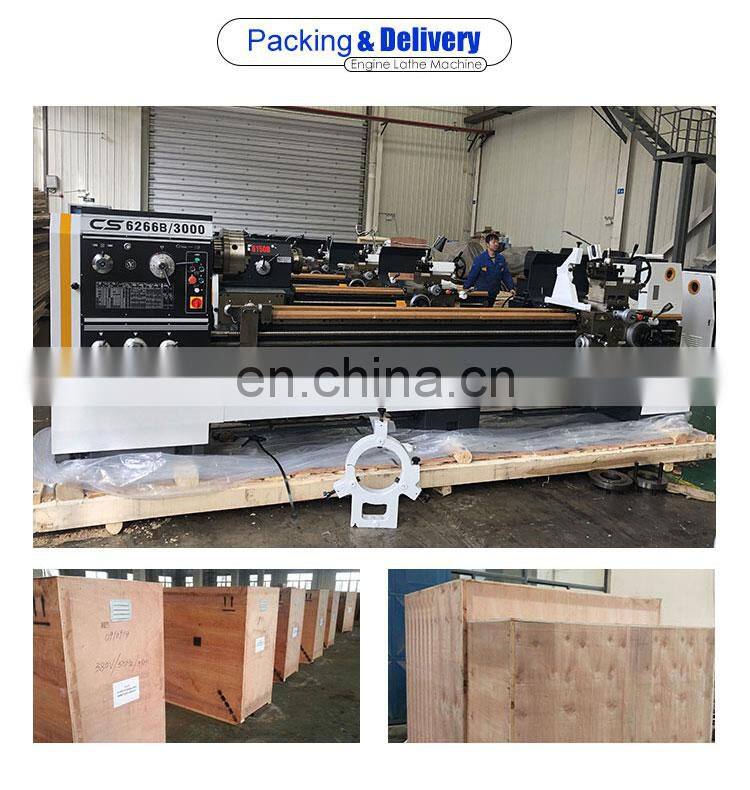

Packing&Shipping
