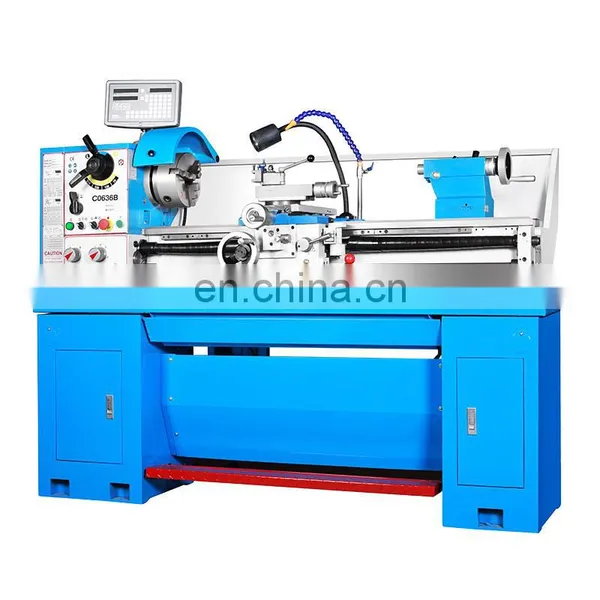

C0636B Mini Metal Lathe Small Lathe Machine Horizontal Precision Metal Semi Automatic Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WMT Mini HQ500 Multi-purpose Lathe Machine Combined Milling FunctionNegotiableMOQ: 1 -
DIY0816 DIY Mini Machine Price for Hobby UseNegotiableMOQ: 1
-
CS6240 China Small Manual Lathe Machine for Metal WorkNegotiableMOQ: 1
-
CS6240 1000mm Length Small Manual Lathe Machine for SaleNegotiableMOQ: 1
-
CS6250B Manual Lathe Machine Price for SaleNegotiableMOQ: 1
Product Description
Main Features:
Precision ground and hardenedbed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.
MODEL |
C0636B |
|
Distance between centers |
1000mm |
|
Max. swing over bed |
360mm |
|
Max. swing over cross |
212mm |
|
Max. swing in gap |
491mm |
|
Width of bed |
187mm |
|
Spindle |
||
Spindle speed range |
8 steps 90-2000rpm |
|
Spindle bore |
51mm |
|
Spindle nose |
D5 |
|
Spindle taper |
MT6 |
|
Center height |
178mm |
|
Thread cutting |
||
Threads metric pitches |
0.4-7mm/26kinds |
|
Threads imperial pitches |
4-56TPI/34kinds |
|
Threads diametral |
/ |
|
Threads module pitches |
/ |
|
Range of feeds |
||
Compound rest travel |
90mm |
|
Cross slide travel |
170mm |
|
Longitudinal feeds |
0.052-1.392mm/rev /32kinds |
|
Cross feeds range |
0.009-0.253mm/rev (Metric lathe) 0.015-0.402mm/rev (Inch lathe) |
|
Tailstock sleeve |
||
External diameter |
32mm |
|
Max. travel |
100mm |
|
Taper of bore |
MT3 |
|
Motor |
||
Spindle motor power |
1.5kw |
|
Coolant pump power |
40w |
|
Others |
||
Tool section |
16*16mm |
|
Packing dimension |
1935*750*1500mm |
|
Net/Gross weight |
600/700kg |
|

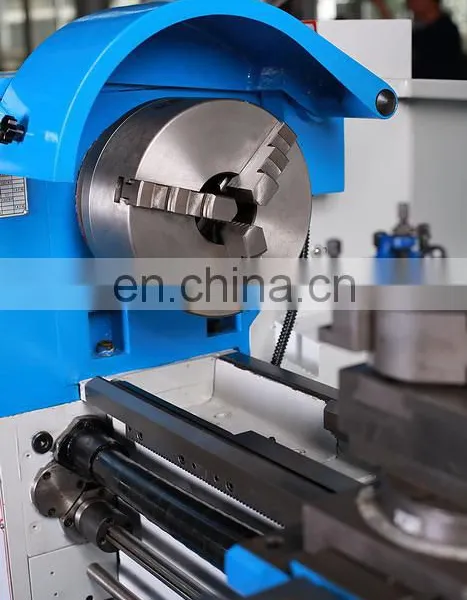

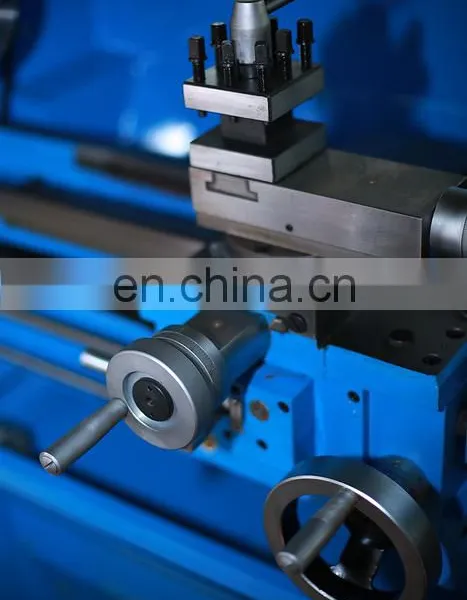

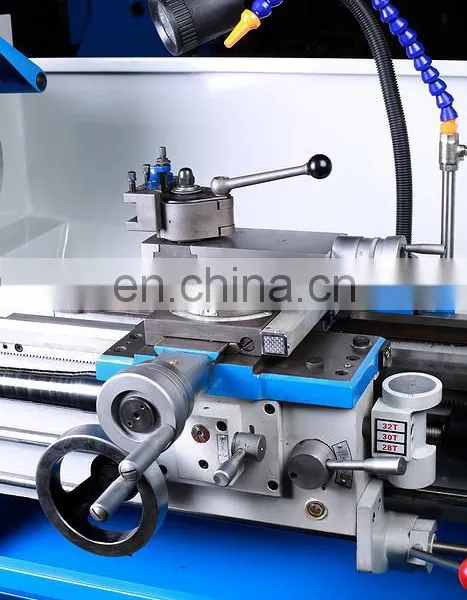

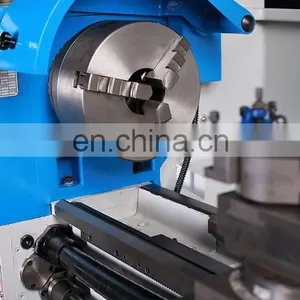

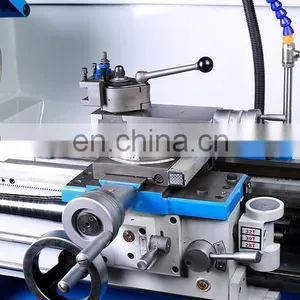

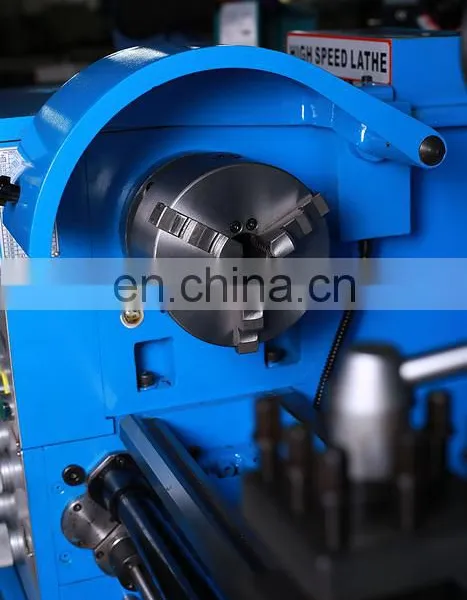

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
