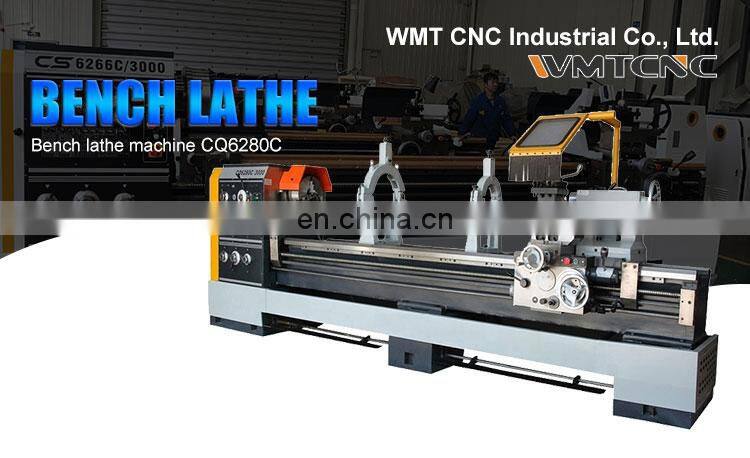

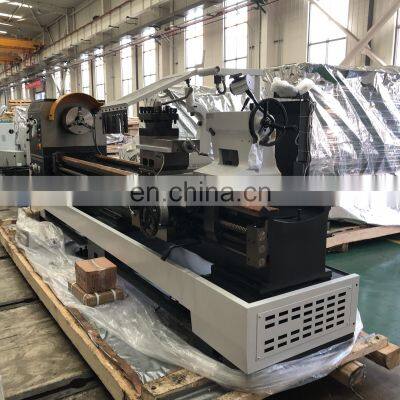

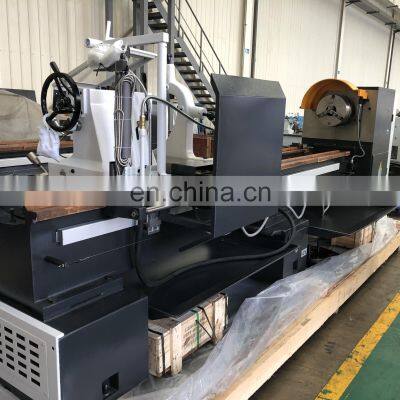

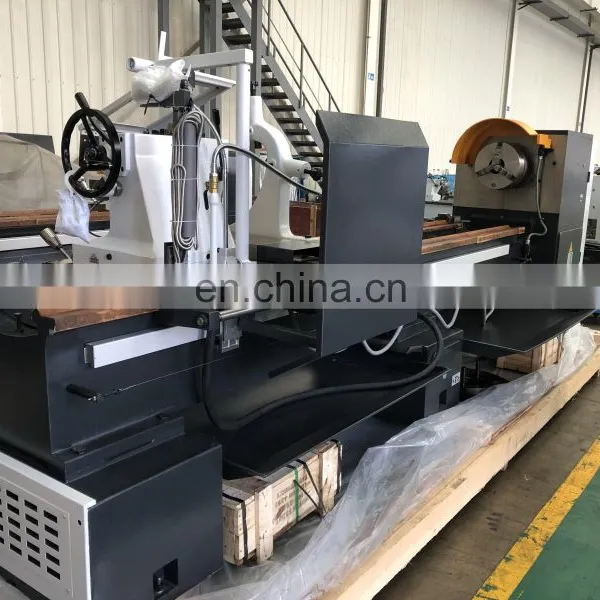

CQ6280Cx3000 China Universal Manual Lathe Machine for Metal Work
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CS6266Cx1000 mm China Manual Lathe Machine Tools for Metal WorkNegotiableMOQ: 1 -
CS6266Cx3000 mm China Heavy Duty Manual Metal Lathe Machine for SaleNegotiableMOQ: 1
-
CS6266Cx2000 Conventional Manual Lathe Machine ManufacturerNegotiableMOQ: 1
-
CQ6280B 800mm China Metal Lathe Machine Manufacturer for SaleNegotiableMOQ: 1
-
C0636B Mini Metal Lathe Small Lathe Machine Horizontal Precision Metal Semi Automatic Lathe Machine With CENegotiableMOQ: 1
Product Description
CQ6280C manual lathe machine Features:
Perform internal and external turning, taper turning, end facing, and other rotary parts turning; Engine lathe
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Main Technical Data
Specification | Unit | CQ6280C |
Max swing over bed | mm | Φ800 |
Max swing in gap | mm | Φ1000 |
Effective length in gap | mm | 240 |
Max swing over slide | mm | Φ560 |
Max workpiece length | mm | 2000/3000 |
Spindle thru-hole | mm | Φ105 |
Spindle nose | ISO 702/2 No.8 cam-lock type | |
Spindle speed | r/min | 12 step 30-1400 |
Spindle motor | kW | 7.5 |
Quill dia./travel | mm | Φ90/150 |
Taper of center | MT | 5 |
Number of station/ | 4/25X25 | |
Tool section | ||
Max X-axis travel | mm | 145 |
Max Z-axis travel | m/min | 320 |
X-axis feed | mm/r | 65 sorts 0.063-2.52 |
Z-axis feed Z-axis feed | mm/r | 65 sorts 0.027-1.07 |
Metric thread | mm | 22 sorts 1-14 |
Inch thread | t.p.i | 25 sorts 28-2 |
Module thread | πmm | 18 sorts 0.5-7 |
DP thread | t.p.i. π | 24 sorts 56-4 |
Coolant pump motor | kW | 0.06 |
Machine length | mm | 3365/4365 |
Machine width | mm | 1340 |
Machine height | mm | 1490 |
Machine weight | kg | 3300/3700 |

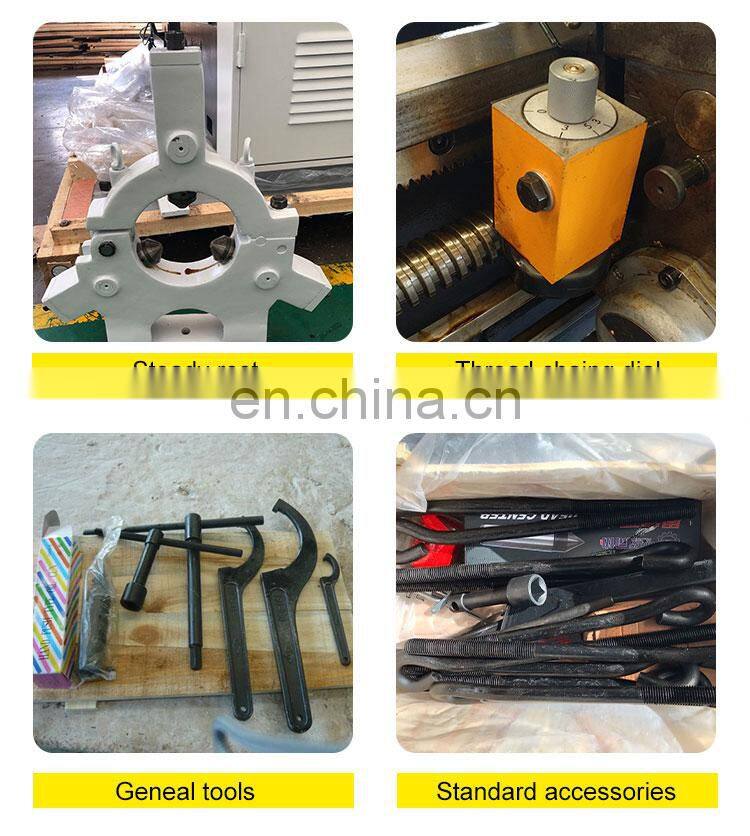

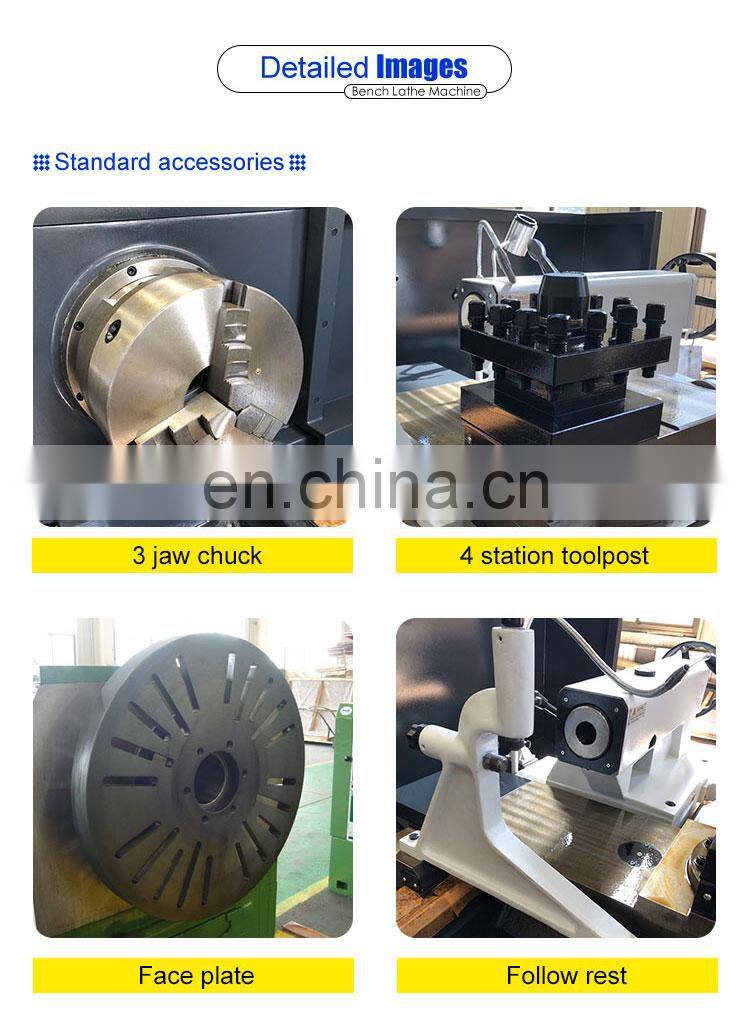

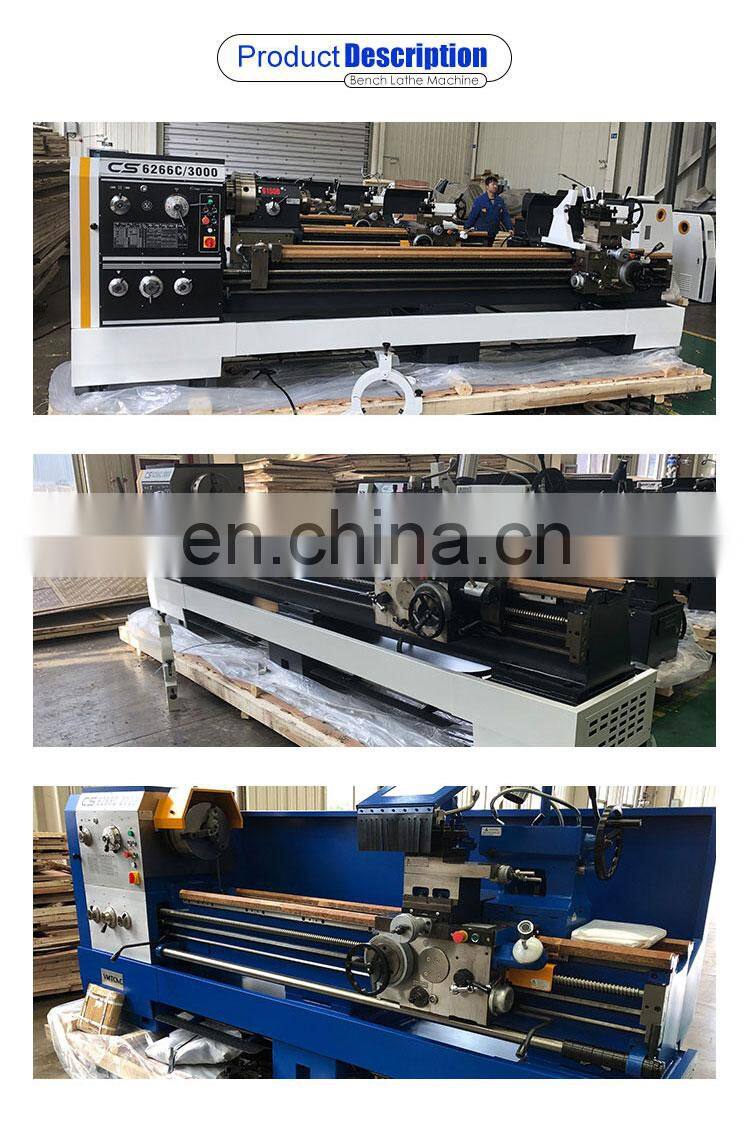

Machine details：
