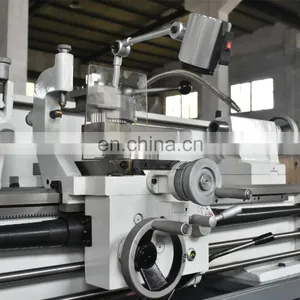

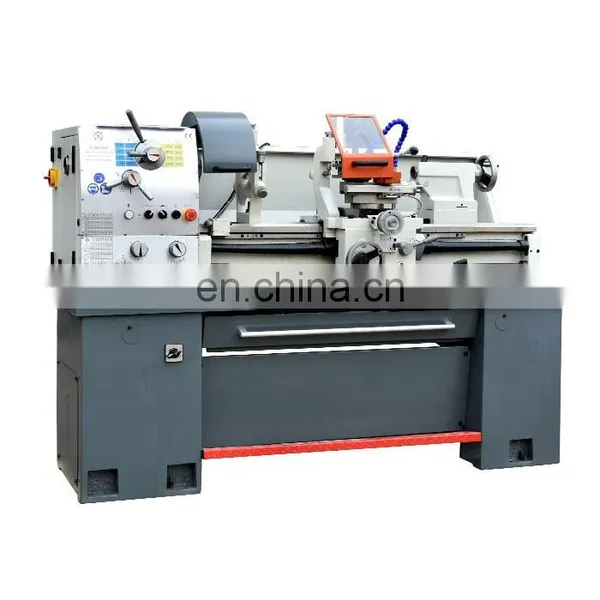

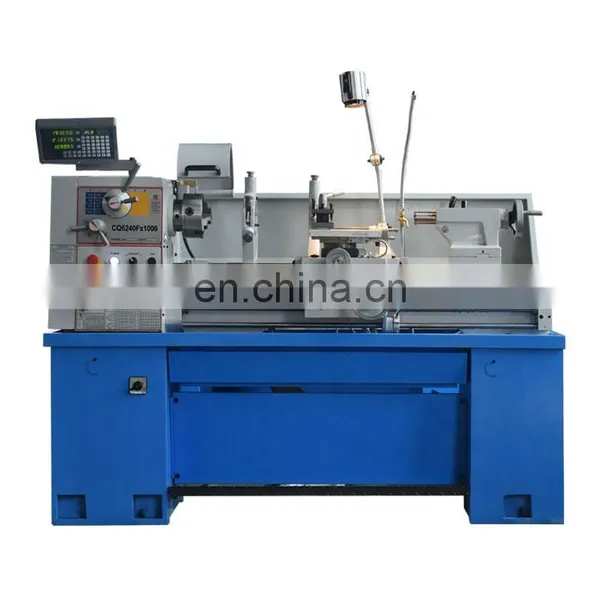

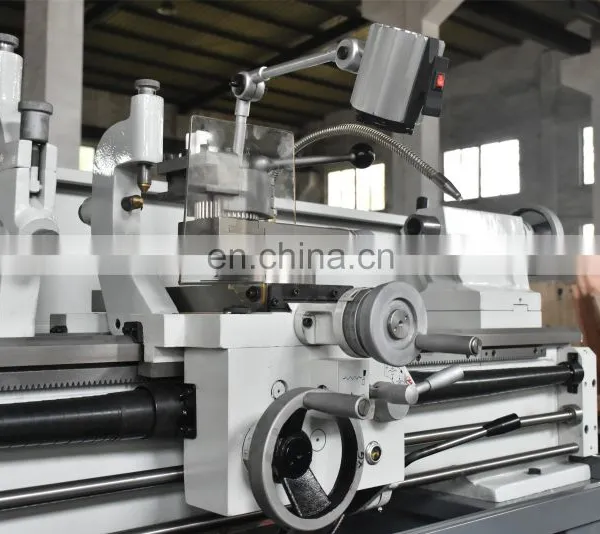

CQ6240F Buy Manual Lathe Machine Metal Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CD6260C Manual Lathe Machine Price Manufacturer for SaleNegotiableMOQ: 1 -
CD6260C 1500mm Chinese Manual Metal Lathe Machine Price for SaleNegotiableMOQ: 1
-
CQ6280Cx3000 China Universal Manual Lathe Machine for Metal WorkNegotiableMOQ: 1
-
CS6266Cx1000 mm China Manual Lathe Machine Tools for Metal WorkNegotiableMOQ: 1
-
CS6266Cx3000 mm China Heavy Duty Manual Metal Lathe Machine for SaleNegotiableMOQ: 1
Product Description
CQ6240F manual lathe machine Features:
1.High frequency hardened bed ways.2.Precision spindle bearing.
3.Strong power motor.
4.Various thread cutting range.
Main Technical Data
Specifications |
CQ6240Fx1000 |
Max. swing over bed |
400mm |
Max. swing over cross slide |
264mm |
Max. swing in gap |
550mm |
Distance between centers |
1000mm |
Width of bed |
206mm |
Spinde bore |
φ 51mm/D5 |
Spindle taper |
MT5 or MT6 |
Spindle speed |
45-1800rpm 16 steps |
Max. section of cutting tool |
16x16mm |
Threads inch pitches |
4-56TPI / 28 kinds(Metric lathe),4-112TPI / 40 kinds (Inch lathe) |
Threads metric pitches |
0.4-7mm / 28 kinds(Metric lathe),0.45-7.5mm / 22 kinds(Inch lathe) |
Longitudinal feeds |
0.043-0.653mm/rev (Metric lathe),0.0012-0.0297in/rev (Inch lathe) |
Tailstock quill taper |
MT3 |
Tailstock quill travel |
100mm |
Tailstock quill diameter |
45mm |
Main motor power |
1.5/2.4KW |
Cross slide travel |
150mm |
Compound rest travel |
90mm |
N.W/G.W |
700/800kgs |
Packing size |
1950x750x1500mm |
Products Show
