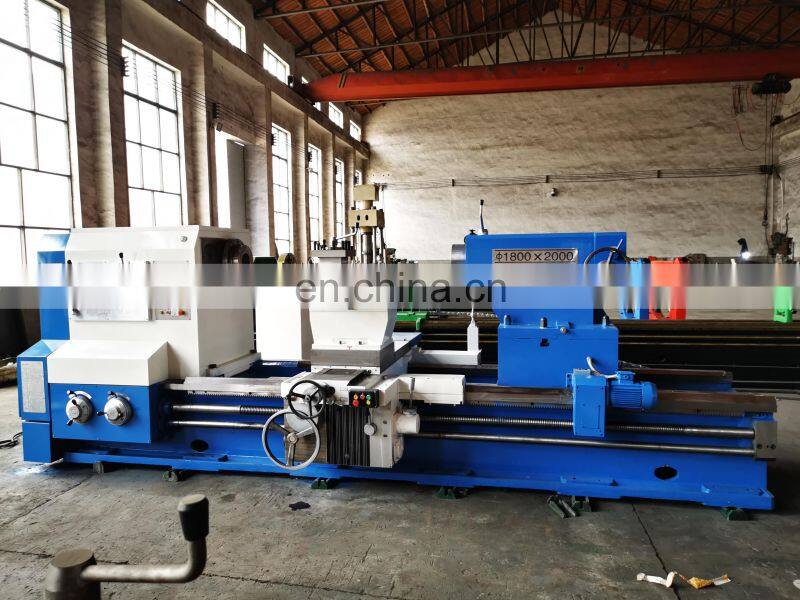

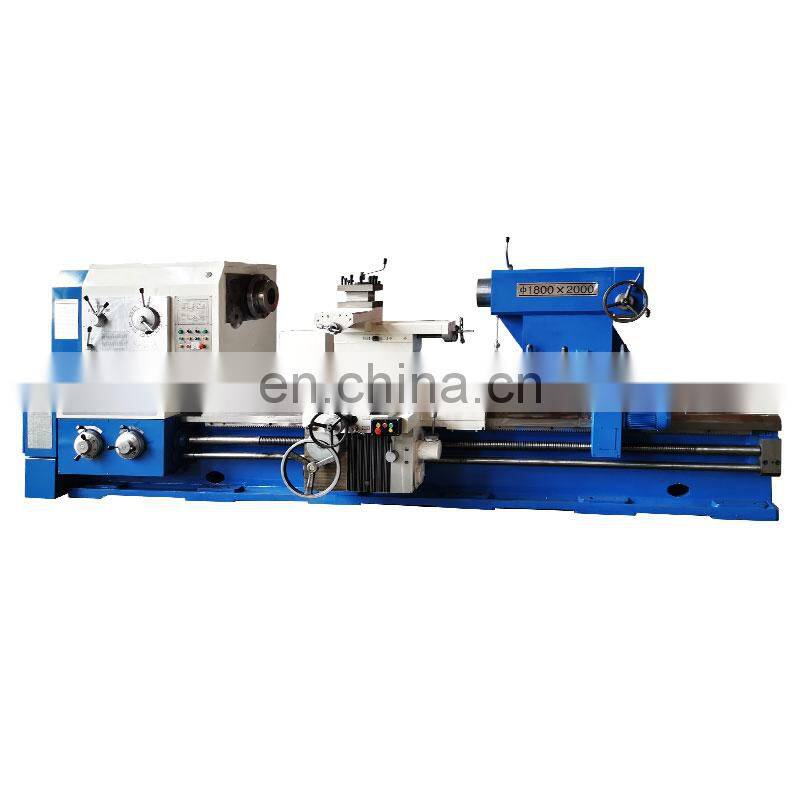

CW61180 Conventional Horizontal Heavy Metal Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIY1018(BVB25) Small Lathe Machine With CE ProtectionNegotiableMOQ: 1 -
CQ6240F Buy Manual Lathe Machine Metal PriceNegotiableMOQ: 1
-
CD6260C Manual Lathe Machine Price Manufacturer for SaleNegotiableMOQ: 1
-
CD6260C 1500mm Chinese Manual Metal Lathe Machine Price for SaleNegotiableMOQ: 1
-
CQ6280Cx3000 China Universal Manual Lathe Machine for Metal WorkNegotiableMOQ: 1
Product Description
The heavy horizontal lathe machine is especially designed for big workpiece cutting;
All gears hardened with precision guideway;
Specification |
CW61180 |
Swing over bed |
1800mm |
Bed width |
1100mm |
Workpiece length |
1500/ 3000/ 5000/ 6000/ 8000/ 15000mm |
Swing over toolpost |
1600mm |
Max. turning length |
1300/ 2800/ 4800/5800/7800/14800mm |
Toolpost feed kinds each spindle rotate |
56 kinds |
Toolpost cross feed range each spindle rotate |
0.1-12mm/r |
Toolpost longitudinal feed range each spindle rotate |
0.05-6mm/r |
Upper toolpost |
0.025-3mm/r |
Metric thread |
43 kinds 1-20mm |
Inch thread |
29 kinds 28-3/8 teeth / inch |
Module thread |
45kinds 0.5-60mm |
Pitch thread |
25 kinds 1-56mm |
Spindle bore |
130mm |
Spindle front taper |
Metric 140 |
Spindle speed steps and range forward |
21 kinds 2-200r/min |
Reverse |
12 kinds 2.24-178 r/min |
Max.section of tool |
45×45mm |
Toolpost longitudinal travel |
630mm |
Upper toolpost travel |
300mm |
Toolpost rapid movement Longitudinal/Cross/Upper |
3470/1870/935mm/min |
Center sleeve dia and travel |
210×300mm |
Tailstock taper |
MT6 |
Tailstock longitudinal movement |
±25 |
Main motor |
Y180L-4 22KW |
Main transsion V belt specification |
2540C 2880C |
Carriage rapid motor |
JC02-21-2-1.5KW |
Coolant pump |
JCB-45 0.15KW |
Coolant pump flow |
45L/min |
4-jaw chuck |
1250/1400mm |
Steady rest |
50-600mm |
Follow rest |
50-220mm |

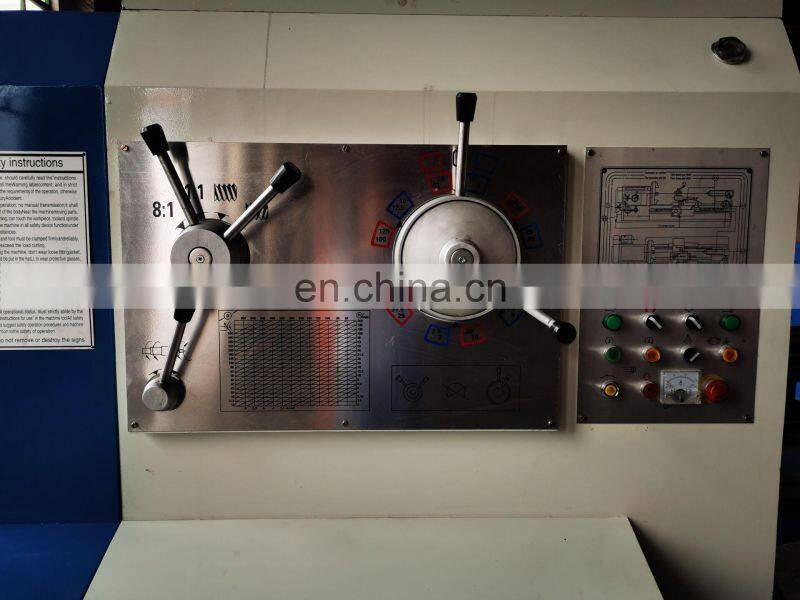

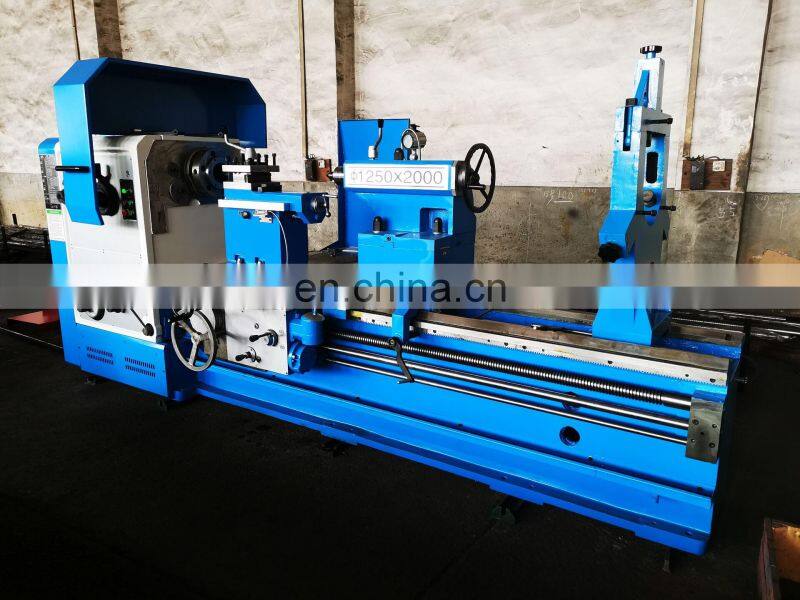

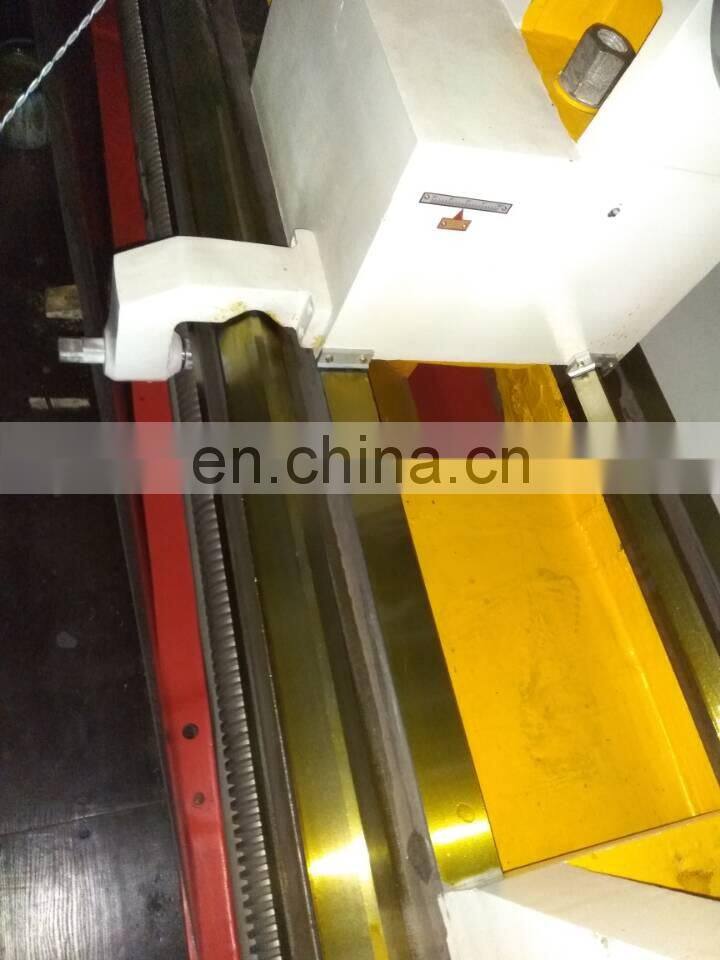

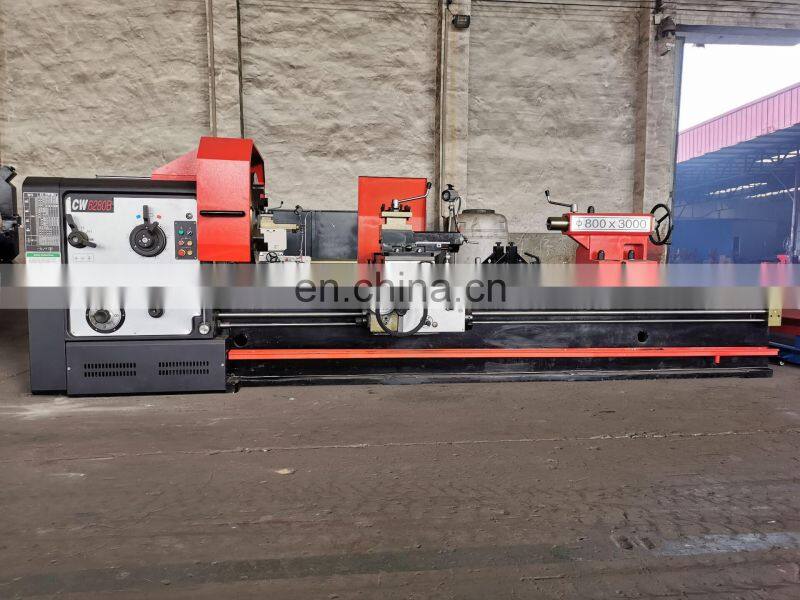

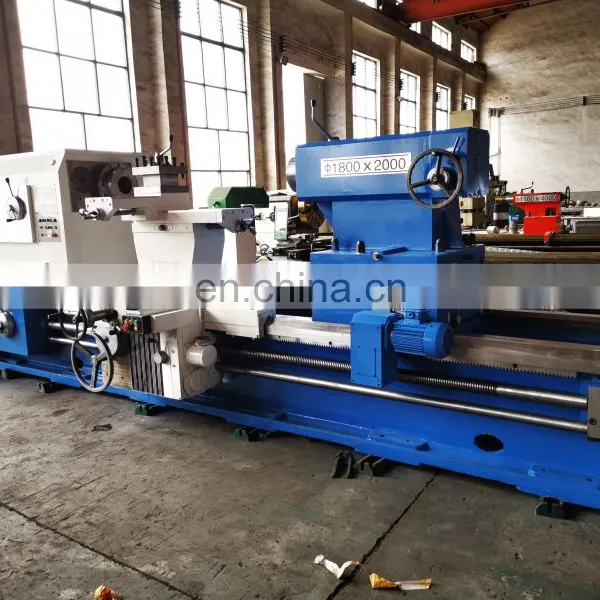

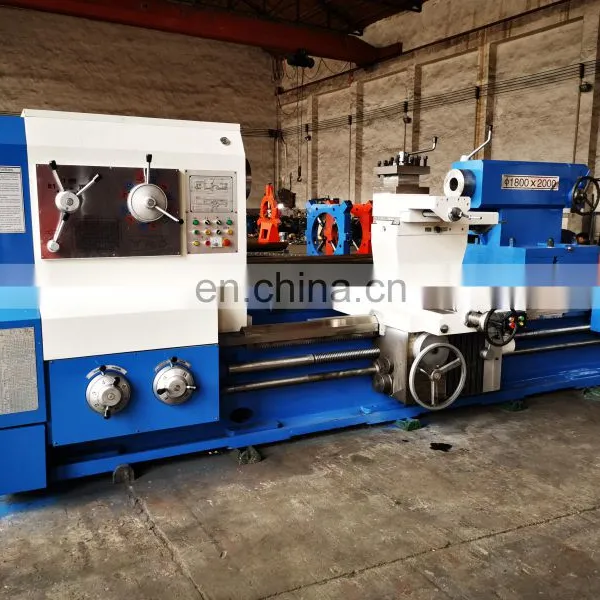

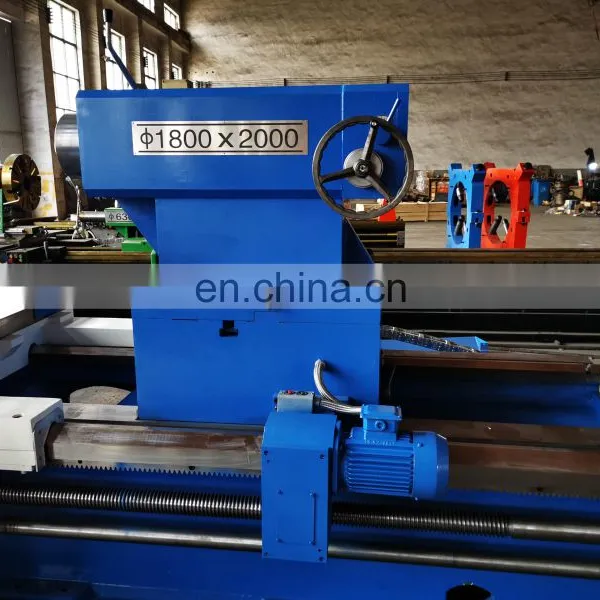

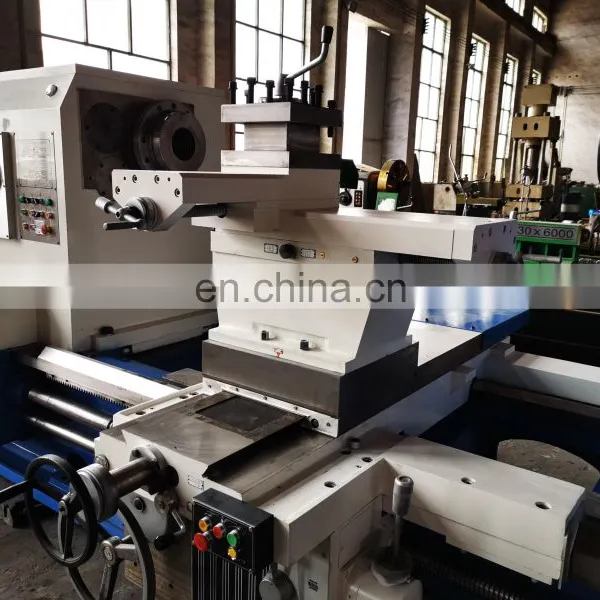

Detailed Images

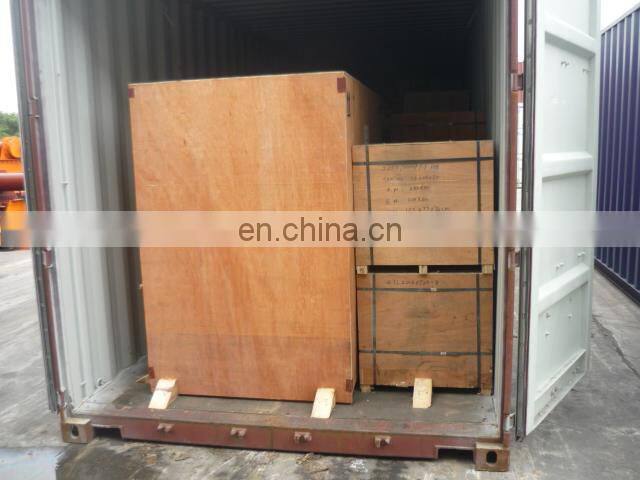

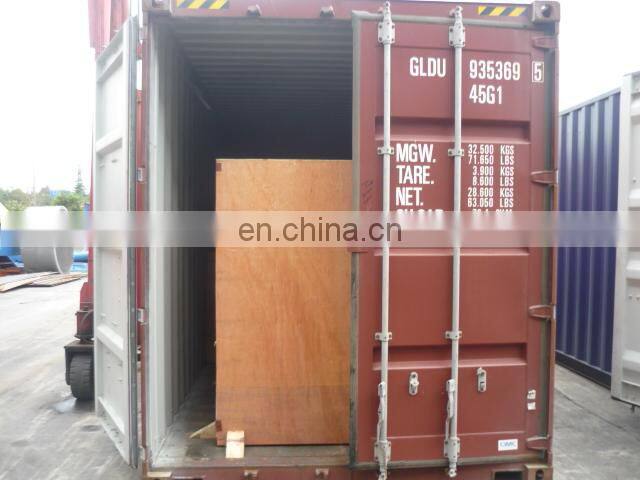

Packing&Shipping

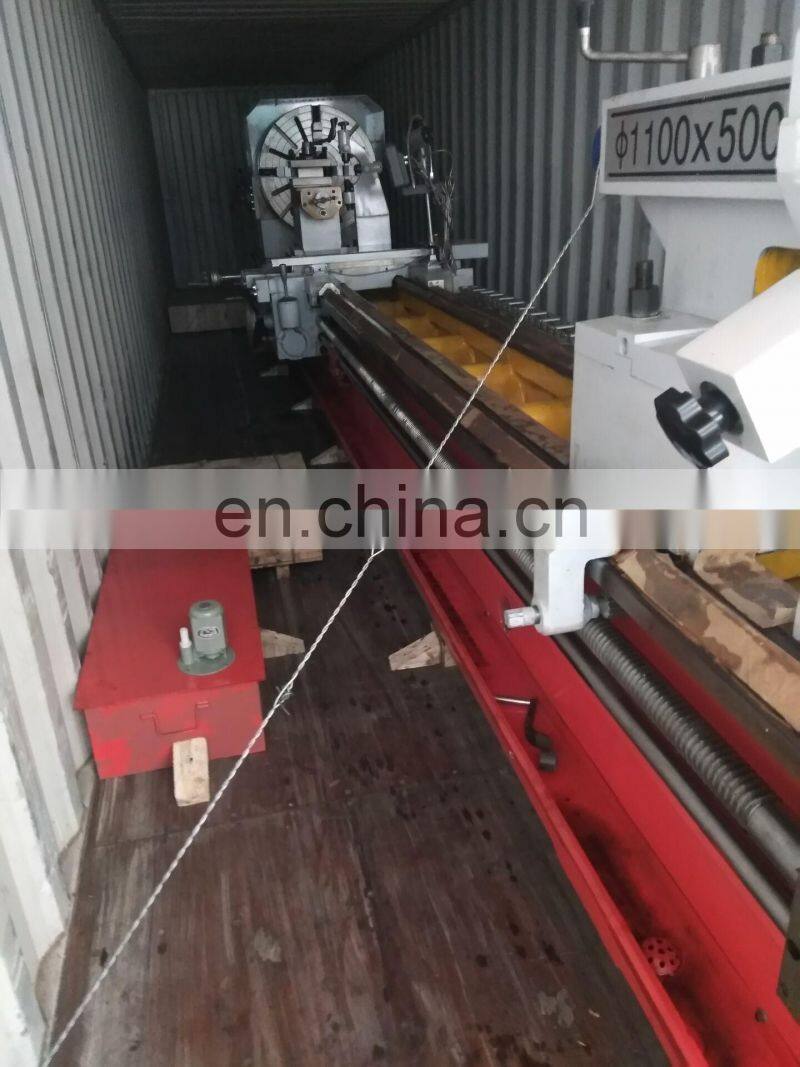

The machine will be fastened on the container with steel ropes
Put anti-rust grease on the bed wad to protect the machine.

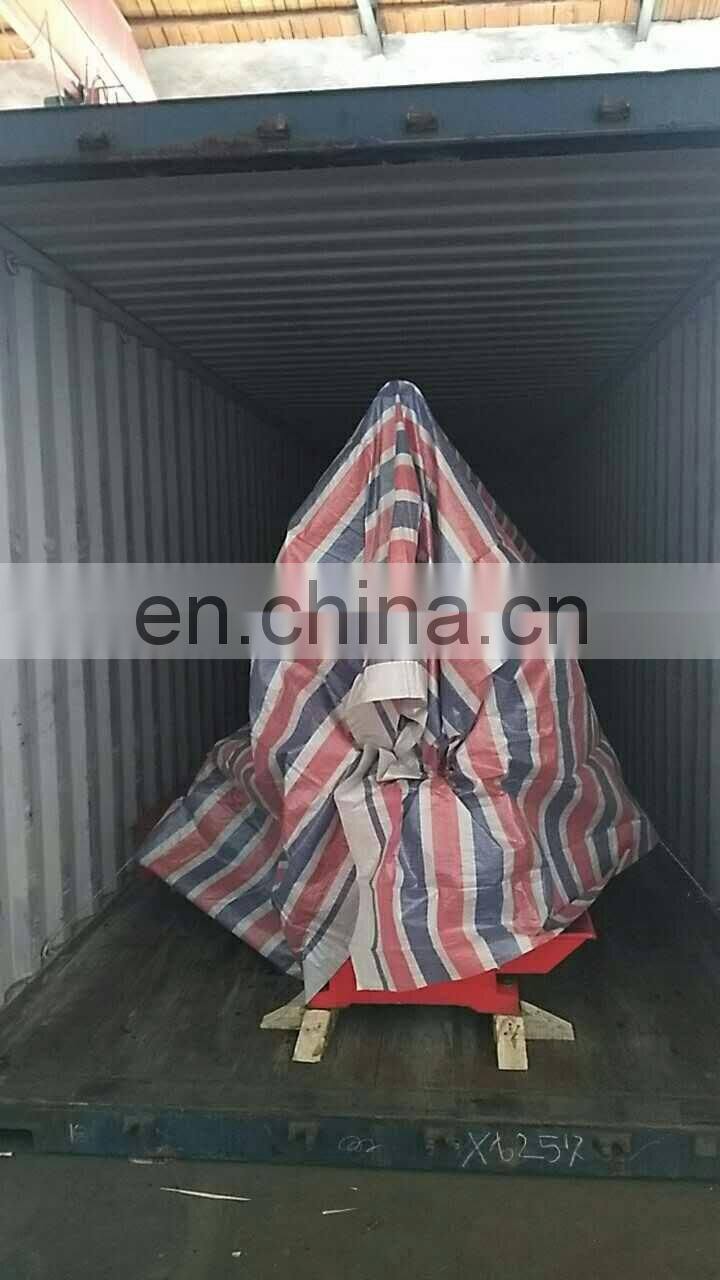

The plastic bag is covered on the lathe to protect dust or moisture.
Company Introduction
Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
Focusing on the aim of Service Oriented and Quality formost, many products are originally designed, carefully produced and favourably promoted. It is worth mentioning that the group has successfully sold various machines to more than 50 countries and regions all over the world. The group as well as the machines enjoys wide and well-known popularity in European and American market.
Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
