1W DC/DC Converters TPET0505 Single Output Power Supply
≥100000 Pieces
- gunagzhou
- T/T PayPal Other
- 7 days
You May Like
-
2A Non-isolated Dc/dc Converter TOPPOWER Convertisseur DC/DC Abaisseur
-
1W Isolated Twin Output DC/DC Converters TPD
-
15W 1.5KVDC Wide Voltage Input DC/DC Converters Convertisseur DC/DC Abaisseur
-
15W 100-1000VDC INPUT Isolated DC/DC Converters TP15DU
-
1W Isolated Regulated Single Output DC/DC Converters
-
Single Output DC/DC Converters 1W
Product Details
| Brand Name | TOPPOWER | Place of Origin | China | |
| Model Number | TPET0505 | Output Power | 1 - 50W | |
| Output Type | Single | Output Current | ma | |
| Output Frequency | hz | Output Voltage | vdc | |
| Input Voltage | Other, 3.3-15V |
Product Description
Summary Description:

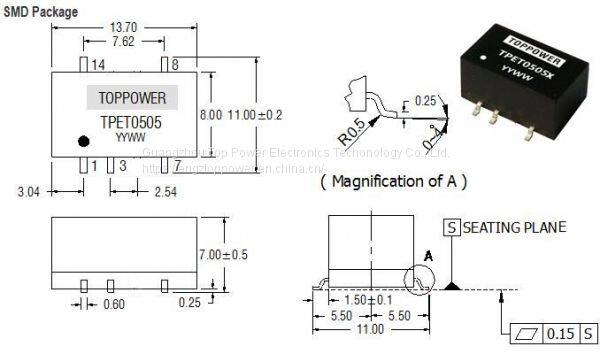

"1W Isolated Single Output SMD DC/DC Converters Single Output power supply
The TPTE series of miniature surface mounted DC/DC Converters employ leadframe technology and transfer moulding techniques to bring all of the benefits of IC style package to hybrid circuitry. The devices are suitable for all applications where need high volume production."
Basic Terms:
1 Type TPTE Series
2 Efficiency up to 78%
3 Power density 1.8W/cm3
4 Pinout Footprint over pins 1.37cm2
5 Related certificate RoHS compliant
6 Wide temperature at full 1 Watt load, -40° C to 85° C
7 Package material UL 94V-0 package material
8 Input voltage 3.3V, 5V & 12V Input
9 Output voltage 3.3V, 5V, 9V, 12V & 15V output
10 MOQ 1 pc (no ltimited for considered the long coorperation relations)
11 Terms of payment Western Union,T/T
12 Terms of delivery DHL / UPS / EMS / TNT
13 Delivery time 7-12 working days
| Selection Guide: | ||||||||||||||||||
| NO. | Order Code | Nominal Input Voltage(V) | Output Voltage(V) | Output Current(mA) | Input Current at Rated Load(mA) | Efficiency (Typ.)% | Isolation Capacitance (pF) | |||||||||||
| 1 | TPTE0303 | 3.3 | 3.3 | 303 | 409 | 72 | 32 | |||||||||||
| 2 | TPTE0305 | 3.3 | 5 | 201 | 392 | 77 | 37 | |||||||||||
| 3 | TPET0309 | 3.3 | 9 | 111 | 402 | 77 | 32 | |||||||||||
| 4 | TPET0312 | 3.3 | 12 | 83 | 402 | 77 | 29 | |||||||||||
| 5 | TPET0315 | 3.3 | 15 | 67 | 402 | 77 | 30 | |||||||||||
| 6 | TPET0503 | 5 | 3.3 | 303 | 268 | 74 | 42 | |||||||||||
| 7 | TPET0505 | 5 | 5 | 200 | 295 | 69 | 35 | |||||||||||
| 8 | TPET0509 | 5 | 9 | 111 | 269 | 75 | 44 | |||||||||||
| 9 | TPET0512 | 5 | 12 | 84 | 261 | 78 | 42 | |||||||||||
| 10 | TPET0515 | 5 | 15 | 66 | 257 | 78 | 45 | |||||||||||
| 11 | TPET1205 | 12 | 5 | 200 | 125 | 67 | 48 | |||||||||||
| 12 | TPET1209 | 12 | 9 | 111 | 115 | 73 | 77 | |||||||||||
| 13 | TPET1212 | 12 | 12 | 83 | 113 | 74 | 88 | |||||||||||
| 14 | TPET1215 | 12 | 15 | 66 | 111 | 75 | 94 | |||||||||||
