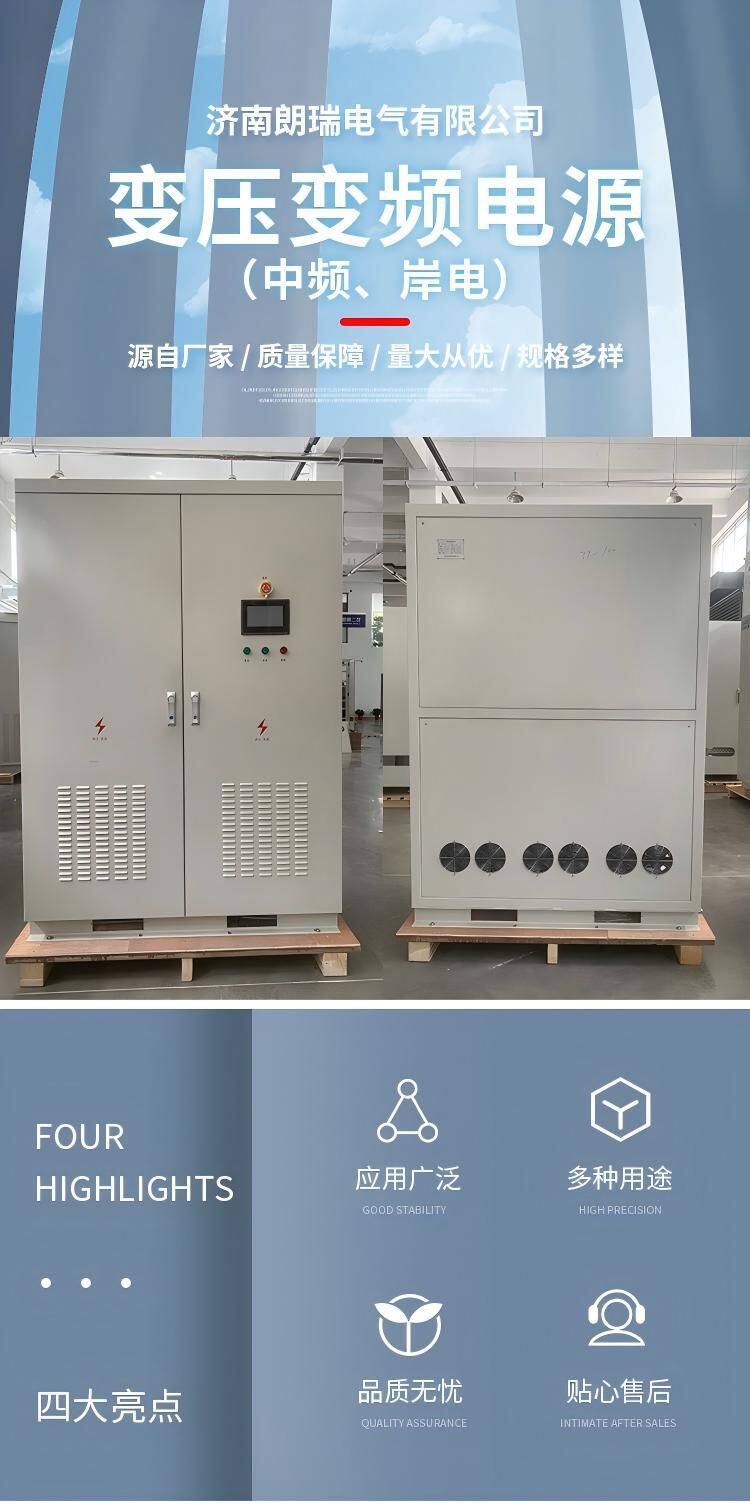

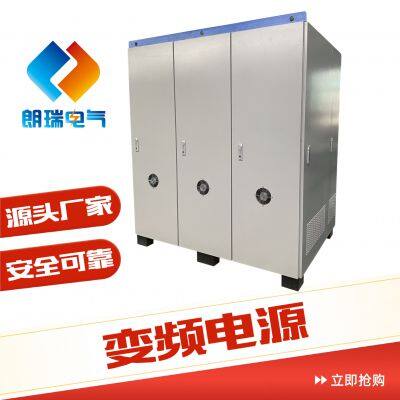

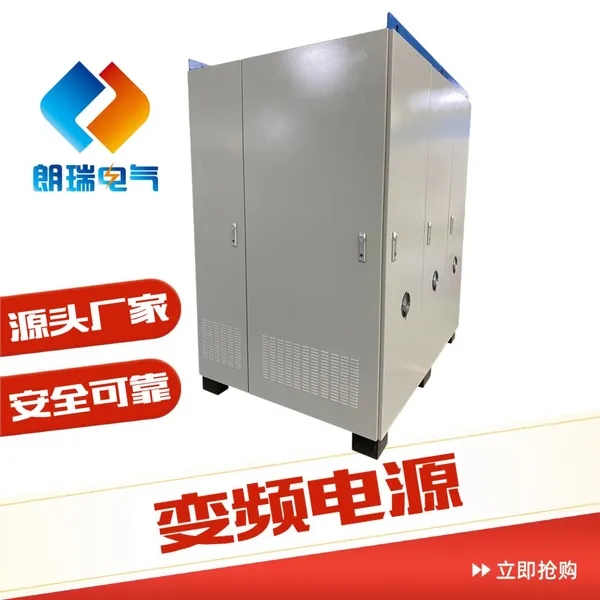

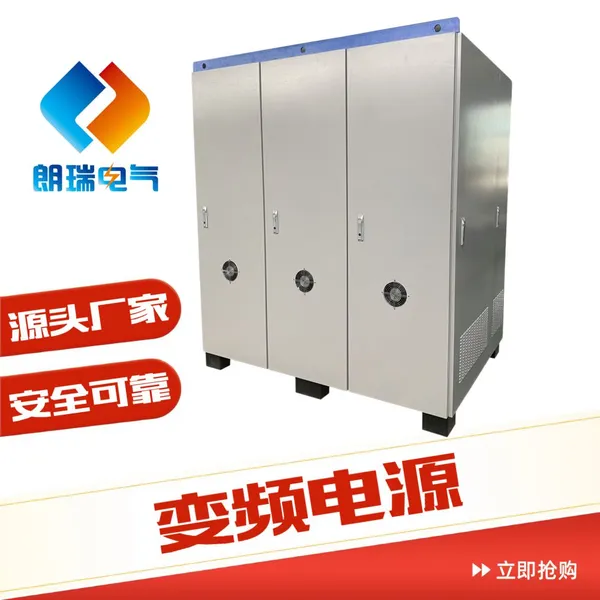

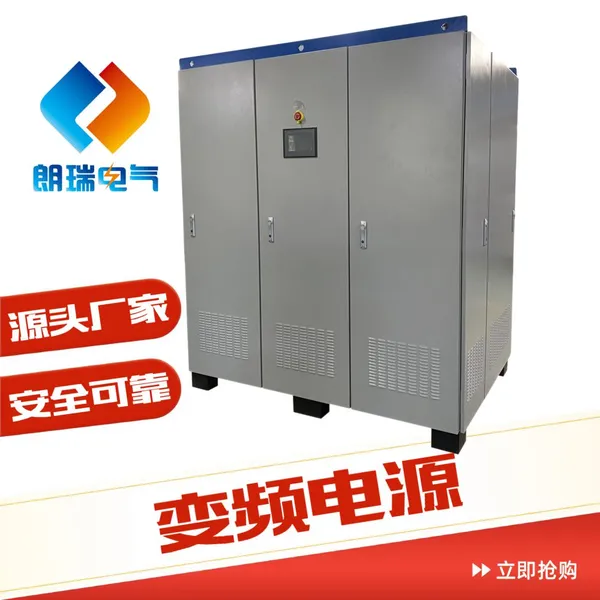

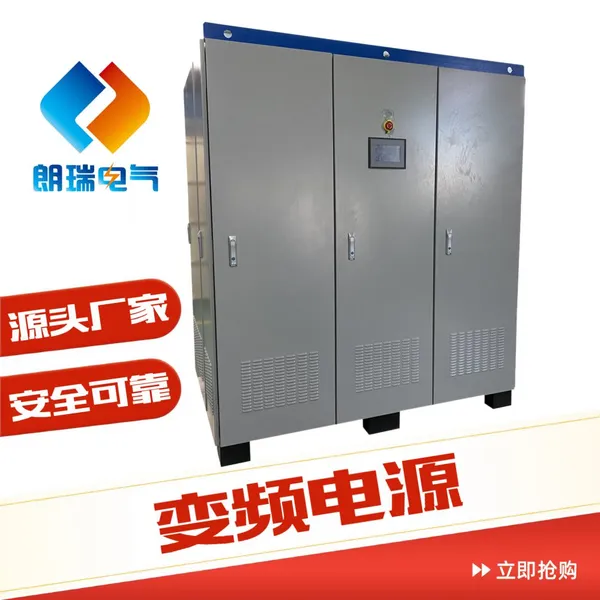

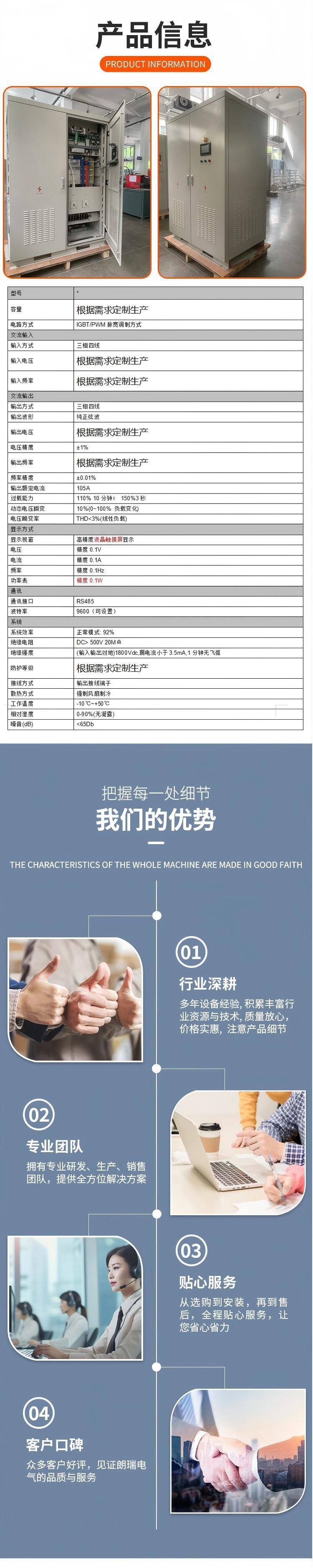

Help CenterThree-phase/Single-phase AC Variable Frequency Power Supply, With Stable and Adjustable Voltage & Frequency, No Partial Discharge LB33-100K
Related Products
-
Variable Frequency Power Supply for Ship Repair and Building, 60HZ AC Voltage and Frequency Regulation 300K/1000K/3000K Shore Power SupplyUS$ 555 - 777MOQ: 1 Piece -
Variable Frequency Power Supply, 3KVA-3000KVA Product Factory Test Power Supply With Customization SupportUS$ 555 - 777MOQ: 1 Piece
-
Variable Frequency Test Power Supply, Import and Export Equipment Simulation Voltage and Frequency Test Power Supply 100kUS$ 555 - 777MOQ: 1 Piece
-
Off-grid Inverter Manufacturer | Professional Power Solutions | Marine & Vehicle Applications | Bi-directional Energy Storage Inverter LNS-200KUS$ 555 - 777MOQ: 1 Combo
-
Bidirectional Energy Storage Inverter Converter, 50KW Peak Shaving and Valley Filling, Grid DispatchingUS$ 555 - 777MOQ: 1 Combo
Variable Frequency Power Supply Technical SchemeI. Variable Frequency Power Supply
Operating Environment
Environmental Conditions
Ambient temperature: -10°C to +50°C (Maximum temperature: ≤50°C)
Altitude: ≤2000 meters (De-rating required above 2000 meters)
Relative humidity: 0-95% (No condensation)
Seismic resistance (with base frame): Designed for 8-degree earthquake
Ground horizontal acceleration: 0.133g
Safety factor: ≥1.67
The system configuration can be divided into two main parts: the power conversion main circuit and the control circuit. The main circuit adopts an AC-DC-AC structure, including components such as rectifier, energy storage device, inverter, AC filter, and transformer.
1. Working Principle: The variable frequency power supply consists of two main parts: the power conversion main circuit and the control circuit. The main circuit adopts an AC-DC-AC structure, including rectifier, energy storage device, inverter, AC filter, and high-efficiency transformer components. Among them, the AC-DC part uses bridge rectification, which is softly started through an AC contactor to the rectifier, and then filtered by electrolytic capacitors to obtain stable current. Relying on the variable frequency control system, the variable frequency power supply selects IGBT as the switching element and uses Sine Pulse Width Modulation (SPWM) to control the inverter, converting stable DC into AC with pulse width modulation output. The fundamental frequency of this AC is the required power output frequency. The pulse width modulation wave output by the inverter is filtered by the output LC filter circuit to produce sinusoidal AC power.
