20W Isolated DC/DC Converters 18-36Vin 3.3Vout

20W Isolated  DC/DC Converters 18-36Vin 3.3Vout

The rated output power of TP20DC/TP30DC converters is 20W,30W,the outline dimensions is "50.8*25.4*11.2", 2:1 ,4:1 input voltage range,the voltage range is 9.5V-18V,18V-36V,36V-72V, 9V-36V、18V-75V.The accuracy of the converter can reach ±1%,it can be widely used in telecommunications,railway transportation, Auto industrial,instrument and etc.

TOPPOWER can produce:

 0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
25W-1200W Enclosed /Open frame type AC-DC Switching Power supply,
15-480W AC-DC DIN RAIL Power Supply.

Part Number Input Output

Voltage（VDC) Voltage（VDC)

Rated Range values

TP20DC12S03 12(2:1) 9.5-18 3.3

TP20DC12S05 12(2:1) 9.5-18 5

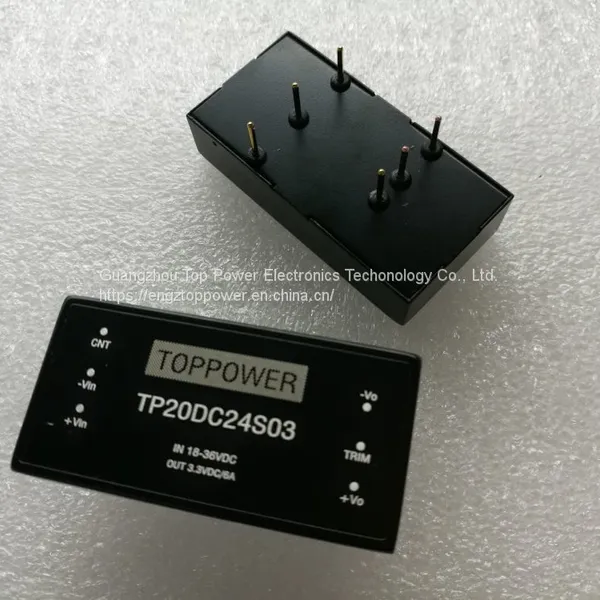

TP20DC24S03 24(2:1) 18-36 3.3

TP20DC24S05 24(2:1) 18-36 5

TP20DC24S12 24(2:1) 18-36 12

TP20DC24S15 24(2:1) 18-36 15

TP20DC24S24 24(2:1) 18-36 24

TP20DC48S03 48(2:1) 36-75 3.3

TP20DC48S05 48(2:1) 36-75 5

TP20DC48S12 48(2:1) 36-75 12

TP20DC48S24 48(2:1) 36-75 24

TP20DC48S15 48(2:1) 36-75 15

TP20DC24S05W 24(4:1) 9-36 5

TP20DC24S12W 24(4:1) 9-36 12

TP20DC24S24W 24(4:1) 9-36 24

TP20DC48S18W 48(4:1) 18-75 18

TP30DC24S05 24(2:1) 18-36 5

TP30DC24S12 24(2:1) 18-36 12

TP30DC48S03 48(2:1) 36-75 3.3

TP30DC48S05 48(2:1) 36-75 5

TP30DC48S12 48(2:1) 36-75 12

TP30DC24S12W 24(4:1) 9-36 12

TP30DC48S12W 48(4:1) 18-75 12
