DC-DC Converter / TPB / 1W / 3KVDC Isolation / Dual Output / SIP / low output ripple noise

Power(Watts): 1W DC-DC Converters
Isolation Voltage: 3KVDC
Package: SIP
Input(VDC): 5V, 12V,24V
Output(VDC): ±5V, ±9V, ±12V, ±15V
Temperature: -40ºC to 85ºC

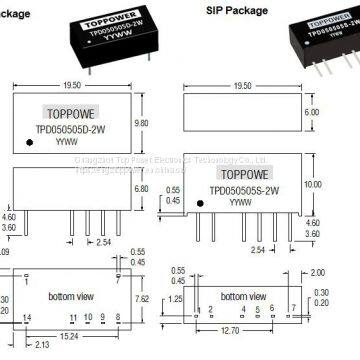

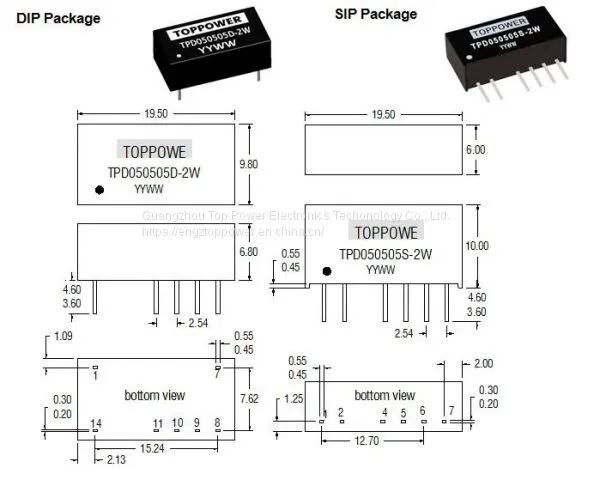

Dimensions (mm): SIP(L/W/H): 27.5*12*9.5
PIN Connection: SIP: 1(+Vin),2(-Vin),,7(+Vout), 9(-Vout), 10(OV)

1W 3KVDC Isolation Regulated Single Output DC/DC Converters
part No.:TPB0505S-1W
package:SIP
input voltage:4.75~5.25VDC
output voltage:5VDC
production time: 500pcs / 3days, 1000pcs/5days, 5000pcs/8days
terms: EXW, FOB
Express: DHL/FEDEX/UPS/TNT

TPB-1W series are specially designed for 3KVDC isolation & regulated single and output application, the input voltage range within ±5%, regulated output with very low ripple noise.short circuit protection

SIP package 3000VDC Isolation Operating temperature -40ºC to 85ºC

Regulated single output Continuous short circuit protection RoHS Compliance

Low ripple noise Small footprint No external component required

Internal SMD construction Input voltage:3.3V,5V,12V,15V,24V Output voltage:3.3V,5V,9V,12V,15V,24V

Item Test condition Min. Typ. Max. Units

Isolation voltage Tested for 1 minute and 1mA max 3000 VDC

Isolation resistance Test at 1000VDC 1 GΩ

DC-DC Converter / TPB / 1W / 3KVDC Isolation / Dual Output / SIP / low output ripple noise

OUTPUT SPECIFICATIONS

Item Test Conditions  Min. Typ. Max. Units

Output power 0.1 1 W

Line regulation For Vin change of ±5% ±0.25 %

Load regulation 10% to100% load  ±1 %

Output voltage accuracy 100% full load ±3 %

Temperature drift 100% full load ±0.03 %/℃

Ripple  20MHz Bandwidth 10 20 mv p-p

Noise  20MHz Bandwidth 50 75 mv p-p

Switching frequency 100% load,nominal input 100 KHz
