1W SIP4 unregulated 1.5KVDC isolated DC/DC converters

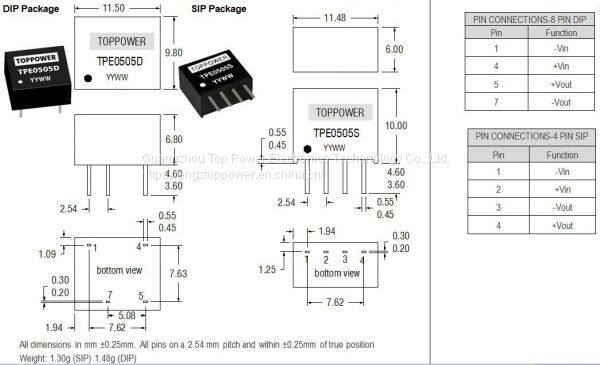

case size:11.48*6*10mm
Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required.
1W Isolated Single Output DC/DC Converters
TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
25W-1200W Enclosed /Open frame type AC-DC Switching Power supply,
15-480W AC-DC DIN RAIL Power Supply.
| Brand: | TOPPOWER |
| size: | 11.48*6*10mm |
| PACKAGING: | sip |
| power: | 1w |
| Price: | 3.00$/Pieces |
| Min.Order: | 100 Pieces |
| Supply Amount: |
5000 Pieces |
| Delivery: | Shipment within 5 days since the date of payment |
| Address: | China |
1W Isolated Single Output DC/DC Converters
The TPE series are miniature, isolated 1W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise and 1.5KVDC isolation.
Part Number |
Nominal Input Voltage |
Output Voltage |
Output Current |
V |
V |
MA (Max./Min.) |
|
TPE0303D |
3.3 |
3.3 |
303/30.3 |
TPE0305D |
3.3 |
5 |
200/20 |
TPE0303S |
3.3 |
3.3 |
303/30.3 |
TPE0305S |
3.3 |
5 |
200/20 |
TPE0505D |
5 |
5 |
200/20
|
TPE0509D |
5 |
9 |
110/11
|
TPE0512D |
5 |
12 |
83/8.3
|
TPE0515D |
5 |
15 |
66/6.6
|
TPE0524D |
5 |
24 |
42/4.2
|
TPE0503S |
5 |
3.3 |
303/30.3 |
TPE0505S |
5 |
5 |
200/20
|
TPE0507S |
5 |
7 |
142/14.2
|
TPE0509S |
5 |
9 |
110/11 |
TPE0512S |
5 |
12 |
83/8.3
|
TPE0515S |
5 |
15 |
66/6.6
|
TPE0524S |
5 |
24 |
42/4.2
|
TPE1205D |
12 |
5 |
200/20
|
TPE1209D |
12 |
9 |
110/11
|
TPE1212D |
12 |
12 |
83/8.3
|
TPE1215D |
12 |
15 |
66/6.6
|
TPE1203S |
12 |
3.3 |
303/30.3 |
TPE1205S |
12 |
5 |
200/20
|
TPE1209S |
12 |
9 |
110/11
|
TPE1212S |
12 |
12 |
83/8.3
|
TPE1215S |
12 |
15 |
66/6.6
|
TPE1218S |
12 |
18 |
55/5.5 |
RoHS compliant |
Single isolated output |
SIP: 1.5KVDC isolation DIP: 2KVDC isolation |
Efficiency up to 81% |
Operating temperature :-40°C to 85°C |
Power density 1.53W/cm3 |
UL 94V-0 package material |
Footprint from 0.69cm2 |
Industry standard pinout |
Input voltage: 3.3V,5V, 12V ,24V |
Output voltage:3.3V, 5V, 9V, 12V ,15V,24V |
CE certification |
