SIP 3pins Non-isolated DC/DC Converters TOPPOWER

Guangzhou Top Power Electronics Techonology Co., Ltd.
SIP 3pins Non-isolated DC/DC Converters TOPPOWER thumbnail-1
SIP 3pins Non-isolated DC/DC Converters TOPPOWER thumbnail-2
SIP 3pins Non-isolated DC/DC Converters TOPPOWER thumbnail-3
SIP 3pins Non-isolated DC/DC Converters TOPPOWER photo-1
SIP 3pins Non-isolated DC/DC Converters TOPPOWER photo-2
SIP 3pins Non-isolated DC/DC Converters TOPPOWER photo-3
US$ 0.9 ≥100000 Pieces
Key Specifications
Get Latest Price
Brand Name:
TOPPOWER
Place of Origin:
China
Model Number:
TP78-2
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
gunagzhou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TOPPOWER
Place of Origin China
Model Number TP78-2
Output Power 1 - 50W
Output Type Single
Output Current ma
Output Frequency hz
Output Voltage vdc
Input Voltage Other, 4.75-30V

SIP 3pins non-isolated DC/DC converters

wide input with 1.5,1.8,2.5, 3.3,5.0,6.5, 9,12,15VDC output

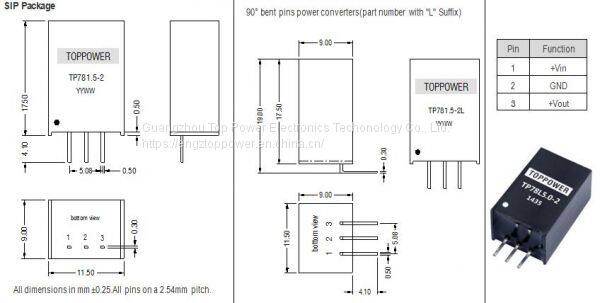

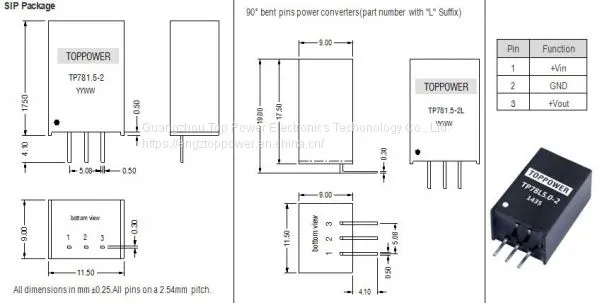

case size: 17.5*11.5*9mm

Summary Description:
 Single Output DC/DC Converters
TP78XX-2 series switching regulators are ideal replacement for TP78xx linear regulators and LDOs. The efficiency of up to 92% means that very little energy is wasted as heat so there is no need for any heat sinks with their additional space and mounting costs. They are widely used in industrial control, instrumentation, and electric power applications.

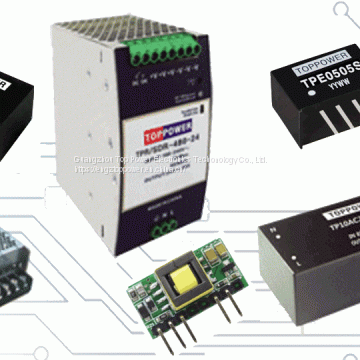

TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001:2015, IATF16949:2016
isolated voltage: 1.5KVDC ,2KVDC,3KVDC,4KVDC,6KVDC,10KVDC,3KVAC,4KVAC.
Part NumberInput Voltage (VDC)OutputEfficiency（%）
NominalRangeVoltage（VDC)Current（mA)
Vin (Min)
TP781.5-2124.75~181.5200079
TP781.8-2124.75~181.8200081
TP782.5-2124.75~182.5200085
TP783.3-2124.75~183.3200087
TP785.0-2127-185.0200091
TP786.5-2128.5-186.5200092

Product Tags: DC/DC converters , DC-DC converters , DC/DC converter
