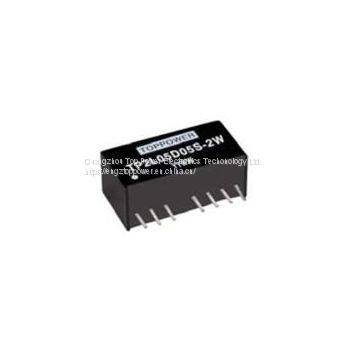

1-3W SIP 8pins 1.5KVDC isolated DC/DC converters
2:1 or 4:1 input with single ,dual output
case size: 21.8*11.1*9.2mm
Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required.
we,TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001:2015, IATF16949:2016
| Brand: | TOPPOWER |
| size: | 21.8*11.1*9.2mm |
| type: | dc-dc |
| power: | 2w |
| Price: | 6.50$/Pieces |
| Min.Order: | 1 Pieces |
| Supply Amount: | 2500 Pieces |
2W Isolated Wide Input Single Output DC/DC Converters
The TP2L-2W is a series of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40°C to 85°C. The input voltage range is 2:1 isolation is 1.5kVDC. Continuous short circuit protection, external control and extremely small SIP packaging.
Basic Terms:
1 Type TP2L-2W Series
2 Efficiency To 83%
3 Input range 2:1 Wide range voltage input
4 Power density 0.91W/cm3
5 Related certificate RoHS compliant
6 Isolation voltage 1.5kVDC isolation
7 Iutput voltage 5V, 12V, 24V, 48V
8 Output voltage 5V, 9V, 12V, 15V
9 Pin connection 1(-Vin),2(-Vin),3(CTRL),6(+Vout),7(-Vout),8(Cs)
10 Operating temperature range -40ºC to 85ºC
11 MOQ 1 pc (no ltimited for considered the long coorperation relations)
12 Terms of payment Western unio,T/T
13 Terms of delivery DHL / UPS / EMS / TNT
14 Delivery time 7-15 working days
Part Number Input
Voltage(VDC)
Nominal Range
TP2L05D05S-2W 5 (2:1) 4.5-9.0
TP2L05D09S-2W 5 (2:1) 4.5-9.0
TP2L05D12S-2W 5 (2:1) 4.5-9.0
TP2L05D15S-2W 5 (2:1) 4.5-9.0
TP2L05S05S-2W 5 (2:1) 4.5-9.0
TP2L05S09S-2W 5 (2:1) 4.5-9.0
TP2L05S12S-2W 5 (2:1) 4.5-9.0
TP2L05S15S-2W 5 (2:1) 4.5-9.0
TP2L05S24S-2W 5 (2:1) 4.5-9.0
TP2L12D05S-2W 12 (2:1) 9.0-18
TP2L12D09S-2W 12 (2:1) 9.0-18
TP2L12D12S-2W 12 (2:1) 9.0-18
TP2L12D15S-2W 12 (2:1) 9.0-18
TP2L12D24S-2W 12 (2:1) 9.0-18
TP2L12S03S-2W 12 (2:1) 9.0-18
TP2L12S05S-2W 12 (2:1) 9.0-18
TP2L12S09S-2W 12 (2:1) 9.0-18
TP2L12S12S-2W 12 (2:1) 9.0-18
TP2L12S15S-2W 12 (2:1) 9.0-18
TP2L12S24S-2W 12 (2:1) 9.0-18
TP2L24D05S-2W 24 (2:1) 18-36
TP2L24D09S-2W 24 (2:1) 18-36
TP2L24D12S-2W 24 (2:1) 18-36
TP2L24D15S-2W 24 (2:1) 18-36
TP2L24S03S-2W 24 (2:1) 18-36
TP2L24S05S-2W 24 (2:1) 18-36
TP2L24S09S-2W 24 (2:1) 18-36
TP2L24S12S-2W 24 (2:1) 18-36
TP2L24S15S-2W 24 (2:1) 18-36
TP2L24S24S-2W 24 (2:1) 18-36
TP2L48D05S-2W 48 (2:1) 36-72
TP2L48D12S-2W 48 (2:1) 36-72
TP2L48D15S-2W 48 (2:1) 36-72
TP2L48S05S-2W 48 (2:1) 36-72
TP2L48S09S-2W 48 (2:1) 36-72
TP2L48S12S-2W 48 (2:1) 36-72
TP2L48S15S-2W 48 (2:1) 36-72
TP2L48D12SW-2W 48 (4:1) 18-72
