non-isolated TOPPOWER Convertisseur DC/DC abaisseur 500mA

Summary Description:
 Single Output DC/DC Converters Convertisseur DC/DC abaisseur

Brand: TOPPOWERsize: 11.6*10.2*7.5mmtype: non isolatedtype2: dc-dcPrice: 3.00$/PiecesMin.Order: 100 Pieces

Supply

Amount: 5000 PiecesDelivery: Shipment within 10 days since the date of paymentAddress: ChinaValid until: Never Expire

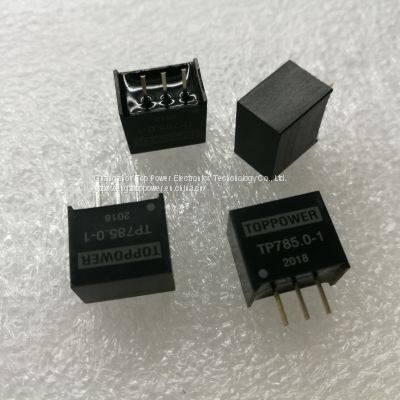

500mA Non-Isolated DC/DC converters
The TP78xx-0.5 series have high efficiency, short circuit protection, Thermal shutdown, no heat sink required, Industry standard pinout.ideal for redialing 78xx linear regulates and are pin compatible.

Part Number Input Voltage (VDC) Output Efficiency%

Nominal Range VoltageVDC) CurrentmA)

Vin (Min) Vin(Max)

TP781.5-0.5 12 4.75~26 1.5 500 76 66

TP781.8-0.5 12 4.75~28 1.8  500 79 67

TP782.5-0.5 12 4.75~28 2.5 500 85 73

TP783.3-0.5 24 4.75~28 3.3 500  90 80

TP785.0-0.5 24 6.5~32 5.0 500 93 84

TP786.0-0.5 24 8~32 6.0 500 94 87

TP789.0-0.5 24 11~32 9.0 500 95 91

TP7812-0.5 24 15~32 12 500 95 92

TP7815-0.5 24 18~32 15 500 96 93

TOPPOWER can produce:
0.1W-40W DC-DC converters,3W-30W AC-DC converters,(SIP/DIP/SMD)
15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,
TOPPOWER quality : ISO9001:2015, IATF16949:2016
isolated voltage: 0kvdc,1.5KVDC ,2KVDC,3KVDC,4KVDC,6KVDC,10KVDC,3KVAC,4KVAC.
