Summary Description:
Single Output DC/DC Converters Board Mount Encapsulated power supply
5W 1.5KVDC Wide Voltage Input DC/DC Converters
The rated output power of TP05DB converters is 5W,the outline dimensions is "25.4*25.4*11.2",
4:1 wide input voltage range,the voltage range is 9V-36V,18-75V .The accuracy of the converter can
reach ±1%,it can be widely used in telecommunications,railway transportation, instrument and etc.
20W output power Long-term short-circuit protection, Auto recovery High switching frequency , High output density
Metal shell package With remote control and output adjustment function RoHS compliant
5W output power |
2:1 and 4:1 wide input Voltage range |
Over load protection |
||||||

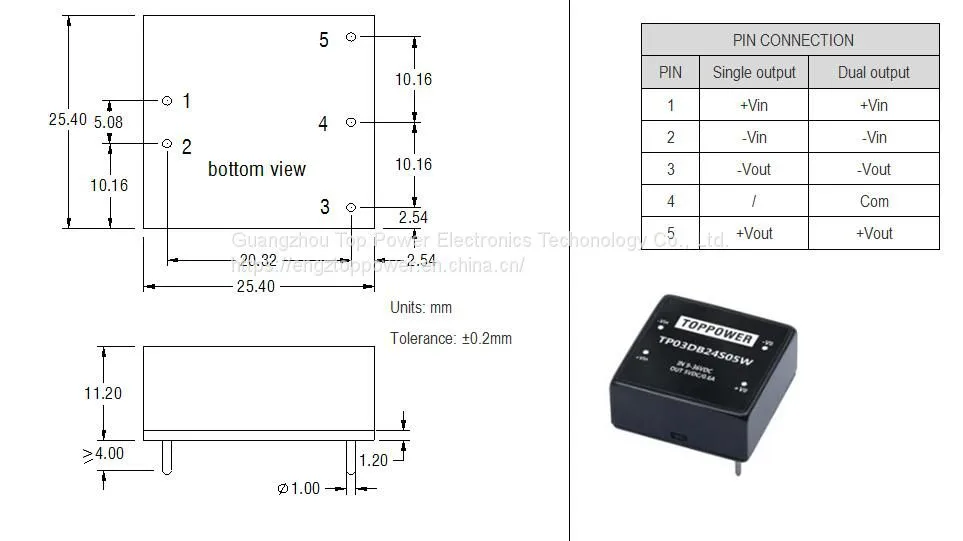

25.4mm*25.4mm*11.2mm standard package |
Fixed switching frequency |
Operating temperature: -40℃to 85℃ |
||||||
Metal shell package |
RoHS compliant |
1.5KVDC isolation |
||||||
SELECTION GUIDE | ||||||||
Part Number |
Input Vlotage |
Output |
Efficiency(Typ) % |
Maxium Capacitive Load （u F) |
||||
voltage（VDC) |
Voltage（VDC) |
Current（A） |
||||||
Rated |
Range values |
|||||||
TP05DB05S05 |
5(2:1) |
4.5-9 |
5 |
1 |
≥74 |
1500 |
||
TP05DB05S12 |
5(2:1) |
4.5-9 |
12 |
0.42 |
≥75 |
660 |
||
TP05DB05D12 |
5(2:1) |
4.5-9 |
±12 |
±0.21 |
≥78 |
±140 |
||
TP05DB05D15 |
5(2:1) |
4.5-9 |
±15 |
±0.17 |
≥75 |
±47 |
||
TP05DB12S03 |
12(2:1) |
9-18 |
3.3 |
1 |
≥73 |
2200 |
||
TP05DB12S05 |
12(2:1) |
9-18 |
5 |
1 |
≥74 |
1500 |
||
TP05DB12S12 |
12(2:1) |
9-18 |
12 |
0.42 |
≥75 |
660 |
||
TP05DB12S15 |
12(2:1) |
9-18 |
15 |
0.33 |
≥75 |
470 |
||
TP05DB12D05 |
12(2:1) |
9-18 |
±5 |
±0.5 |
≥76 |
±850 |
||
TP05DB12D12 |
12(2:1) |
9-18 |
±12 |
±0.21 |
≥78 |
±140 |
||
TP05DB12D15 |
12(2:1) |
9-18 |
±15 |
±0.17 |
≥79 |
±47 |
||
TP05DB24S03 |
24(2:1) |
18-36 |
3.3 |
1 |
≥74 |
2200 |
||
TP05DB24S05 |
24(2:1) |
18-36 |
5 |
1 |
≥76 |
1500 |
||
TP05DB24S12 |
24(2:1) |
18-36 |
12 |
0.42 |
≥76 |
660 |
||
TP05DB24S15 |
24(2:1) |
18-36 |
15 |
0.33 |
≥76 |
470 |
||
TP05DB24S24 |
24(2:1) |
18-36 |
24 |
0.21 |
≥79 |
470 |
||
TP05DB24D05 |
24(2:1) |
18-36 |
±5 |
±0.5 |
≥78 |
±850 |
||
TP05DB24D12 |
24(2:1) |
18-36 |
±12 |
±0.21 |
≥79 |
±140 |
||
TP05DB24D15 |
24(2:1) |
18-36 |
±15 |
±0.17 |
≥79 |
±47 |
||
TP05DB48S03 |
48(2:1) |
36-72 |
3.3 |
1 |
≥74 |
2200 |
||
TP05DB48S05 |
48(2:1) |
36-72 |
5 |
1 |
≥76 |
1500 |
||
TP05DB48S12 |
48(2:1) |
36-72 |
12 |
0.42 |
≥78 |
660 |
||
TP05DB48S15 |
48(2:1) |
36-72 |
15 |
0.33 |
≥78 |
470 |
||
TP05DB48D05 |
48(2:1) |
36-72 |
±5 |
±0.5 |
≥79 |
±850 |
||
TP05DB48D12 |
48(2:1) |
36-72 |
±12 |
±0.21 |
≥79 |
±140 |
||
TP05DB48D15 |
48(2:1) |
36-72 |
±15 |
±0.17 |
≥80 |
±47 |
||
TP05DB24S05W |
24(4:1) |
9-36 |
5 |
1 |
≥75 |
1500 |
||
TP05DB24S12W |
24(4:1) |
9-36 |
12 |
0.42 |
≥75 |
660 |
||
TP05DB24S15W |
24(4:1) |
9-36 |
15 |
0.33 |
≥75 |
470 |
||
TP05DB24D05W |
24(4:1) |
9-36 |
±5 |
±0.5 |
≥77 |
±850 |
||
TP05DB24D12W |
24(4:1) |
9-36 |
±12 |
±0.21 |
≥78 |
±140 |
||
TP05DB24D15W |
24(4:1) |
9-36 |
±15 |
±0.17 |
≥78 |
±47 |
||
TP05DB48S05W |
48(4:1) |
18-72 |
5 |
1 |
≥75 |
1500 |
||
TP05DB48S12W |
48(4:1) |
18-72 |
12 |
0.42 |
≥77 |
660 |
||
TP05DB48S15W |
48(4:1) |
18-72 |
15 |
0.33 |
≥77 |
470 |
||
TP05DB48D05W |
48(4:1) |
18-72 |
±5 |
±0.5 |
≥78 |
±850 |
||
TP05DB48D12W |
48(4:1) |
18-72 |
±12 |
±0.21 |
≥78 |
±140 |
||
TP05DB48D15W |
48(4:1) |
18-72 |
±15 |
±0.17 |
≥79 |
±47 |
||
