Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 30W 4:1 Input Voltage DC/DC Converters Powered Converter

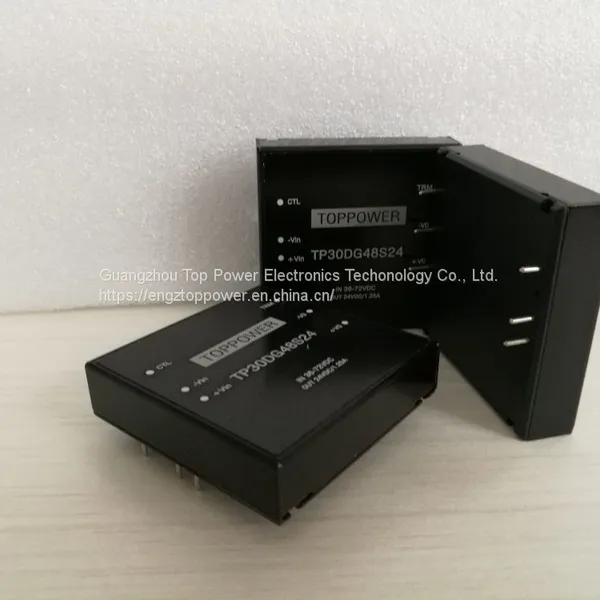

30W 4:1 Input Voltage DC/DC Converters Powered Converter
US$ 0.18
≥666666667777777900 Pieces
Key Specifications
Get Latest Price
Brand Name:
TOPPOWER
Place of Origin:
China
Model Number:
TP30DG
Payment & Shipping
Payment Methods:
Port of Shipment:
gunagzhou
Delivery Detail:
17 days
Related Products
-
1W SMD DC/DC Converters Surface Mount Integrated CircuitUS$ 0.18MOQ: 2147483647 Pieces -
6KVDC Isolated DC/DC Converters POWERED CONVERTER Integrated CircuitUS$ 0.18MOQ: 2147483647 Pieces
-
Isolated Single Output DC/DC Converters in Tubes PackingUS$ 0.18MOQ: 2147483647 Pieces
-
2W 3KVDC Isolated Single And Dual Output SMD DC/DC ConvertersUS$ 0.18MOQ: 2147483647 Pieces
-
ISOLATED POWER SUPPLY WITH Single Output DC/DC Converters 1WUS$ 0.18MOQ: 2147483647 Pieces
Brand Name
TOPPOWER
Place of Origin
China
Model Number
TP30DG
Output Power
Other, 30W
Output Type
Single
Output Current
ma
Output Frequency
hz
Output Voltage
vdc
Input Voltage
Other, 3.3-15V
|
30W 4:1 Input Voltage DC/DC Converters powered converter TOPPOWER product: TOPPOWER quality : ISO9001:2015, IATF16949:2016 |
| Brand: | TOPPOWER |
| size: | 50.8*50.8*13.3mm |
| type: | dc-dc |
| power: | 30w |
| Price: | 15.00$/Pieces |
| Min.Order: | 100 Pieces |
| Supply Amount: |
5000 Pieces |
30W Wide Input Voltage DC/DC Converters powered converter
30W Wide Input Voltage DC/DC Converters
The rated output power of TP30DD converters is 30W,the outline dimensionsis "50.8*40.6*13.3", 2:1 input voltage range, the voltage range is9V-18V,18V-36V,36V-72V.The accuracy of the converter can reach ±1%,it can bewidely used in telecommunications, railway Transportation, instrument and etc.
Part Number Input Voltage Output
voltage（VDC) Voltage（VDC)
Rated Range values
TP30DG12S03
12(2:1) 9-18 3.3
TP30DG12S05 12(2:1) 9-18 5
TP30DG12S12 12(2:1) 9-18 12
TP30DG12S15 12(2:1) 9-18 15
TP30DG12S24 12(2:1) 9-18 24
TP30DG12D05 12(2:1) 9-18 ±5
TP30DG12D12 12(2:1) 9-18 ±12
TP30DG12D15 12(2:1) 9-18 ±15
TP30DG24S03 24(2:1) 18-36 3.3
TP30DG24S05 24(2:1) 18-36 5
TP30DG24S12 24(2:1) 18-36 12
TP30DG24S15 24(2:1) 18-36 15
TP30DG24S24 24(2:1) 18-36 24
TP30DG24D05 24(2:1) 18-36 ±5
TP30DG24D12 24(2:1) 18-36 ±12
TP30DG24D15 24(2:1) 18-36 ±15
TP30DG48S03 48(2:1) 36-72 3.3
TP30DG48S05 48(2:1) 36-72 5
TP30DG48S12 48(2:1) 36-72 12
TP30DG48S15 48(2:1) 36-72 15
TP30DG48S24 48(2:1) 36-72 24
TP30DG48D05 48(2:1) 36-72 ±5
TP30DG48D12 48(2:1) 36-72 ±12
TP30DG48D15 48(2:1) 36-72 ±15
TP30DG24S05W 24(4:1) 9-36 5
TP30DG24S12W 24(4:1) 9-36 12
TP30DG24S15W 24(4:1) 9-36 15
TP30DG24S24W 24(4:1) 9-36 24
TP30DG24D05W 24(4:1) 9-36 ±5
TP30DG24D12W 24(4:1) 9-36 ±12
TP30DG24D15W 24(4:1) 9-36 ±15
TP30DG48S05W 48(4:1) 18-72 5
TP30DG48S12W 48(4:1) 18-72 12
TP30DG48S15W 48(4:1) 18-72 15
TP30DG48S24W 48(4:1) 18-72 24
TP30DG48D05W 48(4:1) 18-72 ±5
TP30DG48D12W 48(4:1) 18-72 ±12
