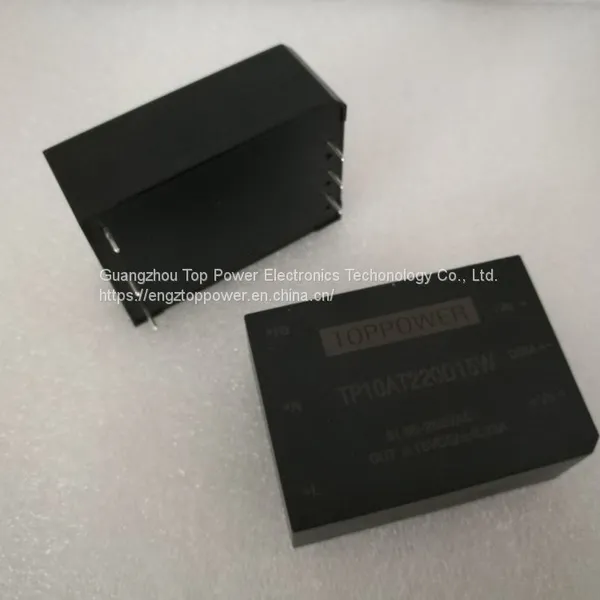

l 10W 3KVAC Isolation Wide Input AC/DC Converters
The rated output power of TP10AT converters is 10W with wide input voltage range, for both AC input and DC input application. High reliability, precision, large power density, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, EMI filter circuit, the rectifier filter circuit, 3000V isolation voltage, short circuit, overload, internal thermal protection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control and other electronic systems.
Universal input voltage range |
Both for AC and DC input voltage |
Wide input voltage：2:1 and 4:1 |
Fixed switching frequency |
Overheat protection |
Over current protection |
Short circuit protection |
RoHS compliant |
Operating temperature :-40ºC to 70ºC |
SELECTION GUIDE | |||||||||||
Part Number |
Input Voltage |
Output |
Efficiency (Typ. ) % |
Recommend output external capacitor |
|||||||
Rated |
Range values |
Voltage（VDC) |
Current （A） |
C1、C2、C3 |
C4 |
C5、C6 |
|||||
(VAC) | |||||||||||
TP10AT220S05 |
220(2:1) |
165-265 |
5 |
2.00 |
76 |
0.1uF/25V |
1000uF/16V |
/ |
|||
TP10AT220S12 |
220(2:1) |
165-265 |
12 |
0.85 |
80 |
0.1uF/25V |
470uF/25V |
/ |
|||
TP10AT220S15 |
220(2:1) |
165-265 |
15 |
0.67 |
81 |
0.1uF/25V |
470uF/25V |
/ |
|||
TP10AT220S24 |
220(2:1) |
165-265 |
24 |
0.42 |
84 |
0.1uF/25V |
330uF/35V |
/ |
|||
TP10AT220D05 |
220(2:1) |
165-265 |
±5 |
±1.0 |
76 |
0.1uF/25V |
470uF/16V |
470uF/16V |
|||
TP10AT220D12 |
220(2:1) |
165-265 |
±12 |
±0.42 |
80 |
0.1uF/25V |
330uF/25V |
330uF/25V |
|||
TP10AT220D15 |
220(2:1) |
165-265 |
±15 |
±0.33 |
81 |
0.1uF/25V |
330uF/25V |
330uF/25V |
|||
TP10AT220D05P05 |
220(2:1) |
165-265 |
+5/+5 |
1.6/0.4 |
75 |
0.1uF/25V |
1000uF/16V |
330uF/16V |
|||
TP10AT220D05P12 |
220(2:1) |
165-265 |
+5/+12 |
1.0/0.4 |
79 |
0.1uF/25V |
680uF/16V |
330uF/25V |
|||
TP10AT220D05P15 |
220(2:1) |
165-265 |
+5/+15 |
1.1/0.3 |
79 |
0.1uF/25V |
680uF/16V |
330uF/25V |
|||
TP10AT220D05P24 |
220(2:1) |
165-265 |
+5/+24 |
1.0/0.2 |
81 |
0.1uF/25V |
680uF/16V |
220uF/35V |
|||
TP10AT220T05D05 |
220(2:1) |
165-265 |
+5/±5 |
1.6/±0.2 |
74 |
0.1uF/25V |
1000uF/16V |
330uF/16V |
|||
TP10AT220T05D12 |
220(2:1) |
165-265 |
+5/±12 |
1.2/±0.2 |
75 |
0.1uF/25V |
680uF/16V |
220uF/25V |
|||
TP10AT220T05D15 |
220(2:1) |
165-265 |
+5/±15 |
1.1/±0.15 |
75 |
0.1uF/25V |
680uF/16V |
220uF/25V |
|||
TP10AT220T05D24 |
220(2:1) |
165-265 |
+5/±24 |
1.3/±0.08 |
77 |
0.1uF/25V |
680uF/16V |
100uF/35V |
|||
TP10AT220S05W |
220(4:1) |
85-265 |
5 |
2.00 |
76 |
0.1uF/25V |
1000uF/16V |
/ |
|||
TP10AT220S12W |
220(4:1) |
85-265 |
12 |
0.85 |
80 |
0.1uF/25V |
470uF/25V |
/ |
|||
TP10AT220S15W |
220(4:1) |
85-265 |
15 |
0.67 |
81 |
0.1uF/25V |
470uF/25V |
/ |
|||
TP10AT220S24W |
220(4:1) |
85-265 |
24 |
0.42 |
84 |
0.1uF/25V |
330uF/35V |
/ |
|||
TP10AT220D05W |
220(4:1) |
85-265 |
±5 |
±1.0 |
76 |
0.1uF/25V |
470uF/16V |
470uF/16V |
|||
TP10AT220D12W |
220(4:1) |
85-265 |
±12 |
±0.42 |
80 |
0.1uF/25V |
330uF/25V |
330uF/25V |
|||
TP10AT220D15W |
220(4:1) |
85-265 |
±15 |
±0.33 |
81 |
0.1uF/25V |
330uF/25V |
330uF/25V |
|||
TP10AT220D05P05W |
220(4:1) |
85-265 |
+5/+5 |
1.6/0.4 |
75 |
0.1uF/25V |
1000uF/16V |
330uF/16V |
|||
TP10AT220D05P12W |
220(4:1) |
85-265 |
+5/+12 |
1.0/0.4 |
79 |
0.1uF/25V |
680uF/16V |
330uF/25V |
|||
TP10AT220D05P15W |
220(4:1) |
85-265 |
+5/+15 |
1.1/0.3 |
79 |
0.1uF/25V |
680uF/16V |
330uF/25V |
|||
TP10AT220D05P24W |
220(4:1) |
85-265 |
+5/+24 |
1.0/0.2 |
81 |
0.1uF/25V |
680uF/16V |
220uF/35V |
|||
TP10AT220T05D05W |
220(4:1) |
85-265 |
+5/±5 |
1.6/±0.2 |
74 |
0.1uF/25V |
1000uF/16V |
330uF/16V |
|||
TP10AT220T05D12W |
220(4:1) |
85-265 |
+5/±12 |
1.2/±0.2 |
75 |
0.1uF/25V |
680uF/16V |
220uF/25V |
|||
TP10AT220T05D15W |
220(4:1) |
85-265 |
+5/±15 |
1.1/±0.15 |
75 |
0.1uF/25V |
680uF/16V |
220uF/25V |
|||
TP10AT220T05D24W |
220(4:1) |
85-265 |
+5/±24 |
1.3/±0.08 |
77 |
0.1uF/25V |
680uF/16V |
100uF/35V |
|||
