I. Product Description

This product is an ABB CP400 series industrial human-machine interface (HMI touch screen), compatible with the AC500 series PLC. It is used for monitoring the operation data of industrial site equipment, parameter setting, fault alarm viewing, and manual operation of equipment. It communicates with the PLC through Ethernet, serial port, and is installed in a panel embeddedly. It is suitable for common industrial automation scenarios and is equipped with Panel Builder 400 configuration software to complete screen programming, download, and debugging.


 Key Technical Parameters

Screen Specifications: 7-inch TFT color LCD, resolution 800×480, LED backlight, 65,536-color display

Touch Type: 4-wire resistive touch screen, supports glove operation, touch lifespan ≥ 1 million times

Hardware Storage: 128MB running memory, 60MB flash memory

Power Supply Parameters: DC24V (18~32V), maximum power consumption 10W

Communication Interfaces: 1 10/100M Ethernet, 1 RS232/422/485 serial port, 1 USB Host, 1 USB programming port

Protection Grade: Front panel IP66, back-end terminal side IP20

Operating Environment: Working temperature 0℃~+50℃, storage temperature -20℃~+60℃, relative humidity 10%~90% (no condensation)

Built-in Accessories: Battery backup real-time clock, supports power-off time preservation

Installation Method: Embedded installation in the control cabinet panel, opening size 191.5mm×138mm

Overall Weight: 0.55kg

Certification Standards: CE, cUL, DNV shipyard certification, RoHS environmental protection certification

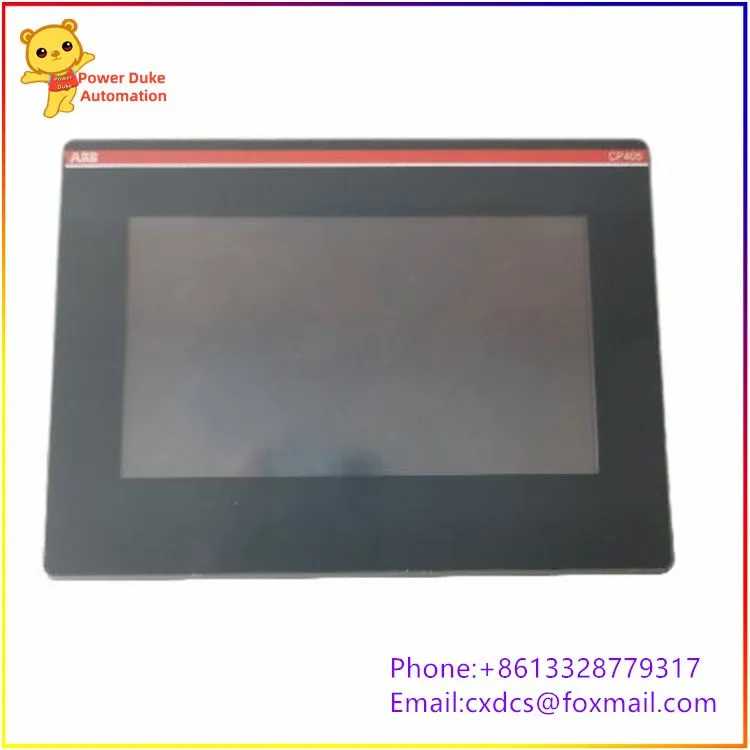

ABB CP405 A0 1SAP500405R0001(2)_pixian_ai

Product Performance

Supports multi-language configuration screens, can set multi-level user permission password management

Has real-time alarm, historical alarm storage, and process formula upload/download functions

Compatible with Modbus TCP, Modbus RTU, ABB's own PLC communication protocol, can interface with the AC500 full series controllers

Supports trend curves, analog dashboard, bar charts, status indicator lights and other data visualization controls

Supports script logic programming, offline simulation debugging, and can achieve program backup and data export through USB drive

Wide voltage supply, anti-electromagnetic interference, can operate stably and for a long time in dusty, temperature and humidity fluctuating industrial sites

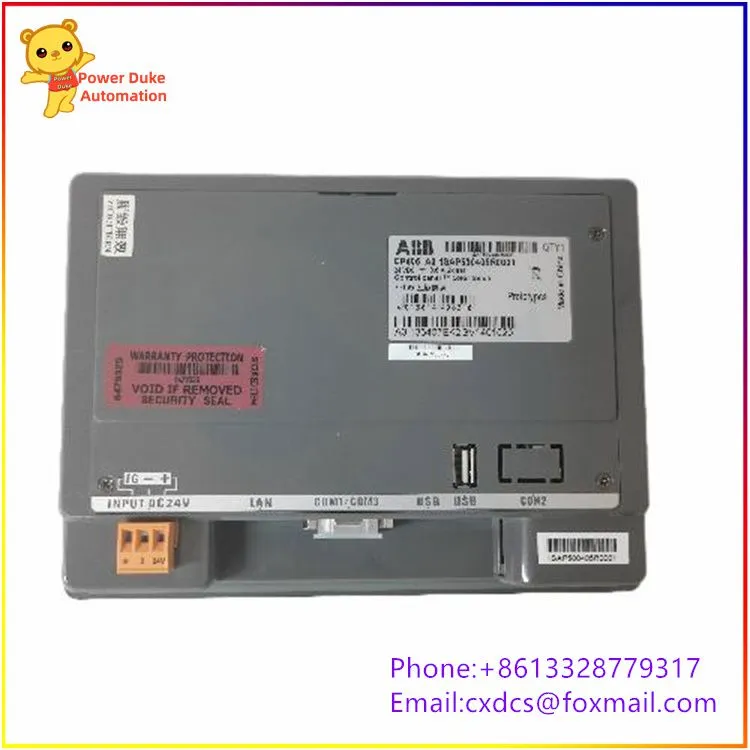

ABB CP405 A0 1SAP500405R0001(1)_pixian_ai

Application Domains

General Machinery: Packaging equipment, textile machinery, injection molding machines, woodworking machinery, logistics conveyor lines

HVAC water treatment: Central air conditioning control system, sewage treatment pump station, water purification treatment automation equipment

New energy industry: Small photovoltaic control cabinet, charging station control system, biomass energy equipment

Power distribution: Low-voltage switch cabinets, box transformers, local monitoring operation panels for generators

Maritime and shipping: Local operation monitoring of auxiliary equipment for ships (holds DNV marine certification)

Light industry and building materials: Ceramic, cement, food processing production line local human-machine operation units

名片3

List of Similar Series Models

CP403: 4.3-inch compact HMI, suitable for simple monitoring of small equipment

CP405 A0 (1SAP500405R0001): 7-inch standard model, this is the commonly used model

CP408: 10.1-inch large-screen human-machine interface, suitable for complex multi-data centralized monitoring scenarios

CP410: 10.4-inch high-end touch panel, supports redundant communication, large-capacity data storage

CP420: 12-inch large-screen HMI, control terminal for large production lines
