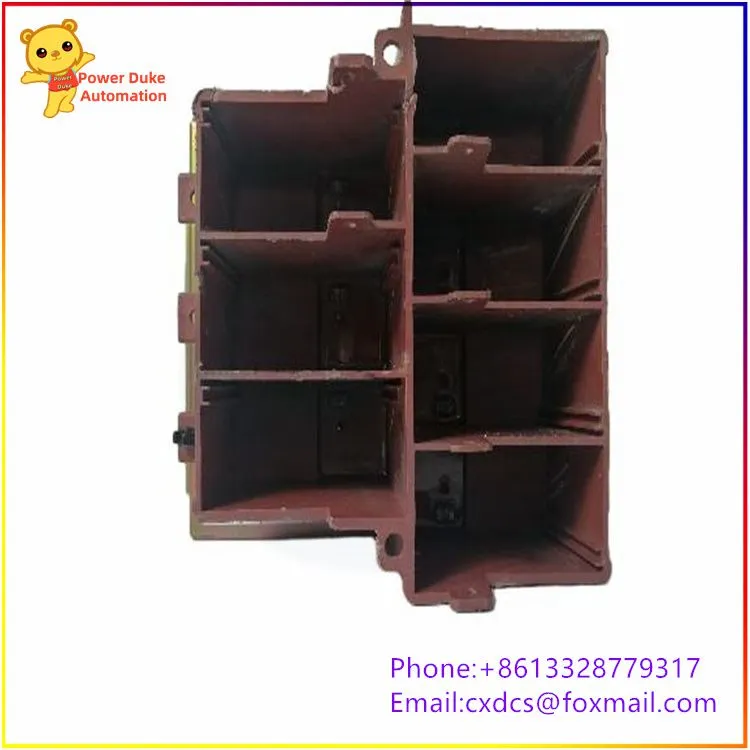

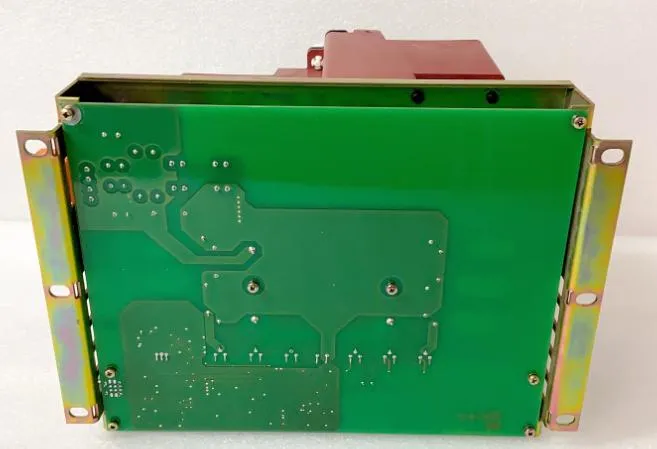

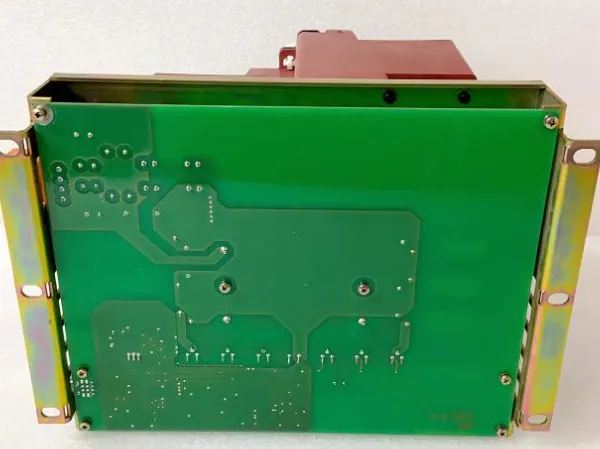

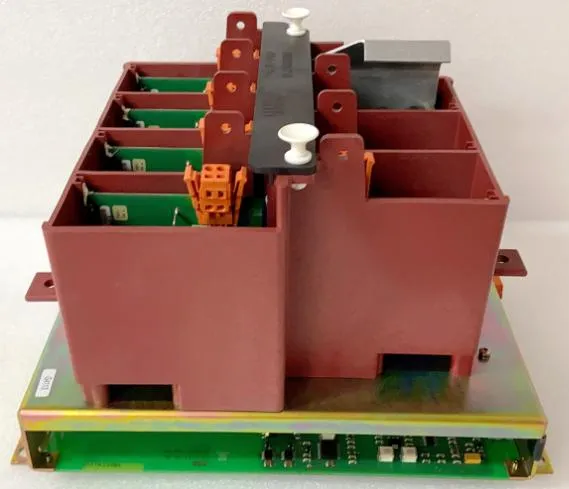

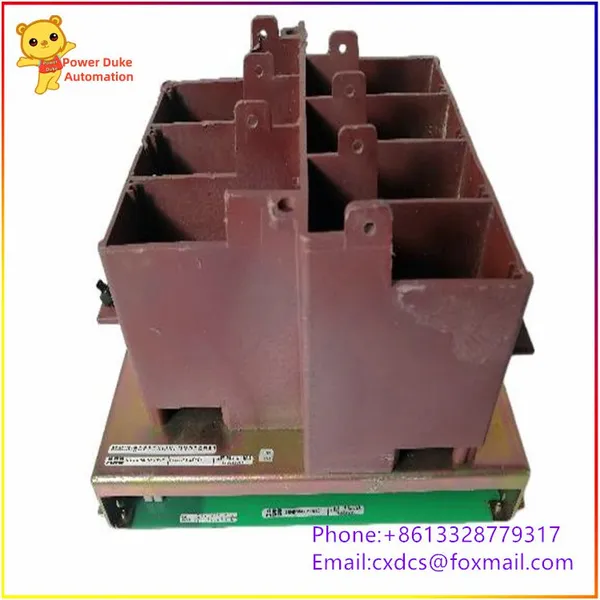

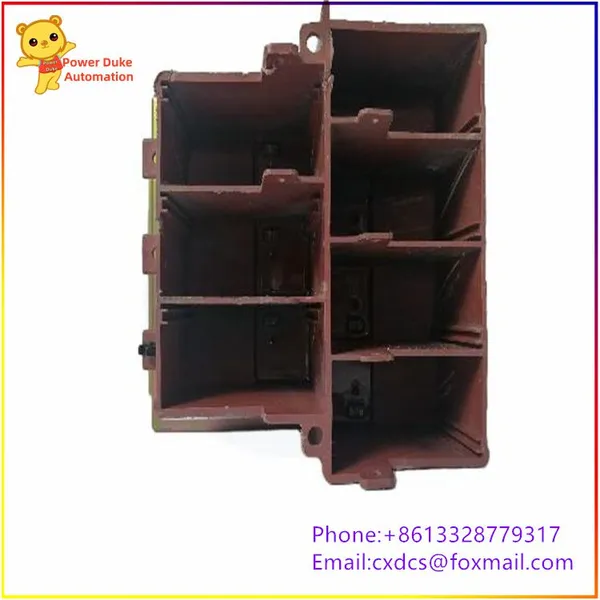

Help CenterABB KUC711AE101 3BHB004661R0101 Thyristor Power Rectification Unit Module
Product Spotlights
Related Products
-
ABB LDGRB-01 3BSE013177R1 Digital Input Interface Expansion ModuleUS$ 5000MOQ: 1 Unit -
ABB NDCU-12C NDCU-12CK Main Control Unit (for Driving the CPU Motherboard)US$ 5000MOQ: 1 Unit
-
ABB PCD232A 3BHE022293R0101 Excitation Control System ModuleUS$ 5000MOQ: 1 Unit
-
ABB PFCL201CE 50KN 3BSX802939-108 Pillow-type Vertical Force Tension SensorUS$ 5000MOQ: 1 Unit
-
ABB PFEA112-20 3BSE050091R20 Dual-channel Tension Measurement AmplifierUS$ 5000MOQ: 1 Unit
I. Product Description
This module belongs to the ABB Unitrol series of generator set excitation system thyristor power rectifier unit module. It is the core power execution component of the excitation system, converting the AC power through three-phase thyristor rectification into controllable DC excitation current, which is supplied to the rotor winding of the generator. It cooperates with the excitation regulator to achieve precise closed-loop regulation of the terminal voltage and reactive power. It has multiple hardware protection functions and is widely used in ABB static excitation control cabinets for thermal power, hydropower, and gas-fired power stations. It is a high-power rack-mounted industrial power spare part.
Key Technical Parameters
Order Model: KUC711AE101, Material Code: 3BHB004661R0101
Input Power Supply: Three-phase AC input, compatible with the rated industrial voltage of the excitation system rectifier side
Rectification Topology: Three-phase fully controlled bridge thyristor rectification structure
Rated Output: High-power DC excitation current output, compatible with large and medium-sized synchronous generator sets
Heat Dissipation Method: Built-in aluminum alloy heat sink + cabinet forced air cooling
Operating Environment Temperature: -10℃ to +50℃
Storage Temperature: -20℃ to +85℃
Insulation Voltage: High-voltage insulation isolation of 2500VAC between the main circuit and ground
Protection Grade: IP20, only for installation inside the control cabinet
Installation Method: Standard cabinet fixed installation, supports multi-module parallel expansion
Status Indicators: LED indicators for power, trigger normal, fault alarm
Overall Weight: Approximately 1.5kg
Certification Standards: CE, UL, power industry IEC safety certification
Product Performance
Three-phase fully controlled rectification design, fast response, can quickly track system voltage fluctuations, stabilize generator output voltage and reactive load
Integrated overcurrent, overvoltage, overheat, thyristor short circuit, phase loss multiple hardware protection, when a fault occurs, quickly block the trigger pulse to prevent the excitation system from burning out
Supports multiple power modules parallel operation, can be expanded to adapt to the excitation power demand of large-capacity generator sets
Built-in thyristor trigger synchronization sampling circuit, precisely synchronized with the excitation main control board card, high rectification control accuracy, small harmonic interference
Built-in fault diagnosis circuit, can upload overcurrent, overheating, phase loss and other fault signals to the excitation controller to achieve local alarm and remote DCS alarm
High-power heat dissipation structure, can operate continuously at full load for a long time, compatible with 24-hour non-stop operation of power plants
Application Fields
Thermal power plants: ABB Unitrol series static excitation system power rectifier unit for steam turbine generator sets
Hydropower plants: Excitation control cabinet core power execution module for water turbine generator sets
Gas and biomass self-owned power stations: Excitation current rectification regulation for large synchronous generators
Metallurgical and chemical self-owned power plants: Voltage and reactive power stability control for high-voltage generator sets
Pumped storage power stations, distributed large-scale energy power station generator sets excitation system matching
List of Similar Model Numbers
KUC711AE100: Small power standard version thyristor rectification power module
KUC711AE101: General power module for large and medium-sized units (this model)
KUC711AE102: High-power parallel expansion excitation power unit
KUC721AE: New-generation compact excitation rectification power module
PCD232A: Excitation system main control processor module
GFD233A: Excitation system optical fiber redundant communication module
