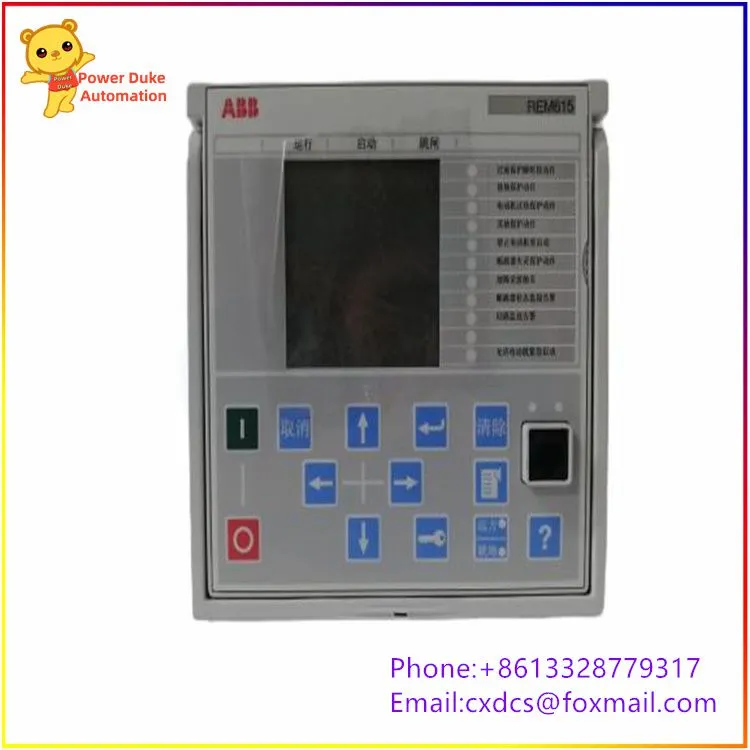

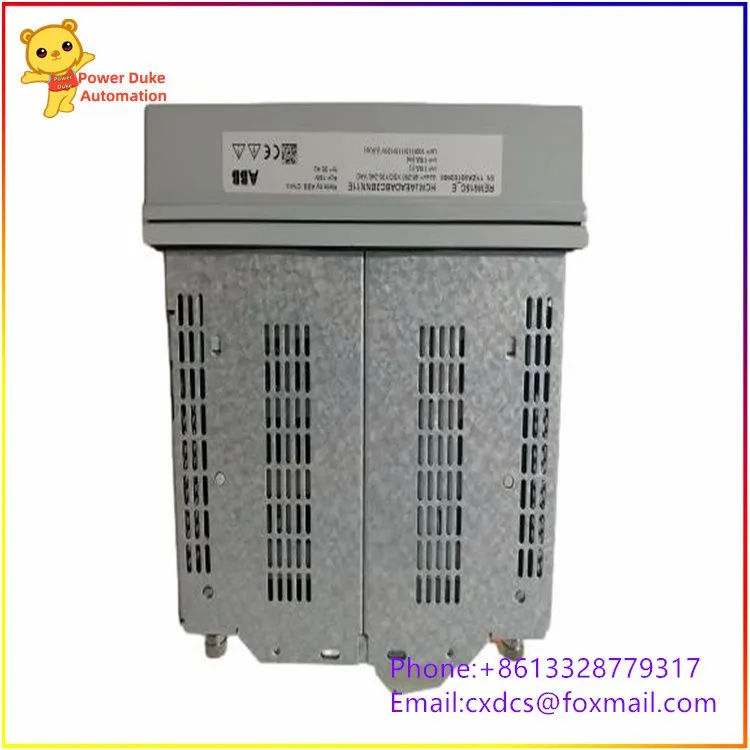

ABB REM615 HCMJAEADABC2BNN11E
I. Product Description
The ABB Relion 615 series dedicated protection, measurement and control IED intelligent device for high-voltage motors, with model configuration version J, integrates all protection functions for motors, local remote control, electrical quantity measurement, fault recording, event alarm, and communication transmission. It is suitable for medium and high-voltage asynchronous motor switch cabinets, enabling safe operation monitoring and rapid fault trip isolation for large-power motors such as fans, pumps, crushers, and belt conveyors. It adopts a plug-in modular structure and is widely used in industrial power distribution, power plants, metallurgy, and chemical industries' high-voltage distribution room automation systems. This order model is equipped with IEC61850 + Modbus dual communication protocols and a large-screen LCD operation panel with primary system diagram display, parameter setting, and fault viewing.
Key Technical Parameters
Complete order model: REM615, Order Code: HCMJAEADABC2BNN11E
Analog quantity acquisition: Three-phase current, three-phase voltage, compatible with conventional CT/PT transformers
Current measurement range: 0.01In to 4In, Voltage measurement range: 0.01Un to 1.2Un
Measurement accuracy: Current and voltage measurement accuracy ≤ ±0.5% FS
Switch quantity configuration: Multiple switch quantity inputs, 8-channel relay passive outputs, contact capacity AC250V/5A, DC250V/5A
Communication interface: Dual RJ45 Ethernet, supports IEC61850, Modbus RTU/TCP, compatible with HSR/PRP ring network redundancy
Time synchronization: Supports IEEE 1588 V2 high-precision time synchronization
Human-machine interface: Large-screen LCD, supports local display of primary wiring diagram, parameter setting, and fault viewing
Power supply method: DC110V/220V, AC110V/220V, AC/DC universal control power supply
Operating environment temperature: -25℃ to +70℃, storage temperature: -40℃ to +85℃
Relative humidity: 5% to 95% RH, no condensation
Protection level: Front panel IP54, cabinet installation side IP20
Installation method: Switch cabinet embedded plug-in installation, supports rapid replacement of plug-ins without power outage
Event storage: No less than 1000 event records, fault recording data is cyclically stored
Certification standards: CE, UL, IEC power industry safety electromagnetic compatibility certification
Product Performance
Integrated all protection functions for motors: Overload protection, overcurrent protection, start-up timeout, frequent start-up locking, negative sequence imbalance, phase loss, phase sequence error, grounding fault, undervoltage, loss of load, arc fault protection, fault tripping within milliseconds to avoid motor burn risk.
It has one-time system visualization monitoring for switch cabinets, enabling local motor closing and opening control, position status monitoring, online self-check of trip circuits, CT/PT disconnection abnormal alarms.
Supports four-level permission password management to prevent parameter missetting and illegal operations, and can online modify protection settings, withdraw protection plates.
Dual communication protocols are compatible, capable of connecting to substation IEC61850 digital integrated automation system, or connecting to PLC, DCS upper-level monitoring platform through Modbus.
It has fault recording, fault location, event sequence recording functions, capable of accurately locating fault time and fault type, facilitating electrical accident analysis and troubleshooting.
Modular plug-in design, the main body of the device and terminal plug-ins are separated, making spare parts replacement convenient on-site, significantly reducing the downtime for high-voltage motor maintenance.
Wide temperature and voltage industrial design, strong anti-electromagnetic interference capability, capable of stable operation in dusty, humid, and strong electromagnetic interference industrial power distribution rooms for a long time.
Application Fields
Thermal power, hydropower, new energy power plants: Boiler induced draft fans, blowers, circulating water pumps, condensate pumps, etc., high-voltage motor protection and measurement control. Petrochemical industry: Compressor, large-scale conveying pumps, mixing motors, air-cooled fan high-voltage circuit protection control
Metallurgical and mining industry: Belt conveyors, crushers, dust removal fans, main exhaust fans high-voltage motor comprehensive protection
Cement and building materials, paper industry: Large main drive motors, kiln furnace fans, water pumps switch cabinet protection measurement control
Urban sewage treatment, thermal network: High-power booster pumps, aeration fans medium-high voltage motor intelligent protection
Railway transportation, port and industrial substation: Plant-use high-voltage asynchronous motor comprehensive protection and remote monitoring
List of the same series models
REM615 HCMJAEADABC2BNN11E: J version motor protection device (this model, IEC61850 + Modbus communication)
REM615Z: Upgraded replacement version, hardware compatible, can directly replace the J version device
REF615: Feeder line protection measurement control device, used for cable and overhead outgoing line protection
RET615: Double-winding transformer differential protection measurement control device
REC615: Capacitor, reactor protection measurement control device
REU615: Busbar voltage monitoring and standby power auto-switching device
