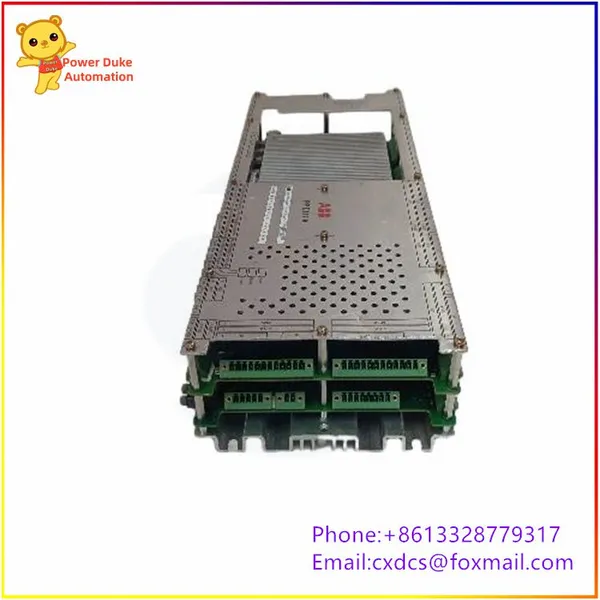

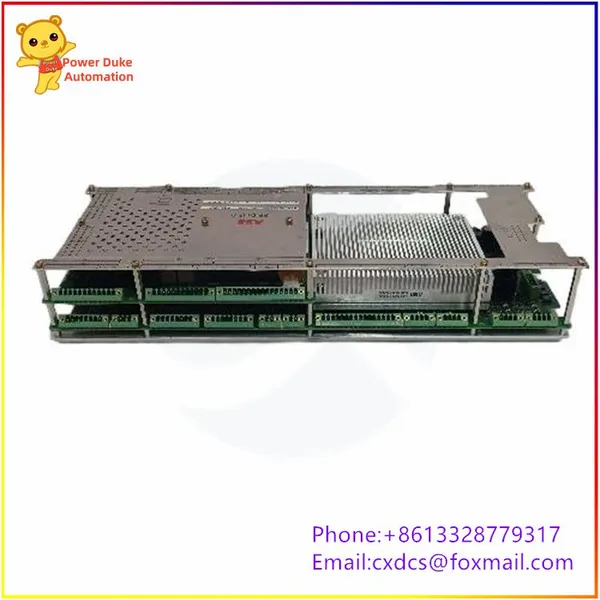

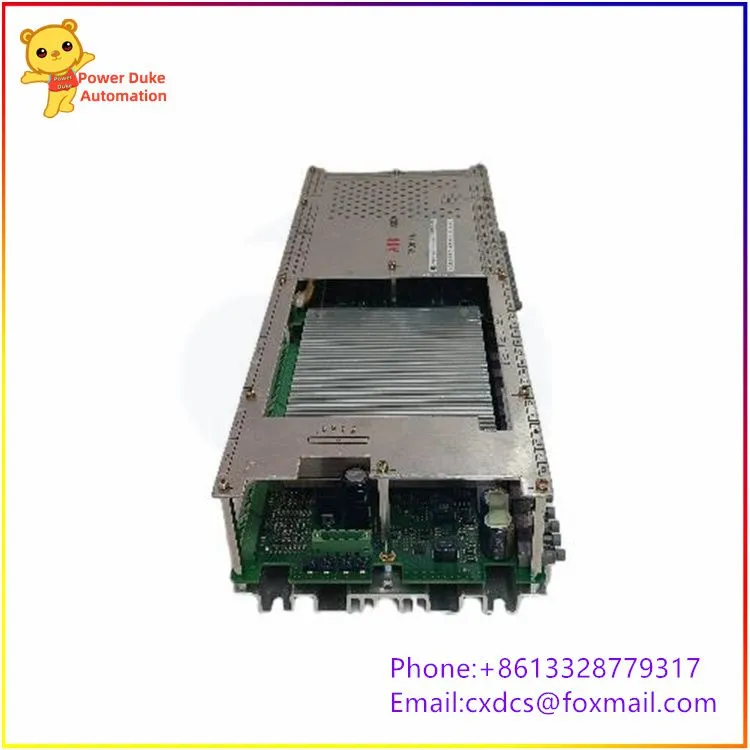

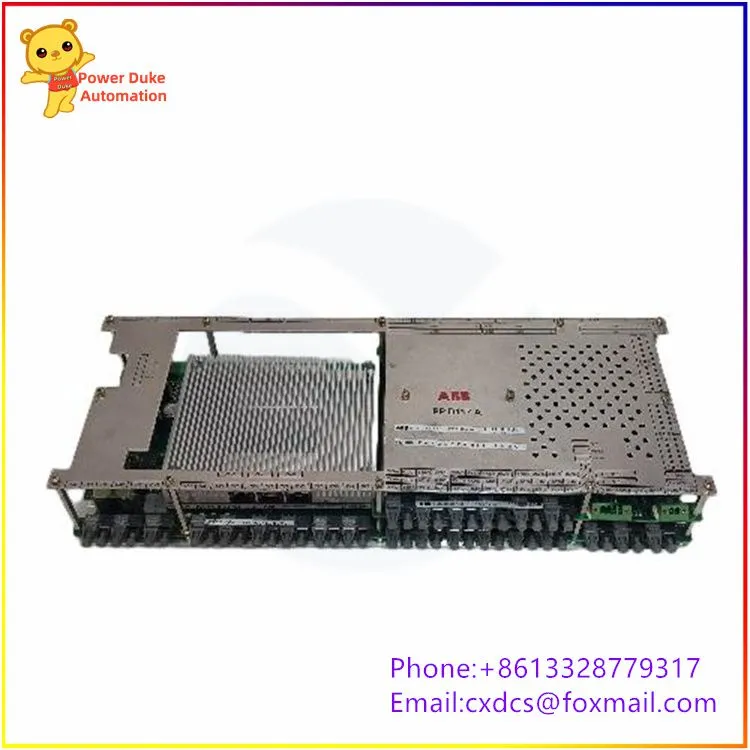

ABB PPD117A3011 3BHE030410R3011 High-performance Excitation Main Control Regulation Unit
I. Product Description
The ABB UNITROL series generator set excitation system is a high-performance excitation main control regulating unit, serving as the core control board of the excitation control cabinet. It collects the generator terminal voltage and current transformer signals in real time, and through the built-in AVR voltage regulation algorithm, calculates and outputs thyristor trigger control instructions to achieve closed-loop stable regulation of the generator terminal voltage, reactive power, and power factor. It integrates a complete set of excitation protection, fault recording, and multi-link communication functions. It supports single-channel or dual-channel redundant configuration and can be used in conjunction with excitation power units, optical fiber communication modules, and I/O signal boards, widely used in various thermal power, hydropower, and self-owned power station excitation systems as spare parts replacement.
Key Technical Parameters
Order Model: PPD117A3011, Material Code: 3BHE030410R3011
Control Power Supply: DC24V, Total Machine Power Consumption ≤ 20W
AC Analog Input: 0~100V AC Voltage, 0~5A AC Current (Suitable for conventional PT, CT transformers)
External Control Signal: 4~20mA DC Analog Input
Regulation Accuracy: Voltage Regulation Accuracy ±0.2% FS, Reactive Power Regulation Accuracy ±1% FS
System Response: Voltage Step Response ≤ 100ms, Fault Protection Action Response ≤ 20ms
Communication Interface: 1 Ethernet (Supporting IEC61850), 2 RS485 (Modbus RTU)
Switching Quantity Channel: Multiple DI Switching Quantity Acquisition, 8 DO Relay Alarm Output
Operating Environment Temperature: -20℃ to +60℃
Storage Temperature: -40℃ to +85℃, Relative Humidity 5% to 95% RH without Condensation
Protection Grade: IP20, Rack-mounted Installation in Control Cabinet
Installation Method: Standard Slot Installation, Support Online Hot Swap
Hardware Configuration: Large-capacity Fault Recording Storage, Battery Backup Parameter Saving
Insulation Voltage: 2500VAC Isolation for Strong and Weak Electrical Circuits, Compliant with CE, UL, IEC Power Safety Certification
Product Performance
Built-in constant voltage, constant reactive power, constant power factor, power system stability PSS multiple control modes, meeting various operation conditions such as isolated grid and grid connection requirements
Integrated over-excitation, under-excitation, overcurrent, loss of excitation, low frequency, overvoltage, incorrect strong excitation, etc., a complete set of excitation system software and hardware protection functions, fault rapid locking pulse and alarm upload
Support dual-channel hardware redundancy operation, when the main controller is abnormal, it can switch to the standby channel within milliseconds without interruption, ensuring the generator set operates without interruption and stably
Can be locally parameter setting, fault waveform storage traceability, supports remote parameter download, online debugging, program upgrade from the upper computer
Multiple protocols communication compatibility, can upload excitation operation parameters, fault events to the power plant DCS, SCADA centralized control system, and receive remote adjustment instructions
Built-in hardware fault self-check, synchronous signal break, power unit abnormality, channel short circuit diagnosis functions, panel LED status indication for on-site maintenance
Industrial-grade wide temperature anti-interference hardware design, capable of continuous stable operation in power plant high voltage, variable frequency, dusty and humid harsh electromagnetic environment for a long time
Application Domains
Thermal Power Plants: UNITROL Series Static Excitation System Main Control Regulation Unit for Steam Turbine Generator Sets
Hydropower Plants: Excitation Voltage Regulation, Reactive Power Stability Core Control Component for Hydro Turbine Generator Sets
Gas, Biomass, Waste Incineration Self-owned Power Station Synchronous Generator Excitation Control System
Metallurgy, Chemical Industry, Cement Industry Self-owned Power Station Excitation System Renovation, Fault Spare Parts Replacement
Pumped Storage Power Station, Distributed Grid-connected Generator Set Dual-Channel Redundant Excitation Control System
List of Similar Model Numbers
PPD117A1011: Economical Single-Channel Basic Excitation Main Control Board PPD117A2011: Generalized Excitation Controller with Simple PSS Function
PPD117A3011: Standard Version with PSS + Redundant Communication Excitation Master Controller (This Model)
PPD517A3011: New Generation High-Capacity High-End Excitation Processor
GFD233A: Compatible Fiber Optic Redundant Communication Module
KUC711AE Series: Compatible Thyristor Excitation Power Rectifier Unit
