I. Product Description

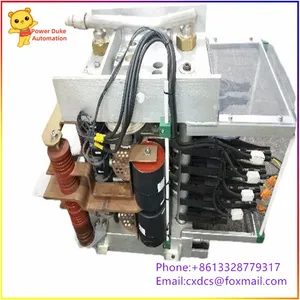

The three-phase power phase module (Phase Module) of the ABB ACS6000 medium and high-voltage inverter is a core power conversion unit of the high-voltage inverter. It is equipped with large-power IGCT thyristor power components, water-cooled cooling structure, drive triggering circuit and hardware protection circuit. It converts three-phase high-voltage alternating current into DC bus voltage and then converts it back into adjustable frequency and voltage alternating current to drive high-power high-voltage motors. It achieves continuous and stable operation under high-power conditions through water-cooling cooling, and is currently out of production by the original factory. It is mainly used as a spare part for high-voltage inverter systems in industries such as mining, metallurgy, and power.
Key Technical Parameters
Model: S-076N, Order Material Code: 3BHB009884R0021
Power Components: Large-power IGCT integrated thyristor power unit
Applicable Inverter Voltage Level: Medium and high-voltage industrial grid input
Cooling Method: Water-cooled forced circulation cooling
Control Power Supply: DC24V control circuit power supply
Operating Environment Temperature: -25℃ to +55℃
Storage Temperature: -40℃ to +70℃
Protection Grade: IP20 (installed inside the cabinet)
Overall Size: 380mm × 210mm × 160mm
Overall Weight: Approximately 6.5kg
Communication Method: Fiber DriveBus and main control unit high-speed communication
Insulation Voltage: High-voltage insulation isolation of the main circuit to ground
Equipped with multiple hardware protections such as overcurrent, overvoltage, overheat, short circuit, and water cooling flow loss
Certification Standards: CE, UL industrial power safety certification
Product Performance
It adopts a three-level topology power architecture, with low harmonic content in the output waveform, which can reduce the insulation loss of high-voltage motors and extend the service life of the motors.
Integrated water-cooling design, with high cooling efficiency, capable of continuously operating under full-load conditions with large-power loads for a long time, suitable for 24-hour uninterrupted industrial conditions.
Fiber isolation drive triggering circuit, with complete electrical isolation of strong and weak circuits, resistant to strong electromagnetic interference inside the inverter, avoiding false triggering and false protection faults.
Built-in real-time fault diagnosis circuit, capable of detecting IGCT component faults, water cooling leakage, overheating, overcurrent, bus overvoltage and other abnormalities. Fault signals are uploaded to the main control system through fiber for precise alarm.
Modular plug-in rack structure, supporting single-module online rapid replacement, significantly reducing the downtime for maintenance of high-voltage inverter equipment.
Supports parallel expansion of multiple phase modules to flexibly adapt to different power levels of ACS6000 high-voltage inverters, with strong system compatibility.
Equipped with hardware anti-mis-triggering and soft start buffer circuits, capable of suppressing voltage and current shocks caused by power-on and load sudden changes, protecting power components from breakdown and damage.
Application Domains
Mining Industry: Main drainage pumps, main ventilation fans, belt conveyors, hoists of mine high-voltage motor variable frequency drive
Metallurgical Industry: Main drive of hot rolling and cold rolling, dust removal fans of high-temperature furnaces, circulating water pumps of large power high-voltage motor speed regulation system
Thermal power and hydropower power plants: Boiler induced draft fans, condensate pumps, circulating water booster pumps of high-voltage variable frequency energy-saving transformation
Petroleum chemical industry: Large compressors, raw material conveying pumps, air-cooled fans of high-voltage motor variable frequency control system
Cement and building materials industry: Main fans of kilns, vertical mills, large exhaust fans of high-power high-voltage transmission devices
Port, rail transit large pump stations, large air compressor high-voltage motor energy-saving speed regulation scenarios
List of Similar Model Numbers
S-073N: Small power standard version high-voltage inverter phase module
S-074N: Medium power universal water-cooled phase module
S-076N 3BHB009884R0021: Large power heavy-duty water-cooled phase module (This model)
S-078N: Ultra-large power multi-parallel expansion type phase module
NDCU Series: ACS6000 matching main control control unit RDCO Series: Optical Fiber Communication Interface Supporting Board Cards
