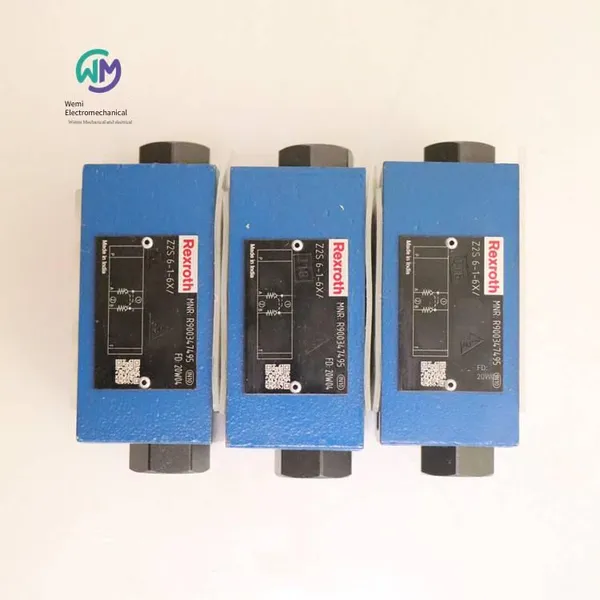

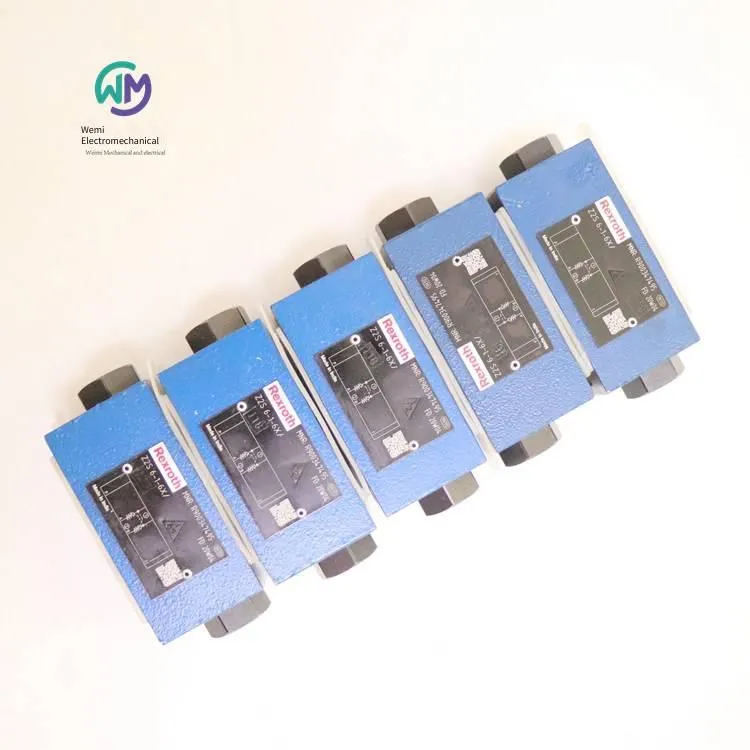

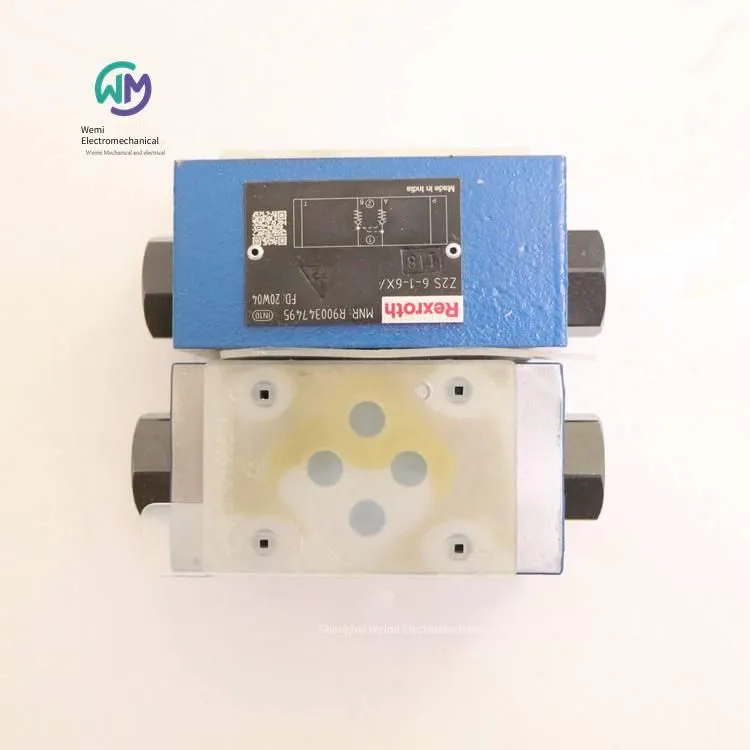

Rexroth check valve Z2S6-1-6X/ can be shipped on the same day. It is the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing. Real product photos, original genuine products, in-stock inventory, affordable price. We sincerely welcome new and old customers to consult and purchase!
Rexroth REXROTH pilot-operated check valve
Z2S 6
Specification 6
Component series 6X
Max. working pressure 315 bar
Max. flow rate 60 l/min
Oil port mounting surface complies with DIN 24340 Form A (without locating holes)
Oil port mounting surface complies with ISO 4401-03-02-0-05 (with locating holes)
For leak-free blocking of one or two actuator ports, optional
With various opening pressures, optional (please refer to the order code)
With pre-opening, optional
The check valve mounting kit can be used separately
Special models can be provided upon request
The Z2S type check valve is a pilot-operated check valve with a stack valve plate design.
For leak-free blocking of one or two actuator ports, even for long-term shutdown situations.
In the direction from A1 to A2 or B1 to B2, free flow is possible; in the opposite direction, the flow is blocked.
For example, if the flow direction of the valve is from A1 to A2, the control spool will move towards the B side, opening the ball seat valve and pushing the valve core off its seat. The hydraulic oil can now flow from B2 to B1.
In order to safely close the ball seat valve, the control spool must be hydraulically unloaded (please refer to the oil circuit example).
Pre-opening
Due to the pre-opening, the pressurized liquid can be depressurized in a damped manner. This avoids possible commutation shocks.
Due to the use of a two-stage setting with an enlarged opening control area ratio, safe unloading can also be achieved with a lower pilot pressure.
Note:
If the valve does not have a pre-opening, the trapped pressure volume may be suddenly unloaded. The resulting commutation shock will not only cause premature wear of the installed components but also generate noise.
Order numbers and models of German Rexroth REXROTH check valves:
R900347495 Z2S6-1-6X/
R900347495 Z2S6-1-66/
R900347505 Z2S6-2-66/V
R900347501 Z2S6B1-66/
R900347498 Z2S6A1-6X/
R983030685 Z2S6-A1-6XIN010
R900347499 Z2S6A2-6X/
R900347501 Z2S-6B1-6X
Rexroth check valve Z2S6-1-6X/ In stock, can be shipped on the same day
