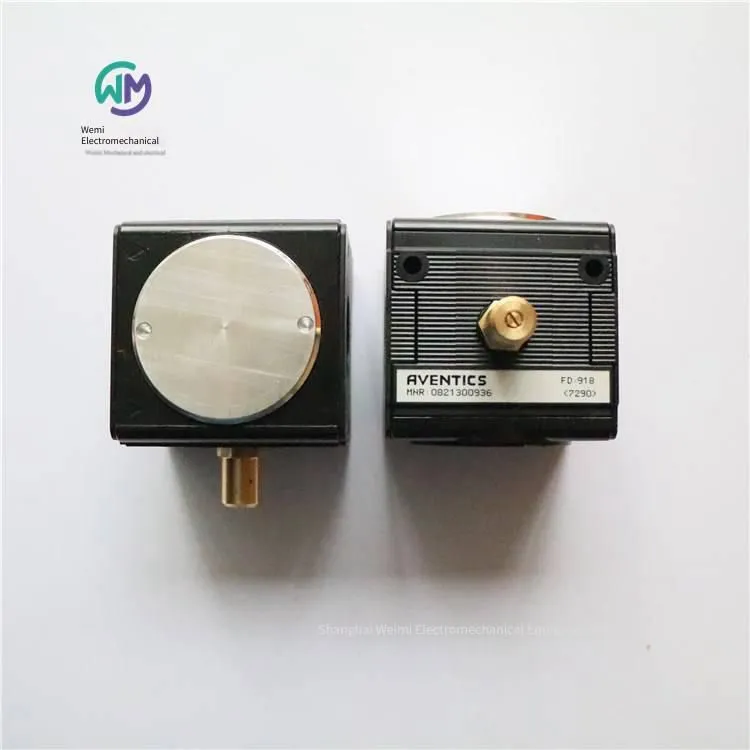

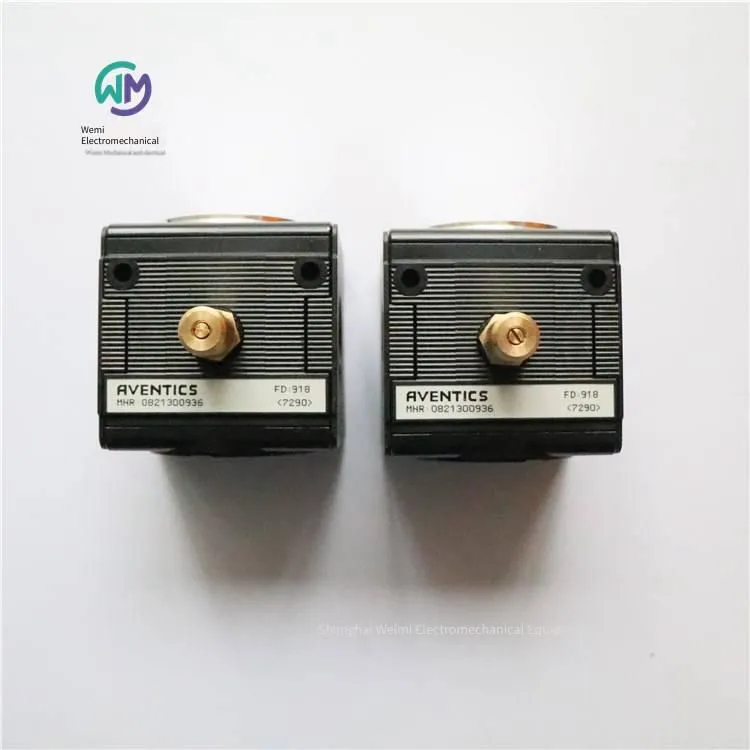

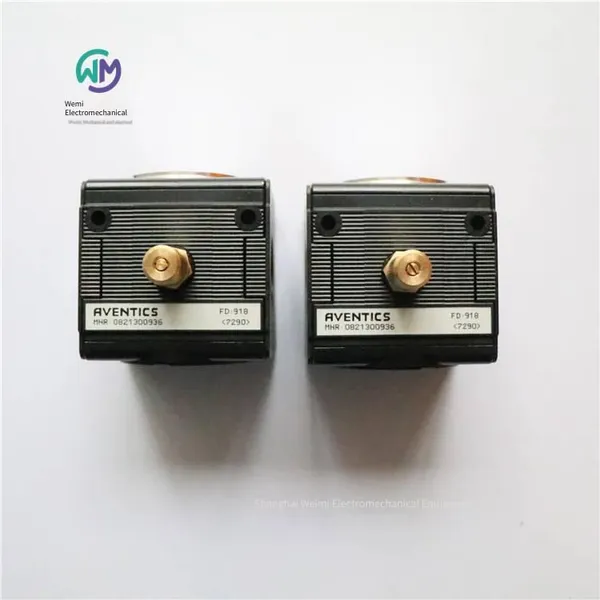

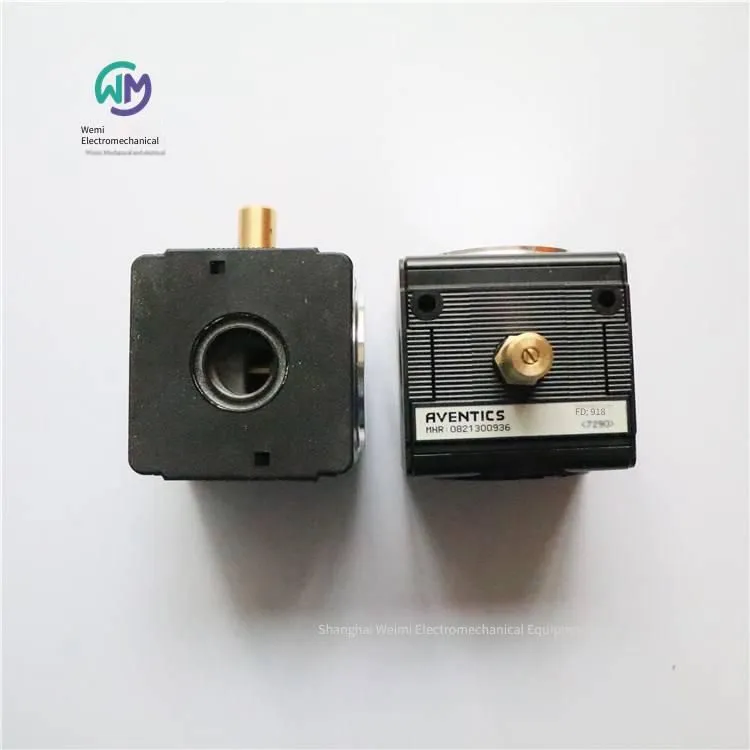

AVENTICS Lubricating Valve 0821300936, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, genuine products from the original factory, in-stock inventory, affordable price; We sincerely welcome new and old customers to consult and purchase!
AVENTICS Lubricating Valve, pneumatically operated, Series NL4-SSV-0821300936
The AVENTICS NL series air preparation units are suitable for all fields: as single components or combined air preparation units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired function, and the components can be adjusted according to the application requirements.
Structural feature: Poppet valve
Housing: Die-cast zinc
Seal material: Acrylic resin
Suitable for ATEX
Nominal flow rate Qn: 4000 l/min
Compressed air interface - Inlet: G 1/2
Compressed air interface - Outlet: G 1/2
Structural feature: Poppet valve, can be assembled into blocks
Sealing principle: Soft seal
Certificate: Suitable for ATEX
Operating pressure range: 0 ... 16 bar
Control pressure - Min/Max: 2.5 ... 16 bar
Low / high ambient temperature: -10 ... 60 °C
Medium temperature range: -10 ... 60 °C
Medium: Compressed air, neutral gas
Particle size max.: 5 μm
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.
The pressure in the pneumatic equipment builds up slowly. This means that when the supply pressure suddenly disappears or the equipment is restarted after an emergency shutdown, sudden increases or decreases in air pressure can be avoided. Therefore, the cylinder will not make sudden and dangerous movements.
Do not install the filling valve or filling unit in front of open devices (such as nozzles, air compressors, air doors, etc.) because this may block the connection of components.
Suitable for use in Ex zones 1, 2, 21, 22.
The change in the flow direction (from air supply to the left to air supply to the right) is done by the facility rotating 180° on the vertical axis. For detailed information, please refer to the operation manual.
AVENTICS Compact Cylinder, Series KPZ 0822390603
KPZ-DA-016-0020-007122411000020-B
The AVENTICS KPZ series is a compact cylinder based on the widely used NFE 49 004 standard. It offers various variants, and its small size makes it widely applicable.
Specifications
Standard NFE 49004
Piston - 16 mm
Stroke 20 mm
Operating principle Double-acting
Buffering Elastic
Magnetic pin With magnetic piston
Temperature resistance Optional heat-resistant
Piston rod Non-twistable, with front plate, optional continuous
Dust seal material Polyurethane
Pressure for determining piston thrust 6,3 bar
Piston force during retraction movement 95 N
Piston force during extension movement 127 N
Low ambient temperature -20 °C
High ambient temperature 80 °C
Minimum operating pressure 1 bar
Maximum operating pressure 10 bar
Interface M5
Impact energy 0.15 J
Maximum stroke 300 mm
Minimum medium temperature -20 °C
Maximum medium temperature 80 °C
Medium Compressed air
Particle size max. 50 μm
Minimum oil content in compressed air.,0 mg/m3
Maximum oil content in compressed air 5 mg/m3
Features
Compliant with NFE 49-004
16 mm ... 100 mm
Maximum stroke: 500 mm
With integrated sensor slot
Optional: Hollow piston rod, non-rotating (through piston rod or front plate), multi-position variant, heat-resistant, ATEX
AVENTICS Short-stroke Cylinder, Series KHZ 0822010731
KHZ-DA-025-0010-O-NR
The AVENTICS KHZ series is a non-standard short-stroke cylinder that is very suitable for small installation spaces and ensures easy and safe integration into machinery.
Specifications
Piston - 25 mm
Stroke 10 mm
Operating principle: Double-acting
Buffering: Elastic
Piston rod without rotation
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction: 260 N
Piston force during extension: 309 N
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: G 1/8
Impact energy: 0.1 J
Weight with 0 mm stroke: 0.178 kg
Weight with +10 mm stroke: 0.034 kg
Minimum medium temperature: -25 °C
Maximum medium temperature: 80 °C
Medium: Compressed air
Particle size max. 50 μm
Minimum oil content in compressed air: 0 mg/m3
Maximum oil content in compressed air: 5 mg/m3
Piston rod: Stainless steel
Piston material: Acrylic rubber
Features
8 mm ... 100 mm
Maximum stroke: 100 mm
For short and narrow installation spaces
Non-rotating piston rod, achieved through the front panel
AVENTICS profile cylinders comply with ISO 15552 standard, PRA series 0822124010
PRA-DA-080-0400-0-2-2-1-1-1-BAS
AVENTICS PRA series (ISO 15552) cylinders have a compact design with integrated sensor slots. The PRA series (ISO 15552) cylinders can be used in various industries. This includes general automation technology, machine and system construction, as well as special industry applications.
Specifications
Standard: ISO 15552
Piston - 80 mm
Stroke 400 mm
Operating principle: Double-acting
Buffering: Pneumatic
Buffering adjustable
Magnetic pin with magnetic piston
Certificate available in ATEX
Available in ATEX
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction: 2855 N
Piston force during extension: 3165 N
Low ambient temperature: -20 °C
High ambient temperature: 80 °C
Minimum operating pressure: 1.5 bar
Maximum operating pressure: 10 bar
Interface: G 3/8
Piston rod thread: M20x1,5
Buffer length: 19.5 mm
Buffer energy: 54 J
Weight (0 mm stroke): 2.37 kg
Weight (+10 mm stroke): 0.085 kg
Maximum stroke: 2800 mm
Minimum medium temperature: -20 °C
Features
6 mm T-slot and 4 mm C-slot, allowing easy, fast and compact installation of various sensors
Pistons with diameters from 32 mm to 125 mm are available
Modular sealing system with strong adaptability
End pneumatic buffer
Additional elastic damping element
Various variants and accessories are available in the configurator
AVENTICS Micro Cylinder, Series MNI 0822334207
MNI-DA-25-0160-U-31-01-1-00-000-00
AVENTICS MNI Series Small Cylinders (ISO 6432)
AVENTICS MIN Series (ISO 6432) Cylindrical Cylinders are used in general machine construction, featuring robustness and long service life.
Specifications
Standard: ISO 6432
Piston: φ25 mm
Stroke: 160 mm
Operating principle: Double-acting
Buffer: Elastic
Magnetic pin with magnetic piston
Certificate: Optional in ATEX
ATEX: Optional in ATEX
Rear eye, integrated: Integrated hook mounting
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6.3 bar
Piston force during retraction: 260 N
Piston force during extension: 309 N
Low ambient temperature: -25 °C
High ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: G 1/8
Piston rod thread: M10x1,25
Impact energy: 0.35 J
Weight: 0.457 kg
Weight (0 mm stroke): 0.249 kg
Weight (+10 mm stroke): 0.013 kg
Maximum stroke: 1300 mm
Minimum medium temperature: -25 °C
Features
Robust and space-saving design
Characterized by good durability and long service life.
Pistons with diameters from 10 mm to 25 mm are available.
Available configurations include single/through rod, elastic/adjustable cushioning, with/without magnetic detection, non-rotating rod, ATEX
AVENTICS Rotary Compact Module, Series RCM-SH R412000374
RCM-20-180-SH-00-00
AVENTICS RCM Series Compact Rotary Cylinders
The compact rotary cylinders of the AVENTICS RCM series can perform various standardized rotary movements. These cylinders can be directly mounted on small sliders and are equipped with mechanical grippers.
Specifications
Diameter: 20 mm
Compressed air connection: M5
Magnetic pin with magnetic piston
Rotary compact module structure: Double piston with rack
Easy2Combine available
Size: RCM-20
Theoretical torque at 6 bar
Minimum rotation time: 0.48 s
Air consumption per rotation: 35.84 cm3
Maximum allowable axial bearing load: 620 N
Maximum allowable radial bearing load: 780 N
Maximum allowable mass moment of inertia: 180 kg cm2
Theoretical torque: 3 Nm
Repeatability: 0.05 °
Buffering: Hydraulic
Buffer setting is determined
Minimum rotation angle: 0 °
Maximum rotation angle: 180 °
Minimum operating pressure: 2 bar
Maximum operating pressure: 8 bar
Minimum ambient temperature: 5 °C
Maximum ambient temperature: 60 °C
Minimum medium temperature: 5 °C
Maximum medium temperature: 60 °C
Medium: Compressed air
Features
Combines a reverse pneumatic double-piston drive (rack/gear) and a precision rotary flange with backlash-free guidance
An ideal torque-to-space ratio achieves high power density, while having the ability to absorb external lateral forces and torques on the rotary flange
Compact design provides high torque and functionality in a limited space
AVENTICS Rodless Cylinders, RTC-BV Series R480141474
RTC-DA-040-0600-BV-MM00S00BLP000P0P0
AVENTICS RTC Series Rodless Cylinders
The AVENTICS RTC Series rodless cylinders feature a compact design and offer optimized stroke lengths. In addition to a wide range of common equipment options, the RTC Series rodless cylinders have two unique features: an oval piston and a one-piece slider/piston unit. They are available in four variants: basic type, sliding bearing, compact guide, and heavy-duty type for large loads. Due to different key strengths, they cover various applications of displacement and position. This significantly saves space and facilitates machine design. The application range extends from a piston diameter of 16 mm to 80 mm, with a stroke length of up to 9900 mm. The cylinders in this series have high repeatability and cover a wide speed range from ...0.01 m/s to > 20 m/s.
Specifications
Piston - φ40 mm
Stroke 600 mm
Interface G 1/4
Operating principle Double-acting
Magnetic pin With magnetic piston
Guide Integrated guide rod
Version Rodless cylinder Basic Version
Piston force 792 N
Pressure for determining piston thrust 6.3 bar
Buffer length 20 mm
Buffer energy 10 J
Buffer Pneumatic
Buffer Adjustable
Maximum speed 5 m/s
Maximum stroke 9900 mm
Minimum operating pressure 2 bar
Maximum operating pressure 8 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 60 °C
Medium Compressed air
Oil content in compressed air Minimum.,0 mg/m3
Oil content in compressed air Maximum 1 mg/m3
Particle size max. 5 μm
Weight for 0 mm stroke 2.09 kg
Weight for +10 mm stroke 0.044 kg
Features
The oval piston enables higher loads and torques, as well as a highly compact design.
It offers a wide variety of models with multiple variants and options, allowing for individual configuration according to the application.
The one-piece slider and piston enhance stability.
Thanks to special internal sealing strips and grease, minimal leakage and a wide speed range are achieved.
AVENTICS Short-stroke Cylinders, Series KHZ 0822010535
KHZ-DA-025-0030-O
The AVENTICS KHZ Series is a non-standard short-stroke cylinder, which is very suitable for narrow installation spaces and ensures easy and safe integration into machinery.
Specifications
Piston - φ25 mm
Stroke 30 mm
Operating principle: Double-acting
Buffer: Elastic
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction: 260 N
Piston force during extension: 309 N
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: G 1/8
Piston rod thread: M5
Impact energy: 0.1 J
Weight for 0 mm stroke: 0.164 kg
Weight for +10 mm stroke: 0.03 kg
Minimum medium temperature: -25 °C
Maximum medium temperature: 80 °C
Medium: Compressed air
Particle size max.: 50 μm
Minimum oil content in compressed air: 0 mg/m3
Maximum oil content in compressed air: 5 mg/m3
Piston rod: Stainless steel
Piston material: Acrylic rubber
Features
8 mm ... 100 mm
Maximum stroke: 100 mm
For short and narrow installation spaces
Non-rotating piston rod, achieved through the front panel
AVENTICS Micro Cylinder, Series MNI 0822333505
MNI-DA-20-0100-D-31-01-1-00-000-00
Specifications
Standard: ISO 6432
Piston - φ20 mm
Stroke: 100 mm
Operating principle: Double-acting
Buffer: Pneumatic
Buffer: Adjustable
Magnetic pin with magnetic piston
Available in ATEX
Rear eye, integrated Integrated hook mounting
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction: 166 N
Piston force during extension: 198 N
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: G 1/8
Piston rod thread: M8
Buffer length: 13 mm
Buffer energy: 1.5 J
Weight: 0.25 kg
Weight at 0 mm stroke: 0.16 kg
Weight at +10 mm stroke: 0.009 kg
Max. stroke: 1100 mm
Features
Robust and space-saving design
Characterized by good durability and long service life.
Pistons with diameters from 10 mm to 25 mm are available.
Available configurations include single/through rod, elastic/adjustable buffer, with/without magnetic detection, non-rotating rod, and ATEX.
AVENTICS Short-stroke Cylinder, Series KHZ 0822010556
KHZ-DA-040-0040-O
The AVENTICS KHZ series is a non-standard short-stroke cylinder, very suitable for narrow installation spaces and ensuring easy and safe integration into machinery.
Specifications
Piston - 40 mm
Stroke: 40 mm
Operating principle: Double-acting
Buffer: Elastic
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6.3 bar
Piston force during retraction: 720 N
Piston force during extension: 792 N
Min. ambient temperature: -25 °C
Max. ambient temperature: 80 °C
Min. operating pressure: 0.6 bar
Max. operating pressure: 10 bar
Interface: G 1/8
Piston rod thread: M6
Impact energy: 0.24 J
Weight at 0 mm stroke: 0.285 kg
Weight at +10 mm stroke: 0.052 kg
Min. medium temperature: -25 °C
Max. medium temperature: 80 °C
Medium: Compressed air
Particle size max. 50 μm
Min. oil content in compressed air: 0 mg/m3
Max. oil content in compressed air: 5 mg/m3
Piston rod: Stainless steel
Piston material: Acrylic rubber
Features
8 mm ... 100 mm
Max. stroke: 100 mm
For short and narrow installation spaces
Non-rotating piston rod, realized through the front panel
AVENTICS Profile Cylinder complies with ISO 15552 standard, PRA Series 0822120002
PRA-DA-032-0050-0-2-2-1-1-1-BAS
AVENTICS PRA Series Profile Cylinders (ISO 15552)
The AVENTICS PRA Series (ISO 15552) cylinders feature a compact design with integrated sensor slots. The PRA Series (ISO 15552) cylinders can be used in various industries. This includes general automation technology, machine and system construction, as well as special industry applications.
The SM6-AL Series sensors can be directly installed on the AVENTICS PRA Series for good distance measurement with sufficient working comfort.
Specifications
Standard: ISO 15552
Piston - φ32 mm
Stroke: 50 mm
Operating Principle: Double-acting
Cushioning: Pneumatic
Cushioning Adjustable
Magnetic Pins: With magnetic piston
Certificates: Optional in ATEX
ATEX: Optional in ATEX
Dust Seal Material: Polyurethane
Pressure for Determining Piston Thrust: 6.3 bar
Piston Force for Retracting Movement: 435 N
Piston Force for Extending Movement: 505 N
Low Ambient Temperature: -20 °C
High Ambient Temperature: 80 °C
Minimum Operating Pressure: 1.5 bar
Maximum Operating Pressure: 10 bar
Interface: G 1/8
Piston Rod Thread: M10x1,25
Cushioning Length: 16.5 mm
Cushioning Energy: 4.8 J
Weight at 0 mm Stroke: 0.5 kg
Weight with +10 mm Stroke: 0.022 kg
Maximum Stroke: 1600 mm
Minimum Medium Temperature: -20 °C
Features
6 mm T-slots and 4 mm C-slots for easy, fast and compact installation of various sensors
Pistons with diameters from 32 mm to 125 mm are available
Modular sealing system with high adaptability
End pneumatic cushioning
Additional elastic damping elements
Various variants and accessories are available in the configurator
AVENTICS Micro Cylinders, Series MNI 0822333508
MNI-DA-20-0200-D-31-01-1-00-000-00
Specifications
Standard: ISO 6432
Piston - 20 mm
Stroke 200 mm
Double-acting type based on practical principle
Pneumatic cushioning
Adjustable cushioning
Magnetic pin with magnetic piston
Available in ATEX
Rear eyelet, integrated hook-shaped mounting piece
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction movement: 166 N
Piston force during extension movement: 198 N
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: G 1/8
Piston rod thread: M8
Cushioning length: 13 mm
Cushioning energy: 1.5 J
Weight: 0.34 kg
Weight with 0 mm stroke: 0.16 kg
Weight with +10 mm stroke: 0.009 kg
Maximum stroke: 1100 mm
Features
Robust and space-saving design
Characterized by good durability and long service life.
Pistons with diameters from 10 mm to 25 mm are available.
Available configurations include single/through piston rod, elastic/adjustable cushioning, with/without magnetic detection, non-rotating piston rod, and ATEX.
AVENTICS Micro Cylinder, Series MNI 0822334202
MNI-DA-25-0025-U-31-01-1-00-000-00
AVENTICS MNI Series Small Cylinders (ISO 6432)
AVENTICS MIN Series (ISO 6432) Cylindrical Cylinders are used in general machine construction, featuring robustness and long service life.
Specifications
Standard: ISO 6432
Piston - φ25 mm
Stroke: 25 mm
Double-acting type based on practical principle
Elastic cushioning
Magnetic pin with magnetic piston
Certification: Available in ATEX
Available in ATEX
Rear eyelet, integrated hook-shaped mounting piece
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction movement: 260 N
Piston force during extension movement: 309 N
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: G 1/8
Piston rod thread: M10x1,25
Impact energy: 0.35 J
Weight: 0.2815 kg
Weight at 0 mm stroke: 0.249 kg
Weight at +10 mm stroke: 0.013 kg
Maximum stroke: 1300 mm
Minimum medium temperature: -25 °C
Features
Robust and space-saving design
Characterized by good durability and long service life.
Pistons with diameters from 10 mm to 25 mm are available.
Available configurations include single/through piston rod, elastic/adjustable cushioning, with/without magnetic detection, non-rotating piston rod, ATEX
AVENTICS short-stroke cylinder, series KHZ 0822010621
KHZ-DA-020-0010-M
The AVENTICS KHZ series is a non-standard short-stroke cylinder, which is very suitable for narrow installation spaces and ensures easy and safe integration into machinery.
Specifications
Piston - φ20 mm
Stroke: 10 mm
Operating principle: Double-acting
Cushioning: Elastic
Magnetic pin with magnetic piston
Dust seal material: Polyurethane
Pressure for determining piston thrust: 6,3 bar
Piston force during retraction: 148 N
Piston force during extension: 198 N
Minimum ambient temperature: -25 °C
Maximum ambient temperature: 80 °C
Minimum operating pressure: 1 bar
Maximum operating pressure: 10 bar
Interface: M5
Piston rod thread: M5
Impact energy: 0.08 J
Weight at 0 mm stroke: 0.092 kg
Weight at +10 mm stroke: 0.021 kg
Minimum medium temperature: -25 °C
Maximum medium temperature: 80 °C
Medium: Compressed air
Particle size max. 50 μm
Minimum oil content in compressed air: 0 mg/m3
Maximum oil content in compressed air: 5 mg/m3
Piston rod: Stainless steel
Features
8 mm ... 100 mm
Maximum stroke: 100 mm
For short and narrow installation spaces
Non-rotating piston rod, realized through the front panel
AVENTICS Profile Cylinders comply with ISO 15552 standard, PRA Series 0822121003
PRA-DA-040-0080-0-2-2-1-1-1-BAS
AVENTICS PRA Series Profile Cylinders (ISO 15552)
AVENTICS PRA Series (ISO 15552) cylinders feature a compact design with integrated sensor slots. The PRA Series (ISO 15552) cylinders can be used in various industries. This includes general automation technology, machine and system construction, as well as special industry applications.
SM6-AL Series sensors can be directly installed on AVENTICS PRA Series cylinders for good distance measurement with sufficient working comfort.
Specifications
Standard: ISO 15552
Piston - φ40 mm
Stroke: 80 mm
Operating Principle: Double-acting
Cushioning: Pneumatic
Cushioning: Adjustable
Magnetic Pins: With magnetic piston
Certificates: Optional in ATEX
ATEX: Optional in ATEX
Dust Seal Material: Polyurethane
Pressure for Determining Piston Thrust: 6.3 bar
Piston Force in Retraction Movement: 660 N
Piston Force in Extension Movement: 790 N
Low Ambient Temperature: -20 °C
High Ambient Temperature: 80 °C
Minimum Operating Pressure: 1.5 bar
Maximum Operating Pressure: 10 bar
Interface: G 1/4
Piston Rod Thread: M12x1,25
Cushioning Length: 19 mm
Cushioning Energy: 9 J
Weight at 0 mm Stroke: 0.65 kg
Weight per +10 mm Stroke: 0.032 kg
Maximum Stroke: 1900 mm
Minimum Medium Temperature: -20 °C
Features
6 mm T-slots and 4 mm C-slots for easy, fast and compact installation of various sensors
Available with pistons in diameters from 32 mm to 125 mm
Modular sealing system with high adaptability
End pneumatic cushioning
Additional elastic damping elements
Various variants and accessories available in the configurator
AVENTICS Miniature Cylinders, Series MNI 0822034203
MNI-DA-25-0050-U-01-01-1-00-000-00
AVENTICS MNI Series Small Cylinders (ISO 6432)
The AVENTICS MIN Series (ISO 6432) Cylindrical Cylinders are used in general machine construction. They are characterized by being sturdy and having a long service life.
Specifications
Standard ISO 6432
Piston - φ25 mm
Stroke 50 mm
Operating Principle Double - acting
Buffering Elastic
Certification Available in ATEX
Available in ATEX
Rear Eye, Integrated Integrated Hook - type Mounting
Dust Ring Material Polyurethane
Pressure for Determining Piston Thrust 6,3 bar
Piston Force during Retraction Movement 260 N
Piston Force during Extension Movement 309 N
Low Ambient Temperature -25 °C
High Ambient Temperature 80 °C
Minimum Operating Pressure 1 bar
Maximum Operating Pressure 10 bar
Interface G 1/8
Piston Rod Thread M10x1,25
Impact Energy 0.35 J
Weight 0.298 kg
Weight at 0 mm Stroke 0.233 kg
Weight with +10 mm Stroke 0.013 kg
Maximum Stroke 1300 mm
Minimum Medium Temperature -25 °C
Maximum Medium Temperature 80 °C
Features
Sturdy and space - saving design
Characterized by excellent durability and a long service life.
Pistons with diameters from 10 mm to 25 mm are available
Available configurations include single/through piston rods, elastic/adjustable buffering, with/without electromagnetic detection, non - rotating piston rods,
AVENTICS Lubrication Valve 0821300936
Send Inquiry to This Supplier
You May Also Like
-
Aventics Pneumatic Valve 5672310000US$ 376.92 - 384.62MOQ: 1 Piece
-
Aventics Solenoid Valve Body 0820022991US$ 141.54 - 146.15MOQ: 1 Piece
-
Rexroth Piston Pump Aa10vso28dfr/31r-ppa12n00US$ 1092.31 - 1307.69MOQ: 1 Piece
-
Rexroth Pressure Relief Valve Dbdh6g1x/400US$ 138.46 - 146.15MOQ: 1 Piece
-
Rexroth Proportional Valve Amplifier Board 0811405104US$ 638.46 - 653.85MOQ: 1 Piece
-
Aventics Pull Rod Cylinder 0822343004US$ 187.69 - 190.77MOQ: 1 Piece
-
Aventics Filter Pressure Regulator R412009210US$ 212.31 - 215.38MOQ: 1 Piece
-
German Aventics Valve Island R480034030US$ 938.46 - 953.85MOQ: 1 Piece
-
Rexroth Pressure Reducing Valve Zdr6dp2-4x/25ymUS$ 146.15 - 150.77MOQ: 1 Piece
-
Rexroth Stacked Pressure Reducing Valve Zdr6dp2-43/210ymUS$ 104.62 - 107.69MOQ: 1 Piece
