The German Aventics valve island R480034030 is the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, genuine original products from the factory, in-stock inventory, affordable prices; We sincerely welcome new and old customers to consult and purchase!

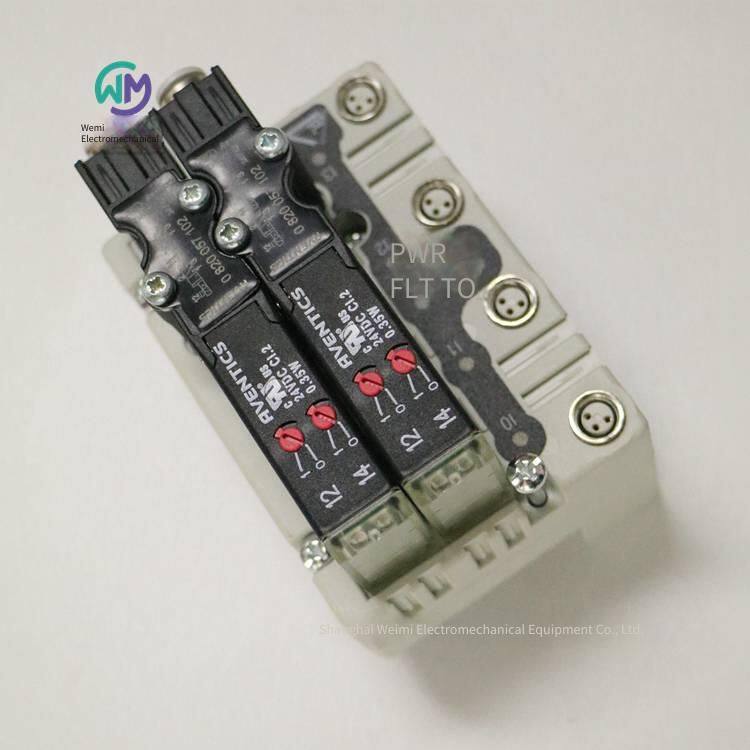

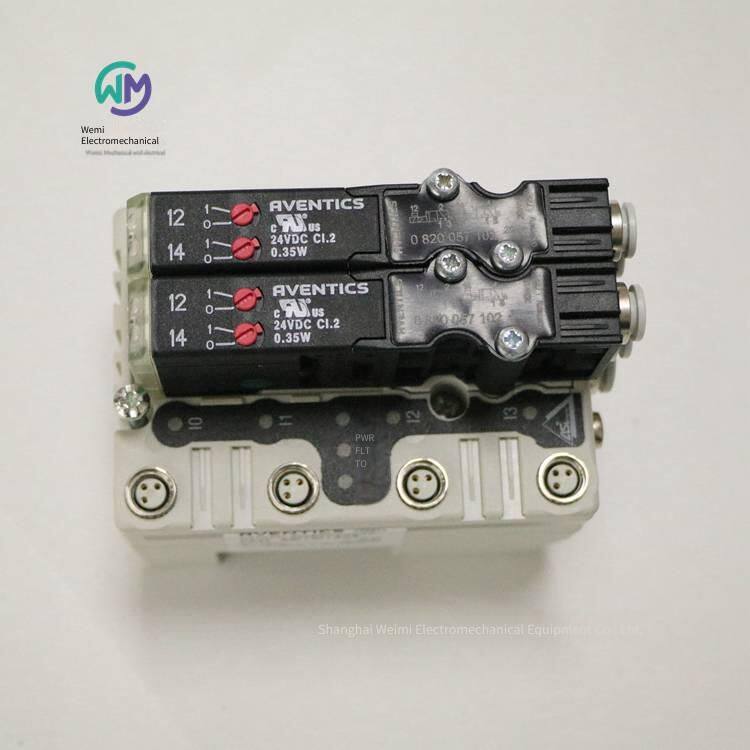

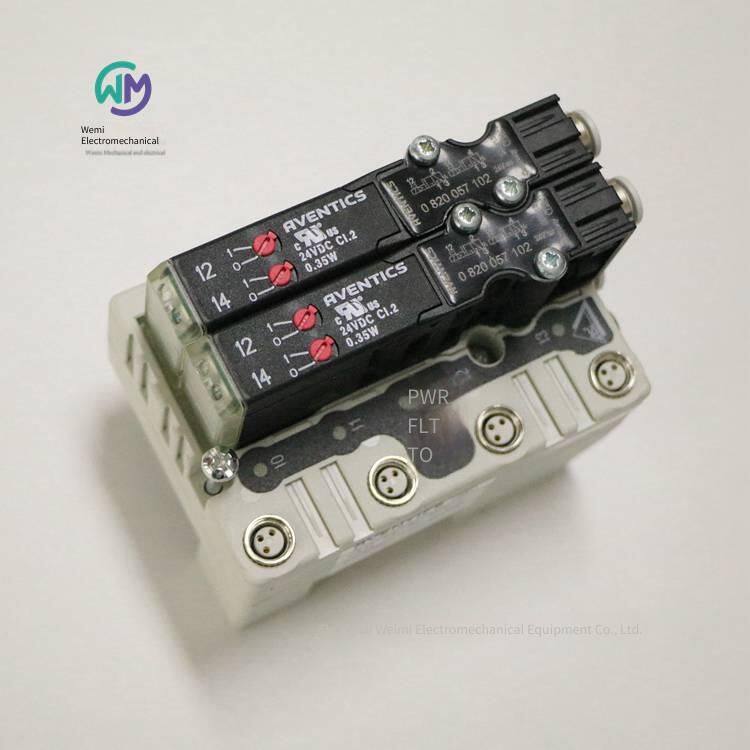

AVENTICS AV03 Series Valve Island Valve System
R480034030
The AVENTICS AV03/AV05 series lays a reliable foundation for compact handling systems and complex automation solutions. AV03/AV05 provides intelligent machine safety solutions, reducing your workload in creating a safe design. AES integrates fieldbus and I/O modules and meets all requirements for distributed control.
The AV03/AV05 series is easy to configure, use, and expand, and due to the integration of OPC UA and digital twin technology, this series of products can support future IIoT.
Modular concept
Intelligent solutions to meet machine safety requirements
Suitable for compact handling systems and complex automation solutions
Strong connectivity through Multipol or fieldbus connection
Integrated with various I/O modules
Lightweight
Low energy consumption
Meets global automation technology requirements, even reaching UL technical specifications and ATEX area standards
The AV03/AV05-BP series can be assembled into the cabinet
Easily and flexibly perform specific personalized configuration through the online configurator
OPC UA integration allows easy access to data and analysis without changes or through the PLC
Integrated digital twin improves productivity and efficiency
Specifications
Operating electronics
Nominal flow rate Qn 300 l/min
Commutation principle 5/2
Minimum operating pressure -0.9 bar
Maximum operating pressure 10 bar
Operating voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device Locking type
Operating element Single coil
Sealing principle Soft seal
Pilot External
Valve structure form Spool valve, positive overlap
Connection type Base plate connection
Reset device With spring return/air spring return
Combination principle (locking principle) Base plate principle
Control pressure Minimum 3 bar
Maximum control pressure 8 bar
Low ambient temperature: -10 °C
High ambient temperature: 60 °C
Minimum medium temperature: -10 °C
Maximum medium temperature: 60 °C
Medium: Compressed air
Particle size: max. 40 μm
Minimum oil content in compressed air: 0 mg/m3
Maximum oil content in compressed air: 5 mg/m3
AVENTICS Pressure Regulator, Series AS2-RGS-...-DS-R412006126
Operation: Mechanical
Components: Pressure regulator with continuous air supply
Secondary discharge: With secondary exhaust
Locking type: Lockable
Housing: Polyamide
Seal material: Acrylic resin
Suitable for ATEX
Rated flow Qn: 2200 l/min
Compressed air connection: G 1/4
Components: Pressure regulator with continuous air supply
Installation position: Any
Certificate: Suitable for ATEX
Low / high ambient temperature: -10 ... 50 °C
Medium temperature range: -10 ... 50 °C
Medium: Compressed air, neutral gas
Regulator type: Diaphragm pressure regulator, can be assembled into blocks
Adjustment function: With secondary exhaust
Adjustment range min/max: See table
Closing method, closing type: For padlock
Pressure delivery: Both sides
Operation: Mechanical
Weight: 0.248 kg
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.
Close the pressure gauge interface at the rear of the pressure regulator with a sealing plug, and keep the front open. Sealing plugs can be provided according to customer applications. Please order separately (see accessories).
Suitable for use in Ex zones 1, 2, 21, and 22
Secondary exhaust (when the set pressure is exceeded ≤ 0.3 bar)
With back exhaust (> 3 bar)
AVENTICS two-position three-way directional valve, series CD12-5724560220
Operating element: Single coil
Reset type: Spring return
Reversing principle: 3/2
Structural features: Spool valve, positive overlap
Housing: Aluminum, polyamide (nylon) reinforced with glass fiber
Seal material: Acrylic resin, polyurethane
Standardized circuit interface: EN 175301-803:2006
Protection class: IP65
Number of cores: 3-pin
Interface size: EN 175301-803, Type A
Type: Multi-core plug
Qn 1-2: 4000 l/min
Qn 2-3: 4000 l/min
Nominal flow rate Qn: 4000 l/min
Compressed air inlet: G 1/2
Compressed air outlet: G 1/2
Operating voltage: DC 24 V
Operation: Electronic
Temperature resistance: Resistant to low temperatures down to - 25 °C
Structural features: Spool valve, positive overlap
Operation: Electronic
Sealing principle: Soft seal
Medium: Compressed air
Particle size: max. 50 μm
Oil content in compressed air: 0 ... 1 mg/m3
Nominal flow rate Qn: 4000 l/min
Nominal flow rate 1-2: 4000 l/min
Nominal flow rate: 2 - 3 4000 l/min
Compressed air connection: Complies with ISO 228 - 1 standard
Pilot exhaust: With directional pilot exhaust port
Standardized circuit interface: EN 175301 - 803:2006
Reverse polarity protection: Reverse polarity protection
Duty cycle: 100 %
ATEX option: ATEX variants can be established by combining base valves without ATEX coils. ATEX marking: Refer to the ATEX coil catalog.
Optional valve: The input and output compressed air interfaces can be interchanged. This allows the valve to be used in either normally closed or normally open operation modes.
*Note: The maximum working pressure of the basic valve is 16 bar. When combined with the standard CNOMO pilot, the maximum working pressure is 10 bar.
Do not exceed the minimum control pressure, otherwise it may lead to faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout its service life.
AVENTICS 4 - way 5 - position directional control valve, Series 740 - 5727500220
Reversing principle: 5/4
Structural feature: Diaphragm - type center valve
Housing: Polyoxymethylene
Seal material: Acrylic resin
Standardized circuit interface: EN 175301 - 803:2006
Protection class: IP65
Interface size: EN 175301 - 803, Type A
Type: Multi - core plug
Nominal flow rate Qn: 700 l/min
Compressed air interface (inlet): 8x1
Compressed air interface (outlet): 8x1
Operating voltage DC: 24 V
Operation: Electronic
Structural feature: Diaphragm - type center valve
Operation Electronic
Pilot Internal
Sealing principle Soft seal
Combination principle (locking principle) Disc principle, single-bottom plate principle
Working pressure range 3 ... 10 bar
Low / high ambient temperature -15 ... 50 °C
Medium temperature range -15 ... 50 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Standardized circuit interface EN 175301-803:2006
Protection level with interface IP65
Reverse polarity protection Reverse polarity protection
Duty cycle 100 %
Switch-on time model 20 ms
Switch-off time model 54 ms
Assembly on multi-circuit wiring board PRS-wiring board
ATEX option: ATEX variants can be established by combining base valves without ATEX coils. ATEX marking: See the ATEX coil catalog table.
Note: To ensure the working performance of the valve, the low working pressure should not be lower than 3 bar!
Do not exceed the small control pressure, otherwise it will cause faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the allowable maximum temperature is 3 °C.
The oil content of the compressed air must remain constant throughout its service life.
AVENTICS 2/5-way directional control valve, Series 740-CP-5727920220
Operating element Double coil
Reversing principle 5/2
Structural feature Diaphragm center valve
Housing POM
Seal material Acrylic resin
Standardized circuit interface EN 175301-803:2006
Corrosion-resistant, anti-corrosion
Protection level: IP65
Interface size: EN 175301-803, Type A
Type: Multi-core plug
Nominal flow rate Qn: 950 l/min
Compressed air interface - Inlet: 10x1
Compressed air interface - Outlet: 10x1
Operating voltage: DC 24 V
Operation: Electronic
Structural feature: Diaphragm center valve
Operation: Electronic
Pilot: Internal
Sealing principle: Soft seal
Combination principle (locking principle): Disc principle, Single base plate principle
Working pressure range: 2 ... 10 bar
Low / high ambient temperature: -15 ... 50 °C
Medium temperature range: -15 ... 50 °C
Medium: Compressed air
Particle size max.: 50 μm
Oil content in compressed air: 0 ... 5 mg/m3
Nominal flow rate Qn: 950 l/min
Standardized circuit interface: EN 175301-803:2006
Protection level with interface: IP65
Reverse polarity protection: Reverse polarity protection
Compatibility catalog: See table
Duty cycle: 100 %
Switch-on time model: 40 ms
Assembly on multi-circuit wiring board: PRS - Wiring board
ATEX option: ATEX variants can be established by combining base valves without ATEX coils. ATEX marking: See the ATEX coil catalog table.
Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the allowable maximum temperature is 3 °C.
The oil content of the compressed air must remain constant throughout its service life.
AVENTICS 2/3-way directional control valve, Series CD04-5772560220
Operating element Single coil
Reset type Spring return
Reversing principle 3/2
Structural features Spool valve, positive overlap
Housing Die-cast zinc, polyamide (nylon) reinforced with glass fiber
Seal material Acrylic rubber
Standardized circuit interface EN 175301-803:2006
Protection class IP65
Number of cores 3-pin
Interface size EN 175301-803, Type B
Type Multi-core plug
Qn 1-2 900 l/min
Qn 2-3 900 l/min
Nominal flow rate Qn 900 l/min
Compressed air Interface Inlet G 1/8
Compressed air Interface Outlet G 1/8
Operating voltage DC 24 V
Operation Electronic
Structural features Spool valve, positive overlap
Operation Electronic
Sealing principle Soft seal
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 1 mg/m3
Nominal flow rate Qn 900 l/min
Nominal flow rate 1-2 900 l/min
Nominal flow rate 2-3 900 l/min
Compressed air connection, compliant with ISO 228-1 standard
Pilot exhaust, with directional pilot exhaust port
Standardized circuit interface, EN 175301-803:2006
Protection level with interface, IP65
Compatibility catalog, 14
Duty cycle, 100 %
Optional valve: The input and output compressed air interfaces can be interchanged. In this way, the valve can be used in normally closed or normally open operation modes.
Do not exceed the minimum control pressure, otherwise it will lead to faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout its service life.
AVENTICS two-position five-way directional control valve, Series CD04-5777250220
Operating element, double coil
Reversing principle, 5/2
Structural features, spool valve, positive overlap
Housing, die-cast zinc, polyamide (nylon) reinforced with glass fiber
Seal material, acrylic resin
Standardized circuit interface, EN 175301-803:2006
Protection level, IP65
Number of cores, 3-pin
Interface size, EN 175301-803, Type B
Type, multi-core plug
Qn 1-2, 900 l/min
Qn 2-3, 900 l/min
Nominal flow rate Qn, 900 l/min
Compressed air interface, inlet G 1/8
Compressed air interface, outlet G 1/8
Operating voltage, DC 24 V
Operation, electronic
Structural features, spool valve, positive overlap
Operation, electronic
Sealing principle Soft seal
Control pressure Low/High 2 ... 10 bar
Low / High ambient temperature -15 ... 50 °C
Medium temperature range -15 ... 50 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 1 mg/m3
Nominal flow rate Qn 900 l/min
Nominal flow rate 1-2 900 l/min
Nominal flow rate 2-3 900 l/min
Compressed air connection Complies with ISO 228-1 standard
Pilot exhaust With directional pilot exhaust port
Standardized circuit interface EN 175301-803:2006
Protection class with interface IP65
Compatibility catalog 14
Duty cycle 100 %
Assembly on multi-circuit terminal board P-terminal board
Do not exceed the low control pressure, otherwise it will lead to faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS 2/3-way directional control valve, Series 579-5792600220
Structural feature Poppet valve
Housing Polyamide
Seal material Acrylic resin, Polyurethane
Protection class IP65
Interface size ISO 15217, Type C
Type Multi-pin plug
Nominal flow rate Qn 850 l/min
Compressed air Interface Outlet 8x1
Operating voltage: DC 24 V
Operation: Electronic
Structural feature: Poppet valve
Operation: Electronic
Pilot: Internal
Sealing principle: Soft seal
Working pressure range: 2 ... 8 bar
Low / high ambient temperature: -15 ... 50 °C
Medium temperature range: -15 ... 50 °C
Medium: Compressed air
Particle size max.: 5 μm
Oil content in compressed air: 0 ... 1 mg/m3
Rated flow Qn: 850 l/min
Protection class with interface: IP65
Reverse polarity protection: Reverse polarity protection
Duty cycle: 100 %
Switch-on time model: 18 ms
Switch-off time model: 16 ms
Weight: 0,093 kg
Under the condition of an ambient temperature up to 40 °C, the maximum pressure is 10 bar.
If the voltage is less than 50 V DC, there is no protective contact.
Do not exceed the minimum control pressure, otherwise it will cause a faulty circuit and possible valve failure!
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS 2/5-way directional control valve, Series 579-5792800620
Structural feature: Poppet valve
Housing: Polyamide
Sealing material: Acrylic resin, Polyurethane
Protection class: IP65
Interface size: ISO 15217, Type C
Type: Multi-core plug
Nominal flow rate Qn 520 l/min
Compressed air interface outlet 6x1
Operating voltage DC 24 V
Operation: Electronic
Structural feature: Poppet valve
Operation: Electronic
Pilot: Internal
Sealing principle: Soft seal
Operating pressure range: 2 ... 8 bar
Low / high ambient temperature: -15 ... 50 °C
Medium temperature range: -15 ... 50 °C
Medium: Compressed air
Particle size max.: 5 μm
Oil content in compressed air: 0 ... 1 mg/m3
Nominal flow rate Qn: 520 l/min
Protection class with interface: IP65
Reverse polarity protection: Reverse polarity protection
Duty cycle: 100 %
Switch-on time model: 27 ms
Switch-off time model: 28 ms
Weight: 0,133 kg
At an ambient temperature of up to 40 °C, the maximum pressure is 10 bar.
If the voltage is less than 50 V DC, there is no protective contact.
Do not exceed the minimum control pressure, otherwise it will cause a faulty circuit and possible valve failure!
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the entire service life.
AVENTICS 2/3-way directional control valve, Series 579-5794400620
Structural feature: Poppet valve
Housing: Polyamide
Seal material: Acrylic resin, polyurethane
Protection class: IP65
Interface size: ISO 15217, Type C
Type: Multi-core plug
Nominal flow rate Qn: 520 l/min
Compressed air interface - Inlet: 6x1
Compressed air interface - Outlet: 6x1
Operating voltage: DC 24 V
Operation: Electronic
Structural feature: Poppet valve
Operation: Electronic
Pilot: Internal
Sealing principle: Soft seal
Operating pressure range: 2 ... 8 bar
Low / high ambient temperature: -15 ... 50 °C
Medium temperature range: -15 ... 50 °C
Medium: Compressed air
Particle size max.: 5 μm
Oil content in compressed air: 0 ... 1 mg/m3
Protection level with interface: IP65
Reverse polarity protection: Reverse polarity protection
Duty cycle: 100 %
Switch-on time model: 18 ms
Switch-off time model: 16 ms
Weight: 0,093 kg
At an ambient temperature of up to 40 °C, the maximum pressure is 10 bar.
If the voltage is less than 50 V DC, there is no protective contact.
Do not exceed the minimum control pressure, otherwise it will lead to a faulty circuit and possible valve failure!
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS 2/3-way directional control valve, Series 579-5796500620
Structural feature: Poppet valve
Housing Polyamide
Seal material Acrylic resin, Polyurethane
Protection class IP65
Interface size ISO 15217, Type C
Type Multi-core plug
Nominal flow rate Qn 520 l/min
Compressed air Interface Inlet 8x1
Compressed air Interface Outlet 6x1
Operating voltage DC 24 V
Operation Electronic
Structural feature Poppet valve
Operation Electronic
Pilot Internal
Sealing principle Soft seal
Operating pressure range 2 ... 8 bar
Low / high ambient temperature -15 ... 50 °C
Medium temperature range -15 ... 50 °C
Medium Compressed air
Particle size max. 5 μm
Oil content in compressed air 0 ... 1 mg/m3
Nominal flow rate Qn 520 l/min
Protection class with interface IP65
Reverse polarity protection Reverse polarity protection
Duty cycle 100 %
Switch-on time model 18 ms
Switch-off time model 16 ms
Weight 0,093 kg
At an ambient temperature of up to 40 °C, the maximum pressure is 10 bar.
If the voltage is less than 50 V DC, there is no protective contact.
Do not exceed the minimum control pressure, otherwise it will lead to a faulty circuit and possible valve failure!
The pressure must be at least 15 °C lower than the ambient and medium temperature, and the maximum allowable temperature is 3 °C.
The oil content of compressed air must remain constant throughout its service life.
AVENTICS 2/5-way directional control valve, Series 581, Size 1 - 5811151130
Standardized ISO 5599-1
Size ISO 1
Operating element Single coil
Reset type Spring return
Reversing principle 5/2
Structural feature Spool valve
Housing Polyamide (nylon) reinforced with glass fiber
Seal material Acrylic resin
Protection class IP65
Interface size ISO 15217, Type C
Type Multi-core plug
Nominal flow rate Qn 1400 l/min
Compressed air interface Inlet Grounding plate manufactured according to standard ISO 5599-1
Compressed air interface Outlet Grounding plate manufactured according to standard ISO 5599-1
Operating voltage DC 24 V
Structural feature Spool valve
Sealing principle Soft seal
Combination principle (locking principle) Single base plate principle
Connection type Base plate connection
Standard ISO 5599-1, ISO 1
Control pressure Min./Max. 3 ... 10 bar
Low / high ambient temperature -10 ... 50 °C
Medium temperature range -10 ... 50 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Nominal flow rate Qn 1400 l/min
Flow conductance coefficient C 5,2 l/(s*bar)
Protection level with interface IP65
Duty cycle 100 %
Switch-on time model 15 ms
Switch-off time model 30 ms
Mounting screw with hexagon socket
Minimum torque for tightening bolts 2 Nm
Weight 0,18 kg
Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!
The pressure must be at least 15 °C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3 °C.
The oil content of the compressed air must remain constant throughout the service life.
German AVENTICS valve island R480034030
Send Inquiry to This Supplier
You May Also Like
-
Aventics Industrial Buffer 3702005000US$ 461.54 - 469.23MOQ: 1 Piece
-
Aventics 3/5-way Solenoid Valve 0820056601US$ 120 - 123.08MOQ: 1 Piece
-
Aventics Precision Oil Mist Separator 0821301411US$ 73.85 - 76.92MOQ: 1 Piece
-
Aventics 2/3-way Solenoid Valve 0820019967US$ 36.92 - 43.08MOQ: 5 Pieces
-
Aventics Explosion-proof Coil for Solenoid Valve 1827414303US$ 141.54 - 146.15MOQ: 1 Piece
-
Aventics Valve Island Solenoid Valve 0820056051US$ 89.23 - 92.31MOQ: 1 Piece
-
Main Engine Ahead Starting Control Solenoid Valve 3723522220US$ 384.62 - 396.92MOQ: 1 Piece
-
Rexroth Dc220v Solenoid Valve 4we10d33/cg220n9k4/vUS$ 438.46 - 446.15MOQ: 1 Piece
-
Aventics Air Source Shut - off Valve 0821300913US$ 53.85 - 55.38MOQ: 1 Piece
-
Rexroth Proportional Relief Valve 0811402016 Dbetx-10/315g24-8nz4mUS$ 369.23 - 384.62MOQ: 1 Piece
