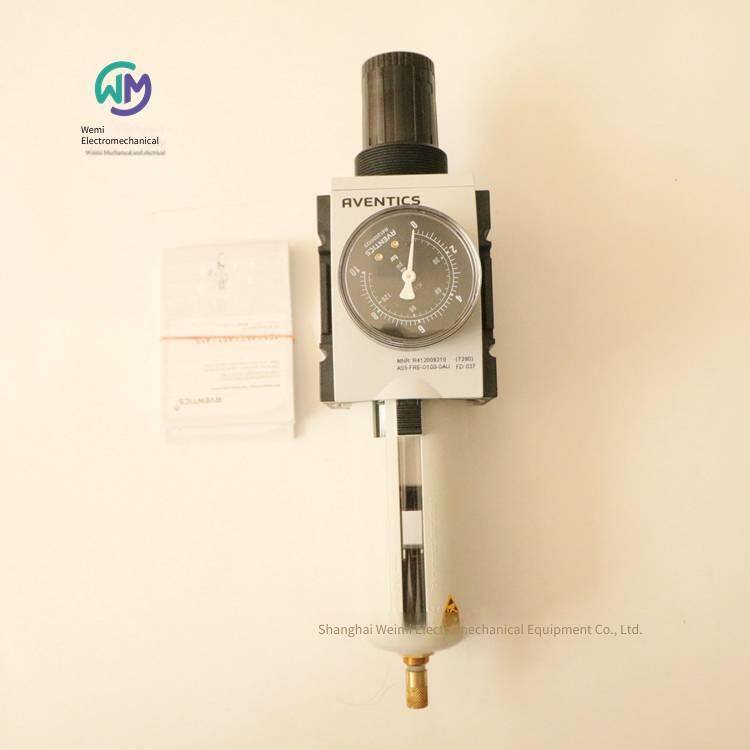

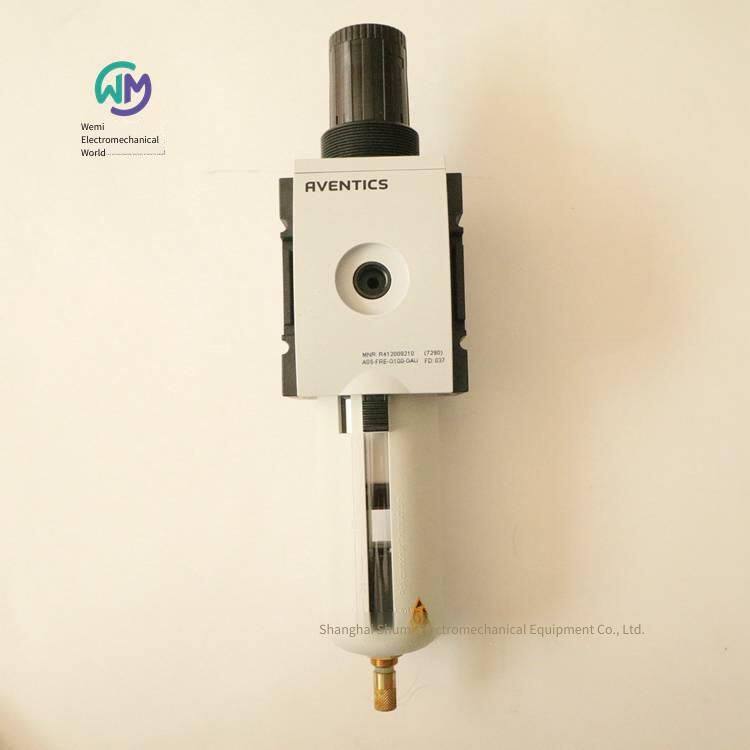

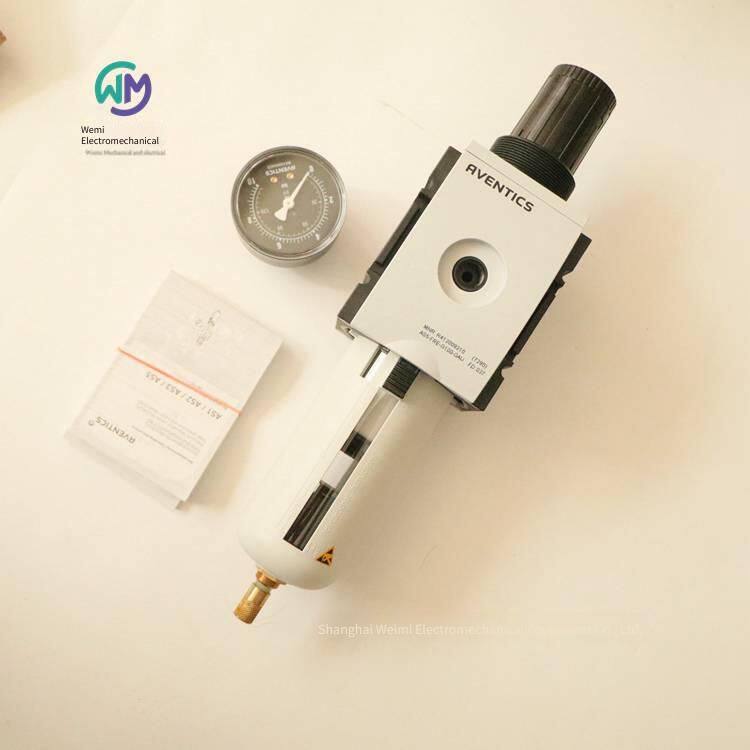

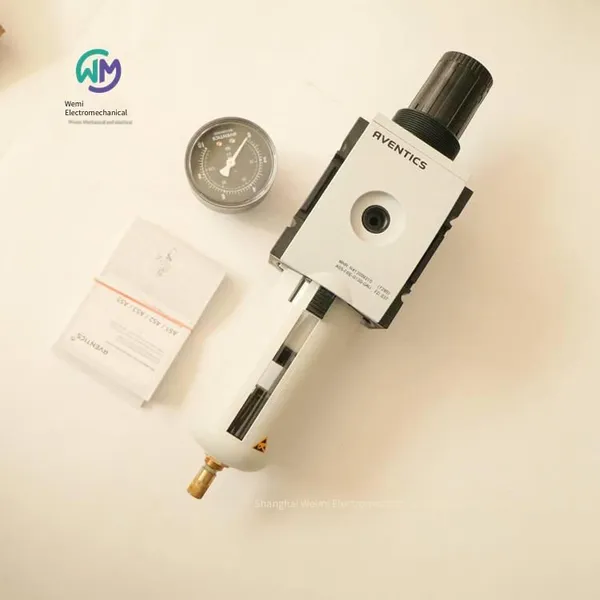

Aventics Filter Pressure Regulator R412009210

AVENTICS Filter Pressure Regulator R412009210, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Real product photos, genuine products from the original factory, in-stock inventory, affordable prices; Warmly welcome new and old customers to consult and purchase!

AVENTICS Filter - Pressure Regulator, Series AS5-FRE R412009210

AS5-FRE-G100-GAU-080-PBP-AO-05.00

The AVENTICS AS5 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy use. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Component: Filter - Pressure Regulator

Interface: G 1

Nominal flow rate Qn: 14000 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens without pressure

Pressure gauge: With pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Material: Housing - Polyamide

Seal material: Acrylic resin

Certification: Suitable for ATEX

ATEX: Suitable for ATEX

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 8 bar

Closing method, closing type: Locking type

Locking type for padlock

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Maximum self-ventilation consumption: 1.5 l/min

Features

This modular and multi-functional series of products can integrate various functions

Compact size saves space

Reduces energy consumption

Light weight

Easy-to-use design

Excellent safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Prefilter, Series AS3-FLP R412007028

AS3-FLP-G012-PBP-AO-00,30

The AVENTICS AS3 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Structural feature: Prefilter

Component: Prefilter

Air cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/2

Filter pore diameter: 0.3 μm

Rated flow rate Qn: 900 l/min

Condensate removal: Fully automatic, opens without pressure

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Medium: Compressed air, neutral gas

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 2 : - : 3

Volume of the filter's water collection cup: 49 cm3

Filter element: Replaceable

Recommended primary filtration: 5 μm

Weight: 0.41 kg

Installation position: Vertical

Structural feature: Can be assembled into blocks

Material: Housing - Polyamide

Material: Front panel - Acrylonitrile synthetic material

Seal material: Acrylic resin

Material: Threaded sleeve - Die-cast zinc

Material: Air cup - Polycarbonate

Material: Protective cover - Polyamide

Features

This modular and multi-functional series of products can integrate various functions

The compact size saves space

Reduces energy consumption

Lightweight

Easy-to-use design

Safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Prefilter, Series AS3-FLP R412007029

AS3-FLP-G012-PBP-AC-00,30

The AVENTICS AS3 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Structural feature: Prefilter

Component: Prefilter

Air cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/2

Filter pore diameter: 0.3 μm

Nominal flow rate Qn 900 l/min

Fully automatic condensate removal, closed without pressure

Minimum operating pressure 1.5 bar

Maximum operating pressure 16 bar

Minimum ambient temperature -10 °C

Maximum ambient temperature 50 °C

Medium Compressed air, neutral gas

Maximum compressed air class achievable according to ISO 8573-1:2010 standard 2 : - : 3

Capacity of the filter's condensate cup 49 cm3

The filter element is replaceable

Recommended primary filtration 5 μm

Weight 0.41 kg

Installation position Vertical

Structural feature Can be assembled into blocks

Material: Housing Polyamide

Material Front panel Acrylonitrile synthetic material

Material of seals Acrylic resin

Material Threaded sleeve Die-cast zinc

Material Gas cup Polycarbonate

Material Protective cover Polyamide

Features

This modular multi-functional series of products can integrate various functions

Compact size saves space

Reduces energy consumption

Lightweight

Easy-to-use design

Safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Precision Filter, Series AS3-FLC R412007045

AS3-FLC-G012-PBP-HO-00,01

The AVENTICS AS3 series is a general-purpose modular multi-functional air source treatment unit. This series offers compact size, high efficiency, light weight, and easy use. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Structural feature Precision filter

Component Precision filter

Gas cup A container made of PC material, equipped with a protective basket made of PA material

Interface G 1/2

Filter pore diameter 0.01 μm

Nominal flow rate Qn 700 l/min

Semi-automatic condensate removal, opened when pressure is lost

Minimum operating pressure 1.5 bar

Maximum operating pressure 16 bar

Minimum ambient temperature -10 °C

Maximum ambient temperature 50 °C

Medium Compressed air, neutral gas

Maximum compressed air class achievable according to ISO 8573-1:2010 standard 1 : - : 2

Capacity of the filter's condensate cup 49 cm3

The filter element is replaceable.

Recommended primary filtration: 0.3 μm

Weight: 0.361 kg

Installation position: vertical

Structural feature: can be assembled into blocks

Material: Shell - Polyamide

Material: Front panel - Acrylonitrile synthetic material

Seal material: Acrylic resin

Material: Threaded sleeve - Die - cast zinc

Material: Gas cup - Polycarbonate

Material: Protective cover - Polyamide

Features

This modular and multi - functional series of products can integrate various functions.

Compact size saves space.

Reduces energy consumption.

Lightweight.

Easy - to - use design.

Safety components, reliable and safe.

Simplifies assembly and reduces maintenance workload.

AVENTICS Activated carbon - filter, Series AS3 - FLA R412007072

AS3 - FLA - G038 - PBP

The AVENTICS AS3 series is a general - purpose modular and multi - functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and efficiency by simplifying assembly and maintenance work.

Specifications

Structural feature: For activated carbon filter

Components: For activated carbon filter

Gas cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 3/8

Nominal flow rate Qn: 1000 l/min

Condensate removal: None

Minimum operating pressure: 0 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: - 10 °C

Maximum ambient temperature: 50 °C

Medium: Compressed air, neutral gas

Maximum compressed air class achievable according to ISO 8573 - 1:2010 standard: - : - : 1

Volume of the filter's water collection cup: 49 cm3

The filter element is replaceable.

Recommended primary filtration: 0.01 μm

Weight: 0.375 kg

Installation position: vertical

Structural feature: can be assembled into blocks

Material: Shell - Polyamide

Material: Front panel - Acrylonitrile synthetic material

Seal material: Acrylic resin

Material: Threaded sleeve - Die - cast zinc

Material: Gas cup - Polycarbonate

Material: Protective cover - Polyamide

Material: Filter element - Activated carbon

Features

This modular and multi - functional series of products can integrate various functions.

Compact size saves space

Reduce energy consumption

Lightweight

Easy-to-use design

Safe components, reliable and secure

Simplify assembly and reduce maintenance workload

AVENTICS Activated Carbon - Filter, Series AS3-FLA R412007075

AS3-FLA-G012-PBP

The AVENTICS AS3 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and high efficiency by simplifying assembly and maintenance work.

Specifications

Structural features for activated carbon filters

Components for activated carbon filters

Air cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/2

Nominal flow rate Qn: 1000 l/min

Condensate removal: None

Minimum operating pressure: 0 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Medium: Compressed air, neutral gas

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: - : - : 1

Volume of the filter's water collection cup: 49 cm3

Filter element is replaceable

Recommended primary filtration: 0.01 μm

Weight: 0.375 kg

Installation position: Vertical

Structural features: Can be assembled into blocks

Material: Housing - Polyamide

Material: Front panel - Acrylonitrile synthetic material

Seal material - Acrylic resin

Material: Threaded sleeve - Die-cast zinc

Material: Air cup - Polycarbonate

Material: Protective cover - Polyamide

Material: Filter element - Activated carbon

Features

This modular and multi-functional series of products can integrate various functions

Compact size saves space

Reduce energy consumption

Lightweight

Easy-to-use design

Safe components, reliable and secure

Simplify assembly and reduce maintenance workload

AVENTICS Filter, Series AS3-FLS R412007090

AS3-FLS-G012-SSS-HO-25,00

The AVENTICS AS3 series is a general-purpose modular and multi-functional air source treatment unit. This series offers a compact size, high efficiency, light weight, and easy operation. The AVENTICS AS series ensures reliability, safety, and high efficiency by simplifying assembly and maintenance work.

Specifications

Structural features: Standard filter

Components: Filter

Air cup: A container made of PC material, equipped with a protective basket made of PA material

Interface: G 1/2

Filter pore diameter: 25 μm

Nominal flow rate Qn: 3500 l/min

Condensate removal: Semi - automatic, opens when pressure is lost

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 50 °C

Medium: Compressed air, neutral gas

According to ISO 8573 - 1:2010 standard, the maximum compressed air class that can be achieved is 7 : 7 : -

Volume of the filter's water collecting cup: 49 cm3

The filter element is replaceable

Weight: 0.361 kg

Installation position: Vertical

Structural features: Can be assembled into blocks

Material: Shell - Polyamide

Material: Front panel - Acrylonitrile synthetic material

Seal material: Acrylic resin

Material: Threaded sleeve - Die - cast zinc

Material: Air cup - Die - cast zinc

Material: Protective cover - Polyamide

Material: Filter element - Polyethylene

Features

This modular multi - functional series of products can integrate various functions

Compact size saves space

Reduces energy consumption

Lightweight

Easy - to - use design

Safety components, reliable and safe

Simplifies assembly and reduces maintenance workload

AVENTICS Filter - Pressure Regulator, Series NL2 - FRE 0821300300

NL2 - FRE - G014 - GAU - 100 - PNB - HO - 05,00

The AVENTICS NL series air treatment units are suitable for all fields: as single components or group air treatment units for centralized or decentralized compressed air preparation, in compact or heavy - duty versions, for high - or low - temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure regulator

Air cup: A container made of PC material, without a protective basket

Interface: G 1/4

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi - automatic, opens when pressure is lost

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Structural feature: Integral

Structural feature: Can be assembled into blocks

Single pressure delivery

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

Filter element is replaceable

Capacity of the filter's water collection cup: 25 cm3

According to ISO 8573-1:2010 standard, the maximum compressed air grade that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.542 kg

Material: Die-cast zinc for the housing

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is provided

Transparent liquid reservoir is provided

Staggered teeth type, easy to maintain

AVENTICS Filter - Pressure Regulator, Series NL2-FRE 0821300301

NL2-FRE-G014-GAU-100-PBS-HO-05,00

The AVENTICS NL series air treatment units are suitable for all fields: as single components or combined air treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired functions, and the components can be adjusted according to the application requirements.

Specifications

Component: Filter - Pressure Regulator

The air cup is a container made of PC material, equipped with a protective basket made of metal

Interface: G 1/4

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost

Pressure gauge: With pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Structural feature: Integral

Structural feature: Can be assembled into blocks

Single pressure delivery

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

The filter element is replaceable

The volume of the filter's water collection cup is 25 cm3

According to the ISO 8573-1:2010 standard, the maximum compressed air grade that can be achieved is 6 : 7 : -

Media: Compressed air, neutral gas

Weight: 0.542 kg

Material: Die-cast zinc for the housing

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is provided

A transparent reservoir is provided

Staggered teeth design, easy to maintain

AVENTICS Filter - Pressure Regulator, Series NL2-FRE 0821300303

NL2-FRE-G014-GAU-100-PNB-AO-05,00

The AVENTICS NL series air treatment units are suitable for all fields: as single components or combined air treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

The air cup is a PC material container without a protective basket

Interface: G 1/4

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Automatic condensate removal, opens without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

The filter element is replaceable

The volume of the filter's water collection cup is 25 cm3

According to the ISO 8573-1:2010 standard, the maximum compressed air grade that can be achieved is 6 : 7 : -

Media: Compressed air, neutral gas

Weight: 0.57 kg

Material: Die-cast zinc for the housing

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is provided

A transparent reservoir is provided

Staggered tooth type, easy to maintain

AVENTICS Filter-Regulator, Series NL2-FRE 0821300316

NL2-FRE-G014-GAN-100-PNB-HO-05,00

The AVENTICS NL series air source treatment units are suitable for all fields: as single components or grouped air source treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Component: Filter-Regulator

Air cup: PC material container without protective basket

Interface: G 1/4

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost

Pressure gauge: Without pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter sump: 25 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.542 kg

Material: Die-cast zinc housing

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is available

Transparent reservoir is provided

Staggered tooth type, easy to maintain

AVENTICS Filter-Regulator, Series NL2-FRE 0821300330

NL2-FRE-G038-GAU-100-PNB-HO-05,00

The AVENTICS NL series air source treatment units are suitable for all fields: as single components or grouped air source treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

Air cup: PC material container without protective basket

Interface: G 3/8

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi - automatic, opens under pressure loss

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Structural feature: One - piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Capacity of the filter's condensate cup: 25 cm3

Maximum compressed air class achievable according to ISO 8573 - 1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.542 kg

Material: Die - cast zinc for the housing

Features

Easy to assemble

Provides manual, semi - automatic or fully automatic condensate drainage

Provides a transparent reservoir

Staggered teeth design, easy to maintain

AVENTICS Filter - Pressure Regulator, Series NL2 - FRE 0821300335

NL2 - FRE - G038 - GAU - 100 - SSS - AO - 05,00

The AVENTICS NL series air preparation units are suitable for all fields: as single components or combined air preparation units for centralized or decentralized compressed air preparation, in compact or heavy - duty versions, for high - or low - temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

Air cup: Metal container with observation window

Interface: G 3/8

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens under no pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min. 0.5 bar

Pressure adjustment range max. 10 bar

Structural feature: an integral one

Structural feature: can be assembled into blocks

Single pressure delivery

Installation position: vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: with secondary exhaust

The filter element is replaceable

The volume of the filter's water collection cup is 25 cm3

The maximum compressed air grade that can be achieved according to ISO 8573 - 1:2010 standard is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.749 kg

Material: Die - cast zinc for the shell

Features

Easy to assemble

Provide manual, semi - automatic or fully automatic condensate discharge

Provide a transparent liquid reservoir

Staggered tooth type, easy to maintain

AVENTICS filter - pressure regulator, series NL2 - FRE 0821300347

NL2 - FRE - G014 - GAN - 100 - PNB - AO - 05,00

The AVENTICS NL series air source treatment units are suitable for all fields: as single components or group air source treatment units, for centralized or decentralized compressed air preparation, in compact or heavy - duty versions, for high - or low - temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Component: Filter - pressure regulator

The air cup is a PC - made container without a protective basket

Interface: G 1/4

Nominal flow rate Qn 1650 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens without pressure

Pressure gauge: Without pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: - 10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min. 0.5 bar

Pressure adjustment range max. 10 bar

Structural feature: an integral one

Structural feature: can be assembled into blocks

Single pressure delivery

Installation position: vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: with secondary exhaust

The filter element is replaceable

The volume of the filter's water collection cup is 25 cm3

The maximum compressed air grade that can be achieved according to ISO 8573 - 1:2010 standard is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.57 kg

Material: Die-cast zinc for the housing

Features

Easy to assemble

Provide manual, semi-automatic or fully automatic condensate drainage

Provide a transparent reservoir

Staggered teeth design, easy to maintain

AVENTICS Filter-Regulator, Series NL2-FRE 0821300222

NL2-FRE-G014-GAU-100-PBS-AO-05,00

The AVENTICS NL series air preparation units are suitable for all fields: as single components or combined air preparation units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option to combine each component into the product series to achieve the desired functions, and the components can be adjusted according to application requirements.

Specifications

Components: Filter-Regulator

The air cup is a container made of PC material, equipped with a protective basket made of metal material

Interface: G 1/4

Nominal flow rate Qn: 1650 l/min

Filter pore diameter: 5 μm

Automatic condensate removal, opens without pressure

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 2 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Closing method, closing type: Standard closing, with electric key

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter sump: 25 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 0.67 kg

Features

Easy to assemble

Provide manual, semi-automatic or fully automatic condensate drainage

Provide a transparent reservoir

Staggered teeth design, easy to maintain

AVENTICS Filter-Regulator, Series NL4-FRE 0821300351

NL4-FRE-G012-GAU-100-PBS-HO-05,00

The AVENTICS NL series air source treatment units are suitable for all fields: as single components or grouped air source treatment units, used for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low-temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to application requirements.

Specifications

Component: Filter - Pressure Regulator

The air cup is a container made of PC material, equipped with a protective basket made of metal material.

Interface: G 1/2

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi-automatic, opens when pressure is lost

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Sealing method, sealing type: Non-lockable

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 50 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.28 kg

Features

Easy to assemble

Provides manual, semi-automatic or fully automatic condensate drainage

Provides a transparent reservoir

Staggered teeth design, easy to maintain

AVENTICS Filter - Pressure Regulator, Series NL4-FRE 0821300352

NL4-FRE-G012-GAU-100-SSS-HO-05,00

The AVENTICS NL series air source treatment units are suitable for all fields: as single components or grouped air source treatment units, used for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low-temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

Air cup: Metal container with an observation window

Interface: G 1/2

Rated flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Condensate removal: Semi - automatic, opens when pressure is lost

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Sealing method, sealing type: Non - lockable

Structural feature: One integral unit

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Capacity of the filter's water collection cup: 50 cm3

Maximum compressed air class achievable according to ISO 8573 - 1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.41 kg

Features

Easy to assemble

Provides manual, semi - automatic or fully automatic condensate drainage

Provides a transparent reservoir

Staggered - tooth type, easy to maintain

AVENTICS Filter - Pressure Regulator, Series NL4 - FRE 0821300354

NL4 - FRE - G012 - GAU - 100 - PBS - AO - 05,00

The AVENTICS NL series air preparation units are suitable for all fields: as single components or combined air preparation units for centralized or decentralized compressed air preparation, in compact or heavy - duty versions for high - or low - temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulator

Air cup: Container made of PC material, equipped with a metal protection basket

Interface: G 1/2

Rated flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens when pressure is zero

Pressure gauge: Equipped with a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

High ambient temperature: 60 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Sealing method: The sealing type cannot be locked

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

Filter element: Replaceable

Capacity of the filter's water collection cup: 50 cm3

According to ISO 8573-1:2010 standard, the maximum compressed air grade that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.35 kg

Features

Easy to assemble

Provide manual, semi-automatic or fully automatic condensate drainage

Provide transparent liquid reservoir

Staggered teeth type, easy to maintain

AVENTICS Filter - Pressure Regulating Valve, Series NL4-FRE 0821300355

NL4-FRE-G012-GAU-100-SSS-AO-05,00

The AVENTICS NL series air source treatment units are suitable for all fields: as single components or combined air source treatment units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the required functions, and the components can be adjusted according to application requirements.

Specifications

Components: Filter - Pressure Regulating Valve

Gas cup: Metal container with observation window

Interface: G 1/2

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens without pressure

Pressure gauge: With pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Low ambient temperature: -10 °C

High ambient temperature: 60 °C

Pressure adjustment range: min. 0.5 bar

Pressure adjustment range: max. 10 bar

Sealing method: The sealing type cannot be locked

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulating valve

Adjustment function: With secondary exhaust

Filter element: Replaceable

The volume of the filter's water collection cup is 50 cm3

According to the ISO 8573-1:2010 standard, the maximum compressed air grade that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.47 kg

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is provided

A transparent liquid reservoir is provided

Staggered tooth type, easy to maintain

AVENTICS filter-regulator, series NL4-FRE 0821300356

NL4-FRE-G012-GAU-100-PNB-HO-05,00

The AVENTICS NL series air source treatment unit is suitable for all fields: as a single component or a group air source treatment unit for centralized or decentralized compressed air preparation, in a compact version or a heavy-duty version, for high or low temperature environments. This series provides a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the required functions, and the components can be adjusted according to the application requirements.

Specifications

Component: Filter-regulator

The air cup is a container made of PC material without a protective basket

Interface: G 1/2

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Semi-automatic condensate removal, opening when pressure is lost

Pressure gauge: With a pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Sealing method, sealing type: Standard closure, with an electric key

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

The volume of the filter's water collection cup is 50 cm3

According to the ISO 8573-1:2010 standard, the maximum compressed air grade that can be achieved is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 2.01 kg

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is provided

A transparent liquid reservoir is provided

Staggered tooth type, easy to maintain

AVENTICS Filter-Regulator, Series NL4-FRE 0821300367

NL4-FRE-G012-GAN-100-PNB-AO-05,00

The AVENTICS NL series air preparation units are suitable for all fields: as single components or grouped air preparation units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to the application requirements.

Specifications

Components: Filter-Regulator

Air cup: PC material container without protective basket

Interface: G 1/2

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Condensate removal: Fully automatic, opens without pressure

Pressure gauge: Without pressure gauge

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Closing method, closing type: Non-lockable

Structural feature: One-piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm regulator valve

Adjustment function: With secondary exhaust

Filter element: Replaceable

Volume of the filter's condensate cup: 50 cm3

Maximum compressed air class achievable according to ISO 8573-1:2010 standard: 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.26 kg

Features

Easy to assemble

Manual, semi-automatic or fully automatic condensate drainage is available

Transparent reservoir is provided

Staggered teeth design, easy to maintain

AVENTICS Filter-Regulator, Series NL4-FRE 0821300380

NL4-FRE-G034-GAU-100-PNB-HO-05,00

The AVENTICS NL series air preparation units are suitable for all fields: as single components or grouped air preparation units for centralized or decentralized compressed air preparation, in compact or heavy-duty versions for high or low temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the desired function, and the components can be adjusted according to the application requirements.

Specifications

Components: Filter - Pressure Regulator

The air cup is a container made of PC material without a protective basket.

Interface: G 3/4

Nominal flow rate Qn: 6900 l/min

Filter pore diameter: 5 μm

Semi - automatic condensate removal, opens when pressure is lost.

Pressure gauge: Equipped with a pressure gauge.

Minimum operating pressure: 1.5 bar

Maximum operating pressure: 16 bar

Minimum ambient temperature: -10 °C

Maximum ambient temperature: 60 °C

Pressure adjustment range min.: 0.5 bar

Pressure adjustment range max.: 10 bar

Sealing method, sealing type: Non - lockable

Structural feature: One - piece

Structural feature: Can be assembled into blocks

Pressure delivery: Single

Installation position: Vertical

Regulator model: Diaphragm pressure regulator

Adjustment function: With secondary exhaust

Filter element: Replaceable

Capacity of the filter's condensate cup: 50 cm3

According to ISO 8573 - 1:2010 standard, the maximum achievable compressed air class is 6 : 7 : -

Medium: Compressed air, neutral gas

Weight: 1.19 kg

Features

Easy to assemble

Manual, semi - automatic or fully automatic condensate drainage is provided.

Transparent liquid reservoir is provided.

Staggered - tooth type, easy to maintain

AVENTICS Filter Pressure Regulator R412009210
