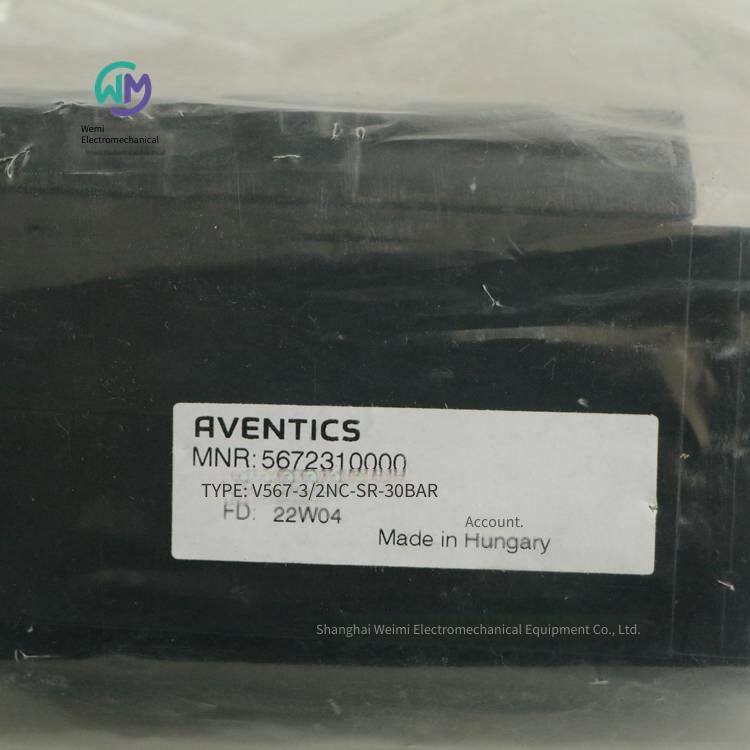

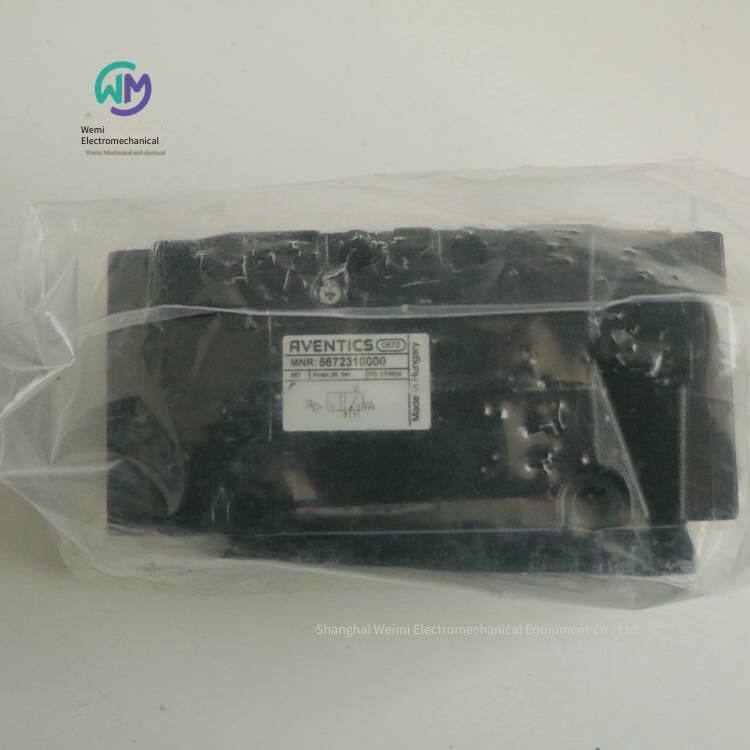

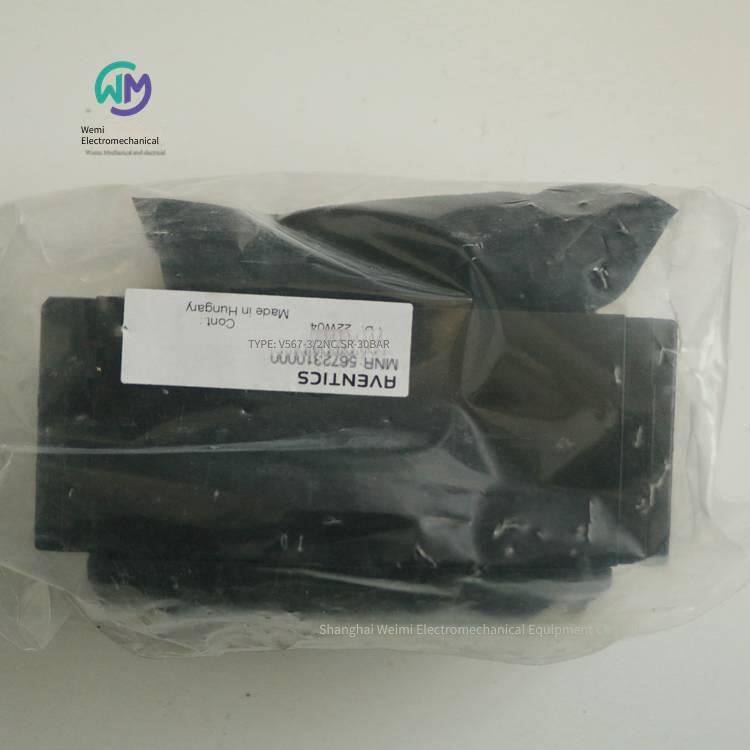

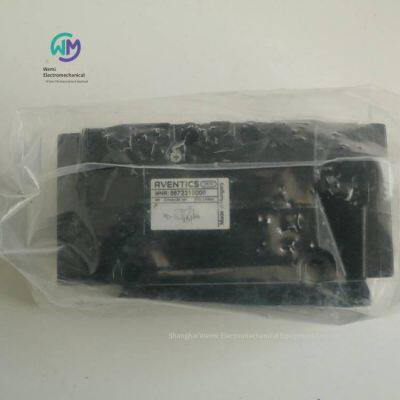

AVENTICS Pneumatic Valve 5672310000, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Real-shot product pictures, original and genuine products, in-stock inventory, affordable prices; Warmly welcome new and old customers to consult and purchase!
AVENTICS 2/3-way Directional Control Valve, Series 567 5672310000
V567-3/2NC-SR-30BAR
The aluminum housing products of AVENTICS Series 563/565/567 are suitable for installation on single or multiple manifold bases, with a flow rate performance of up to 13620 l/min and an operating pressure of up to 30 bar.
Specifications
Operation: Pneumatic
Nominal flow rate Qn 13620 l/min
Compressed air connection - Outlet: G 1
Connection type: Base plate connection
Minimum operating pressure: -1 bar
Maximum operating pressure: 30 bar
Valve structure: Poppet valve
Minimum control pressure: 5.5 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -20 °C
Maximum ambient temperature: 70 °C
Minimum medium temperature: -20 °C
Maximum medium temperature: 70 °C
Medium: Compressed air
Particle size max. 5 μm
Minimum oil content in compressed air: 0 mg/m3
Maximum oil content in compressed air: 5 mg/m3
Weight: 1.8 kg
Material: Housing - Aluminum
Seal material: Acrylonitrile synthetic material, Fluorocarbon rubber (FKM)
Features
Robust aluminum housing
Modular assembly
Suitable for high flow rate/high operating pressure
Ideal for harsh environments
The version with pneumatic operation can be used at temperatures up to 120°C
AVENTICS Pilot-operated Check Valve, Series NR02-5340051000
Structure form: Line installation
Valve structure form: Poppet valve
Housing: Die-cast zinc
Seal material: Acrylic resin
Qn 1 - 2 1000 l/min
Compressed air connection: G 1/4
Compressed air interface 2: R 1/4
Compressed air interface 2 type: External thread
Compressed air interface model: Internal thread
Structural feature: Poppet valve
Working pressure range: 3 ... 10 bar
Low / high ambient temperature: -25 ... 80 °C
Medium temperature range: -10 ... 60 °C
Medium: Compressed air
Weight: 0.132kg
AVENTICS Quick-connect fitting QR2-S-RI1 Standard series - 1823391658
Pipe fitting type: 1-fold angular swivel joint, equipped with hexagon socket structure, rotatable
Housing: Brass
Seal material: Acrylic resin
Compressed air connection: G 1/4
Compressed air interface 2: 6
Compressed air interface 2 model: Quick-connect fitting
Compressed air interface model: External thread
Working pressure range: -0.95 ... 16 bar
Low / high ambient temperature: -20 ... 80 °C
Weight per piece: 0.028
The QR1 series (plastic) and QR2 series (metal) cannot be combined.
Thread seal with a closed O-ring
AVENTICS Rotatable quick-connect plug QR2-S-RI1 Standard series - 1823391659
Pipe fitting type: 1-fold angular swivel joint, equipped with hexagon socket structure, rotatable
Housing: Brass
Seal material: Acrylic resin
Compressed air connection: G 1/4
Compressed air interface 2: 8
Compressed air interface 2 model: Quick-connect fitting
Compressed air interface model: External thread
Working pressure range: -0.95 ... 16 bar
Low / high ambient temperature: -20 ... 80 °C
Weight per piece: 0.39kg
The QR1 series (plastic) and QR2 series (metal) cannot be combined.
Thread seal with a closed O-ring
AVENTICS 2/5-way directional control valve, Series 581, Size 3 - 5813290650
ISO 5599-1, ISO 35/2 double coil, Qn = 4800 l/min. Compressed air interface, outlet. Ground plate manufactured according to standard ISO 5599-1. Electrical connection: Multi-core plug, EN 175301-803, Type A. Manual control device: Lockable, push-button type
Standardized ISO 5599-1
Size ISO 3
Operating element Double coil
Reversing principle 5/2
Structural feature Slide valve
Shell Aluminum
Seal material Acrylic resin
Protection class IP65
Interface size EN 175301-803, Type A
Type Multi-core plug
Rated flow Qn 4800 l/min
Compressed air Interface Inlet Ground plate manufactured according to standard ISO 5599-1
Compressed air Interface Outlet Ground plate manufactured according to standard ISO 5599-1
Operating voltage DC 24 V
Structural feature Slide valve
Sealing principle Soft seal
Combination principle (Locking principle) Single base plate principle
Connection type Base plate connection
Standard ISO 5599-1, ISO 3
Control pressure Min/Max 1.5 ... 10 bar
Low / High ambient temperature -15 ... 50 °C
Medium temperature range -15 ... 50 °C
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 5 mg/m3
Rated flow Qn 4800 l/min
Flow conductance coefficient C 18.9 l/(s*bar)
Protection class With interface IP65
Compatibility catalog 14
Duty cycle 100 %
Switch-on time model 18 ms
Switch-off time model 18 ms
Mounting screw With hexagon socket
Minimum torque for tightening bolts 10 Nm
Weight 1.14 kg
Do not exceed the minimum control pressure, otherwise it will cause faulty circuits and possible valve failures!
The pressure must be at least 15°C lower than the ambient and medium temperature, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout the service life.
AVENTICS Pressure Regulator, Series NL6-RGS-0821302808
Operation Mechanical
Component Pressure regulator
Secondary discharge With secondary exhaust
Pressure gauge With pressure gauge
Locking type Locking type
Shell Aluminum - Die-cast part
Sealing material: Acrylic resin
Suitable for ATEX
Nominal flow rate Qn: 15000 l/min
Compressed air connection: G 1
Component: Pressure regulator
Installation position: Any
Certificate: Suitable for ATEX
Working pressure range: 0.5 ... 20 bar
Low / high ambient temperature: -10 ... 60 °C
Medium temperature range: -10 ... 60 °C
Medium: Compressed air, Neutral gas
Regulator model: Diaphragm pressure regulator, Can be assembled into blocks
Adjustment function: With secondary exhaust
Adjustment range (small/large): 0.5 ... 10 bar
Sealing method, Sealing type: With lock
Pressure delivery: Single
Operation: Mechanical
Self-ventilation consumption qv (max): 0.5 l/min
Weight: 1.64kg
Recommended primary filtration: 5 μm
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3°C.
Suitable for use in Ex zones 1, 2, 21, 22.
Operation mode: Installation angle (fixed angle) 1821336017 / Locking piece 1827009593
Close the pressure gauge interface at the rear of the pressure regulator with a sealing plug, and keep the front open. Sealing plugs can be provided according to customer applications. Please order separately (see the attachment).
The change of the flow direction (from air supply on the left to air supply on the right) is done by the facility rotating 180° on the vertical axis. Please refer to the operation manual for detailed information.
Secondary exhaust (when the pressure exceeds the set value ≤ 0.3 bar).
With back exhaust (> 3 bar).
AVENTICS 2/2-way valve, Series AP-0820404021
Reversing principle: 2/2
Structural feature: Poppet valve
Roller
Housing: Aluminum
Sealing material: Acrylic resin
Nominal flow rate Qn: 350 l/min
Compressed air inlet: G 1/8
Compressed air outlet: G 1/8
Compressed air interface type: Internal thread
Operation: Mechanical
Structural feature: Poppet valve
Operation: Mechanical
Reversing principle: 2/2
Nominal flow rate Qn: 350 l/min
Working pressure range: 0 ... 10 bar
Low / high ambient temperature: -30 ... 80 °C
Medium temperature range: -30 ... 80 °C
Medium: Compressed air
Particle size: max. 5 μm
Oil content in compressed air: 0 ... 5 mg/m3
Weight: 0.075kg
AVENTICS Sensor, Series SN2-0830100465
Connection type: Reed type
Function: Reed type, two-wire
Housing: Polyamide
Protection class: IP67
Number of cores: 2-pin
Interface size: M8
Type: Multi-core plug
Low / high ambient temperature
Protection class: IP67
Switching point accuracy: ±0.1 mT
Rated current, on state:
Quiescent current (no load):
When using a reed sensor, we recommend using a short-circuit protection device (SCPD).
AVENTICS E/P Pressure Regulating Valve, Series ED05-5610141300
The AVENTICS ED05 series ensures sensitive pressure control by integrating digital control electronics and innovative proportional valve technology. The robust poppet valve technology, large opening cross-section, and soft-seal valve group make the valve highly resistant to contamination.
Qn = 1000 l/min Compressed air interface: Outlet G 1/4; Electronic connection: Multi-core plug, ISO 15217, Type C; Signal connection (input and output bits), Multi-core plug, ISO 15217, Type C
Housing: Aluminum die-casting, steel
Seal material: Hydrogenated-acrylonitrile-rubber
CE certification
Protection class: IP65
Interface size: ISO 15217, Type C
Type: Multi-core plug
Rated flow Qn: 1000 l/min
Hysteresis:
Compressed air interface: Inlet G 1/4
Compressed air interface: Outlet G 1/4
Operating voltage: DC 24 V
Structural feature: Poppet valve
Installation position: α = 0-90° β = 0-90°
Certificate: CE certification
Maximum operating pressure: 11 bar
Low / high ambient temperature 0 ... 70 °C
Medium temperature range 0 ... 70 °C
Compressed air interface inlet G 1/4
Compressed air interface outlet G 1/4
Compressed air connection exhaust G 1/4
Medium Compressed air
Particle size max. 50 μm
Oil content in compressed air 0 ... 1 mg/m3
Rated flow Qn 1000 l/min
Control mode Analog
Operating voltage DC 24 V
Voltage deviation DC -20% / +20%
Hysteresis
Permissible pulsation 5%
Protection class IP65
Weight 1.1 kg
Rated flow Qn, when the working pressure is 7 bar, the secondary pressure is 6 bar and Δp = 0.2 bar
Do not exceed the minimum control pressure, otherwise it will lead to a fault circuit and possible valve failure!
The pressure must be at least 15°C lower than the ambient and medium temperatures, and the maximum allowable temperature is 3°C.
The oil content of the compressed air must remain constant throughout its service life.
For oil-free and dry air, you can inquire about installation in other locations.
The protection class is only achieved when the plug is installed as specified. For detailed information, please refer to the operating instructions.
AVENTICS sensors, series SN6-8940410612
Connection type Reed type
Housing Polyether ammonia
Protection class IP65
Number of cores 2-pin
Interface size Type B industrial
Type Multi-core plug
Low / high ambient temperature -25 ... 75 °C
Protection class IP65
Switching point accuracy ±0.1 mT
Minimum / maximum operating voltage DC 10 ... 48 V DC
Minimum / maximum operating voltage AC 10 ... 48 V AC
Vibration resistance 35 g (50 - 2000 Hz)
Shock resistance 50 g / 11 ms
AVENTICS pressure switch, series PM1-R412010711
Switching pressure range -0.9 ... 0 bar. Mechanical bellows, under spring tension, adjustable. Electronic connection Multi-core plug EN 175301-803, Type A. Compressed air connection Internal thread G 1/4 PM1-M3-G014
Structural features: Mechanical
Housing: Aluminum
Seal material: Acrylic resin
Protection class: IP65
Interface size: EN 175301-803, Type A
Type: Multi-core plug
Compressed air connection: G 1/4
Compressed air interface model: Internal thread
Type: Mechanical
Function: Changer (mechanical)
Installation position: Any
Low / high ambient temperature: -20 ... 80 °C
Medium temperature range: -10 ... 80 °C
Medium: Compressed air, Hydraulic oil
Measurement dimension: Relative pressure
Switching element: Microswitch (input/output)
Overpressure insurance: 80 bar
Operating frequency: 1.5 Hz
Shock resistance: max. 15 g
Vibration resistance: 10 g (60 - 500 Hz)
Repeatability accuracy in % (relative to final value): ± 1 %
Switching point: Adjustable
Hysteresis: Large pressure switching error
Operating voltage DC min/max: 12 ... 30 V DC
Operating voltage AC min/max: 12 ... 250 V AC
Fixing method: Through straight holes
Protection class: IP65
Electrical connection: Multi-core plug EN 175301-803, Type A
Weight: 0.16 kg
Switching function when pressure rises: The contact point switches from 1 - 2 to 1 - 3. Switching function when pressure drops: The contact point switches from 1 - 3 to 1 - 2.
Note: Excessive current can cause contact damage. Inductive or capacitive loads must be equipped with corresponding spark extinguishing devices!
The microswitch has silver-plated contacts.
Please pay attention to the PIN pin assignment when selecting the plug connector.
AVENTICS safety valve series RV1-R412007542
Structural form: Screwable
Valve structure form: Poppet valve
Housing: Brass
Seal material: Fluoro-resin
CE certification
Qn 1-2: 1115 l/min
Compressed air connection: G 1/2
Compressed air interface 2 model: Not collected
Compressed air interface model: External thread
Structural features: Poppet valve
Certificate of conformity: CE certification
Operating pressure range: 0 ... 20 bar
Low / high ambient temperature: -20 ... 100 °C
Medium: Compressed air
The indicated power is reached when the pressure rise rate is 10% (PE
AVENTICS sensors, Series ST6-R412022869
6 mm T-slot with cable, open cable end, 3-pin UL-certified reed type, direct mounting for Series PRA, PRE, CCI, KPZ, SSI, GPC, CVI; indirect mounting for Series TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
Connection type: Reed type
Switching logic: Normally open
Cable length: 3 m
Housing: Polyamide
Cable: With cable
CE certification, cULus, RoHS
Protection class: IP65, IP67, IP69K
Number of cores: 3-pin
Type: Open cable end
Groove width: 6 mm T-slot
For Series PRA, PRE, CCI, KPZ, SSI, GPC, CVI
Low / high ambient temperature: -30 ... 80 °C
Protection class: IP65, IP67, IP69K
Switching point accuracy: ±0.1 mT
Rated current, on state:
Quiescent current (no load):
Hysteresis: ≥ 0.2 mT
Switching logic: Normally open
LED status display: Yellow
Vibration resistance: 10 - 55 Hz, 1 mm
Shock resistance: 30 g / 11 ms
Cable length L: 3, 5, 10 m
The 230V series has no cULus certification.
AVENTICS explosion-proof coils, Series CO1-1827414303
Cable with valve connector, coil width: 30 mm, power consumption: DC 3.25 W, ATEX
Coil width: 30 mm
Cable length: 3 m
ATEX
Operating voltage: DC 24 V
Certificate of compliance: ATEX
ATEX Type G II 2G Ex mb IIC T4 Gb
ATEX Type D II 2D Ex mb tb IIIC T130°C Db IP65
Low/High Ambient Temperature -20 ... 50 °C
Protection Class IP65
Duty Cycle ED 100 %
Compatibility Catalog 14
Weight 0.38kg
AVENTICS Explosion-proof Coil, Series CO1 1827414303
CO1-CABLE-3M-024DC-3,25W-30MM-ATEX
The AVENTICS CO1 series is a complete set of electromagnetic coils, some with cables and some without, suitable for the AVENTICS pneumatic valve series.
Specifications
Coil Width 30 mm
ATEX
ATEX Certificate of Conformity
Low Ambient Temperature -20 °C
High Ambient Temperature 50 °C
Protection Class IP65
Cable Length 3 m
Duty Cycle ED100 %
Compatibility Catalog 14
Operating Voltage DC24 V
Voltage Deviation DC-10% / +10%
Power Consumption DC3.25 W
Weight 0.38 kg
Features
Coil widths are 15, 22 and 30 mm
Electrical Connections: M8, form A, form B, form BI, Form C
ATEX
Operating voltages are 12, 24, 48, 110, 220 VDC or 24, 110, 230 VAC
AVENTICS Coil, Series CO1-1824210221
Type A Coil Width 30 mm, Holding Power AC 8 VA, Switch-on Power AC 11.5 VA
Coil Width 30 mm
Housing Thermoplastic Rubber
Standardized Circuit Interface EN 175301-803, Type A
Protection Class IP65
Number of Cores 3-pin
Type Multi-core Plug
Operating Voltage AC 110 V
Operating Voltage AC 110 V
Standardized Circuit Interface EN 175301-803, Type A
Circuit Interface Multi-core Plug, 3-pin
Low/High Ambient Temperature 50 °C
Protection level: Equipped with valve connector/plug, IP65
Duty cycle ED 100 %
Weight: 0.11kg
AVENTICS Coil, Series CO1-1827414297
Cable with valve connector. Coil width: 30 mm. Holding power: AC 3 VA. Switch-on power: AC 3.1 VA. ATEX
Coil width: 30 mm
Cable length: 3 m
ATEX
Operating voltage: AC 230 V
Operating voltage: AC 230 V
Certificate: ATEX
ATEX Type G: II 2G Ex mb IIC T4 Gb
ATEX Type D: II 2D Ex mb tb IIIC T130°C Db IP65
Low/high ambient temperature: -20 ... 50 °C
Protection level: IP65
Duty cycle ED 100 %
Compatibility catalog: 14
Weight: 0.38kg
AVENTICS Coil, Series CO1-1827414304
Cable with valve connector. Coil width: 30 mm. Power consumption: DC 3.25 W. ATEX
Coil width: 30 mm
Cable length: 10 m
ATEX
Operating voltage: DC 24 V
Certificate: ATEX
ATEX Type G: II 2G Ex mb IIC T4 Gb
ATEX Type D: II 2D Ex mb tb IIIC T130°C Db IP65
Low/high ambient temperature: -20 ... 50 °C
Protection level: IP65
Duty cycle ED 100 %
Compatibility catalog: 14
Weight: 0.91kg
AVENTICS Coil, Series CO1-1824210237
Type B coil. Width: 22 mm. Power consumption: DC 5.9 W. Holding power: AC 8.4 VA. Switch-on power: AC 11 VA
Coil width: 22 mm
Housing: Thermoplastic rubber
Standardized circuit interface EN 175301-803, Type B
Protection class IP65
Number of cores 3-pin
Type Multi-core plug
Operating voltage AC 110 V
Operating voltage AC 110 V
Operating voltage DC 60 V
Standardized circuit interface EN 175301-803, Type B
Circuit interface Multi-core plug, 3-pin
Low / high ambient temperature 50 °C
Protection class with valve connector/plug IP65
Duty cycle ED 100 %
Weight 0.07 kg
AVENTICS Coil, Series CO1-1824210245
Type B coil width 22 mm, Power consumption DC 2.6 W
Coil width 22 mm
Enclosure Thermoplastic rubber
Standardized circuit interface EN 175301-803, Type B
Protection class IP65
Number of cores 3-pin
Type Multi-core plug
Operating voltage DC 24 V
Standardized circuit interface EN 175301-803, Type B
Circuit interface Multi-core plug, 3-pin
Low / high ambient temperature 50 °C
Protection class with valve connector/plug IP65
Duty cycle ED 100 %
Weight 0.07 kg
AVENTICS Explosion-proof Coil, Series CO1-1827414298
Cable with valve connector, Coil width 30 mm, Holding power AC 3 VA, Switch-on power AC 3.1 VA, ATEX
Coil width 30 mm
Cable length 10 m
ATEX
Operating voltage AC 230 V
Operating voltage AC 230 V
Certificate of conformity ATEX
ATEX Type G II 2G Ex mb IIC T4 Gb
ATEX Type D II 2D Ex mb tb IIIC T130°C Db IP65
Low / high ambient temperature -20 ... 50 °C
Protection class IP65
Duty cycle ED 100 %
Compatibility Directory 14
Weight 0.91kg
AVENTICS Electromagnetic Coil, Series CO1-5420897022
Type A Coil Width 30 mm, Power Consumption DC 2.7 W
Coil Width 30 mm
Shell: Thermoplastic Rubber
Standardized Circuit Interface EN 175301-803, Type A
Protection Class IP65
Number of Cores: 3-pin
Type: Multi-core Plug
Operating Voltage DC 24 V
Standardized Circuit Interface EN 175301-803, Type A
Circuit Interface: Multi-core Plug, 3-pin
Low/High Ambient Temperature 50 °C
Protection Class with Valve Connector/Plug IP65
Duty Cycle ED 100 %
Weight 0.096kg
AVENTICS Coil, Series CO1-5428117072
Coil Width 30 mm
Shell: Thermoplastic Rubber
Standardized Circuit Interface EN 175301-803, Type A
Protection Class IP65
Number of Cores: 3-pin
Type: Multi-core Plug
Operating Voltage AC 110 V
Operating Voltage AC 110 V
Standardized Circuit Interface EN 175301-803, Type A
Circuit Interface: Multi-core Plug, 3-pin
Low/High Ambient Temperature 50 °C
Protection Class with Valve Connector/Plug IP65
Duty Cycle ED 100 %
Weight 0.096
AVENTICS Junction Box, Valve Connector, CON-VP Series - 1834484104
Multi-pin Plug, Type B, 2+E, Bent at 90°, ISO 6952 Unshielded with Yellow LED
Connection Type: Screw
Shielding: Unshielded
Seal Material: Natural Rubber/Butadiene Rubber, Silicone Rubber
Standardized Circuit Interface ISO 6952
Protection Class IP65
Connection Type: Screw
Low/High Ambient Temperature -25 ... 50 °C
Rated voltage: 24V AC/DC
Protection level: IP65
Minimum torque for tightening bolts: 0.4 Nm
Weight: 0.02 kg
The specified protection level only applies to the installed and inspected state.
AVENTICS valve connector, CON-VP Series 1834484104
CON-VP-F_B-2+E-YE-Z-SCREW
Specifications
Connection type: Screw
Standardized circuit interface: ISO 6952
Shielding: Unshielded
With yellow light-emitting diode
Low ambient temperature: -25 °C
High ambient temperature: 50 °C
Number of electrodes: 2+E
Protection level: IP65
Protection circuit: Z-diode
Electrical connection 1: Multi-pin plug
Electrical connection 1: Type B
Number of poles: 2+E
Cable lead is at a bend
Cable lead: Hinged air distribution joint at 90°
Rated voltage: 24 V
Rated voltage: AC/DC
Minimum torque for tightening bolts: 0.4 Nm
Weight: 0.02 kg
Seal material: Silicone rubber
Seal material: Silicone caoutchouc
Features
Self-assembled Multipol valve plug connector
Form A EN 175301-803
Form B ISO 6952 and B industry
Form C ISO 15217 and C industry
With/without protection circuit/LED
AVENTICS pneumatic valve 5672310000
Send Inquiry to This Supplier
You May Also Like
-
Aventics Filter Pressure Regulator R412009210US$ 212.31 - 215.38MOQ: 1 Piece
-
German Aventics Valve Island R480034030US$ 938.46 - 953.85MOQ: 1 Piece
-
Rexroth Pressure Reducing Valve Zdr6dp2-4x/25ymUS$ 146.15 - 150.77MOQ: 1 Piece
-
Rexroth Stacked Pressure Reducing Valve Zdr6dp2-43/210ymUS$ 104.62 - 107.69MOQ: 1 Piece
-
Aventics Air Distribution Block R412006251US$ 32.31 - 33.85MOQ: 2 Pieces
-
Aventics Pilot Valve 1827414004US$ 61.54 - 64.62MOQ: 1 Piece
-
Aventics Pilot Solenoid Valve 0493832506US$ 100 - 104.62MOQ: 1 Piece
-
Aventics Industrial Buffer 3702005000US$ 461.54 - 469.23MOQ: 1 Piece
-
Aventics 3/5-way Solenoid Valve 0820056601US$ 120 - 123.08MOQ: 1 Piece
-
Aventics Precision Oil Mist Separator 0821301411US$ 73.85 - 76.92MOQ: 1 Piece
