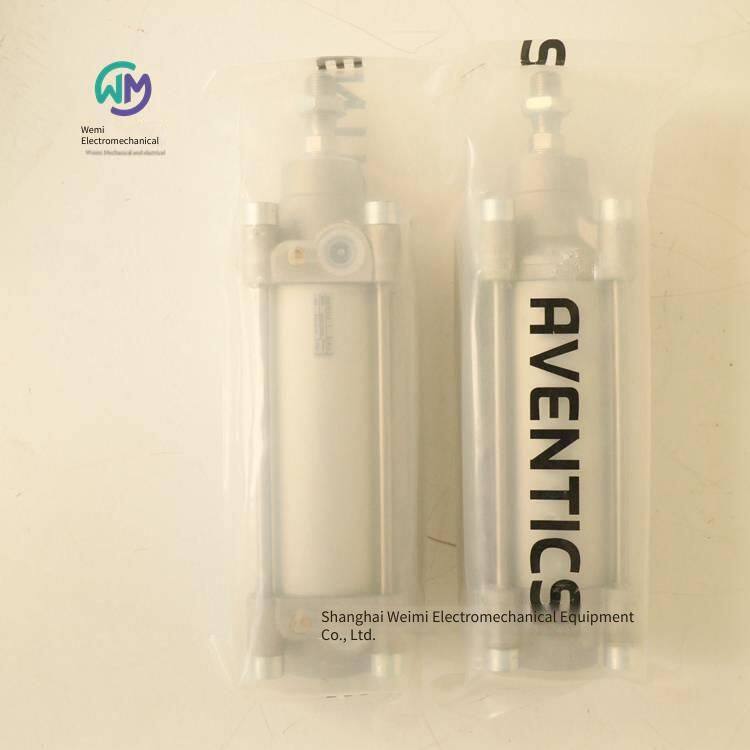

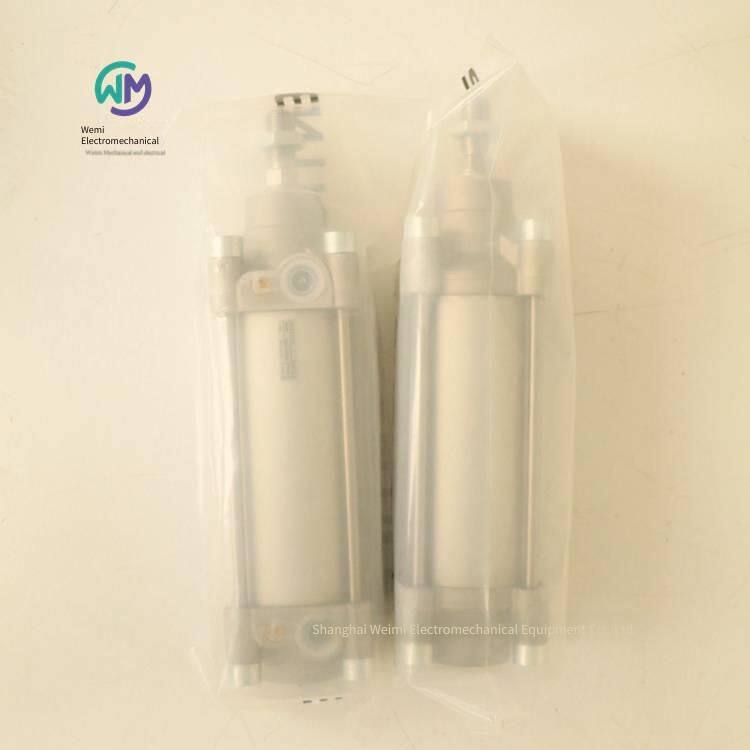

AVENTICS Tie-Rod Cylinder 0822343004, the main product of Shanghai Weimi Mechanical & Electrical Equipment Co., Ltd. Sales hotline: 13524123009; Contact person: Lei Qing; Product real-shot pictures, original and genuine products, in-stock inventory, affordable price; We sincerely welcome new and old customers to inquire and purchase!

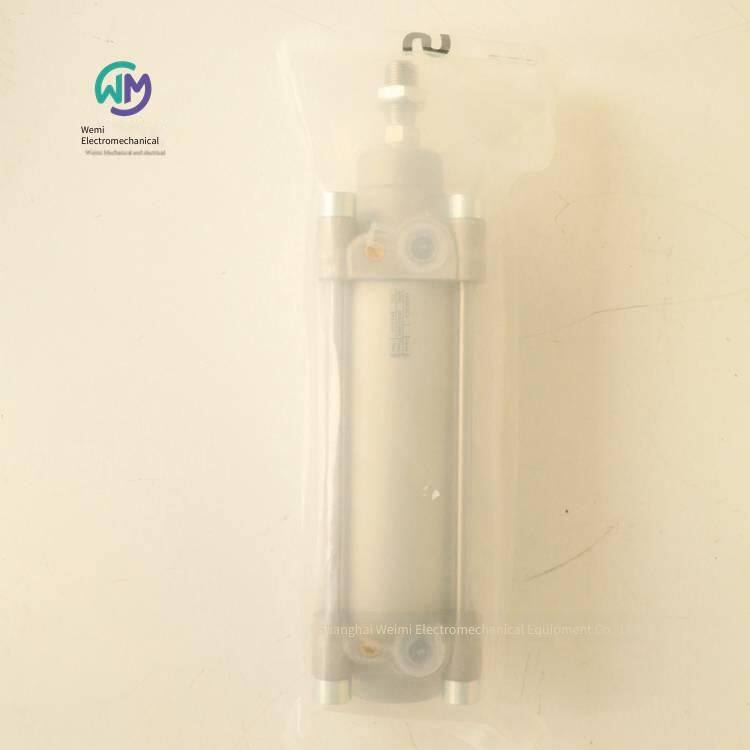

AVENTICS Tie-Rod Cylinder ISO 15552, Series TRB 0822343004
TRB-DA-063-0100-0122111100000000000000-B
The AVENTICS TRB Series (ISO 15552) cylinders are often used in industries that require heavy-duty cylinders, such as wood and aluminum, steel and automotive, heavy machinery, and mining, etc.
Specifications
Standard ISO 15552
Piston - φ63 mm
Stroke 100 mm
Operating principle Double-acting
Cushioning pneumaticky nastavitelné tlumení
Magnetic pin Píst s magnetem
Environmental requirements Industrial standard, optional in ATEX
Certification Optional in ATEX
Piston rod Single
Dust seal Standard industrial dust scraper ring
Pressure for determining piston thrust 6,3 bar
Piston force in retraction movement 1765 N
Piston force in extension movement 1960 N
Low ambient temperature -20 °C
High ambient temperature 80 °C
Minimum operating pressure 1.5 bar
Maximum operating pressure 10 bar
Interface G 3/8
Piston rod thread M16x1,5
Cushioning length 16.5 mm
Cushioning energy 27 J
Weight at 0 mm stroke 1.4 kg
Weight at +10 mm stroke 0.052 kg
Maximum stroke 2500 mm
Medium Compressed air
Features
Pistons with diameters from 32 mm to 125 mm are available
Pneumatic cushioning
Additional elastic cushioning
Various scraper modules are available
You can use the modular system to replace the scrapers on the cylinder at any time, and greatly reduce the maintenance cycle
Various variants and accessories are available in the configurator
AVENTICS 2/5-Way Directional Control Valve, Series CD12 5725475270
CD12-5/2XX-SR-110AC-I-G012-G012-EN175301
The AVENTICS CD series consists of various slide valves and has an extremely durable zinc die-cast housing. The electric, pneumatic or mechanical operating elements (rollers, joysticks, pedals or push rods) of the CD series make it very suitable for harsh application environments.
Specifications
Operating electronics
Rated flow Qn 4100 l/min
Reversing principle 5/2
Compressed air interface outlet G 1/2
Minimum operating pressure 2 bar
Maximum operating pressure 10 bar
Operating voltage AC 110 V
Operating voltage AC 110 V
Voltage deviation AC 50 Hz -20% / +10%
Voltage deviation AC 60 Hz -10% / +20%
Electrical connection type Multi-core plug
Electrical connection size EN 175301-803, Type A
Number of poles of electrical connection 3-pin
Operating element Single coil
Sealing principle Soft seal
Pilot Internal
Width of pilot valve 30 mm
Valve structure form Slide valve, positive overlap
Connection type Pipe connection
Reset device With spring return
Control pressure minimum 2 bar
Maximum control pressure 10 bar
Minimum ambient temperature -15 °C
Maximum ambient temperature 50 °C
Minimum value of medium temperature -15 °C
Features
Robust and durable design
Assembled on the base plate
Suitable for extreme temperature ranges
Resistant to voltage fluctuations
ATEX certified models are available
AVENTICS two-position five-way directional control valve, Series CD12 5725480220
CD12-5/2XX-SR-024DC-E-G012-G012-EN175301
The AVENTICS CD series consists of various slide valves and has an extremely durable zinc die-cast housing. The electric, pneumatic or mechanical operating elements (rollers, joysticks, pedals or push rods) of the CD series make it very suitable for harsh application environments.
Specifications
Operating electronics
Rated flow Qn 4100 l/min
Reversing principle 5/2
Compressed air interface outlet G 1/2
Minimum operating pressure -0.95 bar
Maximum operating pressure 16 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: Locking type, push-button type
Electrical connection type: Multi-core plug
Electrical connection size: EN 175301-803, Type A
Electrical connection pole number: 3-pin
Operating element: Single coil
Sealing principle: Soft seal
Pilot: External
Width of pre-control valve: 30 mm
Valve structure form: Spool valve, positive overlap
Connection type: Pipe connection
Reset device: Spring return
Minimum control pressure: 2 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -15 °C
Maximum ambient temperature: 50 °C
Minimum medium temperature: -15 °C
Maximum medium temperature: 50 °C
Features
Robust and durable design
Assembled on the base plate
Suitable for extreme temperature ranges
Resistant to voltage fluctuations
ATEX-certified models are available
AVENTICS two-position five-way directional control valve, Series CD12 5725550220
CD12-5/2XX-DO-024DC-I-G012-G012-EN175301
The AVENTICS CD series consists of various spool valves with extremely durable zinc die-cast housings. The electric, pneumatic or mechanical operating elements (rollers, joysticks, pedals or push rods) of the CD series make it very suitable for harsh application environments.
Specifications
Operating electronics
Rated flow rate Qn: 4100 l/min
Reversing principle: 5/2
Compressed air interface outlet: G 1/2
Minimum operating pressure: 2 bar
Maximum operating pressure: 10 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: Locking type, push-button type
Electrical connection type: Multi-core plug
Electrical connection size: EN 175301-803, Type A
Electrical connection pole number: 3-pin
Operating element: Double coil
Sealing principle: Soft seal
Pilot: Internal
Width of pre-control valve: 30 mm
Valve structure form: Spool valve, positive overlap
Connection type: Pipe connection
Temperature resistance: Resistant to low temperatures down to -25 °C
Minimum control pressure: 2 bar
Maximum control pressure: 10 bar
Low ambient temperature: -25 °C
High ambient temperature: 50 °C
Minimum medium temperature: -25 °C
Maximum medium temperature: 50 °C
Features
Robust and durable design
Assembled on the base plate
Suitable for extreme temperature ranges
Resistant to voltage fluctuations
ATEX certified models are available
AVENTICS 2/5-way directional control valve, Series CD12 5725560220
CD12-5/2XX-DO-024DC-E-G012-G012-EN175301
The AVENTICS CD series consists of various slide valves with extremely durable zinc die-cast housings. The electric, pneumatic or mechanical operating elements (rollers, levers, pedals or push rods) of the CD series make it very suitable for harsh application environments.
Specifications
Operating electronics
Rated flow Qn: 4100 l/min
Reversing principle: 5/2
Compressed air interface - Outlet: G 1/2
Minimum operating pressure: -0.95 bar
Maximum operating pressure: 16 bar
Operating voltage: DC 24 V
Voltage deviation: DC -10% / +10%
Manual control device: Locking type, push-button type
Electrical connection type: Multi-core plug
Electrical connection size: EN 175301-803, Type A
Number of poles of electrical connection: 3-pin
Operating element: Double coil
Sealing principle: Soft seal
Pilot: External
Width of pre-control valve: 30 mm
Valve structure form: Slide valve, positive overlap
Connection type: Pipe connection
Temperature resistance: Resistant to low temperatures down to -25 °C
Minimum control pressure: 2 bar
Maximum control pressure: 10 bar
Low ambient temperature: -25 °C
High ambient temperature: 50 °C
Minimum medium temperature: -25 °C
Maximum medium temperature: 50 °C
Features
Robust and durable design
Assembled on the base plate
Suitable for extreme temperature ranges
Resistant to voltage fluctuations
ATEX certified models are available
AVENTICS 3/5-way directional control valve, Series CD12 5725680220
CD12-5/3EC-DO-024DC-E-G012-G012-EN175301
The AVENTICS CD series consists of various slide valves and features an extremely durable zinc die-cast housing. The electric, pneumatic, or mechanical operating elements (rollers, joysticks, pedals, or push rods) of the CD series make it highly suitable for harsh application environments.
Specifications
Operating electronics
Reversing principle 5/3
Structure: Exhaust at the middle position
Compressed air interface outlet: G 1/2
Minimum operating pressure: -0.95 bar
Maximum operating pressure: 16 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: Button type, locking type
Electrical connection type: Multi-core plug
Electrical connection size: EN 175301-803, Type A
Number of poles of electrical connection: 3-pin
Operating element: Double coil
Sealing principle: Soft seal
Pilot: External
Width of the pre-control valve: 30 mm
Valve structure form: Slide valve, positive overlap
Connection type: Pipe connection
Reset device: Spring return
Minimum control pressure: 3 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -15 °C
Maximum ambient temperature: 50 °C
Minimum value of medium temperature: -15 °C
Maximum value of medium temperature: 50 °C
Features
Robust and durable design
Assembly on the base plate
Suitable for extreme temperature ranges
Resistant to voltage fluctuations
ATEX-certified models are available
AVENTICS two-position five-way directional control valve, Series TC08 0820060076
TC08-5/2XX-AS-024DC-E-FORM_C-SGL
The AVENTICS HF04/HF04-XF series belongs to a general and flexible valve group and valve island system, with various electric control schemes and pneumatic functions.
Specifications
Operating electronics
Nominal flow rate Qn: 800 l/min
Reversing principle 5/2
Compressed air interface outlet: G 1/8
Minimum operating pressure: -0.9 bar
Maximum operating pressure: 10 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: Locking type
Electrical connection type: Multi-core plug
Electrical connection size: ISO 15217, Type C
Single-coil operating element
Sealing principle: Soft seal
Pilot: External
Width of the pre-control valve: 15 mm
Valve structure form: Spool valve, positive overlap
Connection type: Pipe connection
Reset device: Spring return / Air spring return
Minimum control pressure: 3 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -10 °C
Maximum ambient temperature: 50 °C
Minimum medium temperature: -10 °C
Maximum medium temperature: 50 °C
Medium: Compressed air
Features
Achieve an excellent cost-performance ratio between installation space and flow rate
Wide selection range of electronic connections
Electric or pneumatic operation
Long service life
Adjustable coil with four 90° positions
AVENTICS two-position five-way directional control valve, Series TC08 0820060101
TC08-5/2XX-AR-024DC-I-FORM_C-SGL
The AVENTICS TC08/TC15 series includes a variety of spool valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for a flow rate performance of 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in a limited space.
Specifications
Operating electronics
Nominal flow rate Qn: 800 l/min
Reversing principle: 5/2
Compressed air interface outlet: G 1/8
Minimum operating pressure: 3 bar
Maximum operating pressure: 10 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: Button type
Electrical connection type: Multi-core plug
Electrical connection size: ISO 15217, Type C
Single-coil operating element
Sealing principle: Soft seal
Pilot: Internal
Width of the pre-control valve: 15 mm
Valve structure form: Spool valve, positive overlap
Connection type: Pipe connection
Reset device: Air spring return
Minimum control pressure: 3 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -10 °C
Maximum ambient temperature: 50 °C
Minimum medium temperature: -10 °C
Maximum medium temperature: 50 °C
Medium: Compressed air
Features
Achieve an excellent cost-performance ratio between installation space and flow rate
Wide range of electronic connection options
Electric or pneumatic control
Long service life
Adjustable coil with four 90° positions
AVENTICS Two-position Five-way Directional Control Valve, Series TC08 0820060176
TC08-5/2XX-AS-024DC-E-FORM_C-SGL
The AVENTICS TC08/TC15 series includes a variety of slide valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for a flow rate performance of 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in limited spaces.
Specifications
Operating electronics
Rated flow rate Qn 800 l/min
Reversing principle 5/2
Compressed air interface outlet G 1/8
Minimum operating pressure -0.9 bar
Maximum operating pressure 10 bar
Operating voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device Button type
Electrical connection type Multi-core plug
Electrical connection size ISO 15217, Type C
Operating element Single coil
Sealing principle Soft seal
Pilot External
Width of the pre-control valve 15 mm
Valve structure form Slide valve, positive overlap
Connection type Pipe connection
Reset device With spring return/air spring return
Control pressure minimum 3 bar
Maximum control pressure 10 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
Minimum medium temperature -10 °C
Maximum medium temperature 50 °C
Medium Compressed air
Features
Achieve an excellent cost-performance ratio between installation space and flow rate
Wide range of electronic connection options
Electric or pneumatic control
Long service life
Adjustable coil with four 90° positions
AVENTICS Two-position Five-way Directional Control Valve, Series TC08 0820060211
TC08-5/2XX-AS-024DC-I-M8X1_4P-SGL
The AVENTICS TC08/TC15 series includes a variety of slide valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for a flow rate performance of 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in limited spaces.
Specifications
Electronic operation
Rated flow Qn 800 l/min
Reversing principle 5/2
Compressed air interface outlet G 1/8
Minimum operating pressure 3 bar
Maximum operating pressure 10 bar
Working voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device Locking type
Electrical connection type Multi-core plug
Electrical connection size M8
Electrical connection number of poles 4-pin
Operating element Single coil
Sealing principle Soft seal
Pilot Internal
Width of the pre-control valve 15 mm
Valve structure form Slide valve, positive overlap
Connection type Pipe connection
Reset device With spring return / air spring return
Control pressure minimum 3 bar
Maximum control pressure 10 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
Minimum value of medium temperature -10 °C
Maximum value of medium temperature 50 °C
Features
Achieve an excellent cost-performance ratio between installation space and flow rate
Wide selection range of electronic connections
Electric or pneumatic operation
Long service life
Adjustable coil, including four 90° positions
AVENTICS two-position five-way directional control valve, series TC08 0820060321
TC08-5/2XX-DO-024DC-I-M8X1_4P-SGL
The AVENTICS TC08/TC15 series includes a variety of slide valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for flow rate performance from 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in limited spaces.
Specifications
Electronic operation
Rated flow Qn 800 l/min
Reversing principle 5/2
Compressed air interface outlet G 1/8
Minimum operating pressure 2 bar
Maximum operating pressure 10 bar
Working voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device Push-button type
Electrical connection type Multi-core plug
Electrical connection size M8
Electrical connection number of poles 4-pin
Operating element Double coil
Sealing principle Soft seal
Pilot internal
The width of the pre-control valve is 15 mm
Valve structure form: spool valve, positive overlap
Connection type: pipe connection
Minimum control pressure: 2 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -10 °C
Maximum ambient temperature: 50 °C
Minimum medium temperature: -10 °C
Maximum medium temperature: 50 °C
Medium: compressed air
Features
Achieve an excellent cost-performance ratio between installation space and flow rate
Wide range of electronic connection options
Electric or pneumatic operation
Long service life
Adjustable coil with four 90° positions
AVENTICS Two-position five-way directional control valve, Series TC08 0820060361
TC08-5/2XX-AS-024DC-E-M8X1_4P-SGL
The AVENTICS TC08/TC15 series includes a variety of spool valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for flow rate performance of 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in limited spaces.
Specifications
Operation: electronic
Nominal flow rate Qn: 800 l/min
Reversing principle: 5/2
Compressed air interface outlet: G 1/8
Minimum operating pressure: -0.9 bar
Maximum operating pressure: 10 bar
Operating voltage: DC24 V
Voltage deviation: DC -10% / +10%
Manual control device: push-button type
Electrical connection type: multi-core plug
Electrical connection size: M8
Electrical connection pole number: 4-pin
Operating element: single coil
Sealing principle: soft seal
Pilot external
The width of the pre-control valve is 15 mm
Valve structure form: spool valve, positive overlap
Connection type: pipe connection
Reset device: spring return/air spring return
Minimum control pressure: 3 bar
Maximum control pressure: 10 bar
Minimum ambient temperature: -10 °C
Maximum ambient temperature: 50 °C
Minimum medium temperature: -10 °C
Maximum medium temperature: 50 °C
Features
Achieve an excellent cost-performance ratio between installation space and flow rate
Wide range of electronic connection options
Electric or pneumatic operation
Long service life
Adjustable coil, with four 90° positions
AVENTICS two-position five-way directional control valve, series TC08 0820060001
TC08-5/2XX-AR-024DC-I-FORM_C-SGL
The AVENTICS TC08/TC15 series includes a variety of slide valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for a flow rate performance of 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in a limited space.
Specifications
Operating electronics
Rated flow Qn 800 l/min
Reversing principle 5/2
Compressed air interface outlet G 1/8
Minimum operating pressure 3 bar
Maximum operating pressure 10 bar
Operating voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device Locking type
Electrical connection type Multi-core plug
Electrical connection size ISO 15217, Type C
Operating element Single coil
Sealing principle Soft seal
Pilot Internal
Width of the pre-control valve 15 mm
Valve structure form Slide valve, positive overlap
Connection type Pipe connection
Reset device With air spring reset
Control pressure minimum 3 bar
Maximum control pressure 10 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
Minimum medium temperature -10 °C
Maximum medium temperature 50 °C
Medium Compressed air
Features
Excellent cost-performance ratio between installation space and flow rate
Wide range of choices for electrical connections
Electric or pneumatic operation
Long service life
Adjustable coil, with four 90° positions
AVENTICS two-position five-way directional control valve, series TC08 0820060601
TC08-5/2XX-DO-024DC-I-FORM_C-SGL
The AVENTICS TC08/TC15 series includes a variety of slide valves. Their housings are made of high-performance polymers and have strong and flexible metal inserts. They are designed for a flow rate performance of 800 to 1500 l/min. These directional control valves are easy to assemble, making them suitable for applications that require high performance in a limited space.
Specifications
Electronic operation
Rated flow Qn 800 l/min
Reversing principle 5/2
Compressed air interface, outlet G 1/8
Minimum operating pressure 2 bar
Maximum operating pressure 10 bar
Operating voltage DC 24 V
Voltage deviation DC -10% / +10%
Manual control device: push-button type
Electrical connection type: multi-core plug
Electrical connection size: ISO 15217, Type C
Operating element: double coil
Sealing principle: soft seal
Pilot: internal
Width of the pre-control valve 15 mm
Valve structure form: spool valve, positive overlap
Connection type: pipe connection
Minimum control pressure 2 bar
Maximum control pressure 10 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
Minimum medium temperature -10 °C
Maximum medium temperature 50 °C
Medium: compressed air
Particle size max. 5 μm
Features
Achieve excellent cost-performance ratio between installation space and flow rate
Wide selection range of electronic connections
Electric or pneumatic operation
Long service life
Adjustable coil with four 90° positions
AVENTICS tie-rod cylinder 0822343004
Send Inquiry to This Supplier
You May Also Like
-
Aventics Pilot Valve 1827414004US$ 61.54 - 64.62MOQ: 1 Piece
-
Aventics Pilot Solenoid Valve 0493832506US$ 100 - 104.62MOQ: 1 Piece
-
Aventics Industrial Buffer 3702005000US$ 461.54 - 469.23MOQ: 1 Piece
-
Aventics 3/5-way Solenoid Valve 0820056601US$ 120 - 123.08MOQ: 1 Piece
-
Aventics Precision Oil Mist Separator 0821301411US$ 73.85 - 76.92MOQ: 1 Piece
-
Aventics 2/3-way Solenoid Valve 0820019967US$ 36.92 - 43.08MOQ: 5 Pieces
-
Aventics Explosion-proof Coil for Solenoid Valve 1827414303US$ 141.54 - 146.15MOQ: 1 Piece
-
Aventics Valve Island Solenoid Valve 0820056051US$ 89.23 - 92.31MOQ: 1 Piece
-
Main Engine Ahead Starting Control Solenoid Valve 3723522220US$ 384.62 - 396.92MOQ: 1 Piece
-
Rexroth Dc220v Solenoid Valve 4we10d33/cg220n9k4/vUS$ 438.46 - 446.15MOQ: 1 Piece
