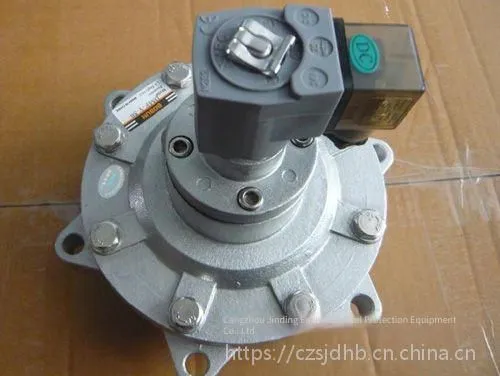

DMF-Y Submerged Electromagnetic Pulse Valve(also known as embedded valve). It is directly installed on the gas distribution box and has better flow characteristics. The pressure loss is reduced, making it suitable for working conditions with low air source pressure.



Working Principle of DMF-Y Submerged Pulse Solenoid Valve



The diaphragm divides the electromagnetic pulse valve into two air chambers, the front and the rear. When the compressed air is connected, the compressed air enters the rear air chamber through the throttle hole. At this time, the pressure in the rear air chamber presses the diaphragm assembly tightly against the output port of the valve, and the electromagnetic pulse valve is in the "closed" state. The electrical signal from the pulse injection controller causes the armature of the electromagnetic pulse valve to move backward, opening the vent hole of the rear air chamber. The pressure in the rear air chamber drops rapidly, the diaphragm assembly moves backward, and the compressed air is injected through the valve output port. The electromagnetic pulse valve is in the "open" state. When the electrical signal from the pulse injection controller disappears, the armature of the electromagnetic pulse valve resets, the vent hole of the rear air chamber closes, the pressure in the rear air chamber increases, pressing the diaphragm assembly tightly against the output port of the valve, and the electromagnetic pulse valve is in the "closed" state again. The electrical signal is timed in milliseconds. At the moment when the pulse valve opens, a powerful impact airflow is generated, thus realizing instantaneous injection.



Technical Parameters

Parameter Item

Parameter Value

Working Pressure

0.4Mpa - 0.6Mpa

Working medium

Clean air (clean gas after oil and water removal treatment)

Voltage

DC24V AC110V AC220V

Current

0.8A, 0.46A 0.23A

Temperature grade

-25℃-80℃, -25℃-150℃, -25℃-220℃

Relative air humidity

≤85%

Protection grade

IP65

Service life

1 million times or three years (under the conditions of standard installation, correct use and reasonable maintenance)

Material description

Parameter item

Parameter value

Valve body

ADC12 aluminum alloy

Pilot assembly

Materials such as 430FR stainless steel

Diaphragm

Imported nitrile rubber

Spring

321 stainless steel

Fastener

302 stainless steel

Remarks:
The above parameters have been tested by the national metrology and testing technology research unit and meet the national standards of the People's Republic of China.
Each indicator of the product has been strictly tested. After passing the test, it enters the assembly process. The finished valves are all qualified after the electrification and ventilation tests before being allowed to leave the factory.

Specifications and Models

Serial Number

Model Specifications

Metric System

Imperial System

Number of Diaphragms

Outlet Connection Form

Weight

1

DMF-Y-25

Φ25

1"

1

G1"

0.80kg

2

DMF-Y-40S

Φ40

11/2"

2

G11/2"

1.20kg

3

DMF-Y-50S

Φ50

2"

2

Φ60

2.50kg

4

DMF-Y-62S

Φ62

21/2"

2

Φ75

3.00kg

5

DMF-Y-76S

Φ76

3"

2

Φ89

3.70kg

6

DMF-Y-90S

Φ90

31/2"

2

Φ102

5.00kg

7

DMF-Y102S

Φ102

4"

2

Φ114

5.50kg

8

DMF-YA76S

Φ76

3"

2

Φ89

3.00kg



Cangzhou Jinding Environmental Protection Equipment Co., Ltd. specializes in the production ofDMF-Y Submerged Electromagnetic Pulse Valveswhich can be customized according to customers' requirements.Welcome new and old customers to call for consultation. Consultation phone numbers: Mr. Ren18713052490 (Hebei), Mr. Zhao13393396766 (Shandong). Company website:Email: czsjdhb@163.com
