Explosion-proof Star Feeder, Cangzhou Jinding Environmental Protection

US$ 550 - 5000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2012

Factory Size:

3,000-5,000 square meters

Contact Supplier Request Quote Chat Now

Cangzhou Jinding Environmental Protection Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

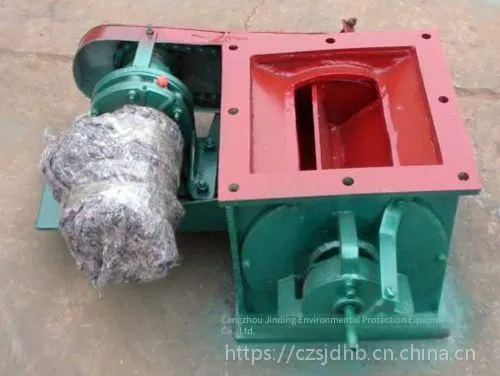

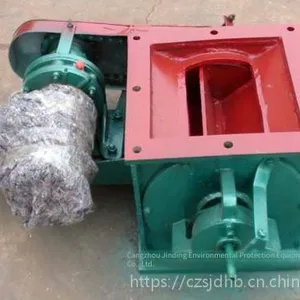

Explosion-proof star-shaped discharger

Explosion-proof star-shaped dischargerIt is applied in some occasions with special requirements for the on-site environment,The explosion-proof star-shaped ash valve produced by Cangzhou Jinding Environmental Protection Equipment Co., Ltd. uses a pure aluminum rotor,Aluminum impeller, and the motor is an explosion-proof motor of the YA and YB series produced by regular manufacturers. The voltage can be selected as 380V and 220V. The explosion-proof series dischargers produced by our company are sold to more than 30 provinces and cities across the country together with dust removal equipment. They are reliable in quality and more guaranteed in quality. They are suitable for special industrial and mining operations with explosion-proof requirements.

Features of the explosion-proof star-shaped discharger:

1、The explosion-proof discharger adopts the principle of planetary rotation,The input and output shafts are on the same axis,Moreover, it has the uniqueness of being directly connected to the motor as a whole, so it has a compact structure, a beautiful and novel appearance, a small volume, and a light weight.

2、The bearings and gearboxes are far away from the valve body to avoid the influence of high-temperature dust,Good sealing performance of the front and rear end covers,Prevent dust from leaking out,Extend the service life of moving parts and the lubrication system,Low impact resistance and small inertial force,Strong overload capacity,Suitable for frequent starting and forward and reverse rotation.

3, Few faults, long service life, high wear resistance, superior sealing performance, uniform and stable feeding, smooth discharging operation, and low noise.

4, Configure special dedicated motors according to user needs,such as explosion-proof, frequency-modulated, speed-regulating, marine motors, etc.,To meet the special requirements of users. Such as high temperature resistance, corrosion resistance, stainless steel, flexible blades, explosion-proof impellers, etc.,, Special processing can also be carried out on the material according to user needs.

Basic parameters of explosion-proof star unloader:

Model Data Name		YJD2	YJD4	YJD6	YJD8	YJD 10	YJD 12	YJD 14	YJD 16	YJD 18	YJD 20	YJD 26	YJD30
Discharge volume L/r		2	4	6	8	10	12	14	16	18	20	26	30
r/min	Z-type	33 Can also be customized according to user requirements
Working temperature℃		T≤80℃(Explosion-proof type)
Materials		Powdery, granular
Weight		53	71	86	101	121	141	161	181	191	221	251	301

Explosion-proof star feeder is mainly used in some high-risk special environments where flammable and explosive substances exist. All explosion-proof star feeders are made of special materials. The rotor and impeller are made of aluminum materials that are not prone to spark discharge. The transmission motor is a special explosion-proof motor from a well-known domestic manufacturer, and the motor models can be selected as 380V and 450v.

There are two types of explosion-proof star feeders, one made of aluminum and the other made of copper. However, their explosion-proof performance and price are different. The explosion-proof feeder is made of beryllium bronze and aluminum bronze. Copper has good thermal conductivity. Its characteristic of containing almost no carbon allows the heat generated in a short time when the star feeder rubs or impacts with an object to be absorbed and conducted. Since copper is relatively soft, it has good flexibility during friction and impact and is not prone to produce tiny metal particles, thus making the explosion-proof performance better.

Explosion-proof star feederis the main facility for dust removal equipment to clean ash, supply air, and feed other equipment. It is suitable for powdery and granular materials. It is widely used in industries such as environmental protection, metallurgy, chemical industry, grain, and food.

Professionally produced by Cangzhou Jinding Environmental Protection Equipment Co., Ltd.Explosion-proof star feedercan be professionally customized according to customer requirements.Welcome new and old customers to call for consultation. Consultation phone numbers: Mr. Ren 18713052490 (Hebei), Mr. Zhao 13393396766 (Shandong).

Product Tags: Dust removal accessories , Discharger , Ash discharge valve
