DR420-LC, DR620-LC, DR820-LC Landscape Intelligent Lighting 4-channel Switch Controllers are distributed control and management systems composed of multiple technologies such as computer technology, automatic control, network communication, fieldbus, and embedded software. They are used to achieve intelligent centralized management and control of lighting equipment, with functions such as timing control, linkage control, scene mode, and remote control. The control method is intelligent and flexible, thus achieving good energy-saving effects, effectively extending the lifespan of lamps, facilitating management and maintenance, improving the working environment, and enhancing work efficiency;
Advantages of DR420-LC, DR620-LC, DR820-LC Landscape Intelligent Lighting 4-channel Switch Controllers
1. Integrated control: It can perform integrated control of lighting, shading, air conditioning, and floor heating.
2. Comfort: It creates a safe, healthy, and pleasant living and working environment.
3. Energy saving: Modern residences should, on the premise of users' requirements, make full use of natural light and human activities to adjust indoor lighting and temperature, minimizing energy consumption.
4. Flexibility: It can meet the requirements of various users for different functions.
5. Economy: Automation provides the necessary conditions for energy-saving operation and management. At the same time, it can reduce a large amount of equipment and personnel costs, improve labor efficiency, and enhance management levels.
6. Safety: Zhejiang Juchuan Electrical Technology Co., Ltd. can be linked with fire protection systems. When a fire occurs, the normal lighting circuits can be forcibly cut off, and the emergency lighting circuits can be forcibly turned on, thereby reducing the risk of fire and improving the safety of the building.
Product functions of the photosensitive sensor:
It can automatically turn off and turn on according to the light intensity;
It is internally equipped with an automatic illuminance detection circuit, which can automatically turn on and turn off the lamps according to the light intensity;
It adopts a three-wire system;
The control objects can be LED lights, energy-saving lamps, fluorescent lamps, incandescent lamps, exhaust fan lights, etc.;
Application scope:
Intelligent buildings
Villas and apartments
Control objects:
Lighting
Electric curtains, shading equipment, electric windows, etc.
Air conditioners, heating equipment
Other end electrical equipment
Main advantages:
Energy-saving
Efficiency
Flexible functions
Easy to expand
Low-voltage control, safe and reliable

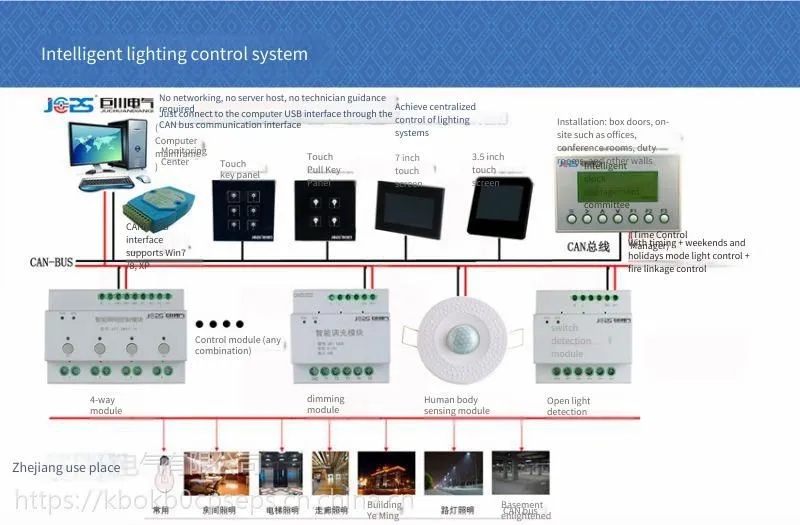

Principle:
Bus system structure
Controlled devices are uniformly controlled by the driver

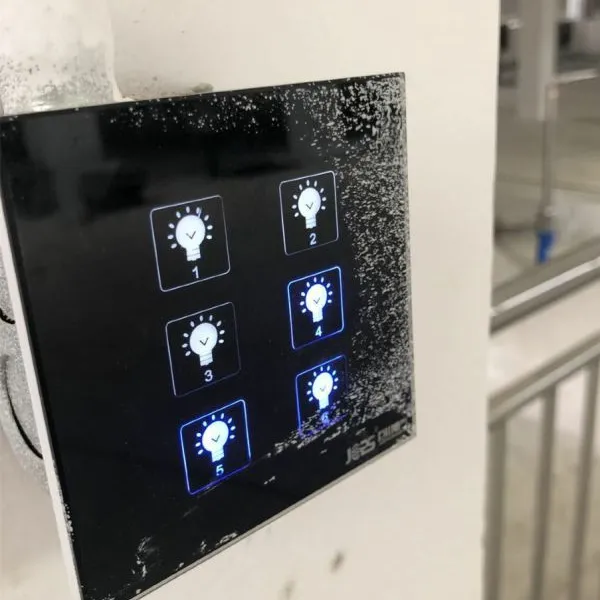

The driver is connected with the panel and sensor through communication
The bus is connected
Zhejiang Juchuan Electrical Technology Co., Ltd. sets the mutual control relationship of bus devices, enabling flexible implementation of various controls.
| Specifications and parameters of DR420-LC, DR620-LC, DR820-LC landscape intelligent lighting 4-channel switch controller: |
| EmbeddedLINUX operation |
| Industrial high-speed bus structure |
| Real-time clock and calendar |
| Ports |
| SmartNet bus interface (24, Y, Z, G) |
| RJ45Network interface, supporting10/100BaseTEthernet, supportingTCP/IPprotocol suite |
| SmartNetIndustrial485bus interface, supporting up to20terminal devices |
| 8channels of lighting control interface, 220V/16Arelay |
| 1channel of corridor light interface,220V/5Arelay, equipped with emergency power supply interface |
| 1channel of doorbell interface,220V/5Arelay |
| 5channels of multi-functional control interface,3channels of5Arelay;2Channel5ARelay (with normally closed terminal); Can be connected to lights or air - conditioning fan coils |
| 23Channels of digitalI/Oinput interfaces |
| 1Channel of card - powered input interface, can be connected to the card - powered module with dry contact output |
| 16Channels of digitalI/Ooutput interfaces, can be connected to12Vcommon anode indicators |
| 1Channel of12V/1Aoutput, used for door display power supply |
| 2Channels of analogI/Ooutput interfaces,0~10V |
| 1Channel ofRS - 485universal serial interface |
| ExternalLEDstatus indicator, network port query, configuration and programming download |
| Application |
| SupportIOS, Android APP programming and control |
| Support Simite CloudSmartCloud service, C/S and B/S |
| Log function, device discovery, online upgrade, maintenance and memory of the current state of application devices |
Create four types of night views: late - night, energy - saving, weekday, and festival. At night, there are many high - rise buildings along Tangyan Road, with infinite lights. The improvement of public service facilities has enriched the cultural life of the general public. Driven by business opportunities, the night - tour economy has also become more prominent. From the east - facing perspective of Jinye Road and the perspective of Taihua JINMAO, the lighting project in Xi'an High - tech Zone has formed a night - view lighting system that covers points, lines, and surfaces, with distinct characteristics in key areas, creating a modern, dynamic, and fashionable night - view landscape in the high - tech zone.
