PT007T Street Light Energy Saver, Voltage Stabilization and Regulation Integrated Cabinet PT2007C Astronomical Clock Longitude and Latitude Time ControlUse the CAN bus terminal to connect to the system network. It doesn't require additional power supply and can control AC loads. The 6-channel output module is used to switch 6 independent electrical AC loads or three-phase loads. The load current of each control output is 20 A, and each channel can be manually turned on or off.Juchuan Electrical O577-27877837, Quote QQ421563834.
Basic Functions
All functions of the PT007T Street Light Energy Saver can be set for each channel:
(1) Time control function: On/off actions with adjustable delay time
(2) Stair lighting function with early warning function and adjustable stair lighting time function
(3) Scene and preset control: 8-bit/ 1-bit
(4) Logical operations: AND, OR, XOR, Gate function
(5) Query and reply of status values
(6) Manual forced operation and safety insurance function
(7) Current threshold function setting
(8) Selection of relay switch position after bus voltage disconnection and restoration
(9) Real-time monitoring of load current, overload alarm and protective disconnection
(10) Zero-current breaking design, suitable for lossless breaking of any type of load, extremely low EMI electromagnetic radiation
Technical Parameters of PT007T Street Light Energy Saver, Voltage Stabilization and Regulation Integrated Cabinet PT2007C Astronomical Clock Longitude and Latitude Time Control

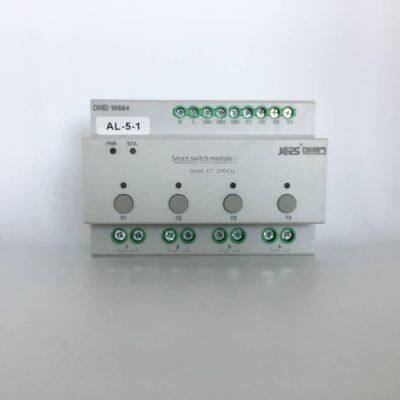

The output module is a modular installation device designed according to proM requirements, which is convenient to be installed on the 35mm U-shaped rail of the distribution box. It is connected to the EIB/KNX system through the bus terminal block.
The output module is connected to the load using screw-pressure type high-voltage terminal blocks in groups of two connectors, and each output can be controlled independently. This device is suitable for switching resistive, inductive and capacitive loads.
Power supply — Operating voltage 21...31 V DC, provided by the bus;
— EIB / KNX current consumption
— EIB / KNX power consumption Max. 360 mW
Normal output value
— Number of outputs 4 channels
Un Rated voltage 440v AC (50~60Hz)
— In Rated current 16A16A
— Load loss 2W 4W 6W
Output switching current:
— Complies with AC1(EN60947-4-1) (resistive load) 20A/230V
— Complies with AC3(EN60947-4-1) (capacitive load) 16A/230V
— Complies with the fluorescent lamp load of EN60669 16A/250(140uF)
Precautions for the installation of the PT2007C landscape light power-saving monitoring unit:
During regular inspections, if any problems with the control system are found, notify the relevant professional personnel for handling, and there should be records of the handling situation.

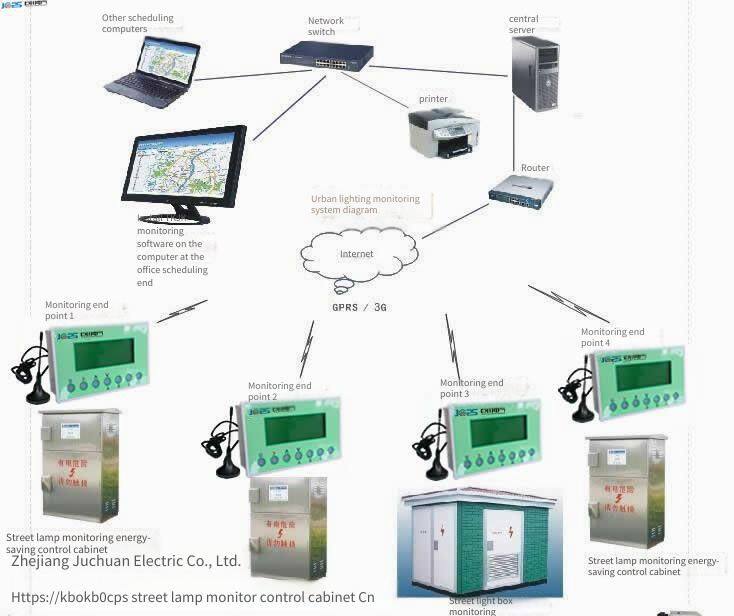

Regularly spot-check whether the system control operates normally and whether the operation situation is consistent with that on the monitoring interface.
During monitoring duty, if any problems with the host system are found, immediately notify the system administrator for handling, and there should be log records;
Operate the monitoring host daily to ensure the normal operation of the computer;
Similar to the maintenance of other electrical systems, daily inspections, night inspections, cleaning, etc. of the system equipment are required;
During daily inspections, if any problems with equipment cleaning or cable connections are found, immediately notify the relevant electricians for handling, and there should be log records;
Check whether the system operates normally through the monitoring software. If any abnormalities are found, go to the site for verification.
Regularly check whether the connection between cables and equipment is tight. If any looseness or overheating is found, handle it immediately.
PT007T Intelligent street lamp remote controller PT2007C Landscape lighting power-saving monitoring terminal.
