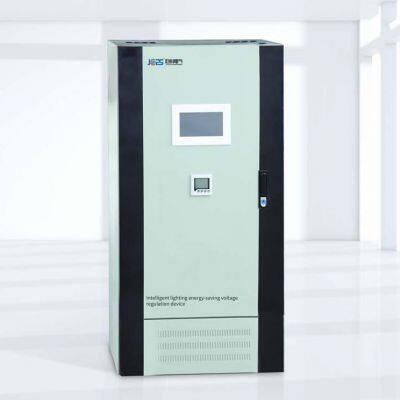

Help CenterIntelligent Power-saving Device for Street Lighting Pg-345sd, Pg-3060sd, Pg-3150sd With Light Control and Longitude-latitude Control
Related Products
-
Pt007t Street Light Energy Saver, Voltage Stabilization and Regulation Integrated Cabinet Pt2007c Astronomical Clock With Longitude and Latitude Time ControlUS$ 138.46 - 153.69MOQ: 1 Set -
Intelligent Street Light Energy Saver, Universal Voltage Stabilizing and Current Limiting Energy-saving Cabinet Aixn-2c-80, Aixn-2c-120US$ 1461.54 - 1507.69MOQ: 1 Piece
-
Led Street Light Illumination Dimming Control Device System Chjn-zh-80kva Chjn-zh-40kvaUS$ 153.85 - 212.31MOQ: 1 Piece
-
Pt/ss4.16 Emergency Lighting Switch Driver Module, 4-channel Intelligent Lighting Controller for Scenic AreasUS$ 130.77 - 146.15MOQ: 1 Set
-
Intelligent Street Light Power-saving Monitoring System, Voltage-stabilizing Energy-saving Lighting Controller Pgl-1250sd, Pgl-350sdUS$ 1538.46 - 1596.92MOQ: 1 Piece
The energy-saving lighting control device adopts new power electronics technology to achieve high-frequency chopping voltage regulation. It can intelligently provide a dynamically adjustable voltage for lighting within the range of 0V - input terminal voltage. At the same time, it has the advantages of stepless adjustment, no flashing or interruption during adjustment, and a pure sine output voltage. It is suitable for both new and old light sources, can extend the service life of light sources, and optimize the power grid usage to achieve the purpose of energy saving. From the actual usage situation, the power-saving rate for public lighting fixtures such as HID, fluorescent lamps, and incandescent lamps is over 30%.
The intelligent power-saving device for street lighting PG-345SD, PG-3060SD, PG-3150SD, with light control, longitude and latitude function, has the following power parameter specifications: 10KVA, 15KVA, 20KVA, 30KVA, 40KVA, 45KVA, 50KVA, 60KVA, 80KVA, 100KVA, 120KVA, 125KVA, 150KVA, 160KVA, 180KVA, 200KVA, 250KVA, 300KVA, 315KVA, 400KVA;
Technical indicators:
Operating voltage: 220V±20% AC, 50Hz/60Hz, 220V±20% DC;
Rated operating current (current per phase): 20A, 30A, 40A, 50A;
Voltage setting range: 170V - 255V;
Output voltage accuracy: ±15%;
Timing accuracy: ±1 second;
Clock accuracy: ±50ppm;
Full-voltage preheating start-up time: 1 - 9 minutes can be set;
Overload capacity: Continuously overload by 30% for a long time;
Cooling: Forced air cooling;
Working environment: Free of corrosive gases and dust
Operating temperature: -10℃ - +55℃
Basis for the requirements of road lighting facilities
According to the "Urban Road Lighting Design Standard (CJJ45 - 201*)", the relationship between the light distribution type of lighting fixtures, wiring, and the installation height and spacing of lighting fixtures. Light distribution type, cross-section, cut-off type, installation height H (m), single-sided layout, double-sided staggered layout, double-sided symmetrical layout
H≥Weff, H≥0.7Weff, H≥0.5Weff, S≤3H, S≤3H, S≤3H, Spacing S (m), semi-cut-off type, installation height H (m)
H≥1.2Weff, H≥0.8Weff, H≥0.6Weff, S≤3.5H, S≤3.5H, S≤3.5H, Spacing S (m), non-cut-off type, installation height H (m)
H≥1.4Weff, H≥0.9Weff, H≥0.7Weff, S≤4H, S≤4H, S≤4H, Spacing S (m). On this basis, when arranging road lighting facilities, economy, visual comfort, and aesthetics should be considered. Combining with the cross-sectional forms of roads at all levels, the road lighting facilities in Liaoyuan City are arranged in a double-sided symmetrical pattern. The height of the lamps on the motor vehicle lanes of each road is 8 - 10 m, the cantilever is 1.5 - 2 m. The detailed dimensions of the lamp spacing, lamp height, and cantilever are determined after illuminance simulation calculations based on the provisions of the "Urban Road Lighting Design Standard".

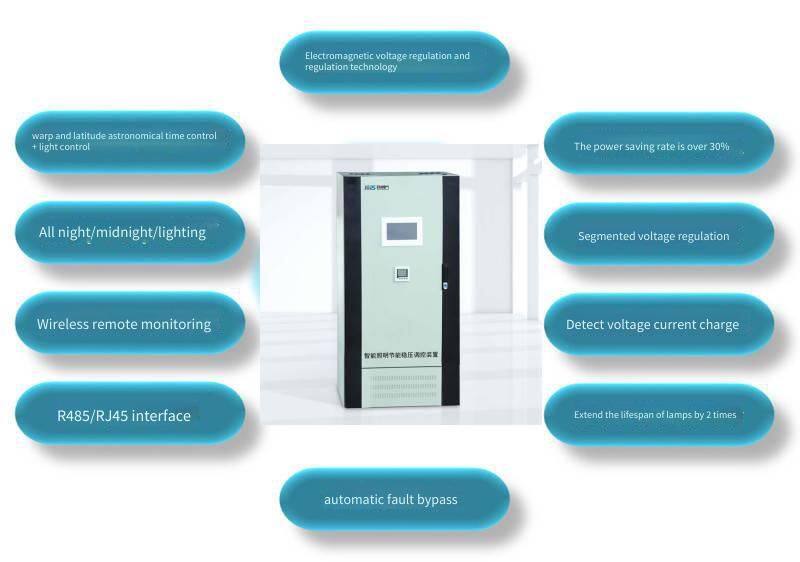

Functional indicators of the intelligent power-saving device for street lighting:
Strong anti-interference and purification capabilities, making the output power completely pure
Each phase can be adjusted, allowing unbalanced loads. The same device can be connected to different types of lighting loads and can also adjust the input voltage of each phase.
When cleaning, be careful not to let metal conductive objects fall into the chassis to cause a short circuit.
Wide adaptability: Suitable for ordinary fluorescent lamps, energy-saving lamps, all gas discharge lamps, spotlights, and also applicable to incandescent lamps.
Supports remote control and timed operation;
Rapid adjustment: The intelligent lighting control can quickly adjust in a timely manner according to the fluctuations of the power grid voltage, and the adjustment time is
It does not cause any harmonic pollution to the power grid, and expands the capacitance margin of the power grid.
Precautions for installation and maintenance of the light control latitude and longitude of the intelligent power-saving device for street lighting PG-345SD, PG-3060SD, PG-3150SD:
It is prohibited to take power for equipment such as electric welding from the control box to avoid causing an impact on the processor and damaging the equipment;
Keep the inside of the control box clean at all times, clean the dust regularly, and prevent dust and moisture;

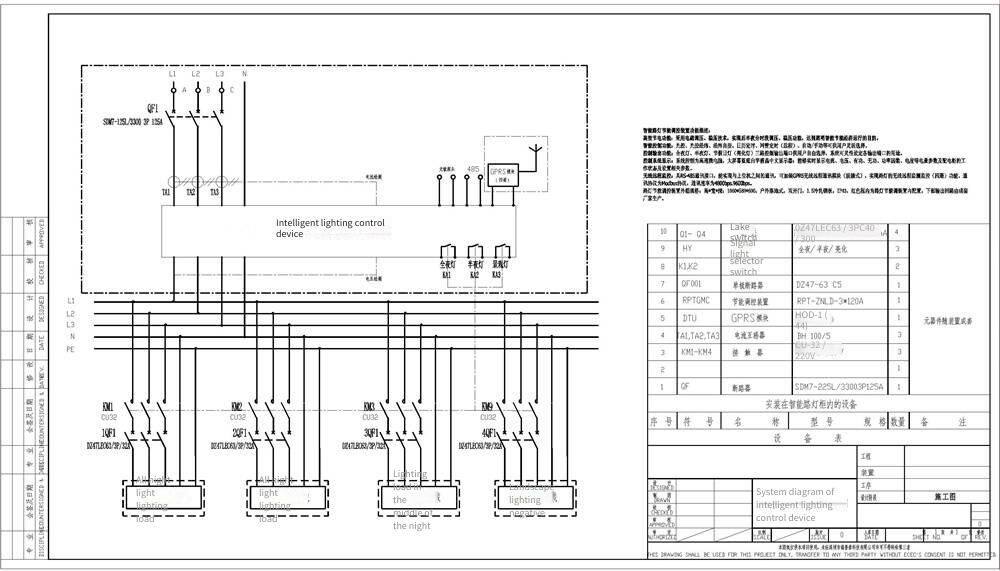

The power input line of the control box is a three-phase five-wire system of AC 380 volts, and the equipment is well grounded;
The power input line of the control box should be routed separately from the network cable, or the network cable should be passed through a casing.
