Urban street lamp power-saving controller, including master-slave microprocessors, and human-computer interaction modules, sensor modules, real-time clock modules, fault alarm modules and conditioning modules respectively connected to the master-slave microprocessors; the conditioning module is connected to the street lamp. The new intelligent urban street lamp power-saving controller can overcome the defects of high energy consumption, high maintenance cost and high control difficulty in the existing technology, so as to achieve the advantages of low energy consumption, low maintenance cost and low control difficulty.
THLXD-ZM-60KW Integrated voltage stabilizing circuit park lighting energy-saving control system. The street lamp voltage stabilizing regulator is composed of an isolation transformer, a lightning protection anti-filter and a wide-range balanced fast voltage stabilizer. It can automatically, quickly and steplessly adjust the voltage, resist various power pollutions, output high-quality electric energy, effectively ensure the reliable operation of electrical equipment, and thus double its service life.
Technical parameters of street lamp voltage stabilizing regulator:
Input power grid: Rated voltage three-phase 380±10% / single-phase 220V±10%
Frequency: 50Hz / 60 Hz
Voltage waveform: Sine wave
Harmonic pollution: None
Environmental parameters: Temperature -20℃～45℃
Humidity: Not more than 85%
Altitude: Not more than 4,000 meters
Operating parameters: Overload current capacity 1.1 times the rated current for 30 minutes
Overload shock capacity: Can withstand transient overload shock
Product life: ≥100,000 hours
Insulation: 2.5kV insulation between the power grid and the shell
Heat dissipation: Fan cooling
Fan voltage: 220V
Protection level: IP34
Safety standards: EN61558-2-6, EN55014-1, EN61000-3-2, EN61000-3-3
Functional features of the integrated voltage stabilizing circuit park lighting energy-saving control system
1. It is composed of a compensation transformer, a voltage regulating transformer, non-contact control patented technology (or stepless voltage regulating control technology), a sampling circuit, a main control circuit, a voltage regulating control circuit, a time control circuit, a protection circuit, etc.
2. According to the characteristics of the lighting load and the actual situation of the power grid voltage, phase-separated sampling and phase-separated voltage stabilization and regulation are implemented.
3. The capacity ranges from 10KVA to 1600KVA for users to choose.
4. The street lamp power saver implements intelligent voltage stabilization power supply to the lamps according to the fluctuation of the user's power grid voltage and the nature of the lighting load, and provides the lamps with a power supply voltage that is safe, energy-saving and does not affect the lighting effect at any time.
5. It has functions of intelligent voltage stabilization, surge and harmonic filtering, and power factor adjustment.
6. The service life of the equipment can reach over 15 years, the power-saving rate can reach over 20%, and the service life of the lamps can be more than twice as long.
7. Each phase can be adjusted, allowing unbalanced loads. The same device can be connected to different types of lamp loads, and the input voltage of each phase can also be adjusted.
8. It is installed at the front of the circuit and is suitable for both new and old lamps.
9. ±2%. Whether in the 220V voltage stabilization state or the energy-saving state, it can ensure that the accuracy of the output voltage is within +2% (with the function of an electronic voltage stabilizer).

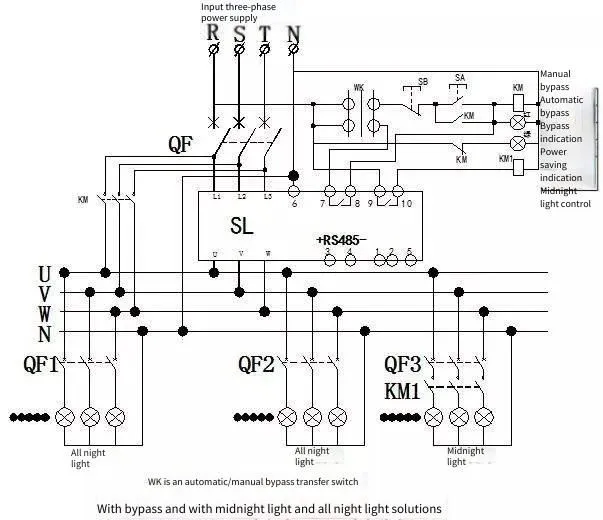

10. It is completely static, with an efficiency > 98%. There are no internal components, ensuring high reliability and low power consumption. Six multi-tap transformers are used. 11. It has a soft-start function to ensure a smooth start and avoid large inrush currents. 12. While saving electricity costs, it can extend the working life of the line load and lamps by 70%, greatly reducing the operating cost and workload. 13. When a fault, overload, or overheating occurs, it executes a bypass, directly connecting the lighting of that phase to the power supply voltage to maintain normal lighting. The bypass unit is a static device. Each phase is independent of each other, and each is equipped with a magnetic-thermal protection switch.
THLXD-ZM-60KW Integrated Voltage Stabilization Circuit for Park Lighting Energy-saving Control System, Parameter Specifications of Street Lamp Voltage Stabilization Regulator
1. Input voltage adaptation range: According to IEC, when the input voltage changes within ±10% of the rated value, if it exceeds this range, it will automatically give an audible and visual alarm and cannot keep the output voltage within the required range. 2. Output voltage regulation rate: The effect that a change in the input voltage causes a change in the output voltage. The smaller this value is, the better. This is an important indicator for measuring the performance of an AC voltage stabilizer. 3. Load regulation rate: The effect that a change in the load causes a change in the output quantity. This value should also be as small as possible. 4. Output voltage distortion rate: Represented by THD, it refers to the relative harmonic content of the output voltage, which is the ratio of the total effective value of the harmonic content to the effective value of the fundamental wave. The smaller this value is, the better. 5. Efficiency: The ratio of the output active power P0 to the input active power Pi. 6. Load power: The active power and reactive power of the load.
Integrated Voltage Stabilization Circuit for Park Lighting Energy-saving Control System Application Scope
This product is widely used in industries, heating boilers, kilns in cement plants, coal mines, blast furnaces and converters in the metallurgical industry, fertilizer plants, factories, sewage treatment plants,
oil fields, petrochemical plants, tap water supply companies and other industries, enterprises and occasions for the variable frequency speed regulation and the adjustment and control of flow, velocity and pressure of centrifugal fans, axial fans, Roots blowers, air compressors,
centrifugal pumps, submersible pumps, circulating pumps, oil transfer pumps, high-pressure water injection pumps and other equipment.
Service and Quality
Quality Assurance: Strive to shape the corporate image of "serving customers, being responsible to customers, and satisfying customers", and establish a clear corporate purpose of "providing users with high - level, high - reliability, and high - quality products; providing users with reliable industrial and other enterprise power - saving products that they can use with confidence, enabling users to receive satisfactory after - sales service, and striving to become a supplier of power - saving services for various industrial enterprises".
