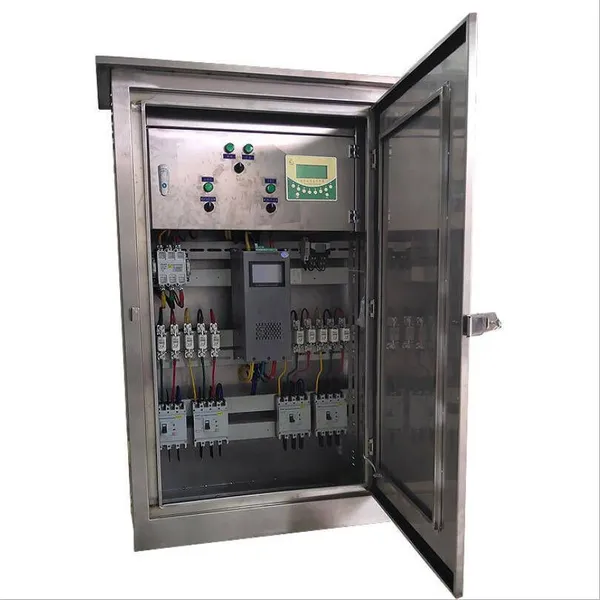

Help CenterSlc-3-60, Slc-3-80, Slc-3-63 Landscape Street Lighting Load Voltage Stabilization and Energy Saving Device With Wireless Monitoring
Related Products
-
Thlxd-pt-0.4-30kw 60kw Hefei Highway Tunnel Energy-saving Reconstruction Led Lighting Dimming SystemUS$ 1230.77 - 1289.23MOQ: 1 Set -
Mtk3-80kva, Mtk3-160kva, Mtk3-50kva Factory Intelligent Street Lamp Voltage Regulation and Energy Saving DeviceUS$ 153.54 - 153.69MOQ: 1 Unit
-
Bmw-160kva, Bmw-120kva Landscape Street Lighting Load Voltage Stabilization and Energy Saving Device With Wireless MonitoringUS$ 153.54 - 153.69MOQ: 1 Unit
-
Bmw/pt-160, Bmw/pt-120 Industrial Park Street Light Energy Saver, Voltage Stabilization and Regulation Remote Monitoring SystemUS$ 153.69 - 1046.15MOQ: 1 Unit
-
Zlb3000-sq-30/3 Zlb3000-sq-40/3 Landscape Lighting Renovation Energy-saving Voltage Stabilization DeviceUS$ 1600 - 1615.38MOQ: 1 Set
Intelligent lighting voltage stabilizing device, including the main circuit, control circuit, power-saving equipment, bypass system, and lighting terminal. Among them, the main circuit is connected to the control circuit. After the power-saving equipment and the bypass system are connected in parallel, they are connected to the control circuit and the lighting terminal. The main circuit includes an autotransformer and a bidirectional thyristor bridge. The autotransformer is set at the voltage input end, and the bidirectional thyristor bridge is respectively connected to the autotransformer and the voltage input end. The industrial intelligent lighting voltage stabilizing device has the characteristics of low transformation cost, safety, high efficiency, and low investment. On the premise of saving 20%±5% of electric energy in the energy-saving transformation of line equipment, the lighting brightness is hardly reduced. Rated working current: (A): 20A, 30A, 40A, 45A, 50A, 60A, 63A, 80A, 100A, 120A, 125A, 150A, 160A, 170A, 180A, 190A, 200A, 250A, 300A, 315A, 400A;
SLC-3-60 SLC-3-80 SLC-3-63 Landscape street lamp lighting load voltage stabilizing and energy-saving device. Wireless monitoring functional features:
10. It has a computer and remote automation control RS-485 or RS-232 interface;
11. Power factor. For most equipment, the power factor can be increased by about 5%-10%, reducing reactive power loss.
12. The device dynamically tracks the input voltage and automatically adjusts the power-saving gear to make the lamps work under a constant voltage state to ensure the normal operation of the lamps and achieve the energy-saving effect.
13. Clock function. According to the change of the city's latitude, it can automatically turn on/off the lighting lamps. (Optional)
14. Time control function. According to the time setting, it can turn on/off the lighting lamps at a fixed time. (Optional)
15. Light control function. According to the change of the weather's dimness, it can automatically turn on/off the lighting lamps. (Optional)

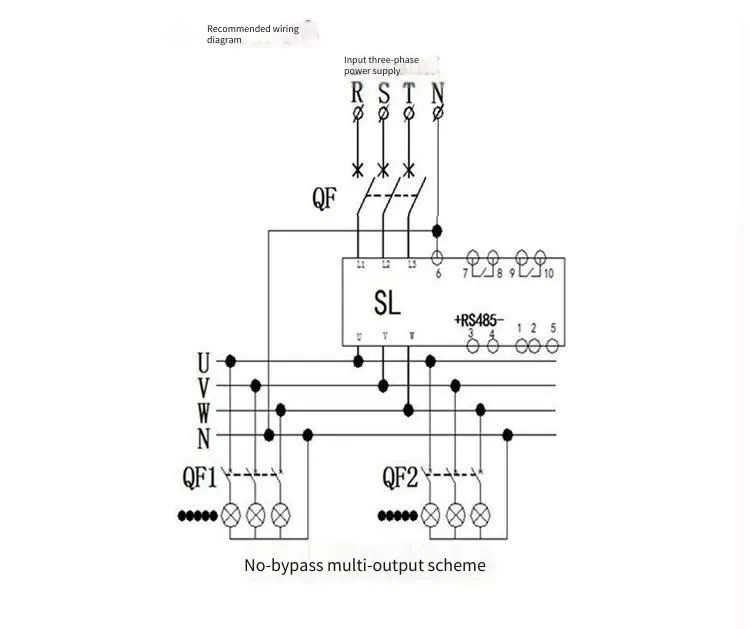

16. It is easy to install. Simply connect in series. The power device does not need to change the original line state, users' power consumption habits and usage;
17. Sinusoidal wave output of voltage, voltage stabilization, network purification, power factor adjustment, and three-phase balance;
Technical parameters of the voltage stabilization and energy-saving device for landscape street lamp lighting loads:
Input voltage: 3-phase 380V AC+N+T, Regulation: +25%/-5%
Rated voltage: +11%/-19%
Energy-saving voltage (Water/Mercury lamp): +10%/-25%
Energy-saving voltage (High-pressure sodium lamp): From 48 to 63Hz
Protection for each phase: U-shaped curve single-pole magnetic-thermal switch
Output voltage: 3-phase 380V AC+N+T
Accuracy: ±2%
Soft-start voltage: 200V AC (Phase voltage)
Minimum energy-saving voltage: 180V AC (Phase voltage), adjustable according to the lamp type
Default value: Water/Mercury lamp voltage: 190V AC
High-pressure sodium lamp voltage: 180V AC
Adjustment: Between phases
Harmonic distortion: None
Efficiency: >97%
Allowable power factor: From inductive 0.5 to capacitive 0.7
Inter-phase imbalance: Allowed
Lighting type selection Mercury vapor lamps and high-pressure sodium lamps (selected by micro switch)
Environment Operating temperature From -45℃ to +65℃
Relative humidity From 0% to 95%, non-condensing
Altitude ≤2400m
Average maintenance time 30 minutes
Display Visible (per phase)
Operation status, power-saving on status, tap selection status, and automatic bypass
Sound (per phase) Automatic bypass and
SLC-3-60 SLC-3-80 SLC-3-63 Landscape street lighting load voltage stabilization and energy-saving device. Detailed introduction of wireless monitoring problems:
(1) The mains power is normal, but the emergency power indicator light is not on
There may also be a problem that the LCD menu of the emergency power indicator shows "AC, LOSS". At this time, * it is necessary to first check whether the mains circuit breaker of the emergency power supply or the cable of the circuit breaker is properly connected. The best solution is to replace the circuit breaker!
(2) When the mains power is normal, the buzzer sounds
At this time, you need to first check whether there is a problem with the output of the emergency power supply and whether the load is overloaded. If so, it is best to disconnect some loads.
(3) The fault indicator light is on
In this case, you need to first check whether the power transmission load is short-circuited. Then, you also need to check whether there are faults in the control circuit, whether the inverter humidity is too high, or whether there are charger faults, etc.!
(4) When the mains power stops, the emergency power supply has no output function.
In this case, you need to check whether the connection wires between the battery pack and the input socket are in good condition. The solution is to reconnect the wires.
