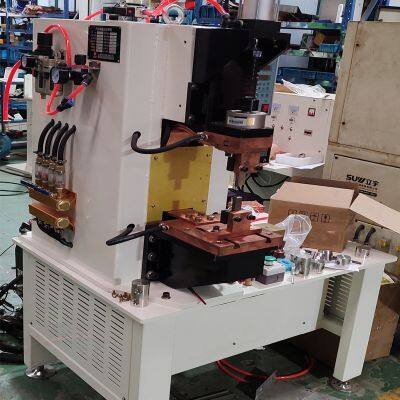

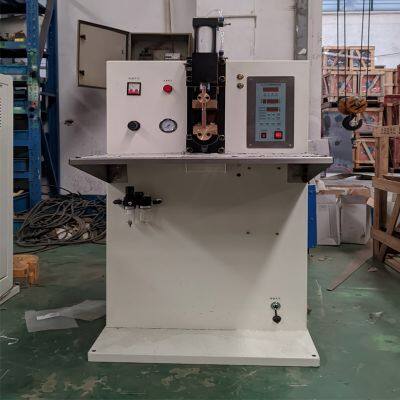

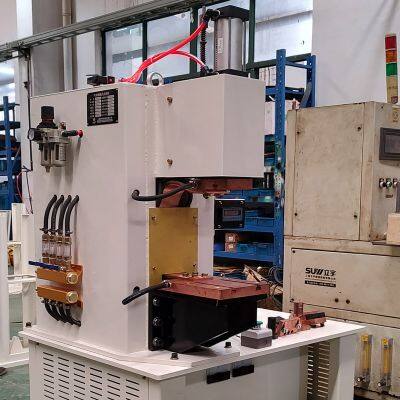

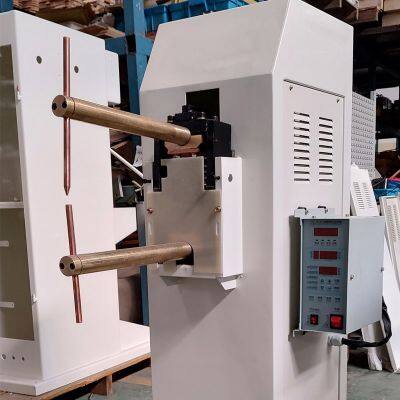

Shanghai Donsun Capacitor Energy Storage Spot Welding Machine DR-200/500/1000
US$ 8000
1 Set
US$ 1500
≥2 Set
Key Specifications
Get Latest Price
Type:
Universal
Style:
Fixed
Electric Current:
DC Shock Wave
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Shanghai Donsun Welding Group Spot Welding Machine Resistance Welding Machine DTM-20K/40K/80K /20K-S/40K-S MFDC Spot Welding MachineUS$ 3000 - 8000MOQ: 1 Set -
Shanghai Donsun Welding Group New Foot-operated/Pneumatic Spot Welding Machine DN1-16N/25N/35N/ 16Q/25Q/25QUS$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun Pneumatic Desktop Spot Welding Machine DN-16Q/25Q 12 DTM-20K-TUS$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun Spot Welding Resistance Welding Portable Spot Welding Machine DNY-5/16/25/50/80/100/150US$ 1500 - 8000MOQ: 1 Set
-
SHANGHAI DONSUN Pedal-operated Spot Welding Machine DN-10/16/25/35US$ 1500 - 8000MOQ: 1 Set
Type
Universal
Style
Fixed
Electric Current
DC Shock Wave
Cooling Way
Water Cooling
Electrode Stroke
Arc
Conductive Way
Both-Sided
Welding Spot Number
Multiple
Transmission
Hydraulic
Control
Automatic
Capacitor energy storage spot welding machine
DR-200/500/1000
It is suitable for high - quality welding of electrical switches,
relays, instruments, metal products, stainless steel, various
non - ferrous metals, sheets, filaments, and silver contacts. It
uses a capacitor - energy - storage power supply; being a micro
- resistance spot welding machine, the workpiece is less likely
to deform after welding.
| Model | Unit | DR-200 | DR-500 | DR-1000 | |
| Voltage | V/Hz | 220/50 | 220/50 | 220/50 | |
| Output capacity | KVA | 1 | 2 | 3 | |
| Output energy | J | 200 | 500 | 500 | |
| Capacitance | μF | 2000 | 9600 | 19200 | |
| Charging voltage | V | 90-320 | 90-320 | 90-320 | |
| Electrode pressure | N | 400 | 400 | 400 | |
| Welding thickness | Low carbon steel | mm | 0.4+0.4 | 1+1 | 1.5+1.5 |
| Stainless steel | mm | 0.2+0.2 | 0.5+0.5 | 0.8+0.8 | |
| Weight | Kg | 50 | 120 | 180 | |
