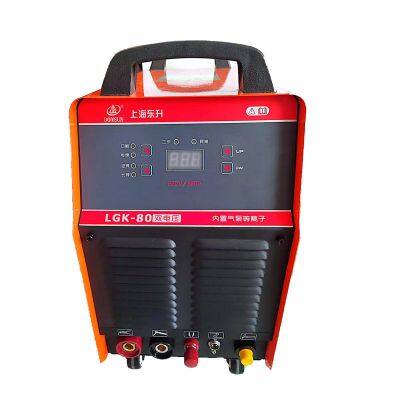

Help CenterShanghai Donsun Welding Group Plasma Cutting and Welding Machine LKG-70BS/80B/100B/120B/160
Related Products
-
Shanghai Donsun Welding Group Built in Plasma Cutting and Welding Machine LGK-80/100DV/100N/100BN/120BN/160BNUS$ 200 - 500MOQ: 1 Set -
Shanghai Donsun Welding Group Built in Air Pump Built in Water Tank High Power Plasma Cutting LGK-200L/200NL/300L/300NLUS$ 900 - 1500MOQ: 1 Set
-
Shanghai Donsun Mig Mag IGBT NCB-300T/300TF Welding MachineUS$ 200 - 300MOQ: 1 Set
-
Shanghai Donsun Welding Group Engineering Machine MMA MIG MAG GMAW Welding Machine MIG-350D/500D Series IGBTUS$ 200 - 500MOQ: 1 Set
-
Shanghai Donsun Heavy Industry Dual IGBT Soft Switch MMA MIG MAG Welding MachineUS$ 300 - 600MOQ: 1 Set
LGK-70BS/80B/100B/120B/160B
07-08
Industrial grade cutting
·Adopt Advanced IGBT Module technology of the core Inverter device.
Untouch Start System-Smooth Arc-Striking with HF Control.
330V~500V wide voltage range
Rapid ArC Restrike- Quality narrow cutting and excellent
travel speed.
Function Post Gas for effective cooling of the cutting torch.
Competltive Cutting Thickness(Carbon Steel)-
Recommended thickness:40mm.
Cool Operation, Long Consumable Life-Cutting accessories
with competitive price and performance
Engine Drive Compatible-Wide range for input
voltage, Select a suitable Engine Drive in гemote locations.
Auto-Protectlon agalnst Low alr pressure, over-voltage, over-
current and over-heated
·Energy Saving - Compared with the traditional cutting
machine more efficient.
Inverter technology
Intelligent air cooling
Lack voltage/over current /over heat protection
Outside compressor
Intelligent interface adjustment
Model |
CUT-70BS |
CUT-808 |
CUT-100B |
CUT-120B |
CUT-160B |
Input voltage(V) |
220/380v |
3P 380V |
3P 380V |
3P 380V |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
Rated input current(A) |
46/15.4 |
22 |
30.5 |
38.3 |
47 |
Duty cycle(%)(40℃) |
60 |
60 |
60 |
60 |
60 |
No-load voltage(V) |
337.5 |
337.5 |
337.5 |
331 |
342 |
Output current (A) |
25-65 |
25-85 |
25-110 |
25-130 |
25-160 |
Output voltage(V) |
106 |
114 |
124 |
132 |
140 |
ARC-initiating |
H-F Untouch |
H-F Untouch |
H-F Untouch |
H-F Untouch |
H-F Untouch |
Efficiency(%) |
95 |
95 |
95 |
95 |
95 |
Cutting thickness (mm) |
20 |
30 |
45 |
55 |
60 |
Weight (kg) |
14 |
26 |
30 |
32 |
35 |
Dimension(mm) |
570*290*550 |
570*290*550 |
70*290*550 |
570*290*550 |
