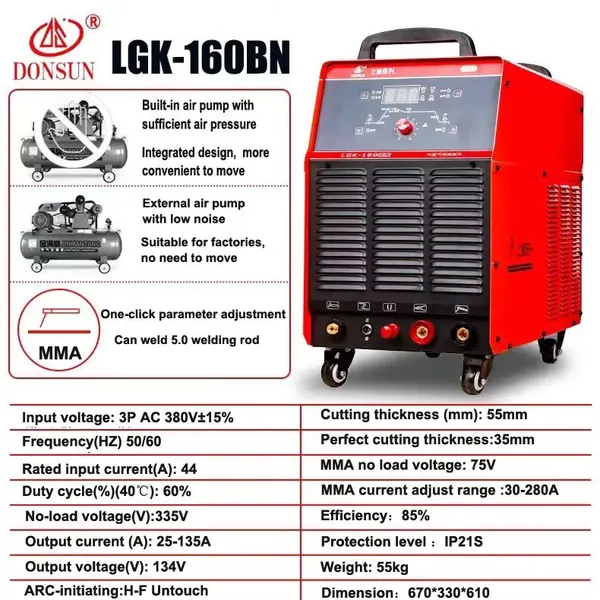

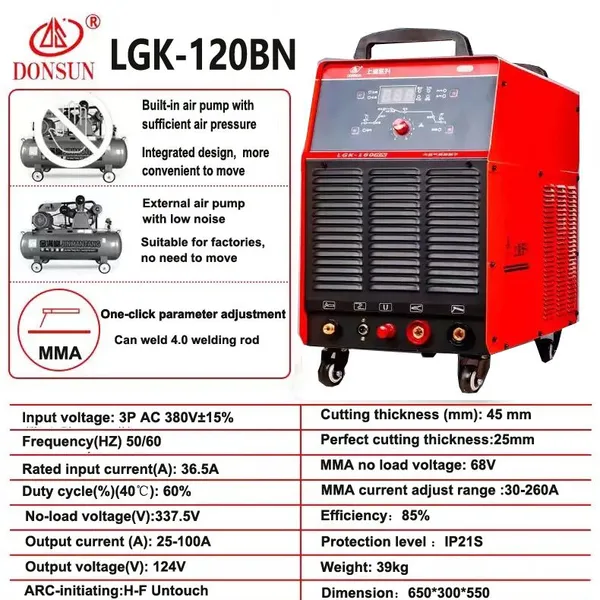

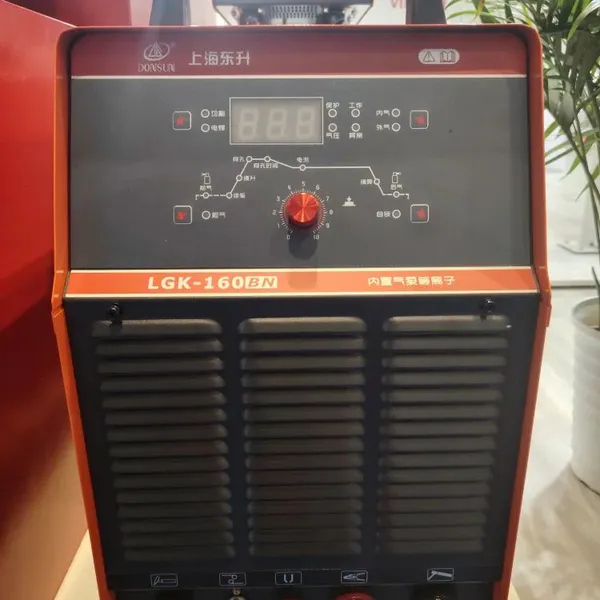

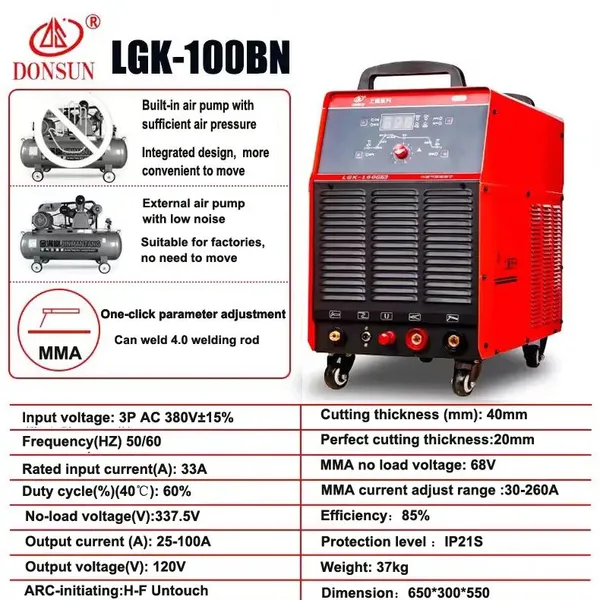

LGK-80/100DV/100N/100BN/120BN/160BN
INDUSTRIAL BUILT-IN COMPRESSOR.CUT.MMA
·Adopt Advanced IGBT Module technology of the core Inverter device.
Untouch Start System-Smooth Arc-Striking with HF Control.
330V~500V wide voltage range
Rapid ArC Restrike- Quality narrow cutting and excellent
travel speed.
Function Post Gas for effective cooling of the cutting torch.
Competltive Cutting Thickness(Carbon Steel)-
Recommended thickness:40mm.
Cool Operation, Long Consumable Life-Cutting accessories
with competitive price and performance
Engine Drive Compatible-Wide range for input
voltage, Select a suitable Engine Drive in гemote locations.
Auto-Protectlon agalnst Low alr pressure, over-voltage, over-
current and over-heated
·Energy Saving - Compared with the traditional cutting
machine more efficient.
Inverter technology
Intelligent air cooling
Built-in/Outside compressor
ARC-PLASMA CUTTING dual functions
Intelligent interface adjustment
PARAMETERS
Model |
CUT-800V |
CUT-100DV |
CUT-100N |
CUT-100BN |
CUT-120BN |
CUT-160BN |
Input voltage(V) |
220/380v |
220/380v |
3P 380V |
3P 380V |
3P 380V |
3P 380V |
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
Rated input current(A) |
52/21.4 |
52/28 |
28 |
33 |
36.5 |
44 |
Duty cycle(%)(40℃) |
60 |
60 |
60 |
60 |
60 |
60 |
No-load voltage(V) |
337.5 |
337.5 |
337.5 |
337.5 |
337.5 |
335 |
Output current (A) |
25-65 |
25-65/85 |
25-85 |
25-100 |
25-110 |
25-135 |
Output voltage(V) |
106 |
114 |
114 |
120 |
124 |
134 |
ARC current(A) |
260 |
260 |
260 |
260 |
260 |
280 |
ARC voltage(V) |
68 |
68 |
68 |
68 |
68 |
75 |
H-F Untouch |
H-F Untouch |
|||||
Efficiency(%) |
85 |
85 |
85 |
85 |
85 |
85 |
Cutting thickness (mm) |
25 |
35 |
35 |
40 |
45 |
55 |
Weight (kg) |
29 |
35.5 |
35 |
37 |
37 |
55 |
Dimension(mm) |
520*250*510 |
570*280*550 |
570*280*550 |
570*300*550 |
570*300*550 |
670*330*610 |
