SHANGHAI DONSUN Pedal-operated Spot Welding Machine DN-10/16/25/35
US$ 8000
1 Set
US$ 1500
≥2 Set
Key Specifications
Get Latest Price
Type:
Universal
Style:
Fixed
Electric Current:
DC Shock Wave
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
SHANGAHI DONSUN Pneumatic Desktop Spot Welding Machine DN-16Q/25Q 12 DTM-20K-TUS$ 1500 - 8000MOQ: 1 Set -
SHANGHAI DONSUN Pneumatic Spot-protection Welding Machine DTN-25/35/50/ 63/75/100/150/200US$ 1500 - 8000MOQ: 1 Set
-
SHANGHAI DONUN Electronic Pulse Spot Welding Machine JDM-3/5/10/16/25US$ 1500 - 8000MOQ: 1 Set
-
SHAGHAI DONSUN MANUAL Pneumatic Butt Welding Machine UN-16Q/25Q/35Q/50Q/63QUS$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun Capacitor Energy Storage Spot Welding Machine DR-200/500/1000US$ 1500 - 8000MOQ: 1 Set
Type
Universal
Style
Fixed
Electric Current
DC Shock Wave
Cooling Way
Water Cooling
Electrode Stroke
Vertical
Conductive Way
Both-Sided
Welding Spot Number
Multiple
Transmission
Hydraulic
Control
Automatic
Transport Package
wooden case
Specification
customize
Trademark
Donsun
Origin
China

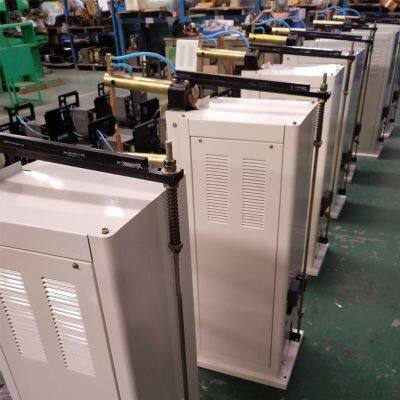

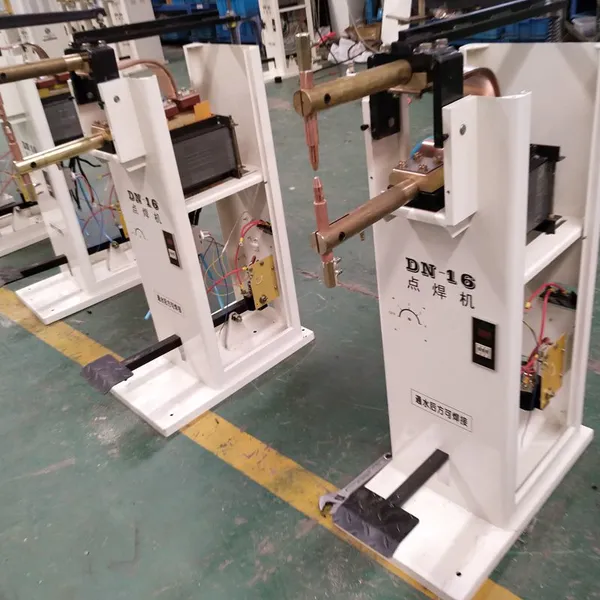

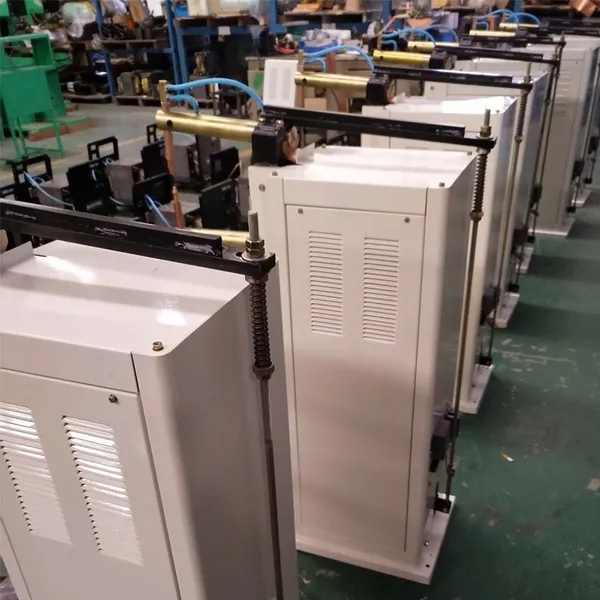

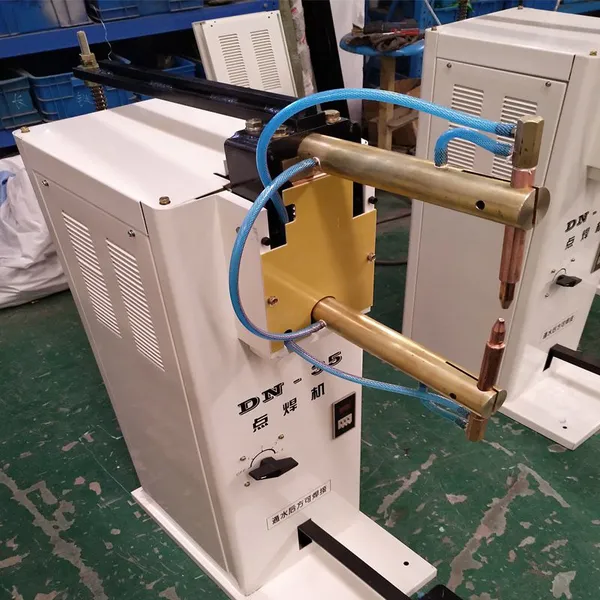

Pedal-operated spot welding machine
DN-10/16/25/35
The main transformer has low power consumption and small no -
load current.

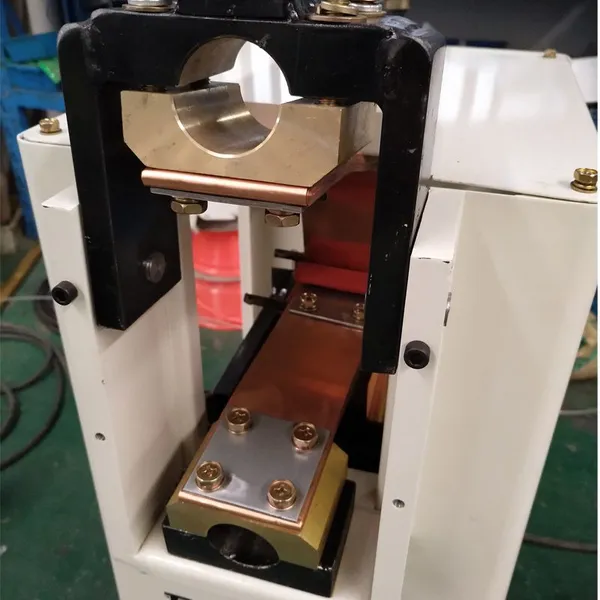

· It adopts a lever - pedal spring - pressure structure, which is
convenient for operaon and maintenance.
· It uses a thyristor contactless switch circuit with fast and reliable
turn - off time.
· The welding time is adjustable and the welding repeatability is
good.
· It is widely used for welding materials such as low - carbon steel
plates, wires, and stainless steel.
| Model | Unit | DN-10 | DN-16 | DN-25 | DN-35 | |
| Primary voltage | V | 1PH 380 | 1PH 380 | 1PH 380 | 1PH 380 | |
| Rated capacity | KVA | 10 | 16 | 25 | 35 | |
| Duty cycle | % | 20 | 20 | 20 | 20 | |
| Secondary coil Voltage | V | 1.65-2.4 | 1.98-3.01 | 2.25-3.58 | 3.1-5.2 | |
| Throat depth | mm | 210 | 210 | 250 | 250 | |
| Throat gap | mm | 180 | 180 | 180 | 180 | |
| Electrode size | Electrode arm | mm | φ35 | φ35 | φ42 | φ42 |
| Electrode holder | mm | φ18 | φ18 | φ18 | φ18 | |
| Current control mode | mm | Microcomputer Or Gear switch | Gear switch | Gear switch | Gear switch | |
| Welding thickness | Low carbon steel | mm | 1.5+1.5 | 2.0+2.0 | 2.5+2.5 | 3+3 |
| Stainless steel | mm | 0.8+0.8 | 1.0+1.0 | 1.2+1.2 | 1.5+1.5 | |
| Cooling water flow rate | L/min | 4 | 4 | 4 | 4 | |
| Weight | Kg | 72 | 82 | 100 | 105 | |
| Size | mm | 760×340×1080 | 760×340×1080 | 800×340×1140 | 800×340×1140 | |
