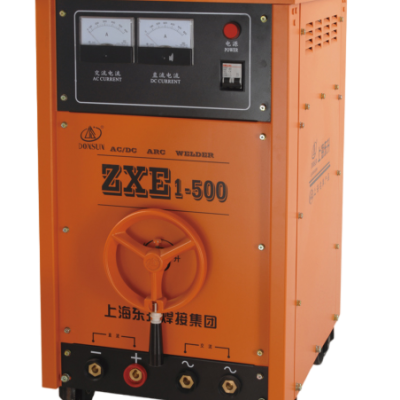

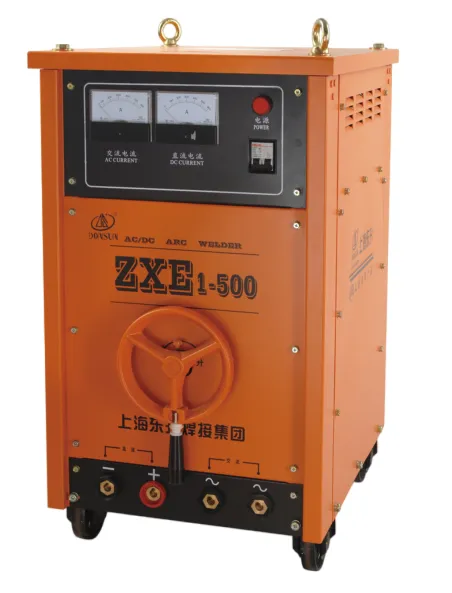

Shanghai Donsun ZXE1 Moving-core AC/DC DC/AC Arc Welding Machine ZXE1-500/ZX1-800
US$ 1500
1 Sets
US$ 500
≥2 Sets
- shanghai
- T/T
- 7 days
You May Like
-
Shanghai Donsun BX3 Moving-core AC Arc Welding Machine BX3-500/BX3
-
Shanghai Donsun ZX5 Series Thyristor Rectifier Arc Welding Machine ZX5-400/500/630
-
Shanghai Donsun Welding Group Plasma Cutting and Welding Machine LKG-70BS/80B/100B/120B/160
-
Shanghai Donsun Welding Group Built in Plasma Cutting and Welding Machine LGK-80/100DV/100N/100BN/120BN/160BN
-
Shanghai Donsun Welding Group Built in Air Pump Built in Water Tank High Power Plasma Cutting LGK-200L/200NL/300L/300NL
-
Shanghai Donsun Mig Mag IGBT NCB-300T/300TF Welding Machine
Product Details
| Type | Other, AC welding machine | Style | Vertical | |
| Electric Current | AC | Cooling Way | Water Cooling | |
| Work Form | Moving-Coil | Frequency Range | High Frequency | |
| Trademark | donsun |
Product Description
ZXE1 Moving-core AC/DC Arc welding machine
ZX1 Moving-core DC/AC welding machine
ZXE1-500/ZX1-800
1.Suitable for AC/DC MMA welding with all
kinds of electrodes;
2.Convenient steeples adjustment of welding
current can ensure the stability of arc in
different welding condition;
3.Suitable for welding of low carbon
steel, medial carbon steel, low alloy steel and
their cast etc
1.Three phase input ensure stable current circulation;
2.Suitable for DC SMAWMMA welding with all kinds of electrode;
3.Easy to strike the arc without any adjustment;
4.Good dynamic character with gentle performance and stable arc;
5.Quite molten pool, little spatter and no undercut ensure workpiece
be in good welding appearance.
| Model | ZXE1-500 |
| Voltage（V/Hz) | 1PH 380V/50Hz |
| Rated input capacity（KVA） | 40 |
| Duty cycle（%） | 35 |
| Current regulation range(DC)（A） | 80-330 |
| Current regulation range(AC)（A） | 100-500 |
| No-load voltage（V） | AC:75 DC:71 |
| Suitable electrode diameter（mm） | 3.2-8 |
| Weight（Kg） | 173 |
| Size (Length × Width × Height) | 655×490×906 |
| Model | ZX1-800 |
| Voltage（V/Hz) | 3PH 380V/50Hz |
| Rated input capacity（KVA） | 64.68 |
| Duty cycle（%） | 60 |
| Current regulation range(DC)（A） | 260-800 |
| No-load voltage（V） | 73 |
| Suitable electrode diameter（mm） | 8-16 |
| Applicable carbon rod diameter（mm） | 8-12 |
| Weight（Kg） | 257 |
| Size (Length × Width × Height) | 740×550×1045 |
