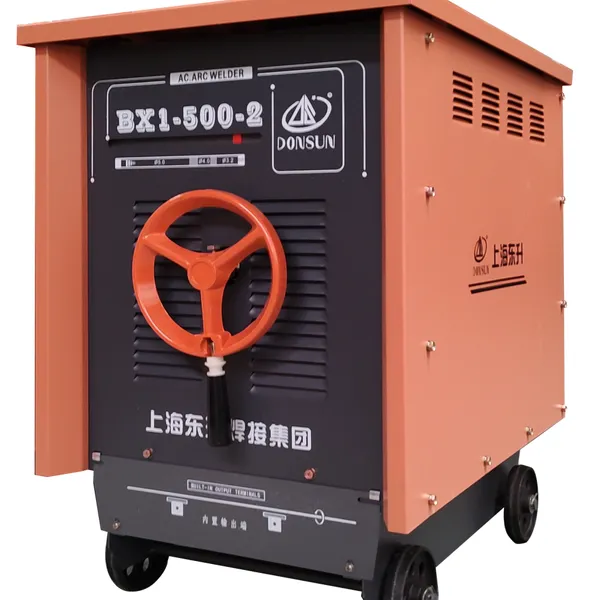

Shanghai Donsun BX1 Series Moving-core Ac Arc Welding Machine BX1-315/400/500/630/315-2/400-2/500-2
US$ 8000
1 Set
US$ 1500
≥2 Set
Key Specifications
Get Latest Price
Type:
Other, AC welding machine
Style:
Vertical
Electric Current:
AC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Shanghai Donsun ZXE1 Moving-core AC/DC DC/AC Arc Welding Machine ZXE1-500/ZX1-800US$ 500 - 1500MOQ: 1 Set -
Shanghai Donsun BX3 Moving-core AC Arc Welding Machine BX3-500/BX3US$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun ZX5 Series Thyristor Rectifier Arc Welding Machine ZX5-400/500/630US$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun Welding Group Plasma Cutting and Welding Machine LKG-70BS/80B/100B/120B/160US$ 200 - 400MOQ: 1 Set
-
Shanghai Donsun Welding Group Built in Plasma Cutting and Welding Machine LGK-80/100DV/100N/100BN/120BN/160BNUS$ 200 - 500MOQ: 1 Set
Type
Other, AC welding machine
Style
Vertical
Electric Current
AC
Cooling Way
Air Cooling
Work Form
Moving-Coil
Frequency Range
Intermediate Frequency
Transport Package
woodenc ase
Specification
customize
Trademark
donsun
Origin
China
BX1 Series Moving-core Ac Arc welding machine
BX1-315/400/500/630/315-2/400-2/500-2
1. Single phase moving core type and forced air cooling structure;
2.Sutable for welding errous metal workpieces with general Acelectrode;
3. Stable arc, less spatter and deep penetration ensure good welding quality;
4. High efficiency. simple structure and easy repairing and maintenance

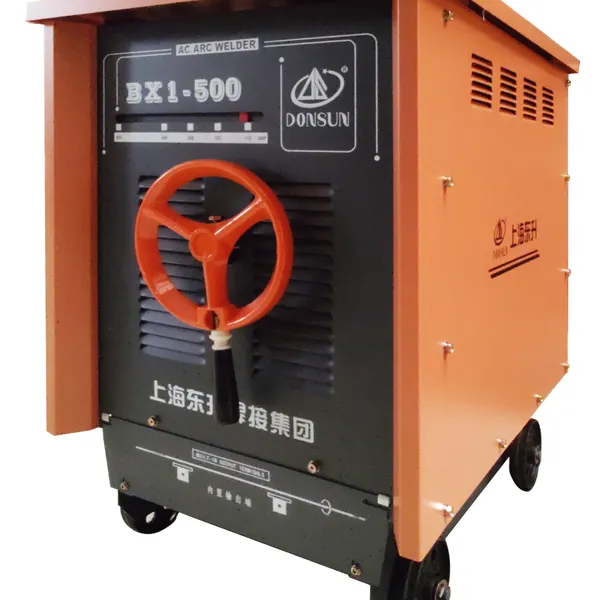

| Model | BX1-500 |
| Voltage（V/Hz) | 1PH 440V/50Hz |
| Rated input capacity（KVA） | 49.4 |
| Duty cycle（%） | 60% |
| No-load voltage（V） | 72 |
| Rated output current（A） | 500 |
| Rated load voltage（V） | 44 |
| Current regulation range（A） | 110-500 |
| electrode diameter（mm） | 3.2-8 |
| Insulation grade | F |
| Weight（Kg） | 110 |
| Size | 630*483*788 |
| Model | BX1-315 | BX1-400 | BX1-500 | BX1-630 | BX1-315-2 | BX1-400-2 | BX1-500-2 |
| Voltage（V/Hz) | 1PH 380V/50Hz | 1PH 380V/50Hz | 1PH 380V/50Hz | 1PH 380V/50Hz | 1PH 380V/50Hz | 1PH 380V/50Hz | 1PH 380V/50Hz |
| Rated input capacity（KVA） | 22.8 | 27.7 | 37.2 | 49.4 | 17.5 | 18 | 23.7 |
| Duty cycle（%） | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| No-load voltage（V） | 65 | 64 | 67 | 72 | 59 | 57 | 60 |
| Rated output current（A） | 315 | 400 | 500 | 630 | 230 | 280 | 360 |
| Rated load voltage（V） | 32.6 | 36 | 40 | 44 | 29.2 | 31.2 | 34.4 |
| Current regulation range（A） | 70-315 | 85-400 | 110-500 | 130-630 | 80-230 | 100-280 | 120-360 |
| Suitable electrode diameter（mm） | 2-6 | 2.5-7 | 3.2-8 | 3.2-8 | 2.5-4 | 3.2-4.0 | 3.2-5.0 |
| Insulation grade | F | F | F | F | F | F | F |
| Weight（Kg） | 78(T)/75(L) | 90(T)/86(L) | 106(T)/101(L) | 130(T)/124(L) | 62 | 71 | 84 |
| Size (Length * Width * Height) | 680×520×720 | 680×520×720 | 730×580×820 | 730×580×820 | 680×520×720 | 680×520×720 | 730×580×820 |
