SHANGAHI DONSUN Pneumatic Desktop Spot Welding Machine DN-16Q/25Q 12 DTM-20K-T

US$ 8000 1 Set

US$ 1500 ≥2 Set

Key Specifications

Type:

Universal

Style:

Fixed

Electric Current:

DC Shock Wave

Shanghai Donsun Welding Group Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

7 days

Type Universal

Style Fixed

Electric Current DC Shock Wave

Cooling Way Water Cooling

Electrode Stroke Vertical

Conductive Way Both-Sided

Welding Spot Number Multiple

Transmission Hydraulic

Control Automatic

Transport Package wooden case

Specification customize

Trademark donsun

Origin china

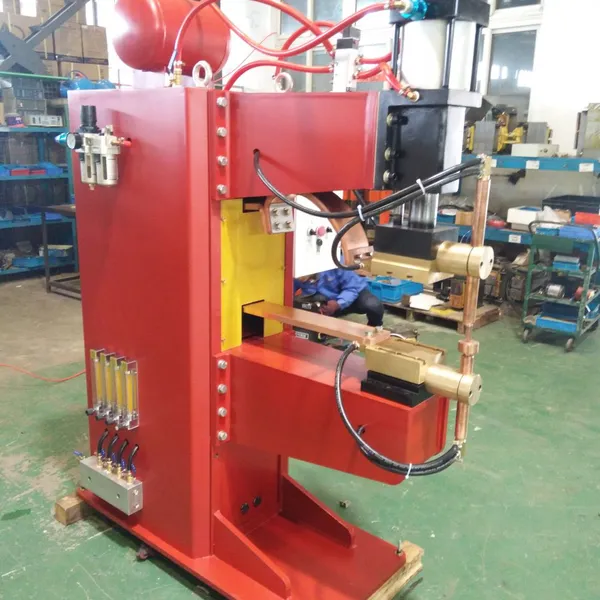

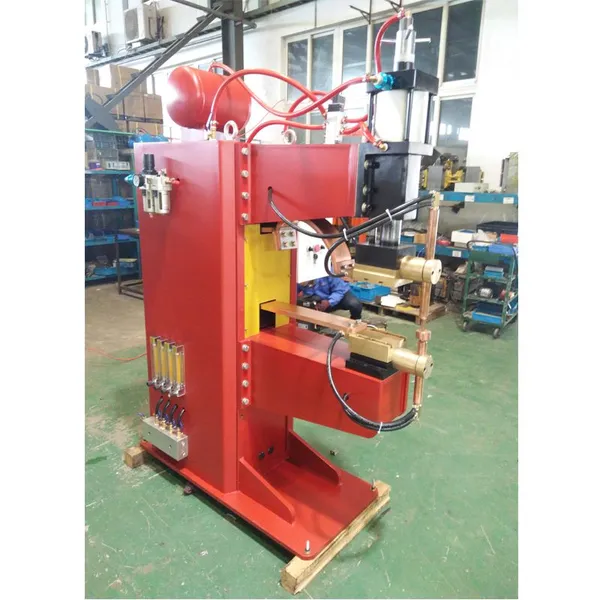

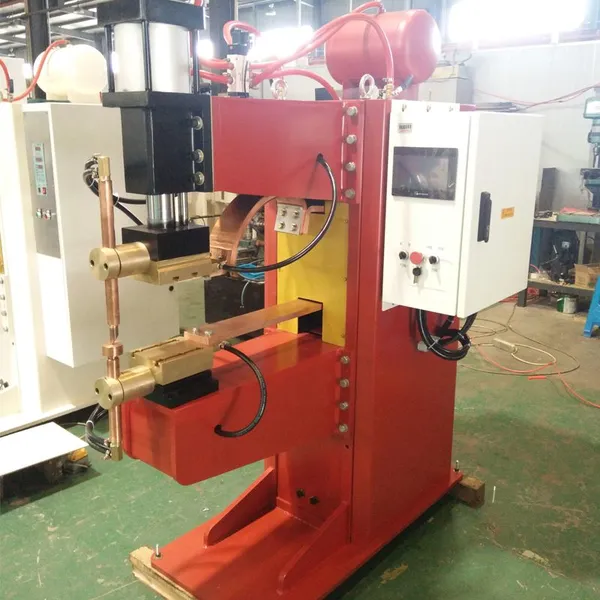

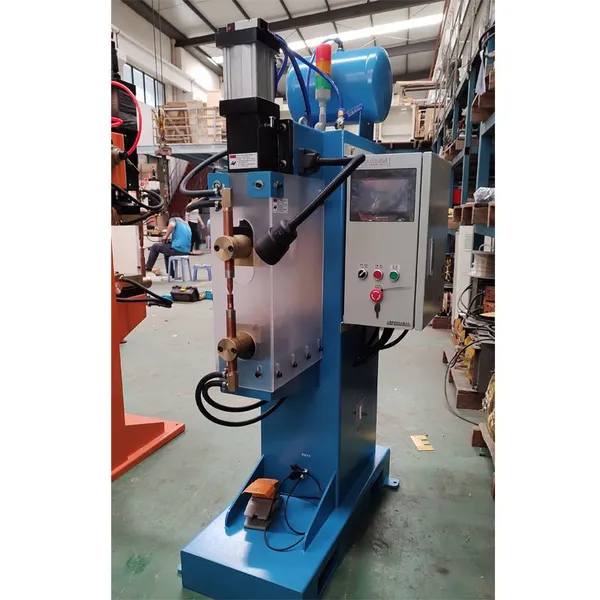

Pneumatic desktop spot welding machine

DN-16Q/25Q

DTM-20K-T

The desktop pneumatic spot welding machine is a welding

device that is driven by air pressure and mainly uses the

spot - welding process. Equipped with a desktop, it has a

compact structure and is easy to operate. It is often used for t

he welding and processing of small workpieces. It is mainly used to weld low - carbon

steel, stainless steel, galvanized sheets, etc., and can also weld non - ferrous metals

such as copper and aluminum. It is widely applied in fields such as electronics and

electrical appliances, hardware products, and daily - use products manufacturing.

Model		Unit	DN1-16Q	DN1-25Q	DN1-35Q	DN1-16N	DN1-25N	DN1-35N
Primary voltage		V	1PH 380	1PH 380	1PH 380	1PH 380	1PH 380	1PH 380
Rated capacity		KVA	16	25	35	16	25	35
Rated Input current		A	42	66	92	42	66	92
Duty cycle		%	20	20	20	20	20	20
Secondary adjustment levels			Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Secondary coil No-load voltage		V	1.0-3.0	1.5-3.6	2-5.2	1.0-3.0	1.5-3.6	2-5.2
Throat depth		mm	210	250	250	210	250	250
Throat gap		mm	180	180	180	180	180	180
Working stroke of upper electrode		mm	10-50	10-50	10-50	10-50	10-50	10-50
Electrode pressure		N	2000	2000	2000	2000	2000	2000
Electrode size	Electrode arm	mm	φ35	φ42	φ42	φ35	φ42	φ42
Electrode size	Electrode holder	mm	φ18	φ18	φ18	φ18	φ18	φ18
Welding thickness	Low carbon steel	mm	2+2	2.5+2.5	3.0+3.0	2+2	2.5+2.5	3.0+3.0
Welding thickness	Stainless steel	mm	0.8+0.8	1.0+1.0	1.2+1.2	0.8+0.8	1.0+1.0	1.2+1.2
Compressed air pressure		Mpr	0.6	0.6	0.6	/	/	/
Cooling water flow rate		L/min	6	6	6	6	6	6
Recommended input wire cross - section		mm²	6	8	16	6	8	16
Weight		Kg	100	110	120	100	110	120
Size		mm	760×340×1300	800×340×1300	800×340×1300	760×340×1300	800×340×1300	800×340×1300
