Shanghai Donsun Welding Group New Foot-operated/Pneumatic Spot Welding Machine DN1-16N/25N/35N/ 16Q/25Q/25Q

US$ 8000 1 Set

US$ 1500 ≥2 Set

Key Specifications

Type:

Universal

Style:

Fixed

Electric Current:

Secondary Rectification

Shanghai Donsun Welding Group Technology Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

7 days

Type Universal

Style Fixed

Electric Current Secondary Rectification

Cooling Way Water Cooling

Electrode Stroke Vertical

Conductive Way Both-Sided

Welding Spot Number Multiple

Transmission Hydraulic

Control Automatic

Transport Package wooden case

Specification customize

Trademark donsun

Origin China

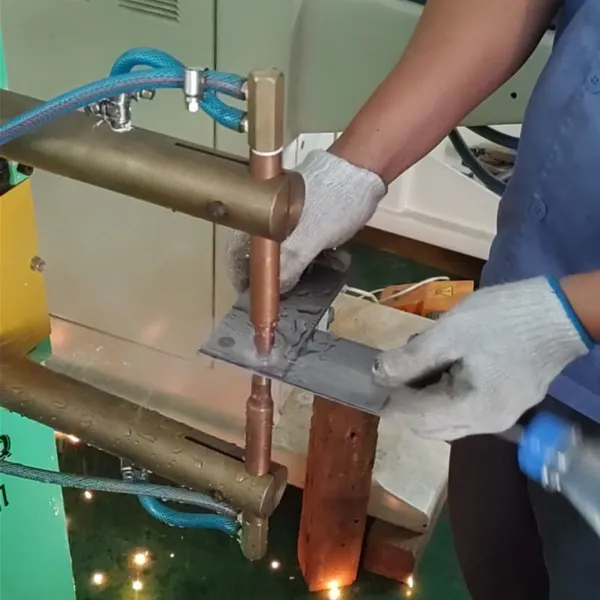

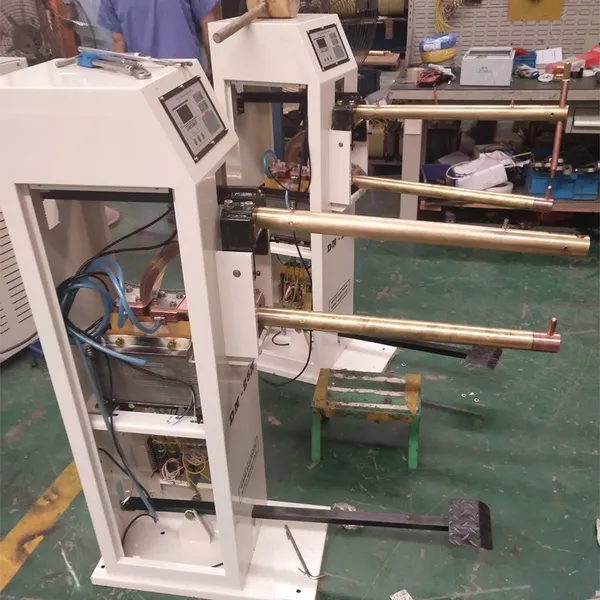

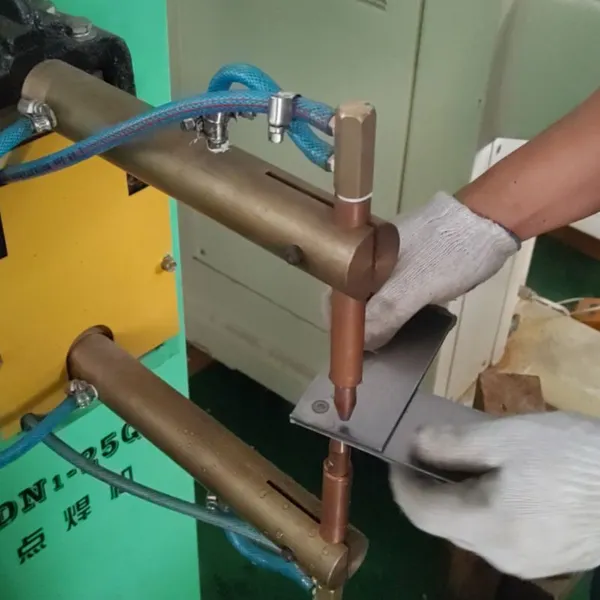

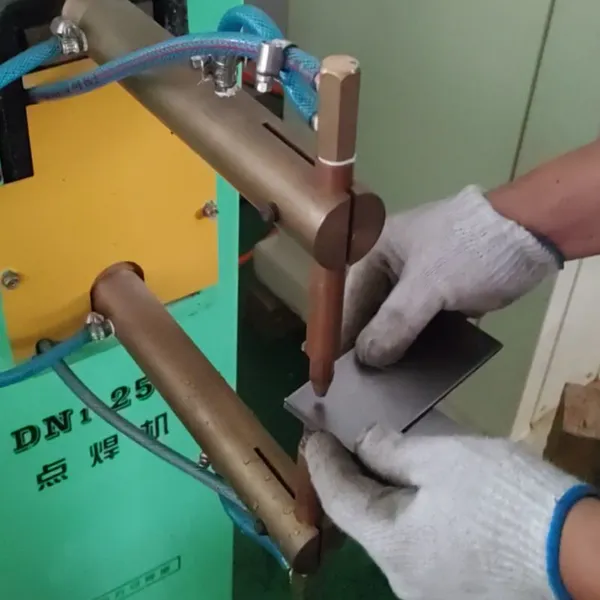

New foot-operated/Pneumatic spot welding machine

DN1-16N/25N/35N/

16Q/25Q/25Q

The main transformer is designed with a water - cooling system,

which provides good heat dissipation and low power consumption.

· It adopts a lever - pedal spring - pressure structure, ensuring

convenient opera􀆟on and maintenance.

· It is controlled by a microcomputer, featuring high - precision

current adjustment and good welding repeatability.

· It is widely used for welding materials like low - carbon steel, wires,

and stainless steel.

Model		Unit	DN1-16Q	DN1-25Q	DN1-35Q	DN1-16N	DN1-25N	DN1-35N
Primary voltage		V	1PH 380	1PH 380	1PH 380	1PH 380	1PH 380	1PH 380
Rated capacity		KVA	16	25	35	16	25	35
Rated Input current		A	42	66	92	42	66	92
Duty cycle		%	20	20	20	20	20	20
Secondary adjustment levels			Stepless	Stepless	Stepless	Stepless	Stepless	Stepless
Secondary coil No-load voltage		V	1.0-3.0	1.5-3.6	2-5.2	1.0-3.0	1.5-3.6	2-5.2
Throat depth		mm	210	250	250	210	250	250
Throat gap		mm	180	180	180	180	180	180
Working stroke of upper electrode		mm	10-50	10-50	10-50	10-50	10-50	10-50
Electrode pressure		N	2000	2000	2000	2000	2000	2000
Electrode size	Electrode arm	mm	φ35	φ42	φ42	φ35	φ42	φ42
Electrode size	Electrode holder	mm	φ18	φ18	φ18	φ18	φ18	φ18
Welding thickness	Low carbon steel	mm	2+2	2.5+2.5	3.0+3.0	2+2	2.5+2.5	3.0+3.0
Welding thickness	Stainless steel	mm	0.8+0.8	1.0+1.0	1.2+1.2	0.8+0.8	1.0+1.0	1.2+1.2
Compressed air pressure		Mpr	0.6	0.6	0.6	/	/	/
Cooling water flow rate		L/min	6	6	6	6	6	6
Recommended input wire cross - section		mm²	6	8	16	6	8	16
Weight		Kg	100	110	120	100	110	120
Size		mm	760×340×1300	800×340×1300	800×340×1300	760×340×1300	800×340×1300	800×340×1300
