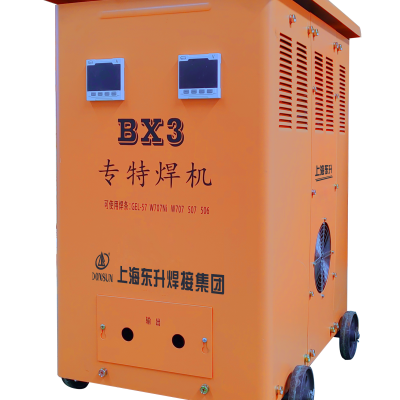

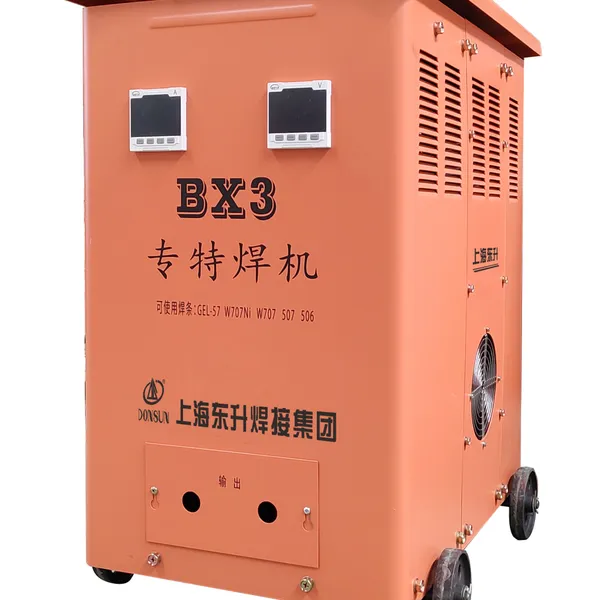

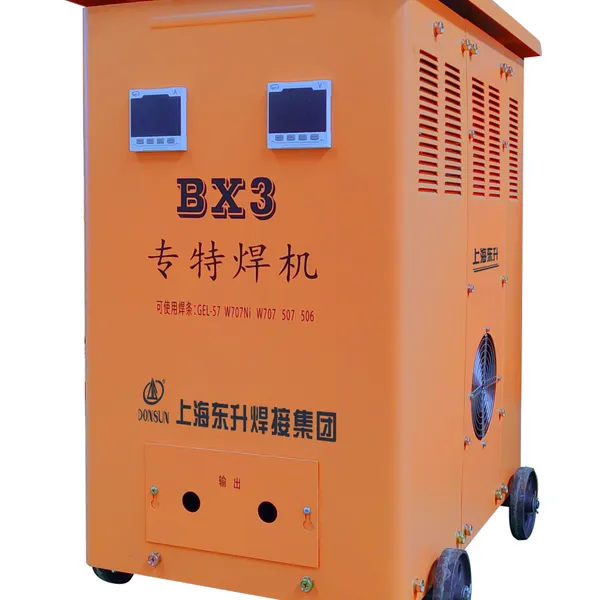

Shanghai Donsun BX3 Moving-core AC Arc Welding Machine BX3-500/BX3
US$ 8000
1 Set
US$ 1500
≥2 Set
Key Specifications
Get Latest Price
Type:
Other, AC welding machine
Style:
Vertical
Electric Current:
AC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Shanghai Donsun BX1 Series Moving-core Ac Arc Welding Machine BX1-315/400/500/630/315-2/400-2/500-2US$ 1500 - 8000MOQ: 1 Set -
Shanghai Donsun ZXE1 Moving-core AC/DC DC/AC Arc Welding Machine ZXE1-500/ZX1-800US$ 500 - 1500MOQ: 1 Set
-
Shanghai Donsun ZX5 Series Thyristor Rectifier Arc Welding Machine ZX5-400/500/630US$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun Welding Group Plasma Cutting and Welding Machine LKG-70BS/80B/100B/120B/160US$ 200 - 400MOQ: 1 Set
-
Shanghai Donsun Welding Group Built in Plasma Cutting and Welding Machine LGK-80/100DV/100N/100BN/120BN/160BNUS$ 200 - 500MOQ: 1 Set
Type
Other, AC welding machine
Style
Vertical
Electric Current
AC
Cooling Way
Air Cooling
Work Form
Moving-Coil
Frequency Range
Intermediate Frequency
Trademark
donsun
BX3 Moving-core AC Arc welding machine
BX3-500/BX3
1.Single - phase moving - coil type, single - person manual AC arc welding machine.
2.Suitable for welding low - carbon steel and low - alloy steel metal components.
3.Suitable for welding steel structures of medium thickness.
4.Compact structure with a wide adjustable current range, applicable to welding
different workpieces.
5.Stable arc, low noise, small vibration, high efficiency and durability of the
welding machine.
6.Special type with high no - load voltage and high duty cycle, which can reach
100%. It is suitable for special welding electrodes such as GEL -
57/W707Ni/W707/W507/W506, etc.
| Model | BX3-500 | BX3-630 | BX3-S |
| Voltage（V/Hz) | 1PH 380V/50Hz | 1PH 380V/50Hz | 1PH 380V/50Hz |
| Rated input capacity（KVA） | 36.1 | 47.9 | 25.1 |
| Duty cycle（%） | 60 | 60 | 100 |
| No-load voltage（V） | 79 | 76 | 87 |
| Rated output current（A） | 500 | 630 | 260 |
| Rated load voltage（V） | 40 | 44 | 30.4 |
| Current regulation range（A） | 70-500 | 80-630 | 90-260 |
| Suitable electrode diameter（mm） | 2.5-8 | 2.5-8 | 2.5-6 |
| Insulation grade | F | F | F |
| Weight（Kg） | 175(T)/170(L) | 200(T)/195(L) | 175(T)/170(L) |
| Size (Length × Width × Height) | 680×520×850 | 680×520×850 | 680×520×850 |
