Shanghai Donsun Spot Welding Resistance Welding Portable Spot Welding Machine DNY-5/16/25/50/80/100/150
US$ 8000
1 Set
US$ 1500
≥2 Set
Key Specifications
Get Latest Price
Type:
Universal
Style:
Portable
Electric Current:
DC Shock Wave
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
SHANGHAI DONSUN Pedal-operated Spot Welding Machine DN-10/16/25/35US$ 1500 - 8000MOQ: 1 Set -
SHANGAHI DONSUN Pneumatic Desktop Spot Welding Machine DN-16Q/25Q 12 DTM-20K-TUS$ 1500 - 8000MOQ: 1 Set
-
SHANGHAI DONSUN Pneumatic Spot-protection Welding Machine DTN-25/35/50/ 63/75/100/150/200US$ 1500 - 8000MOQ: 1 Set
-
SHANGHAI DONUN Electronic Pulse Spot Welding Machine JDM-3/5/10/16/25US$ 1500 - 8000MOQ: 1 Set
-
SHAGHAI DONSUN MANUAL Pneumatic Butt Welding Machine UN-16Q/25Q/35Q/50Q/63QUS$ 1500 - 8000MOQ: 1 Set
Type
Universal
Style
Portable
Electric Current
DC Shock Wave
Cooling Way
Water Cooling
Electrode Stroke
Vertical
Conductive Way
Both-Sided
Welding Spot Number
Multiple
Transmission
Hydraulic
Control
Automatic
Transport Package
wooden case
Specification
customize
Trademark
DONSUN
Origin
China
DNY-5/16/25/50/80/100/150

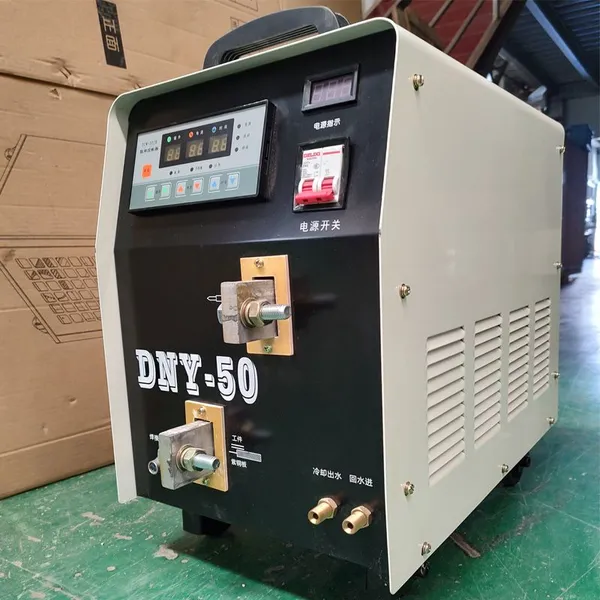

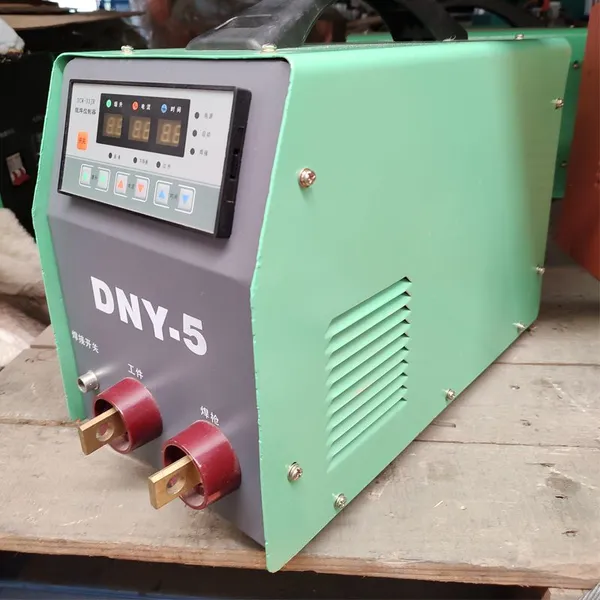

The DNY series mobile handheld spot welding machines are
widely used in industries such as automotive, construction,
machinery, and metal products. They can weld low - carbon steel,
stainless steel, and non - ferrous metals, especially designed for
random spot welding of some heavy and hard - to - move
workpieces. This machine uses high - quality semiconductor
components such as thyristors and integrated circuits to form a
control circuit, enabling precise adjustment and control of the
welding current and time.
| Model | Unit | DNY-5 | DNY-16 | DNY-25 | DNY-50 | DNY-80 | DNY-100 | DNY-150 | |
| Primary voltage | V | 1PH 220 | 1PH 380 | 1PH 380 | 1PH 380 | 1PH 380 | 1PH 380 | 1PH 380 | |
| Rated capacity | KVA | 5 | 16 | 25 | 50 | 80 | 100 | 150 | |
| Duty cycle | % | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| Secondary coil voltage | V | 1.0-4.4 | 2.3-8.8 | 2.8-10 | 4-15 | 3-14 | 3-15.2 | 3-16.4 | |
| current control mode | mm | Microcomputer | Knob or Microcomputer | Knob or Microcomputer | Knob or Microcomputer | Knob or Microcomputer | Knob or Microcomputer | Knob or Microcomputer | |
| Welding thickness | Low carbon steel | mm | 0.5+0.5 | 1+1 | 1.5+1.5 | 2+2 | 2.2+2.2 | 2.5+2.5 | 2.5+2.5 |
| Stainless steel | mm | 0.3+0.3 | 0.5+0.5 | 0.8+0.8 | 1.0+1.0 | 1.1+1.1 | 1.1+1.1 | 1.1+1.1 | |
| Cooling water flow rate | L/min | / | 1.5 | 2 | 2 | 6 | 6 | 6 | |
| Weight | Kg | 35 | 50 | 60 | 85 | 166 | 188 | 210 | |
| Size | mm | 490×220×370 | 490×290×480 | 500×310×560 | 500×310×560 | 810×476×755 | 810×476×755 | 810×476×755 | |
